Small black HDMI splitter box with two output ports

WRIARICH

WRIARICH OZF12-2 HDMI 2.0 Splitter 1x2 4K 60Hz 18Gbps

SKU CH-CB8Q-ABV6G

Distributes one HDMI source to two displays at 3840×2160/60Hz with 18Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version:HDMI 2.0 HDMI resolution:up to 3840x2160P/60Hz
  • Distributes one 4K 60 Hz source to two displays simultaneously
  • 18 Gbps bandwidth carries 3840 x 2160 resolution without loss
  • 30, 36 and 48 bit deep colour for richer gradients
  • DTS-HD, Dolby TrueHD and DSD audio pass-through
  • Four EDID modes ensure reliable handshake with PS4, Xbox and Blu-ray players

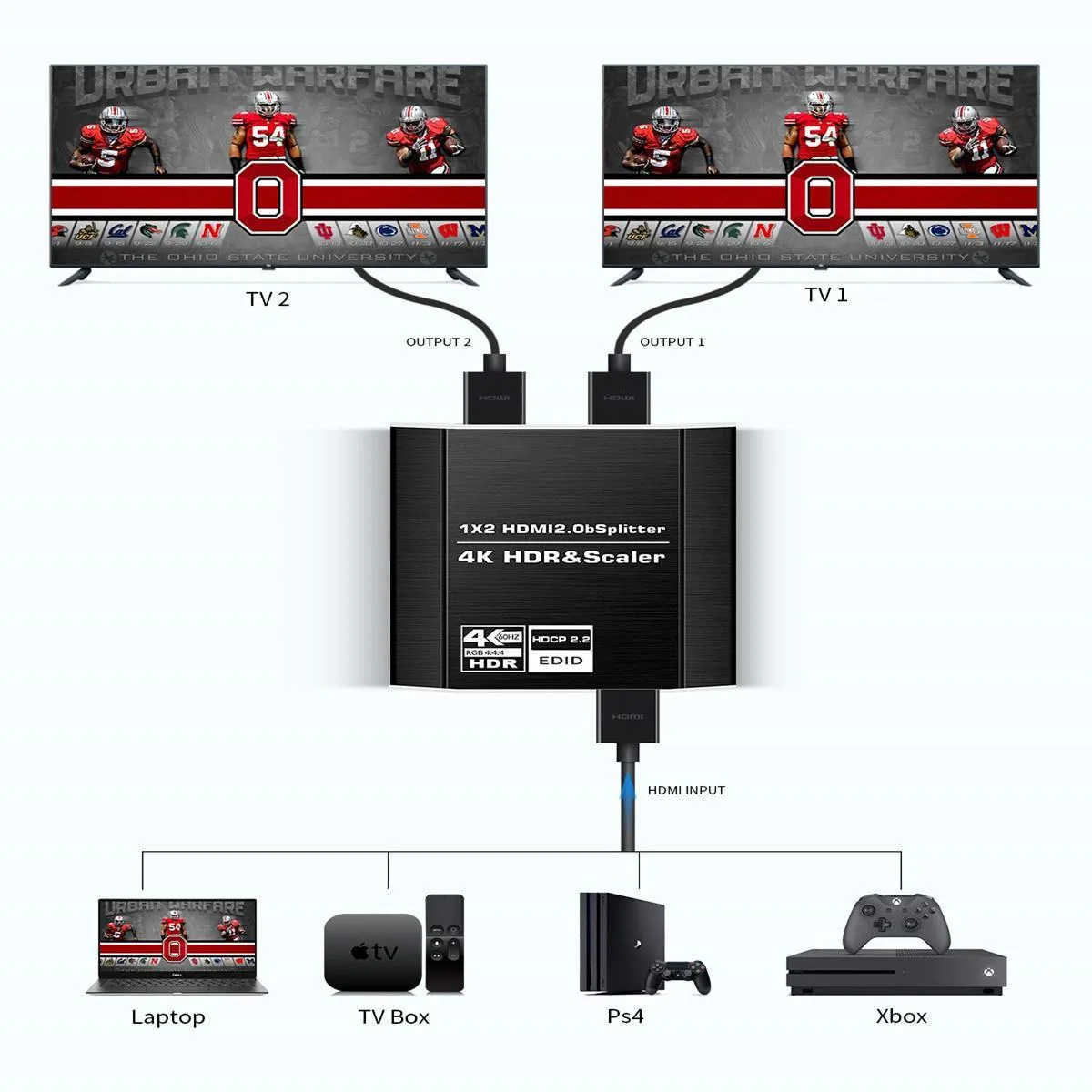

1-to-2 HDMI 2.0 Splitter

The WRIARICH OZF12-2 duplicates a single HDMI 2.0 source across two displays simultaneously. It supports resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth. The unit handles 30, 36 and 48 bit deep colour and passes audio formats including DTS-HD and Dolby TrueHD. An AC power adaptor is included.

Four EDID modes for display matching

The splitter offers four selectable EDID modes to optimise handshake compatibility with connected screens. It suits installers needing reliable 4K 60 Hz duplication for signage, gaming consoles or media players. Users requiring independent content on each output or switching between multiple sources should look at a matrix switch instead.

18 Gbps bandwidth ceiling

Maximum throughput is 18 Gbps, limiting the link to HDMI 2.0 capabilities such as 4K at 60 Hz 4:4:4. Higher refresh rates at 4K or 8K resolutions need a splitter rated for HDMI 2.1 bandwidth. Verify that your source and cables also meet the 18 Gbps specification.

Highlights

  • Distributes one 4K 60 Hz source to two displays simultaneously
  • 18 Gbps bandwidth carries 3840 x 2160 resolution without loss
  • 30, 36 and 48 bit deep colour for richer gradients
  • DTS-HD, Dolby TrueHD and DSD audio pass-through
  • Four EDID modes ensure reliable handshake with PS4, Xbox and Blu-ray players

Specifications

BrandWRIARICH
SeriesOZF12-2
ModelOZF12-2
Part NumberOZF12-2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version:HDMI 2.0
HDMI resolution:up to 3840x2160P/60Hz
Support video color format:30/36/48 bit deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:1536MHz
Max baud rate:18Gbps
Input cable distance:<5m AWG26 HDMI standard cable
Output cable distance:<5m AWG26 HDMI standard cable
Max working current:1200mA
Power Adapter Format:output: DC5V/1A
Dimension :58x49x11mm
Weight:130g
4K HDMI Splitter 1x2 2160P 60HZ HDMI2.
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2: 4k 1x2 HDMI Splitter distributes 1 HDMI source duplicate to 2 different HDMI displays simultaneously. Transfer impressive and high-definition video and audio without loss and delay. (Duplicate input signal only, NOT support Extend)
High-grade Configuration: The 4K HDMI splitter supports HDCP2.2, HDMI2.0b, EDID, 3D, RGB 4:4:4, Ultra HD Max Resolution 3840*2160 4k@60Hz. The most high-grade configuration gives you the most extreme enjoyment. It support doby vision, but it requires your display device support doby vision, too.
Wide Compability: This 4k HDMI splitter 1
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1.1x2 HDMI 2.0 Splitter HDCP 2.2 x1
2.AC Power Adaptor x1
3.User Manual x1

Questions about this item

Should I pick a 1x2 splitter or a larger matrix for two displays?

The OZF12-2 is a 1x2 model that duplicates one source to two screens; choose it when you need identical output on both displays.

What does the 18Gbps rating deliver on a 4K 60Hz screen?

18Gbps bandwidth carries 3840x2160 at 60Hz with 30/36/48-bit deep colour and high-bit-rate audio such as DTS-HD and Dolby TrueHD.

How does the HDMI 2.0b interface limit the signal in practice?

HDMI 2.0b caps the link at 18Gbps, so 4K 60Hz 4:4:4 is the maximum supported resolution and refresh rate.
