Small black HDMI splitter box, one input two outputs

WRIARICH

WRIARICH HDMI698352 1x2 HDMI Splitter 4K@30Hz Black

SKU CH-RTHD-SF14X

Distributes one HDMI source to two displays at up to 4K resolution and 30 Hz

  • TypeHDMI Splitters
  • Changer TypeHDMI splitter
  • Ports2
  • ColorBlack
  • Specifications1.Multi-format input, Support PAL, NTSC3.58, NTSC4.43, SECAM
  • Input Connector1x HDMI female
  • Duplicate one HDMI source to two displays simultaneously
  • Supports 4K at 30 Hz and 1080p at 60 Hz
  • Carries LPCM Dolby-AC3 DTS 7.1 and DSD high-definition audio
  • Accepts PAL NTSC 3.58 NTSC 4.43 SECAM PAL/M PAL/N video formats
  • Transmits up to 100 ft using AWG26 cable with 40 ft input and 60 ft output

Signal Distribution

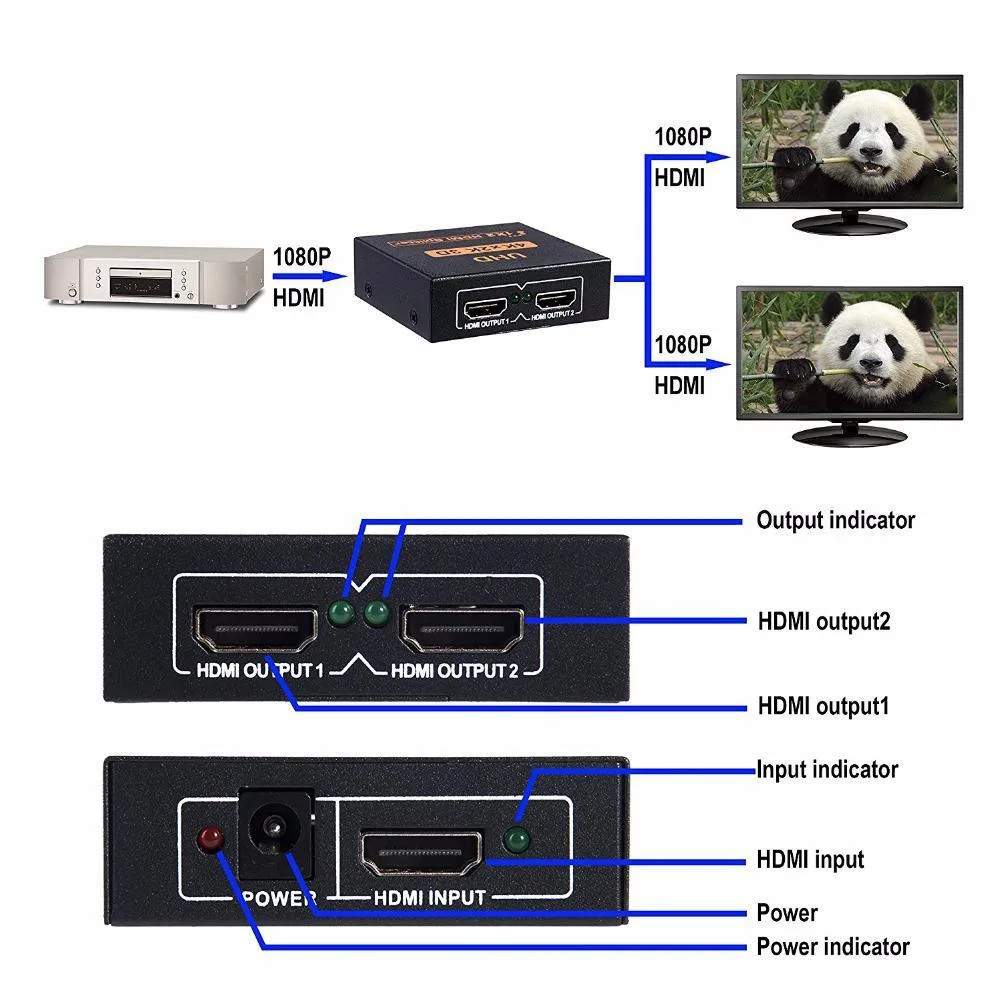

The WRIARICH HDMI698352 splits one HDMI source to two displays simultaneously. It serves installers and home users who need the same 4K@30Hz or 1080p@60Hz image on a monitor and a projector, or on dual TVs in a lobby or classroom. The box accepts PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M and PAL/N input formats without conversion.

Passive Operation

No fan or active cooling is present, so the unit runs silently and draws power only from the included 5V/2A adapter. Typical transmission reaches 100 ft total using AWG26 cable, with 40 ft on the input side and 60 ft on each output. The compact enclosure measures 3.15 x 1.18 x 2.36 inches and weighs 7.8 ounces.

Bundled Essentials

A 5V/2A AC adapter is supplied so the splitter works immediately without hunting for a spare USB port or power brick. The manual covers the 480i, 480p, 720i, 720p, 1080i, 1080p, 3D and 4K@30Hz modes, and notes that 4K@60Hz is not supported. No HDMI cables are included; buyers must provide their own leads.

Highlights

  • Duplicate one HDMI source to two displays simultaneously
  • Supports 4K at 30 Hz and 1080p at 60 Hz
  • Carries LPCM Dolby-AC3 DTS 7.1 and DSD high-definition audio
  • Accepts PAL NTSC 3.58 NTSC 4.43 SECAM PAL/M PAL/N video formats
  • Transmits up to 100 ft using AWG26 cable with 40 ft input and 60 ft output

Specifications

BrandWRIARICH
SeriesHDMI698352
ModelHDMI698352
Part NumberHDMI698352
TypeHDMI Splitters
Changer TypeHDMI splitter
Ports2
ColorBlack
Specifications1.Multi-format input, Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
2.Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio.
3.One Input ports: Supports with computer, XBox 360, XBox one, PS3, PS4 Pro, Fire Stick, Blu-Ray DVD player,
Satellite Receiver, Route Roku, Chromecast, PC, Projectors etc.
4.4 Output ports: Supports with HD-Ready, Full HsD TVs, monitors etc
5.Output Video: HDMI+HDCP1.0/1.1/1.2/1.2a/1.3/1.4
6.Input Video Signal: 0.5 ~ 1.0 volts p-p ;Input DDC Signal: 5 volts p-p
Input Connector1x HDMI female
Output Connector4x HDMI female
Maximum Resolutions3840 x 2160
Features1x2 Hdmi Splitter: This Hdmi splitter 1 input 2 output duplicate 1 HDMI input signal to 2 identical HDMI output signals, transmit video and audio simultaneously without any quality loss. NOT hdmi switch 2 input 1 output, can't switch 2 signal source on one display.
High Compability: 2 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@30Hz, deep color 408i/576i/576p/720p/1080i/1080P, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of both output devices is the
Dimensions3.15 x 1.18 x 2.36 inches
Weight7.8 ounces
Package Contents2 output ports hdmi splitter box X1
5V/2A AC adapter X1
User manual X1

Questions about this item

How do I install the HDMI698352 splitter and which step is often missed?

Connect the 5V/2A AC adapter to the splitter first, then plug one source into the single HDMI input and up to two displays into the two HDMI outputs; the step people skip is powering the unit before connecting the video cables.

What maintenance or replacement will the HDMI698352 need over time?

The external 5V/2A power adapter is the only part likely to wear out; keep the vents clear of dust and replace the adapter with an equivalent 5V/2A unit if the splitter loses signal or fails to power on.

What limit appears first when the HDMI698352 runs continuously at 4K?

The chipset caps the 3840x2160 signal at 30 Hz, so sustained 4K playback cannot exceed 30 frames per second; 1080p at 60 Hz remains available if a higher refresh rate is needed.
