Small white aluminium box, 3.2 by 2.6 by .8 inches, HDMI ARC adapter with optical coaxial 3.5mm and L R ports

WRIARICH

WRIARICH HDMI ARC Adapter AV-162-BK audio adapter

SKU CH-YS5F-VBNF9

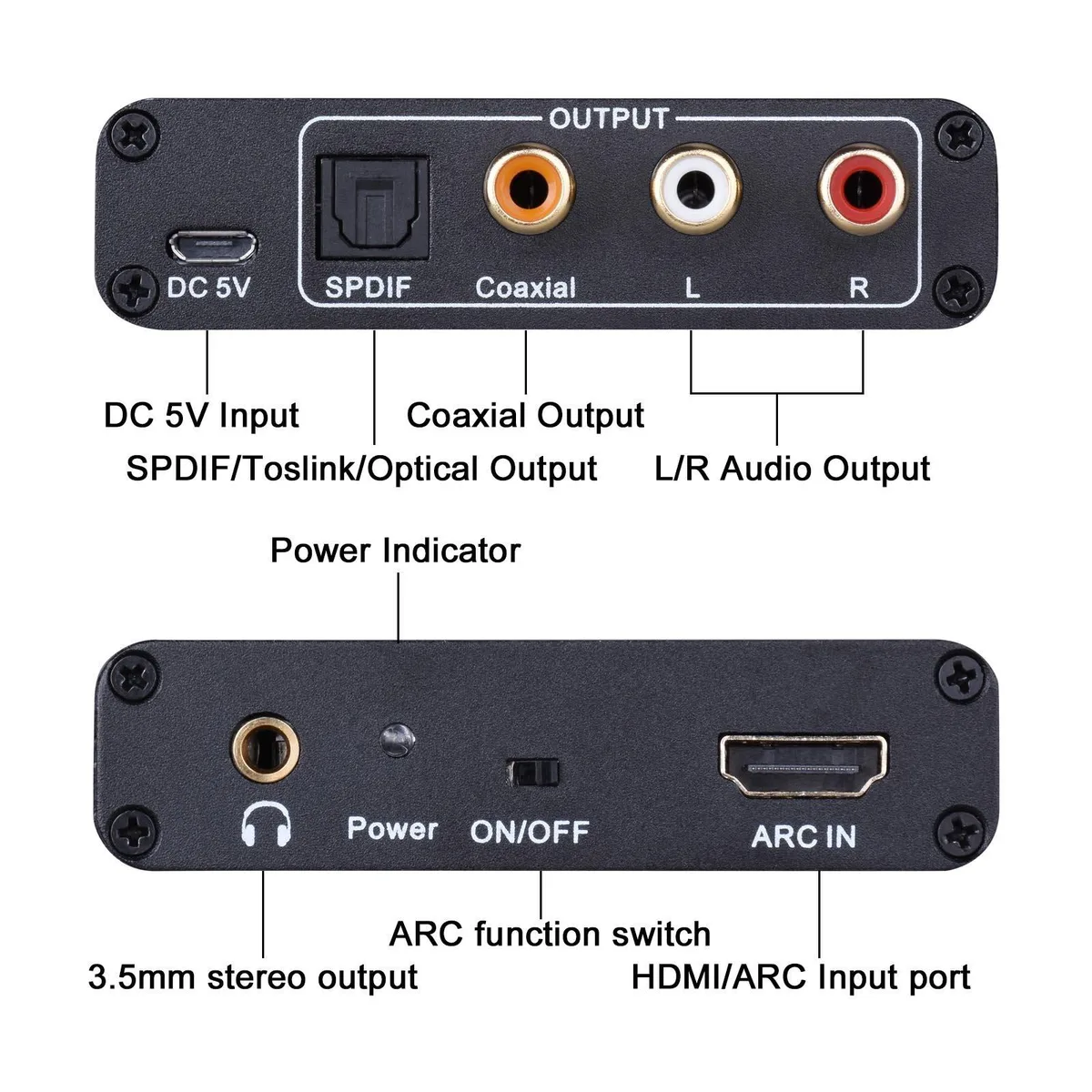

Extracts TV audio via ARC to optical, coaxial, 3.5 mm and stereo RCA outputs simultaneously at up to 192 kHz, 24-bit PCM

  • ColorWhite
  • SpecificationsCoaxial, HDMI, 3.2 L x 2.6 W x 0.8 H inches, 3 ounces, 4, 5
  • Connector ACoaxial
  • Cable Jakcet TypeAluminum
  • Connector StyleMale
  • Dimensions14.33in W x 12.83in H x 9.06in D
  • Extracts TV audio to soundbar via HDMI ARC connection
  • Supports 192 kHz sampling rate with 24-bit S/PDIF bit stream
  • Outputs simultaneously to optical, coaxial, 3.5 mm and L/R stereo
  • Plug-and-play with HDMI 1.4 cable on ARC-enabled devices

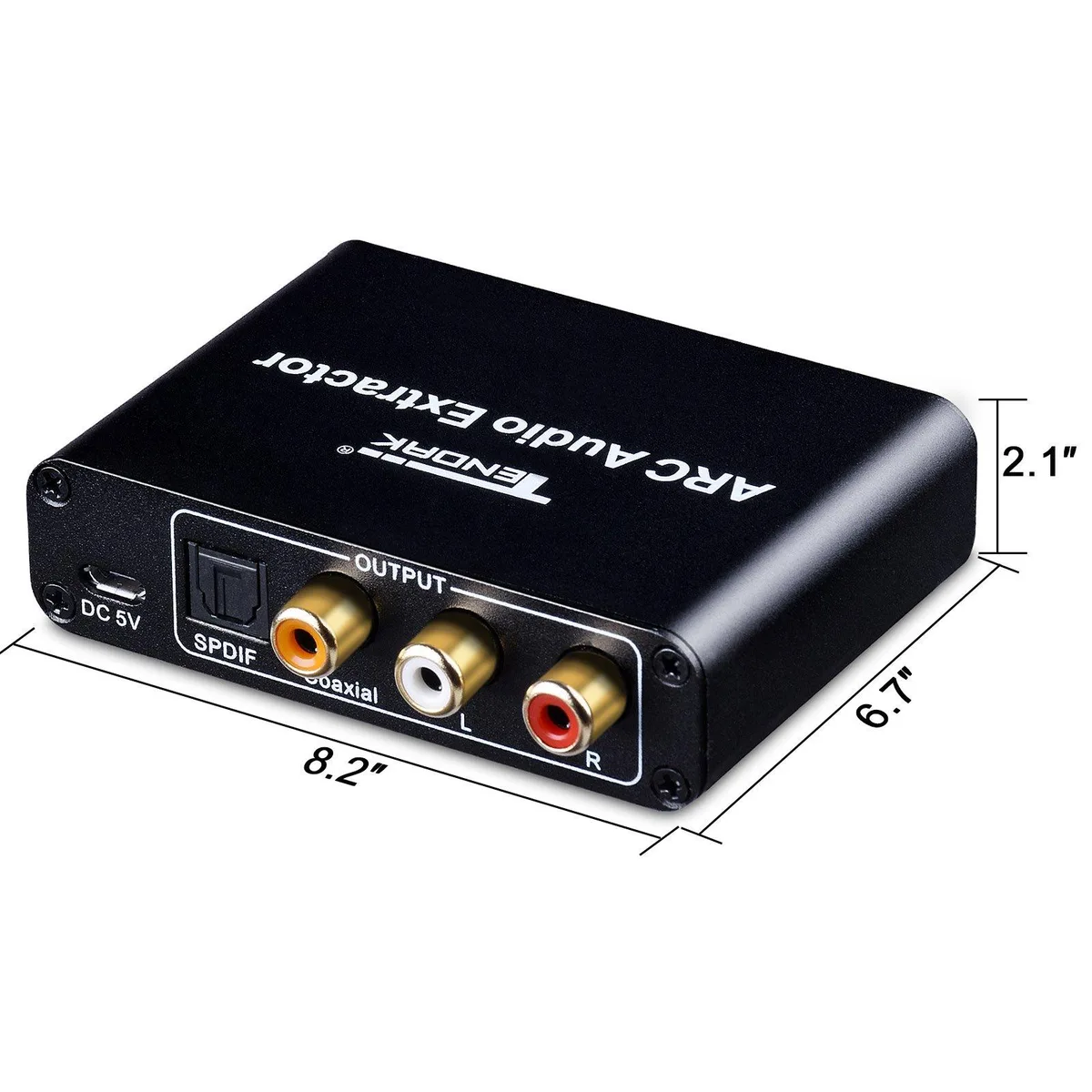

  • Compact aluminum adapter measuring 3.2 x 2.6 x .8 inches

HDMI ARC Audio Extractor

The WRIARICH HDMI ARC Adapter extracts audio from a television ARC port and converts it to optical, coaxial, 3.5mm or stereo L/R outputs for connection to a soundbar, amplifier or home theatre system. It is designed for users whose TV lacks direct analogue or digital audio outputs but supports Audio Return Channel functionality.

Thermals Noise and Power

The compact aluminium unit draws power from an included USB supply cable operating at 5 volts and produces no audible fan noise during normal use. Passive cooling is sufficient for the low-power conversion circuitry, so the adapter runs silently in a living-room or bedroom installation without adding heat to the equipment cabinet.

192 KHz PCM Only

The extractor supports sampling rates of 32, 44.1, 48, 96 and 192 KHz with 24-bit depth on left and right channels but does not decode Dolby AC3, Dolby Digital Plus or other bitstream formats. The source device must be set to PCM or LPCM output before use, otherwise no audio will pass through the adapter.

Highlights

  • Extracts TV audio to soundbar via HDMI ARC connection
  • Supports 192 kHz sampling rate with 24-bit S/PDIF bit stream
  • Outputs simultaneously to optical, coaxial, 3.5 mm and L/R stereo
  • Plug-and-play with HDMI 1.4 cable on ARC-enabled devices
  • Compact aluminum adapter measuring 3.2 x 2.6 x .8 inches

Specifications

BrandRCA
Series4336299247 / AV-162-BK
Model4336299247
Part NumberAV-162-BK
ColorWhite
SpecificationsCoaxial, HDMI, 3.2 L x 2.6 W x 0.8 H inches, 3 ounces, 4, 5 volts, Cable Mount, Aluminum, HDMI ARC Audio Extractor, 4336299247, AV-162-BK
Connector ACoaxial
Cable Jakcet TypeAluminum
Connector StyleMale
Dimensions14.33in W x 12.83in H x 9.06in D
Weight3 ounces
Package Quantity1
Disclaimer1 Year Warranty, not_applicable

Questions about this item

How do I install the HDMI ARC adapter and what step do people often miss?

Connect the TV HDMI ARC port to the adapter HDMI output using an HDMI 1.4 cable, then run optical, coaxial, 3.5 mm or L/R cables to the soundbar; the step many miss is setting the TV audio output to PCM or LPCM and enabling ARC in the TV menu.

What maintenance or replacement will the adapter need later?

The unit has no moving parts or user-serviceable components; only the external HDMI 1.4 cable or the USB power lead may need replacement if they become damaged.

What limit appears first during sustained use?

The adapter passes audio at up to 192 kHz and 24-bit, but it cannot decode Dolby AC3 or Dolby Digital Plus, so the first limit is the requirement to keep the source in PCM or LPCM format.
