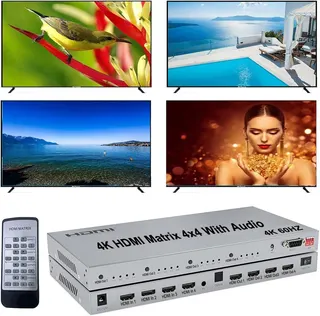

Silver rectangular 4x4 HDMI matrix switch with front-panel buttons and rear HDMI ports

WRIARICH

WRIARICH 4x4 HDMI Matrix Switch 4K 60Hz 18Gbps Silver

SKU CH-MT61-6G72G

A 4x4 HDMI matrix routes four 4K 60 Hz sources to four displays with HDR, 3D and 18 Gbps bandwidth

  • TypeHDMI Switchers
  • ColorSilver
  • Ports4
  • MatrixYes
  • AudioYes
  • Input Connector4x HDMI
  • Route four 4K sources to four displays independently
  • 18 Gbps bandwidth delivers 4K 60 Hz HDR without compression
  • Optical and 3.5 mm outputs extract multichannel audio from any HDMI input
  • EDID learning and presets keep every source at its native resolution

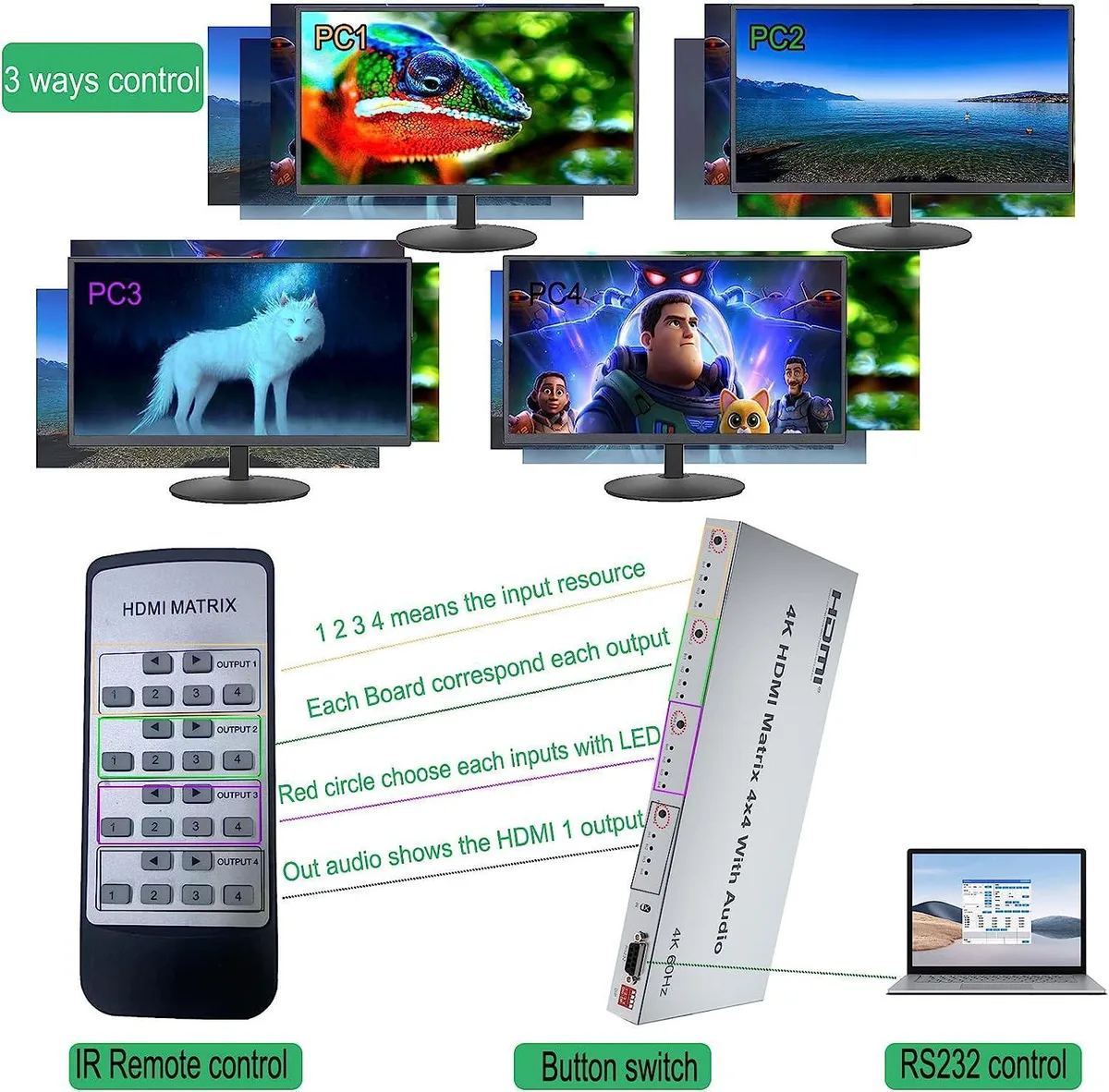

  • IR remote, front buttons and RS-232 give three ways to control the matrix

4x4 HDMI Matrix Switch

The WRIARICH 4x4 HDMI matrix routes four HDMI sources to four independent displays with full 4K 60 Hz support. It suits installers, AV integrators and multi-screen workstations that need flexible, simultaneous routing. Control is handled by IR remote, front-panel buttons or RS-232 commands. The unit ships with a 12 V power supply and manual.

18 Gbps HDMI 2.0 bandwidth

The single specification that decides fit is the 18 Gbps HDMI 2.0 data path with HDCP 2.2 compliance. It carries 3840x2160 at 60 Hz, 4:4:4 chroma, HDR, 3D and deep colour up to 24-bit without compression. Sources or sinks limited to HDMI 1.4 or lower bandwidth will not pass full 4K 60 Hz 4:4:4 through this matrix.

Four outputs with mirrored fallback

Each of the four outputs can show any input independently, while outputs two, three and four can also mirror output one for simplified distribution. Audio is de-embedded to optical and 3.5 mm analogue jacks, supporting 7.1-channel formats including Dolby TrueHD and DTS-HD. Cable runs are rated to 5 metres at full bandwidth; longer runs require active fibre or equalisers not included. EDID can be learned from connected displays or selected from internal presets to stabilise handshake.

Highlights

  • Route four 4K sources to four displays independently
  • 18 Gbps bandwidth delivers 4K 60 Hz HDR without compression
  • Optical and 3.5 mm outputs extract multichannel audio from any HDMI input
  • EDID learning and presets keep every source at its native resolution
  • IR remote, front buttons and RS-232 give three ways to control the matrix

Specifications

TypeHDMI Switchers
ColorSilver
Ports4
MatrixYes
AudioYes
Input Connector4x HDMI
Output Connector4x HDMI
Maximum Cable Length5M
Maximum Resolutions3840x2160
Features?HDMI Video Resolution ?3840x2160 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4, YUV 4:4:4. Support 18Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24bit
?Audio Split& EDID?With out audio, Supports Dolby TrueHD, DTS-HD, 7.1ch digital and other HDMI audio formats, EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.
Dimensions10.86 x 5.6 x 1 inches
Weight720g
Package Quantity1
Package Contents1xswitch device, 1x12V charger, 1xuser manual, 1xIR remoter

Questions about this item

What does 18 Gbps mean for my 4K 60 Hz sources?

The 18 Gbps bandwidth carries 4K at 60 Hz with full 4:4:4 chroma, HDR and 12-bit deep colour without compression.

Which HDMI version and HDCP level does the matrix implement?

It follows HDMI 2.0 and enforces HDCP 2.2, so protected 4K streams from a PS4 Pro, Xbox or streaming box pass through all four outputs.

How much rack or shelf space does the silver chassis need?

The unit measures 10.86 x 5.6 x 1 inches and weighs 720 g, so it fits on a standard shelf or in a shallow rack tray with room for the 12 V power adapter.
