Black 12VHPWR 12+4 pin 180° straight power adapter with metal connectors and aluminium heatsink

WRIARICH

WRIARICH 12VHPWR 12+4 Pin 180° STD Power Adapter

SKU CH-MDST-DHGQN

12+4 pin angled power adapter with strengthened PCB and alloy copper terminals supports 600W output for graphics cards requiring 180-degree STD connection

  • Type9 V
  • Changer TypeUSB C Charger
  • Specifications12VHPWR 12+4 Pin, 1, type_a_2pin_na, PC
  • Connector A12VHPWR 12+4 Pin
  • Connector B12VHPWR 12+4 Pin
  • Connector PlatingMetallic
  • Strengthened PCB design ensures full terminal contact and eliminates thermal risk from tight bends
  • Solves side-panel clearance issues when space exceeds 26 mm between panel and graphics card
  • Alloy copper terminals deliver stable 600 W high-current performance over long-term use
  • Aluminium heat sink with ventilation holes maintains optimal heat dissipation at full load
  • 180-degree STD orientation suits compact builds with limited internal space

180° STD 12VHPWR adapter

This 12+4 pin adapter connects directly between the power supply cable and the graphics card using a 180-degree STD orientation. The strengthened PCB design enables an angled connection without wire bending, ensuring full terminal contact. A 600W high-current rating is supported by an aluminium heat sink and ventilation holes.

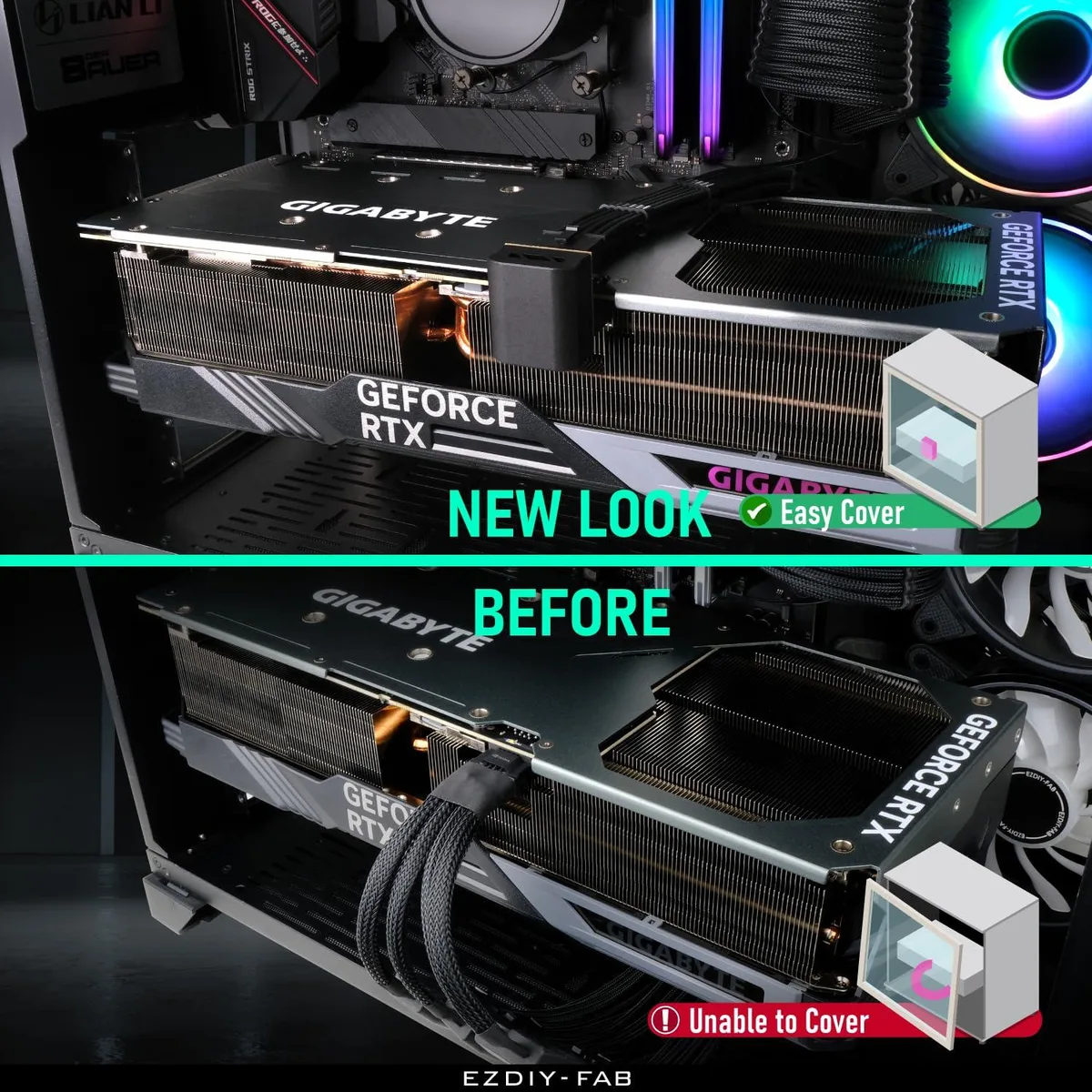

Builders with tight side-panel clearance

The 180-degree angle suits cases where the side panel sits close to the card, provided at least 26 mm of space exists between the side plate and the graphics card. Builders who prefer a 90-degree cable exit or need the RVS connector direction should select the alternative version.

180-degree STD connector direction

This adapter uses a 180-degree STD pin orientation; the matching RVS variant is not compatible with the same card layout. Verify the required direction against your graphics card before purchasing.

Highlights

  • Strengthened PCB design ensures full terminal contact and eliminates thermal risk from tight bends
  • Solves side-panel clearance issues when space exceeds 26 mm between panel and graphics card
  • Alloy copper terminals deliver stable 600 W high-current performance over long-term use
  • Aluminium heat sink with ventilation holes maintains optimal heat dissipation at full load
  • 180-degree STD orientation suits compact builds with limited internal space

Specifications

BrandDell
SeriesEZDPI189-8
ModelEZDPI189-8
Part NumberEZDPI189-8
Type9 V
Changer TypeUSB C Charger
Specifications12VHPWR 12+4 Pin, 1, type_a_2pin_na, PC
Connector A12VHPWR 12+4 Pin
Connector B12VHPWR 12+4 Pin
Connector PlatingMetallic
Connector StyleMale
Features12VHPWR 12+4 Pin, 1, type_a_2pin_na, PC
Weight0.06 kilograms
Package Quantity1
Package Contents1 Count
Disclaimernot_applicable

Questions about this item

Does the 180-degree STD adapter stay cool when delivering 600W continuously?

Yes, an aluminium heat sink and ventilation holes are built in to dissipate heat during sustained 600W operation.

What must the system already have for this adapter to connect?

A power supply with a native 12VHPWR 12+4 pin output and a graphics card with a matching 12VHPWR 12+4 pin input.

Will the 180-degree STD orientation fit if the side panel sits 26mm from the card?

The design requires more than 26mm clearance between the side plate and the graphics card for the panel to close.
