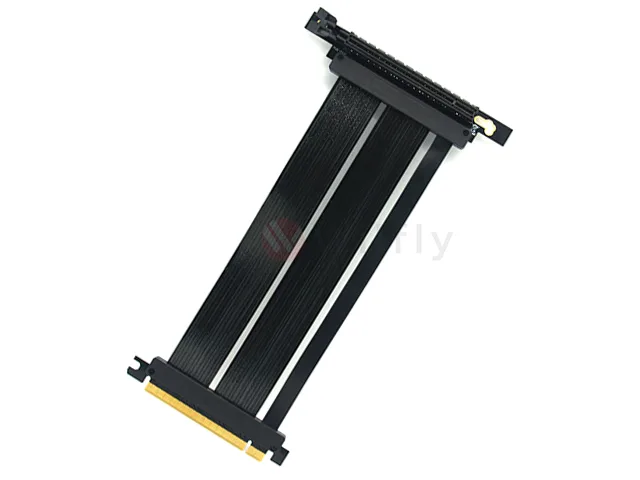

Black 200 mm PCIe 4.0 x16 riser cable with left-angled 90-degree female connector and straight male end

Wilfly

Wilfly PCIe 4.0 x16 Riser Cable 200mm Left Angled

SKU CH-ECSH-GBC0Q

A 200 mm PCIe 4.0 x16 riser with a 90-degree left-angled female connector for vertical GPU mounting

  • TypeInternal Power Cables
  • ColorBlack
  • Cable Length7.87in/200mm
  • Connector A1 x PCI Express 4.0 x16 Female 90-Degree Left Angled (to Add
  • Connector B1 x PCI Express 4.0 x16 Male (to M/B PCIe Slot)
  • Connector Number2
  • Left-angled 90-degree connector enables tight vertical GPU mounting
  • 200mm length with flexible EMI shielding supports clean signal integrity
  • PCIe 4.0 x16 female-to-male design delivers full 16-lane bandwidth
  • Rigid PCB with standoffs provides secure mechanical stability
  • High-quality shielded construction minimises performance degradation over distance

200 mm PCIe 4.0 x16 riser cable

This 200 mm extender connects a graphics card to the motherboard slot while allowing vertical or offset mounting. The left-angled 90-degree female connector reduces strain on the card’s PCB in tight builds. EMI shielding and a rigid PCB with standoffs help preserve signal integrity at 4.0 speeds. It suits enthusiasts who need flexible GPU placement inside compact or showcase chassis.

Replaces a direct slot connection

Use this riser when the graphics card cannot sit directly in the top PCIe slot due to case layout, water-block clearance or aesthetic routing. The jump is worth it when vertical mounting improves airflow or display visibility and the 200 mm length reaches the chosen bracket position. Builders who can install the card natively in the primary slot gain no benefit from adding the extender.

Handles PCIe 4.0 x16 bandwidth

The cable supports the full 4.0 x16 link rated at 16 GT/s per lane, providing headroom for current high-end GPUs and 16 GB VRAM buffers. At 200 mm the shielded design keeps signal degradation low enough for stable operation. Runs out when the required routing distance exceeds 200 mm or when a right-angled connector orientation is needed instead of the left-angled variant.

Highlights

  • Left-angled 90-degree connector enables tight vertical GPU mounting
  • 200mm length with flexible EMI shielding supports clean signal integrity
  • PCIe 4.0 x16 female-to-male design delivers full 16-lane bandwidth
  • Rigid PCB with standoffs provides secure mechanical stability
  • High-quality shielded construction minimises performance degradation over distance

Specifications

TypeInternal Power Cables
ColorBlack
Cable Length7.87in/200mm
Connector A1 x PCI Express 4.0 x16 Female 90-Degree Left Angled (to Add-in PCIe Card)
Connector B1 x PCI Express 4.0 x16 Male (to M/B PCIe Slot)
Connector Number2

Questions about this item

How much clearance does the 90-degree left-angled connector need behind the graphics card?

The left-angled female connector adds about 20 mm of depth behind the card, so allow at least that much space between the card backplate and the side panel.

Which end plugs into the motherboard slot first when installing the 200 mm riser?

Insert the straight male connector into the motherboard PCIe x16 slot, then connect the left-angled female end to the graphics card, securing the rigid PCB standoffs to the case.

Does the EMI-shielded 200 mm cable require any periodic maintenance or replacement?

No scheduled maintenance is needed; the shielded flexible cable and rigid PCB are rated for the life of the build unless physical damage occurs.
