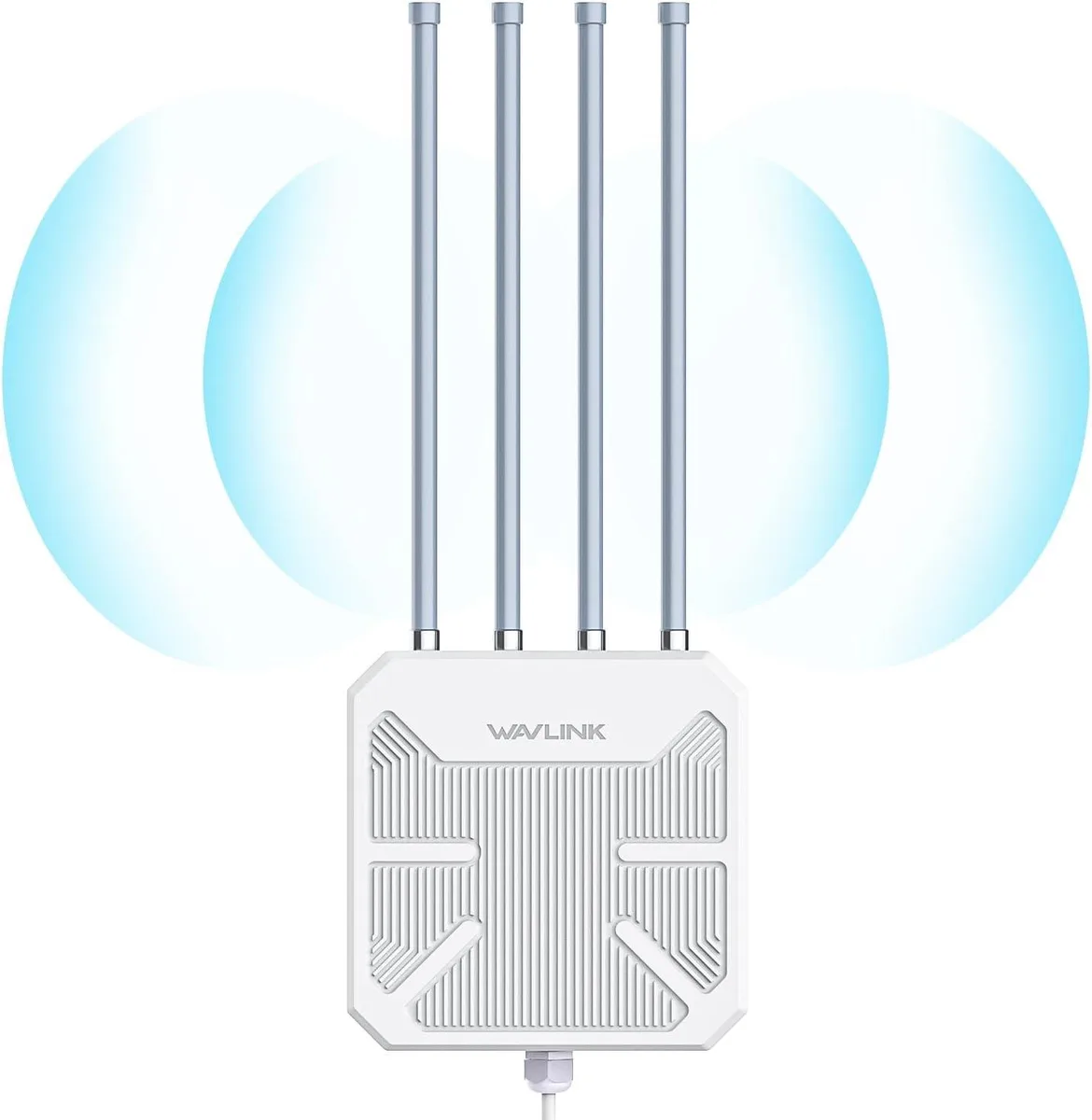

White rectangular outdoor WiFi 6 extender with four tall fiberglass antennas and IP67 enclosure

Wavlink

Wavlink WL-WN573HX1 wireless range extender

SKU CH-1CNC-VHFQ0 MPN WL-WN573HX1

Weatherproof IP67 outdoor WiFi 6 range extender with PoE, four 8 dBi antennas and dual-band speeds up to 1.2 Gbps

  • StandardsIEEE 802.11ax
  • Frequency Band2.4 GHz / 5.0 GHz
  • Wireless Data RatesUp to 1.2Gbps
  • SecurityWPA, WPA2
  • WPA/WPA2WPA2
  • Antenna2 x 8dBi 2.4GHz antennas 2 x 8dBi 5GHz antennas Omni Directi

Class AX1800

Wireless Speed ax1800

  • Weatherproof IP67 enclosure withstands rain snow and extreme temperatures
  • WiFi 6 dual-band AX1800 speed reaches 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz
  • PoE support allows single-cable power and data up to 100 metres
  • Four 8 dBi fiberglass antennas extend coverage up to 300 metre radius
  • MU-MIMO and OFDMA serve up to 128 devices simultaneously

Outdoor WiFi 6 extender

The Wavlink WL-WN573HX1 is a weatherproof wireless range extender and media bridge built for outdoor deployment. It operates on 2.4 GHz and 5.0 GHz bands using IEEE 802.11ax technology to extend existing networks or create new access points. The unit suits installers who need reliable coverage across gardens, yards or remote outbuildings without running mains power to the device location.

PoE power and four high-gain antennas

A single 10/100/1000 Mbps Ethernet port accepts 802.3 AF/AT active PoE or passive PoE so data and power share one cable run up to 100 metres. Four 8 dBi omnidirectional fiberglass antennas ship in the box and mount on the included holder with cable ties and screws. The hardware supports AP, repeater, mesh router and mesh extender modes plus MU-MIMO and OFDMA for up to 128 simultaneous clients.

IP67 enclosure rated for extremes

The sealed chassis carries an IP67 rating plus 15 kV ESD and 6 kV lightning protection and operates from -20 °C to 70 °C. One SYS LED and a reset/pair button sit on the housing for status checks and quick reconfiguration. Buyers who need an indoor plug-in repeater or a unit with multiple Ethernet ports for wired backhaul should consider other form factors.

Highlights

  • Weatherproof IP67 enclosure withstands rain snow and extreme temperatures
  • WiFi 6 dual-band AX1800 speed reaches 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz
  • PoE support allows single-cable power and data up to 100 metres
  • Four 8 dBi fiberglass antennas extend coverage up to 300 metre radius
  • MU-MIMO and OFDMA serve up to 128 devices simultaneously

Specifications

BrandWavlink
Model573HX1
StandardsIEEE 802.11ax
Frequency Band2.4 GHz / 5.0 GHz
Wireless Data RatesUp to 1.2Gbps
SecurityWPA, WPA2
WPA/WPA2WPA2
Antenna2 x 8dBi 2.4GHz antennas
2 x 8dBi 5GHz antennas
Omni Directional Antennas
Operating ModeAP; Repeater; Mesh Router; Mesh Extender Modes
InterfaceEthernet Port
Ports1 x 10/100/1000Mbps WAN/LAN PORT (POE)
LED1 x SYS
ButtonReset/Pair Button
FeaturesSupports 1024-QAM for much faster wireless connections.
Supports MU-MIMO & OFDMA technique to simultaneously communicate with multiple devices in a very effective way. - Multiple PoE Options for Easy Installation: Supports both 802.3af/at active PoE and passive PoE power supply, making installation effortless and flexible.
Four 8dBi omni-directional detachable antennas greatly strengthen signals. The glass tube antenna is meant for high precision, corrosion resistance, long life, strong wind resistance.
The durable, weatherproof IP67 enclosure protects the access point against harsh
Operating Temperature-20°C to 70°C (-4°F to 158°F)
Package Contents1x WiFi 6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
1x Main Body Holder
4 X Cable Ties
1 x Quick Start Guide
Several Screws

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do the four 8dBi fiberglass antennas need periodic replacement?

The four 8dBi omnidirectional fiberglass tube antennas are built for long service life and are designed to withstand strong wind and corrosion without scheduled replacement.

What limits throughput when the extender runs at full 1.2Gbps dual-band load?

The single 10/100/1000Mbps PoE port caps wired backhaul at 1000Mbps, so sustained aggregate wireless traffic above that rate will hit the Ethernet bottleneck first.

How hot does the IP67 enclosure get during all-day outdoor operation?

The unit is rated for continuous operation from -20°C to 70°C (-4°F to 158°F), so the sealed enclosure dissipates heat within that range without active cooling.
