White rectangular outdoor Wi-Fi extender with two vertical antennas and IP67 housing

Wavlink

Wavlink WL-WN570HA2 AC1200 wireless range extender

SKU CH-SJZG-ZG0AD MPN WL-WN570HA2

Outdoor IP67 dual-band extender delivers 1200 Mbps over 2.4 and 5.0 GHz with PoE power and two 7 dBi antennas

  • StandardsIEEE 802.11ac, IEEE 802.11a/b/g/n
  • Frequency Band2.4 GHz / 5.0 GHz
  • Wireless Data RatesUp to 1200Mbps
  • SecurityWPA-PSK/ WPA2-PSK encryption
  • WPA/WPA2WPA2
  • Antenna2 x 7dBi Omni Directional Antennas

Class AC1200 10/100

Wireless Speed AC1200

  • Weatherproof IP67 housing survives -10°C to 50°C outdoors
  • Passive and active PoE support runs power through a single RJ-45 cable
  • Four operating modes cover repeater, AP, router and AP+Repeater needs
  • Dual-band AC1200 delivers 300Mbps on 2.4GHz and 867Mbps on 5GHz

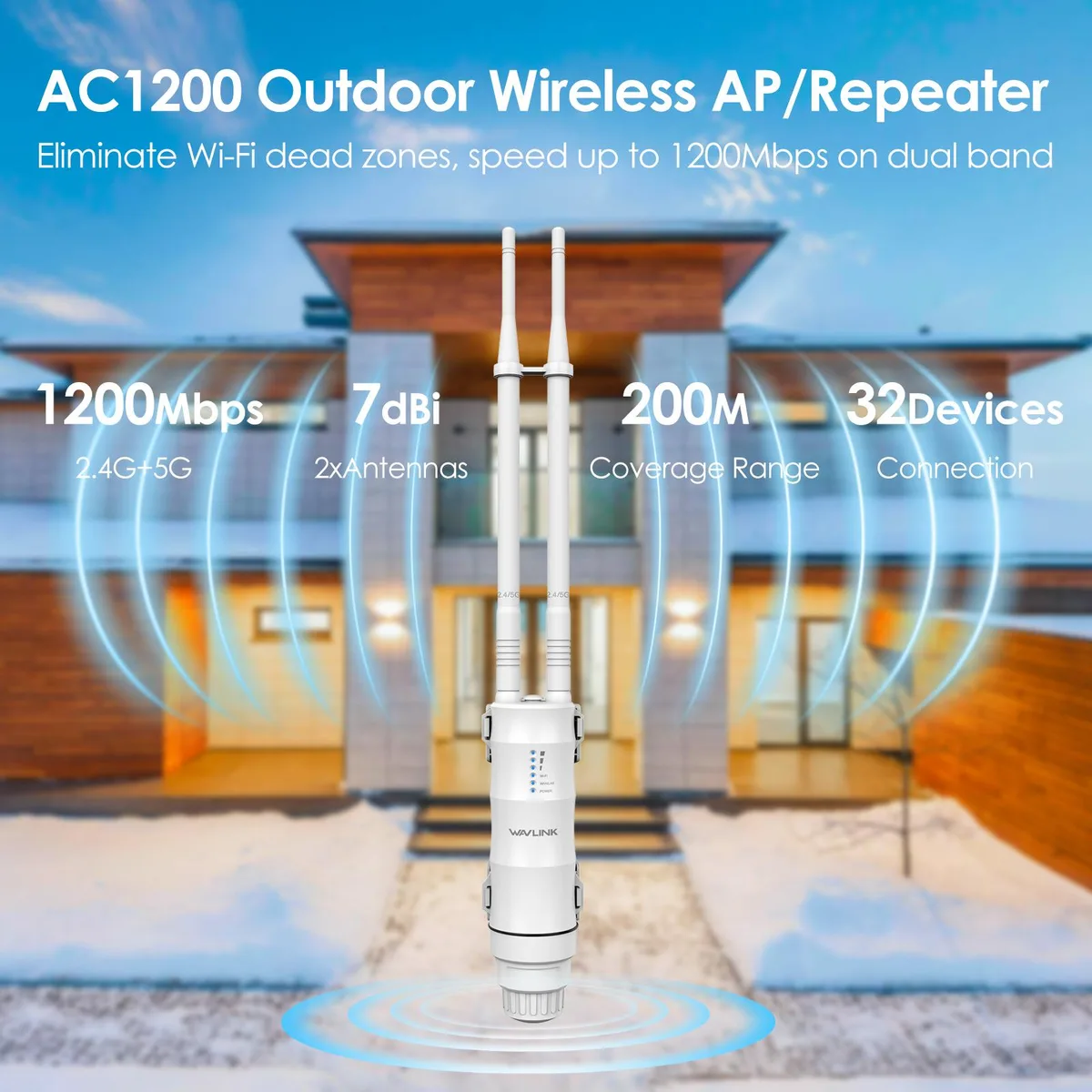

  • Two 7dBi antennas extend coverage up to 200 metres for 32 devices

Outdoor Wi-Fi Extender for Large Areas

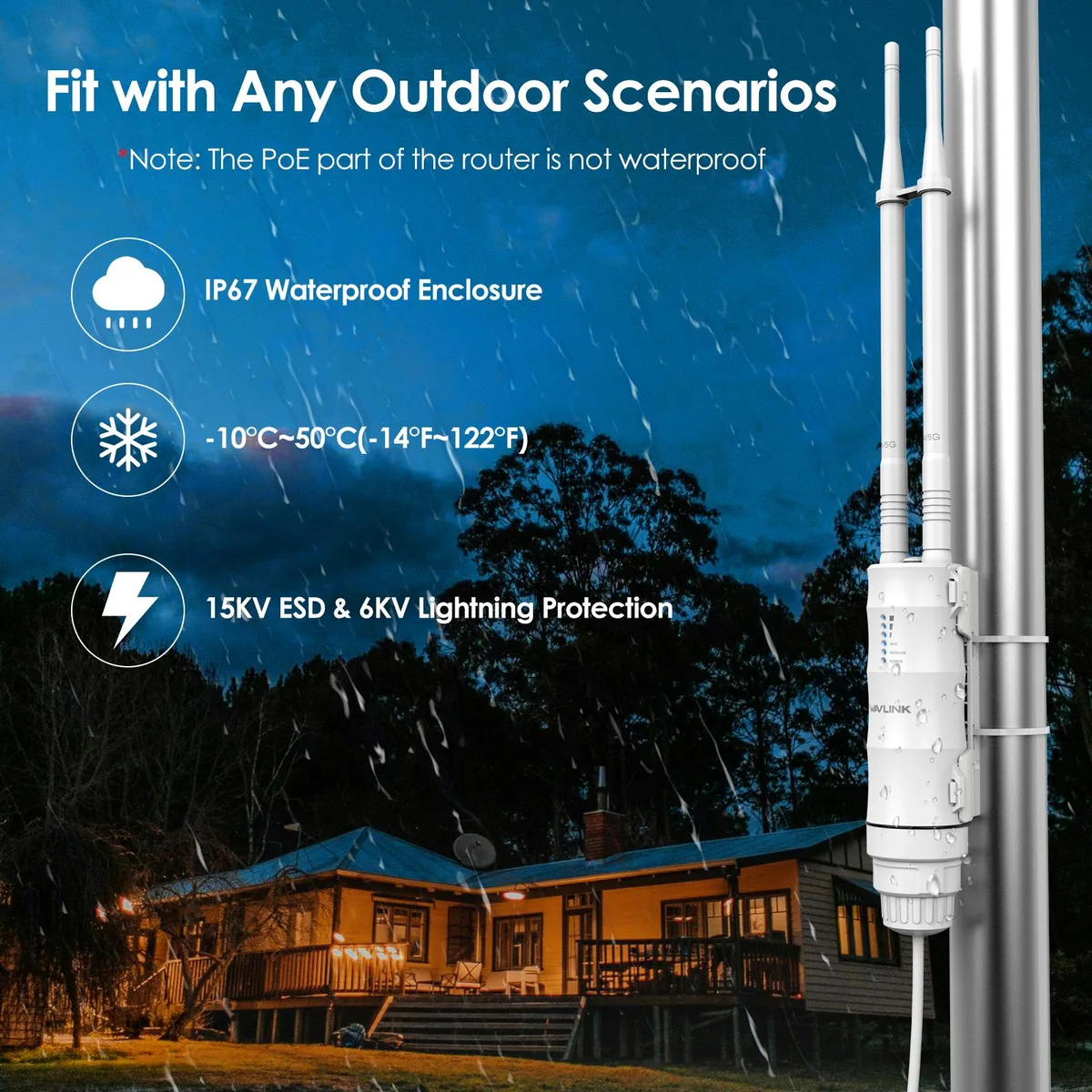

The Wavlink WL-WN570HA2 is an AC1200 dual-band wireless range extender built for outdoor deployment. It operates on 2.4 GHz and 5.0 GHz frequencies with two 7dBi omni-directional antennas. The IP67-rated enclosure withstands temperatures from -10°C to 50°C and includes 15KV ESD plus 6KV lightning protection. Power over Ethernet allows installation up to 100 metres from a power source.

Suits Installers Needing Weatherproof Coverage

This unit suits installers who need to extend Wi-Fi across yards, streets or campuses without running mains power to the device. It supports repeater, access point, router and AP+repeater modes for flexible topology. Buyers who require gigabit wired backhaul should look elsewhere because the single Ethernet port is limited to 100Mbps. Those needing indoor-only plug-in extenders will find the mounting hardware unnecessary.

Sustained Throughput in Harsh Conditions

Under continuous load the extender delivers up to 300Mbps on the 2.4 GHz band and 867Mbps on the 5 GHz band across a claimed 200-metre radius. The passive PoE design keeps the converter indoors while the radio stays outside, so heat dissipation relies on the sealed chassis rather than active cooling. Automatic channel selection reduces co-channel interference during prolonged operation. The hardware supports up to 32 concurrent client connections.

Highlights

  • Weatherproof IP67 housing survives -10°C to 50°C outdoors
  • Passive and active PoE support runs power through a single RJ-45 cable
  • Four operating modes cover repeater, AP, router and AP+Repeater needs
  • Dual-band AC1200 delivers 300Mbps on 2.4GHz and 867Mbps on 5GHz
  • Two 7dBi antennas extend coverage up to 200 metres for 32 devices

Specifications

BrandWavlink
Model570HA2
Part Number1 x WAN/LAN 100Mbps
StandardsIEEE 802.11ac, IEEE 802.11a/b/g/n
Frequency Band2.4 GHz / 5.0 GHz
Wireless Data RatesUp to 1200Mbps
SecurityWPA-PSK/ WPA2-PSK encryption
WPA/WPA2WPA2
Antenna2 x 7dBi Omni Directional Antennas
Operating ModeOperation modes: Repeater, AP, router, AP+Repeater
InterfaceEthernet Port
Ports1 x 10/100Mbps WAN/LAN
LED1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
Button1 x Reset (8s)
PowerDC24V / 0.5A Power over Ethernet ( Passive PoE)
Dimensions7.09" x 1.97" x 1.97"
Features- Complies with IEEE 802.11 a/b/g/n/ac standards.
- Simultaneous Dual Band [email protected] +867Mbps@5GHz.
- Easy installation, flexible placement.
- Supports 802.3AT/AF POE and Passive PoE to supply power.
- Supports Router, AP, Repeater modes.
- Support FIT AP with WAVLINK AC manager.
- Supports 128 bit WPA/WPA2(TKIP AES )
- Features 2 x RP-SMA connectors for external antennas.
- Robust weatherproof enclosure design.
- 15KV ESD and 4KV Lightning Protection.
- Features 6 x status LED indicators.
Package Contents1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What type of Ethernet cable do I need to run from my router to the WL-WN570HA2 for PoE power and data?

Use a CAT5E or higher rated cable no longer than 100 metres or 328 feet; the PoE converter that powers the unit must stay indoors.

Will the extender’s 10/100 Mbps WAN/LAN port slow down traffic from my gigabit router when I wire a desktop to it?

Yes, the single port is limited to 100 Mbps, so any wired device connected through it will be capped at that speed.

After mounting the unit outdoors, which LEDs should be lit to confirm the 2.4 GHz and 5 GHz radios are active and linked?

The Power, WAN/LAN, WiFi and the three Signal LEDs should all be illuminated, showing both bands are up and the link quality.
