Black rectangular USB-C docking station with HDMI, DisplayPort, Ethernet and multiple USB ports

Wavlink

Wavlink WL-UMD05 USB-C Docking Station Triple Display 65W PD

SKU CH-B8ZK-GDH1R

A USB-C dock adds triple 4K display outputs, gigabit Ethernet, three USB 3.0 ports, SD card readers and 65 W laptop charging from a 100 W adapter

  • ColorBlack
  • CompatibilityInstallation Before using this dock, please make sure that t
  • Ports Spec3 x USB3.0 1 x DP 2 x HDMI 1 x USB3.0 BC 1.2 Fast Charging P
  • FeaturesRemarks for Windows based PC/laptops: 1. Before you connect
  • FunctionAttention before purchase 1. The type-c port of your pc shou

Option Triple Monitor - 2xDP/HDMI - Power Delivery

  • Charges laptop up to 65 W with 100 W adapter
  • Triple 4K display via two HDMI and one DisplayPort
  • Gigabit Ethernet up to 1000 Mbps wired speed
  • Three USB 3.0 ports plus BC 1.2 fast-charge port
  • SD and Micro SD slots read cards up to 2 TB

What it is

The Wavlink WL-UMD05 is a USB-C docking station that adds triple-display support and 65W laptop charging through a single upstream cable. It targets professionals who need extra monitors, wired networking and legacy USB-A ports on modern thin-and-light laptops running Windows or macOS.

Who this suits and who should look elsewhere

Ideal for users whose USB-C port carries DisplayPort 1.4 video and USB PD 3.0 power, allowing three external screens at up to 2K 60Hz and simultaneous 65W charging. Not suited for laptops with data-only USB-C, DP 1.2 or earlier video, or no PD support, as video outputs and charging will not function.

The specification that decides compatibility

The host USB-C port must deliver DisplayPort 1.4 video and USB Power Delivery 3.0 at 65W; without both, the dock cannot drive its two HDMI and one DisplayPort outputs at 4K 60Hz single or 2K 60Hz triple modes, nor charge the laptop.

Highlights

  • Charges laptop up to 65 W with 100 W adapter
  • Triple 4K display via two HDMI and one DisplayPort
  • Gigabit Ethernet up to 1000 Mbps wired speed
  • Three USB 3.0 ports plus BC 1.2 fast-charge port
  • SD and Micro SD slots read cards up to 2 TB

Specifications

BrandWavlink
ModelWL-UMD05
ColorBlack
CompatibilityInstallation Before using this dock, please make sure that the latest PC/laptop drivers are installed (including USB, graphics card etc) because the network port needs specific drivers. For Windows 10, the system detects and automatically installs them after the dock is connected to the network. If drivers cannot be automatically installed, the network port can’t perform properly. Please install them manually. For MAC OS system, you need to install the network port driver manually, please visit www.wavlink.com > Support > Driver > PC peripherals > USB Docking. 1. The dock is driver f

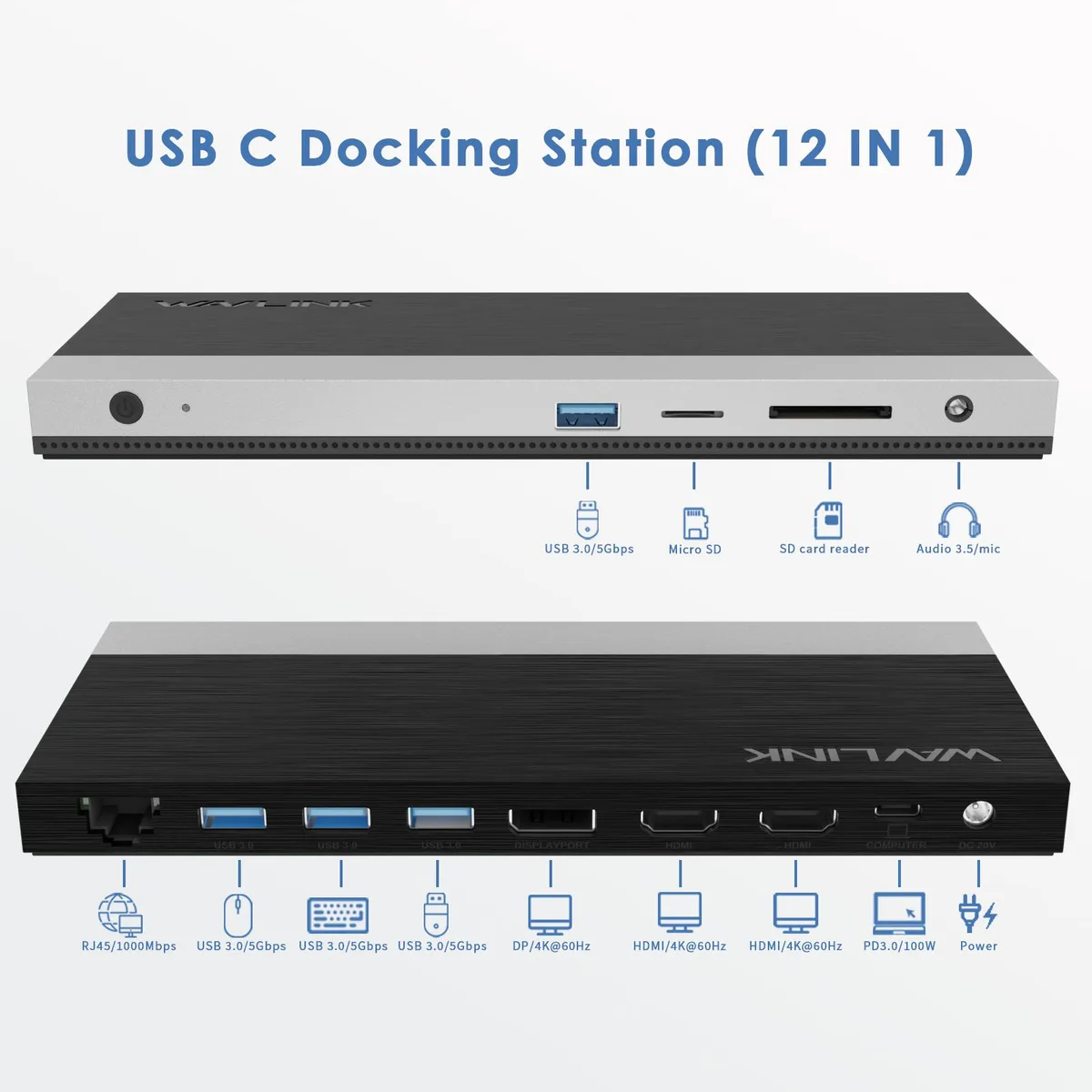

Ports Spec3 x USB3.0
1 x DP
2 x HDMI
1 x USB3.0 BC 1.2 Fast Charging Port
1 x USB C
1 x Gigabit Ethernet Port
1 x Micro SD Card Reader Port
1 x SD Card Reader Port
1 x Earphone & Mic in/out
1 x DC 20V Power Port
FeaturesRemarks for Windows based PC/laptops:

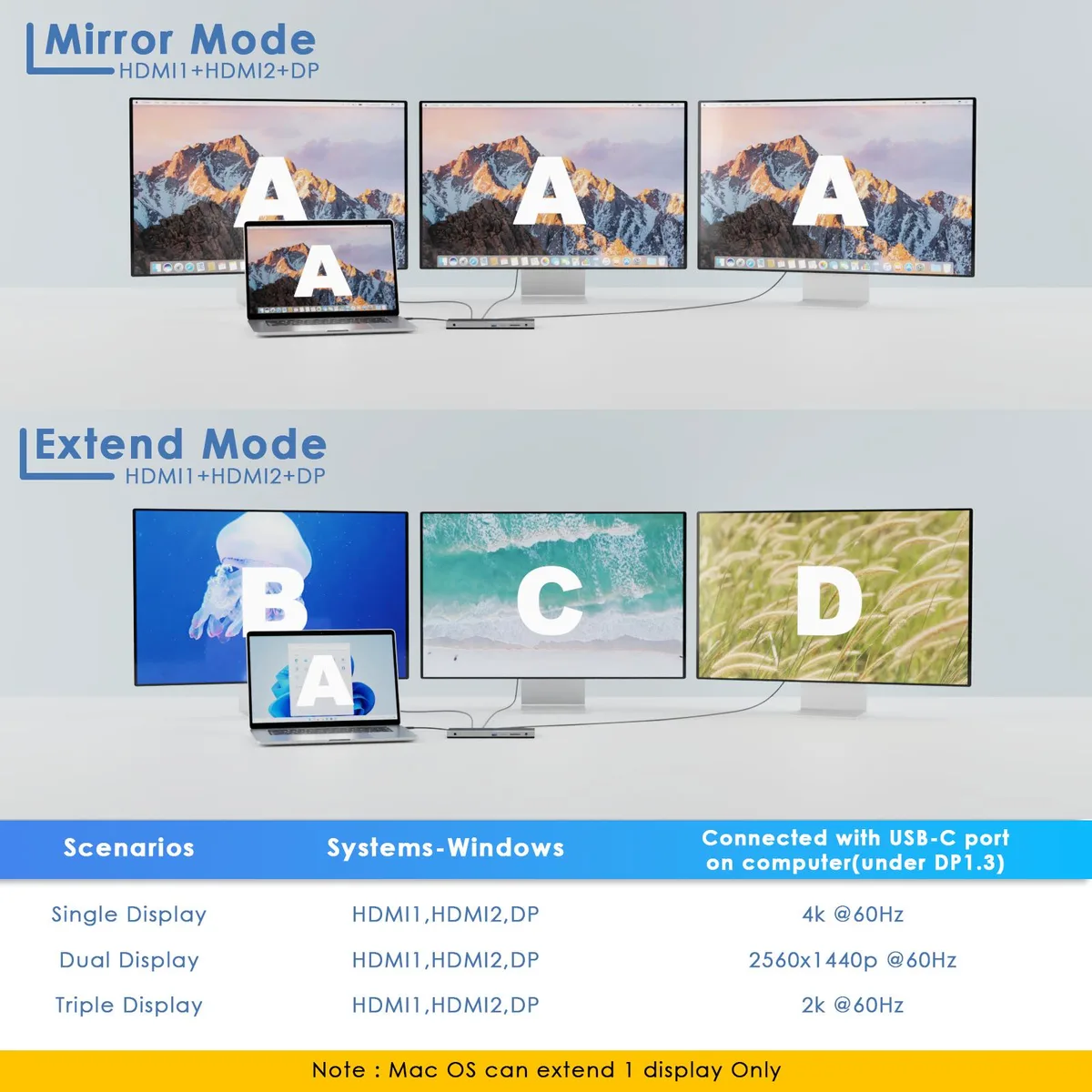

1. Before you connect two or three monitors, we suggest you lower monitor resolution, please check Q3 in Quick Start Guide for details.
2. Before you connect three monitors, we suggest you disconnect laptop/PC first, please check Q2 in Quick Start Guide for details.
Remarks for Mac based PC/laptops:
1. When you connect only one external monitor to the dock, the extend and duplicate modes are both available.
2. If you have two or three monitors connected to the dock, then you can only extend to one monitor while the other one or two monitor(s) wil
FunctionAttention before purchase
1. The type-c port of your pc should support video oput.(If you are not sure,pls contact us,we will help you confirm that)
2. The type-c port of pc should support dp1.4,or you could get 4k/30hz only
3. for both window and mac os, the docking could support to extend one monitor only, the external monitors will display the same screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the dual-HDMI-plus-DisplayPort version or a different video-port mix?

This dock only comes with two HDMI and one DisplayPort, so the choice is whether your monitors match those three inputs.

What does the 65 W power-delivery figure mean once the dock is connected to my laptop?

The upstream USB-C port can supply up to 65 W to the laptop while the included 100 W adapter also reserves 30 W for the fast-charge port and other peripherals.

Which USB standard does the dock use and what speed does that cap at?

The three USB-A ports and the BC 1.2 charging port all run at USB 3.0, limiting transfers to 5 Gbps.
