Small rectangular camera board with wide-angle lens and two infrared LED boards attached

WaveShare

WaveShare IMX219-160 8MP IR-Cut Camera Module

SKU CH-6RYV-JMPYC

An 8 MP IMX219 camera with IR-cut filter, 162° diagonal view and dual infrared LED boards for Jetson Nano and Raspberry Pi Compute Modules

  • CPU TypeOther
  • 8MP IMX219 sensor captures 3280×2464 detail for sharp AI vision
  • 4° diagonal FOV covers wide scenes without mechanical pan
  • Embedded IR-cut filter removes daytime reddish cast for true colour accuracy
  • 3V operation with four mounting holes simplifies integration on Jetson Nano or Pi CM3/CM3+/CM4
  • Supplied IR LED board enables 1.8m infrared night vision for 24/7 monitoring

IMX219 8MP IR-Cut Camera for Jetson Nano

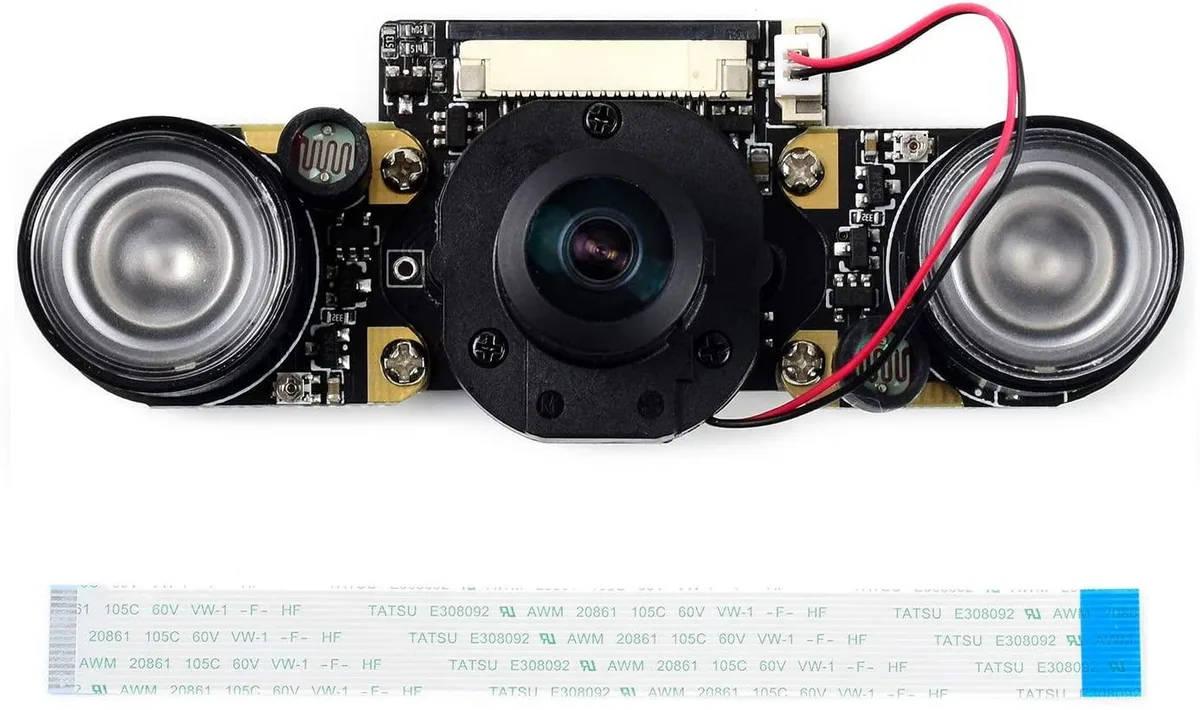

The WaveShare IMX219-160 is an 8-megapixel camera module built around the IMX219 sensor with an integrated IR-cut filter. It connects to NVIDIA Jetson Nano Developer Kit B01, Jetson Nano 2GB Developer Kit, and Raspberry Pi Compute Module CM3, CM3+, or CM4 via a flexible flat cable. The module ships with a separate infrared LED board for low-light capture.

Wide 162° field of view

The lens delivers a 162.4° diagonal field of view, 124° horizontal and 91° vertical, at a fixed focal length of 3.62 mm and aperture f/2.7. Distortion is specified below -22.7 percent across the frame. The 1/4-inch sensor outputs 3280 × 2464 pixel stills and video, while the embedded IR-cut filter removes the reddish tint that affects standard infrared cameras in daylight.

Four mounting holes and 3.3 V power output

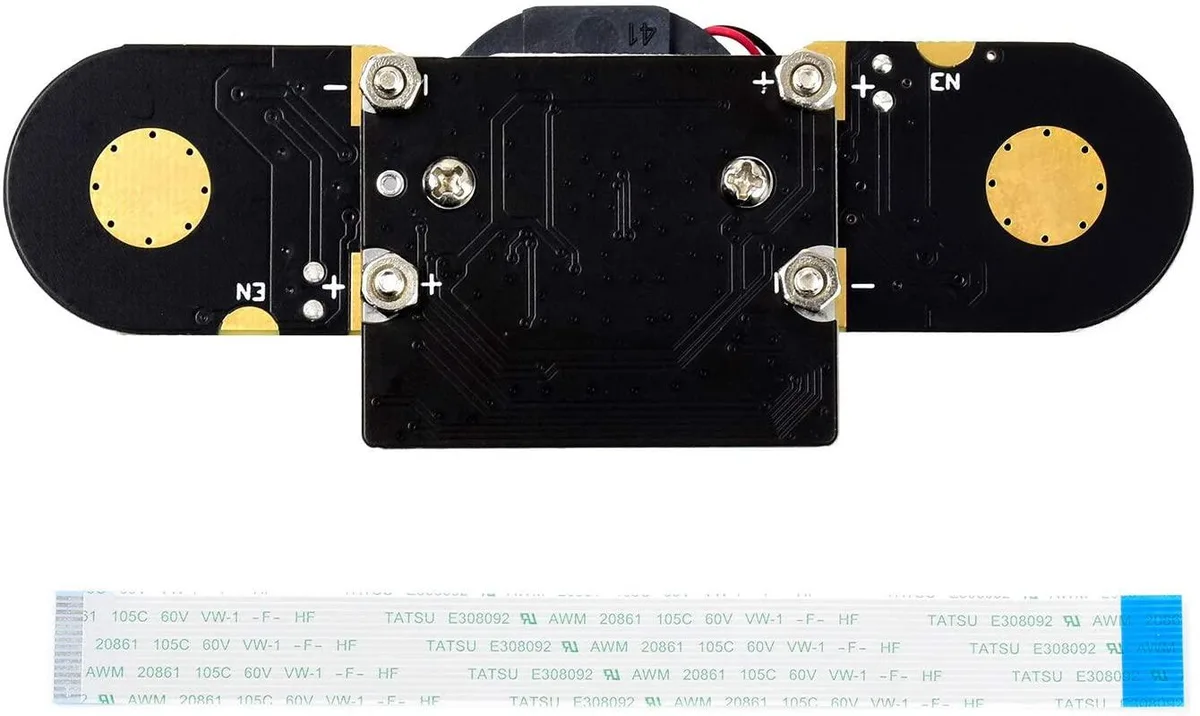

Four mounting holes allow secure attachment to enclosures or robotics chassis. The board provides a 3.3 V power output and supports an external infrared or fill-flash LED, both included in the package. Operates from a 3.3 V supply; ensure the host carrier board exposes a compatible camera connector and sufficient current for the LED board.

Highlights

  • 8MP IMX219 sensor captures 3280×2464 detail for sharp AI vision
  • 4° diagonal FOV covers wide scenes without mechanical pan
  • Embedded IR-cut filter removes daytime reddish cast for true colour accuracy
  • 3V operation with four mounting holes simplifies integration on Jetson Nano or Pi CM3/CM3+/CM4
  • Supplied IR LED board enables 1.8m infrared night vision for 24/7 monitoring

Specifications

CPU TypeOther

Questions about this item

Does the 8 MP IMX219 sensor draw enough power to heat up the Jetson Nano carrier board during all-day recording?

The module runs on 3.3 V and includes its own IR-CUT filter and infrared LED board, so thermal load stays low and is handled by the host board’s normal cooling.

Which carrier board and CSI cable do I need before this camera will work?

You need a Jetson Nano Developer Kit B01 or 2 GB model, or a Raspberry Pi Compute Module CM3, CM3+ or CM4 with a compatible CSI connector and FFC cable.

Will the 162° diagonal field of view vignette on the smaller 1/4-inch sensor used by older Compute Module carrier boards?

The lens is matched to the 1/4-inch IMX219 sensor at 3280 × 2464 resolution, so the full 162.4° diagonal view is captured without vignetting on supported CM3, CM3+ and CM4 carriers.
