Small green circuit board with USB-C connector, pin headers, three LEDs and jumper block

WaveShare

WaveShare FT232 USB-C to UART TTL module 3.3V/5V

SKU CH-3Y69-BQF70

USB-C to UART TTL converter with FT232RL chip, selectable 3.3 V or 5 V logic, TX/RX/RTS/CTS pins and status LEDs

  • CPU TypeOther
  • Onboard original FT232RL chip ensures reliable UART conversion
  • USB-C connector fits modern hosts without extra cables
  • 3 V or 5 V logic level selectable via jumper
  • Three status LEDs show TXD, RXD and power activity
  • Supports Windows 7 through 11, Linux, Android, WinCE and Mac OS

USB-C UART module for 3.3V and 5V logic

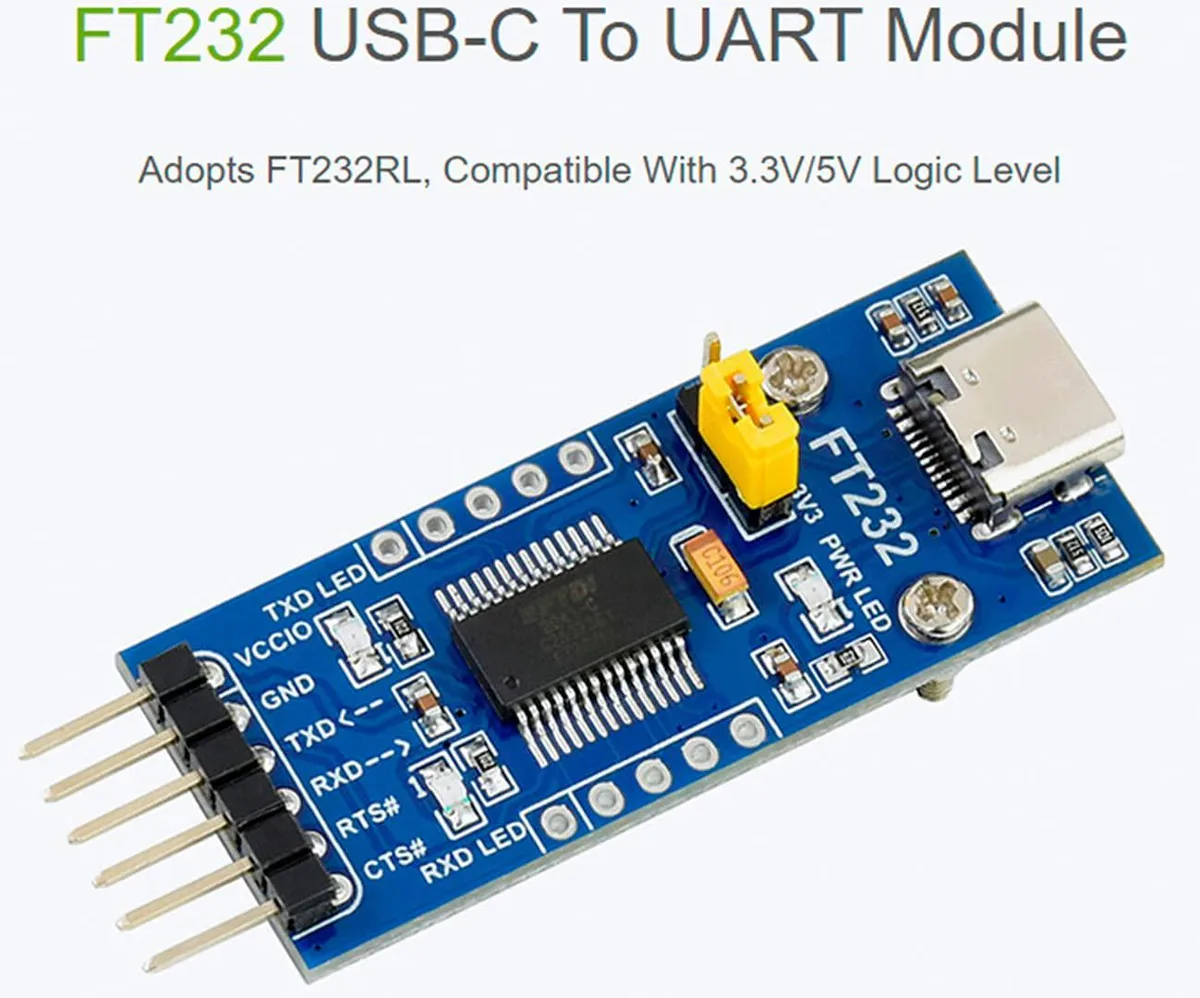

This WaveShare module carries an original FT232RL chip behind a USB-C connector and provides a TTL serial interface. It works with 3.3V and 5V logic levels selected by a VCCIO jumper. Drivers are available for Windows 7 through 11, Linux, Android, WinCE and Mac OS. Three LEDs show TXD, RXD and power status.

Suits engineers adding a serial port to embedded

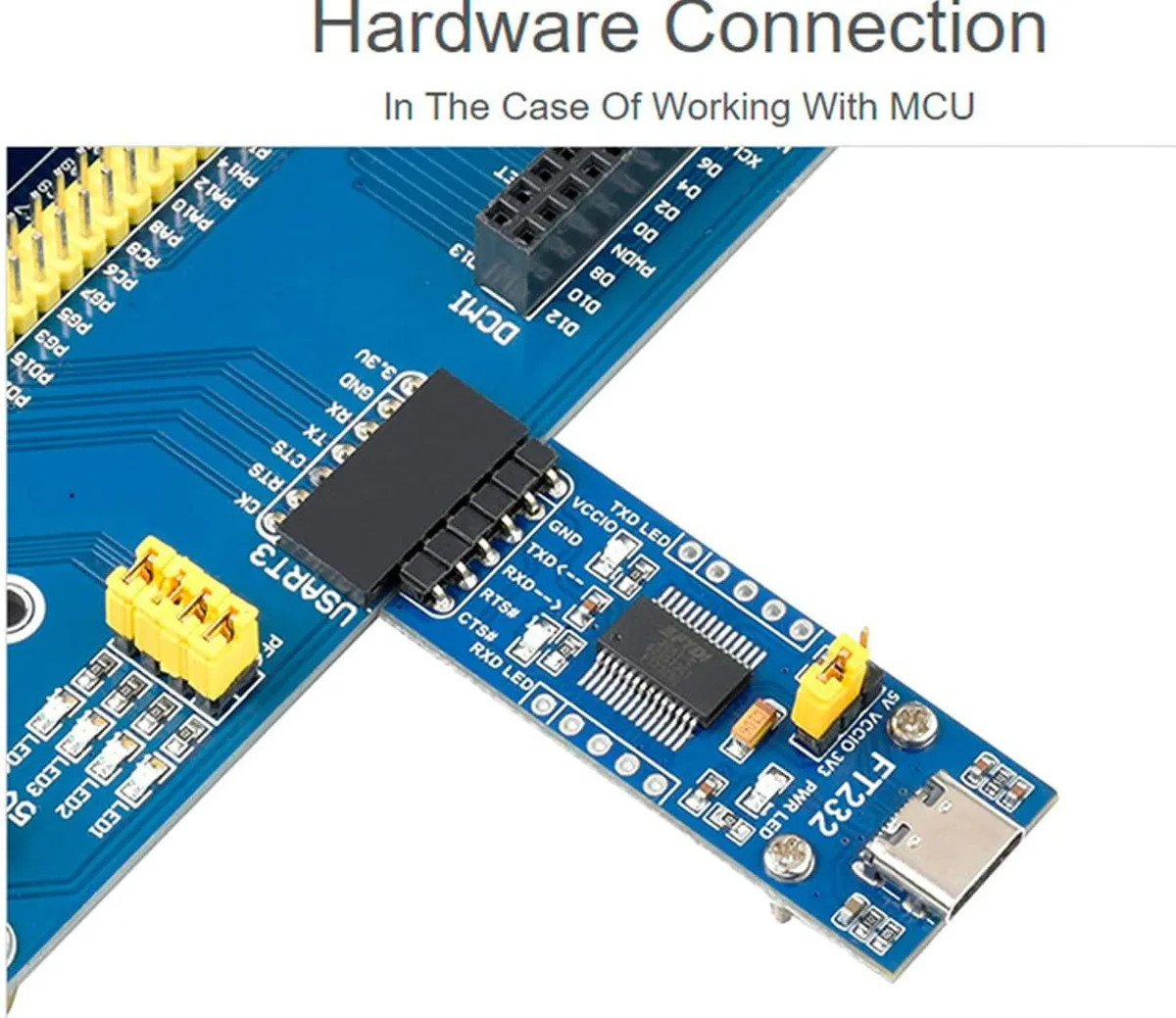

Developers debugging microcontrollers, flashing firmware or logging console output will find the RTS and CTS pins on the header useful. The board also breaks out extra signals on drilled holes that match standard prototype spacing. It is not intended for RS-232 voltage levels or for USB host applications.

VCCIO jumper selects 3.3V or 5V I/O voltage

Move the jumper to the 3.3V position, the 5V position or remove it to power the I/O from the target board between 3.3V and 5V. This single setting determines whether the module matches your logic family.

Highlights

  • Onboard original FT232RL chip ensures reliable UART conversion
  • USB-C connector fits modern hosts without extra cables
  • 3 V or 5 V logic level selectable via jumper
  • Three status LEDs show TXD, RXD and power activity
  • Supports Windows 7 through 11, Linux, Android, WinCE and Mac OS

Specifications

CPU TypeOther

Questions about this item

Should I power this FT232 module at 3.3 V or 5 V logic?

The onboard jumper lets you set VCCIO to 3.3 V output, 5 V output or leave it open to draw power from the target board in the 3.3 V–5 V range.

What baud-rate ceiling does the FT232RL chip impose in everyday use?

The FT232RL supports standard rates up to 3 Mbaud, so typical serial terminals and micro-controller links run well within its capability.

Does the USB-C connector mean USB 3 speeds for this adapter?

No, the USB-C port carries only USB 2.0 full-speed signals; the FT232RL itself is a USB 2.0 full-speed device.
