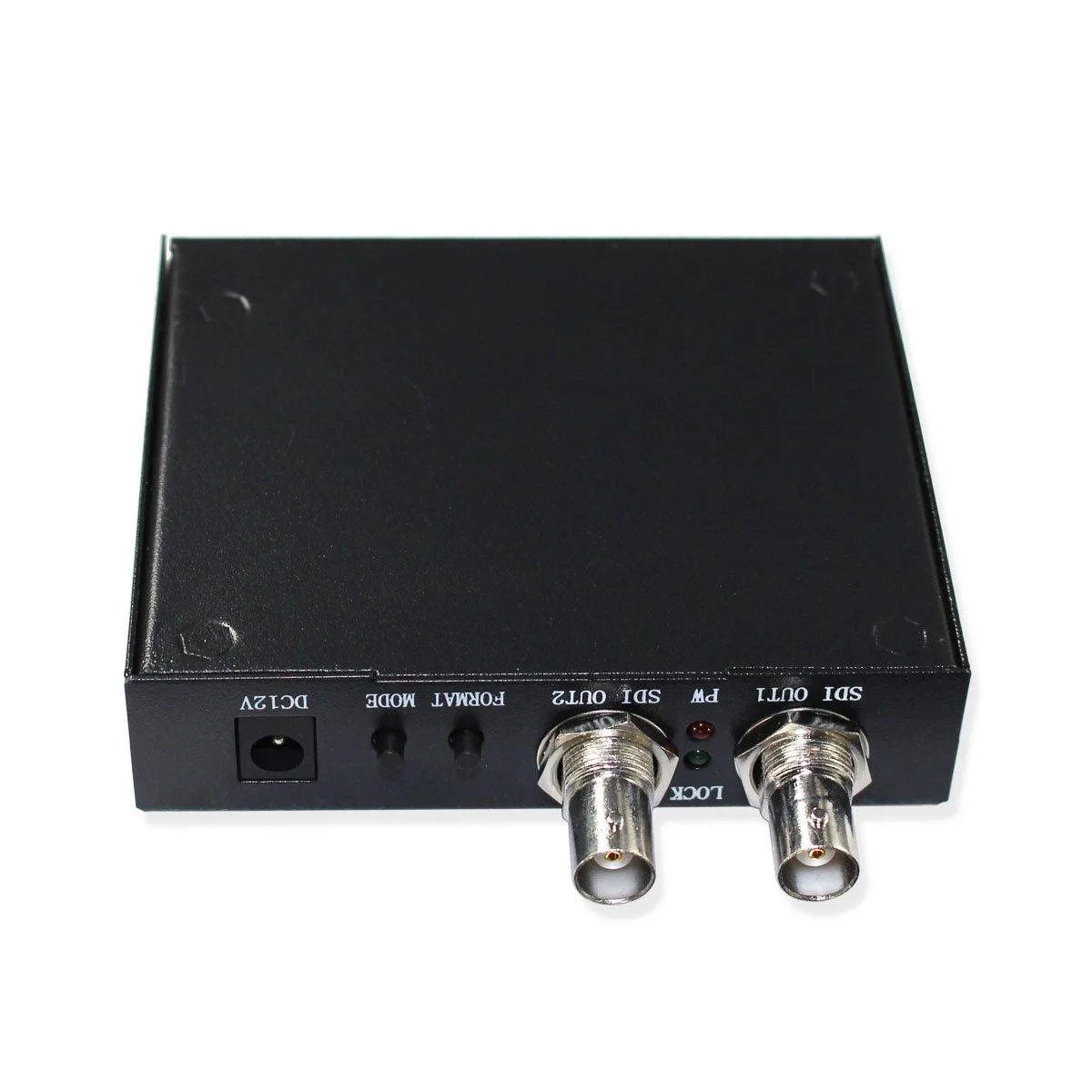

Small black metal box with VGA, AV and two BNC ports, US power adapter included

Vszerda

Vszerda VGA+CVBS to SDI Converter, Dual SDI Output, US Power Adapter

SKU CH-1V17-0EZ4P

Converts VGA or CVBS sources to SD/HD/3G-SDI with dual BNC outputs and a US power adapter

  • Weight0.372 kilograms
  • Converts VGA or CVBS to SD/HD/3G-SDI for broadcast workflows
  • Dual SDI BNC outputs distribute the same signal to two destinations
  • Supports VGA resolutions up to 1920×1080 at 60 Hz
  • CVBS input accepts 480i, 576i, 480p and 576p sources
  • Compliant with SMPTE 292M and SMPTE 424M standards

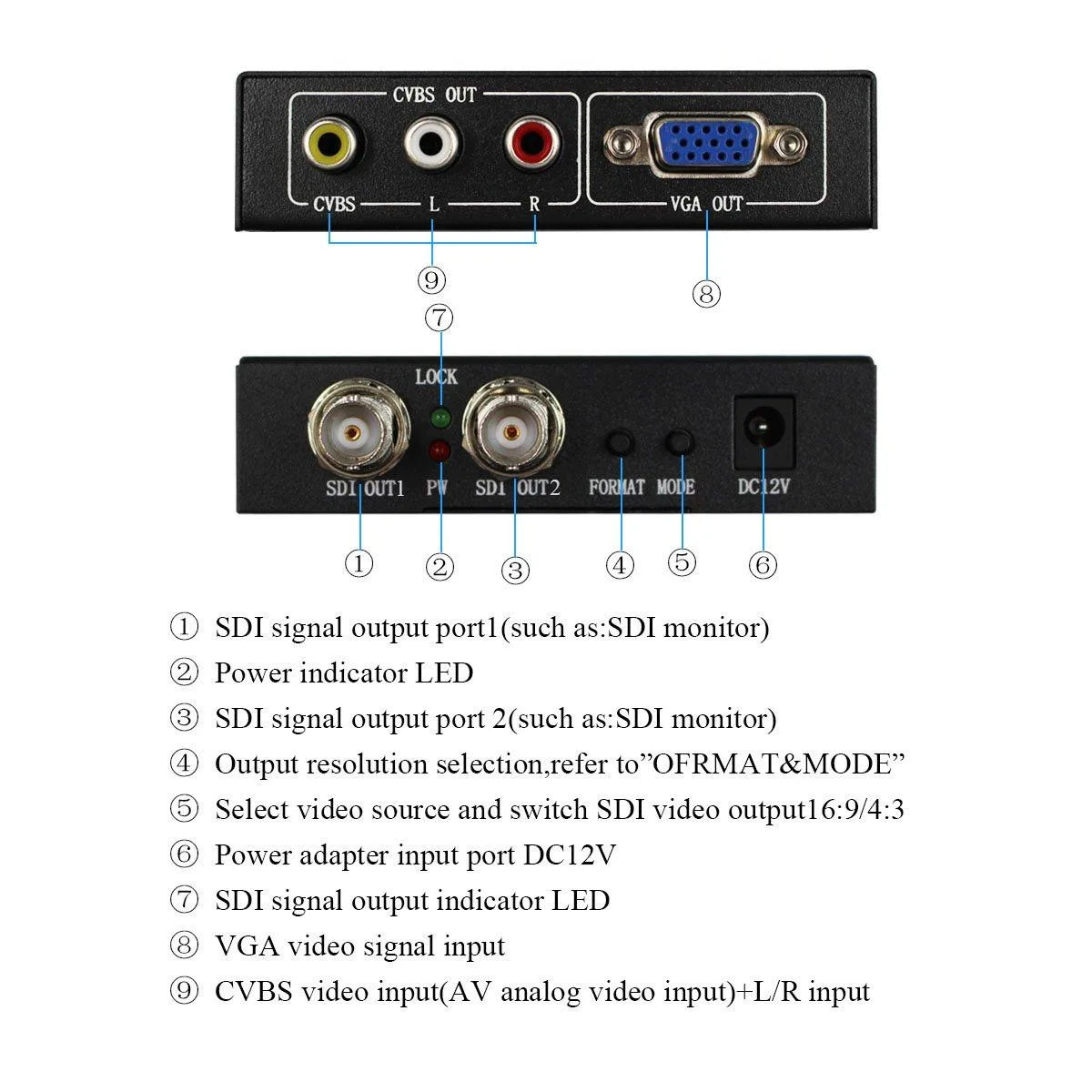

VGA and CVBS to SDI Converter

This converter accepts VGA or CVBS video sources and translates them to SDI, HD-SDI or 3G-SDI formats for broadcast or monitoring use. It provides two BNC output ports so the same signal can feed two devices simultaneously. A US power adapter is included for immediate operation.

Installation and Common Issues

Connect the VGA or CVBS source, attach the power adapter and link the SDI outputs with BNC cables; no software configuration is required. The unit auto-detects the input format and selects the matching SDI standard. Problems usually arise from mismatched refresh rates or loose BNC connections rather than the converter itself.

Supported Resolutions and Limits

VGA inputs up to 1920x1080@60 and CVBS inputs at 480i, 576i, 480p or 576p are converted to 720p or 1080p SDI output at 25, 30 or 60 frames per second. The box cannot upscale beyond 1080p or accept higher-resolution VGA modes, so 4K sources and high-refresh computer signals are outside its capability.

Highlights

  • Converts VGA or CVBS to SD/HD/3G-SDI for broadcast workflows
  • Dual SDI BNC outputs distribute the same signal to two destinations
  • Supports VGA resolutions up to 1920×1080 at 60 Hz
  • CVBS input accepts 480i, 576i, 480p and 576p sources
  • Compliant with SMPTE 292M and SMPTE 424M standards

Specifications

BrandHDSUNWSTD
Weight0.372 kilograms

Questions about this item

How can I confirm the converter is outputting a valid SDI signal after connecting my source?

Check that the dual BNC outputs show a stable 720p@60 or 1080p@60 picture on your SDI monitor; the LED indicator on the unit lights when a recognised VGA or CVBS source is locked.

What comes in the package and is anything else required to start using it?

The box contains the converter, a US power adapter and a user manual; no extra cables or licences are needed — just add your VGA or CVBS source and SDI display cables.

Which input resolution should I select for a 1080p60 VGA source versus a 576i CVBS source?

For VGA choose 1920x1080@60; for CVBS the converter accepts 576i and will output 1080p25, 1080p30 or 1080p60 at 16:9 or 4:3.
