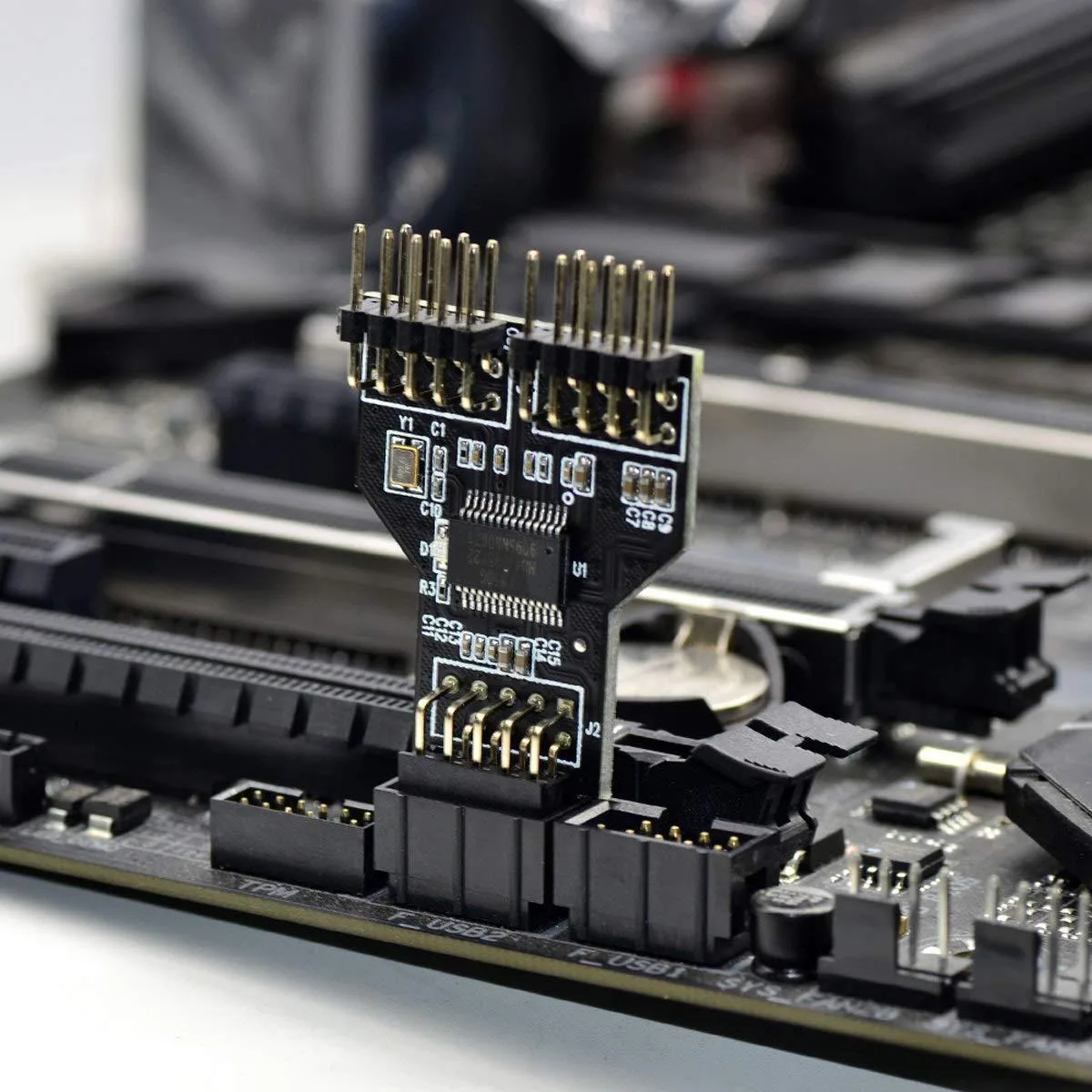

Small black rectangular USB 2.0 header adapter with two 9-pin ports extending from a single motherboard connector

Vszerda

Vszerda USB 2.0 Header 9/10Pin 1-to-2 Hub Adapter

SKU CH-BHNZ-1BX4J

Splits one motherboard USB 2.0 header into two 9-pin ports with a built-in hub chip for 480 Mbps data and 500 mA power per port

  • Connector Number2
  • Add a second front-panel USB header from one 9-pin socket
  • Built-in hub chip delivers full 480 Mbps throughput
  • Each port supplies 5 V at 500 mA for connected devices
  • Plug-and-play installation with no drivers or configuration
  • Compact 3.94 × 3.94 × 0.39 in board fits tight cases

USB 2.0 Front Panel Hub Adapter

The Vszerda USB 2.0 header adapter splits one motherboard 9-pin or 10-pin connector into two 9-pin ports. An internal hub chipset handles 480 Mbps data transfer for each connected device. It draws power directly from the header and supplies up to 500 mA per port. The compact black PCB measures 3.94 by 3.94 by 0.39 inches and weighs 0.25 ounces.

Builders needing extra front-panel ports

This adapter suits PC builders whose case provides more front-panel USB cables than the motherboard has headers. It also helps when a single header must feed a card reader and a front-panel hub simultaneously. It will not help if the board lacks a standard 9-pin or 10-pin USB 2.0 header, nor will it add USB 3.0 or higher bandwidth to the system.

Plug-and-play installation

Installation is fully plug-and-play: align the keyed connector with the motherboard header, press it in, then attach the two front-panel cables to the new ports. No drivers or BIOS changes are required. The most common issue is reversing the connector orientation, which prevents the ports from functioning until it is reseated correctly.

Highlights

  • Add a second front-panel USB header from one 9-pin socket
  • Built-in hub chip delivers full 480 Mbps throughput
  • Each port supplies 5 V at 500 mA for connected devices
  • Plug-and-play installation with no drivers or configuration
  • Compact 3.94 × 3.94 × 0.39 in board fits tight cases

Specifications

Brandchenyang
ModelCY-U2-074
Connector Number2

Questions about this item

What motherboard header do I need to plug this adapter into?

It connects to a single USB 2.0 9-pin or 10-pin front-panel header on the motherboard.

Will my existing USB 2.0 front-panel cables work with the two new headers?

Yes, each of the two 9-pin headers accepts standard USB 2.0 front-panel connectors and delivers up to 500 mA at 5 V per port.

How can I confirm the hub is running at full speed after installation?

Check Device Manager; the hub should appear as a USB 2.0 hub operating at 480 Mbps.
