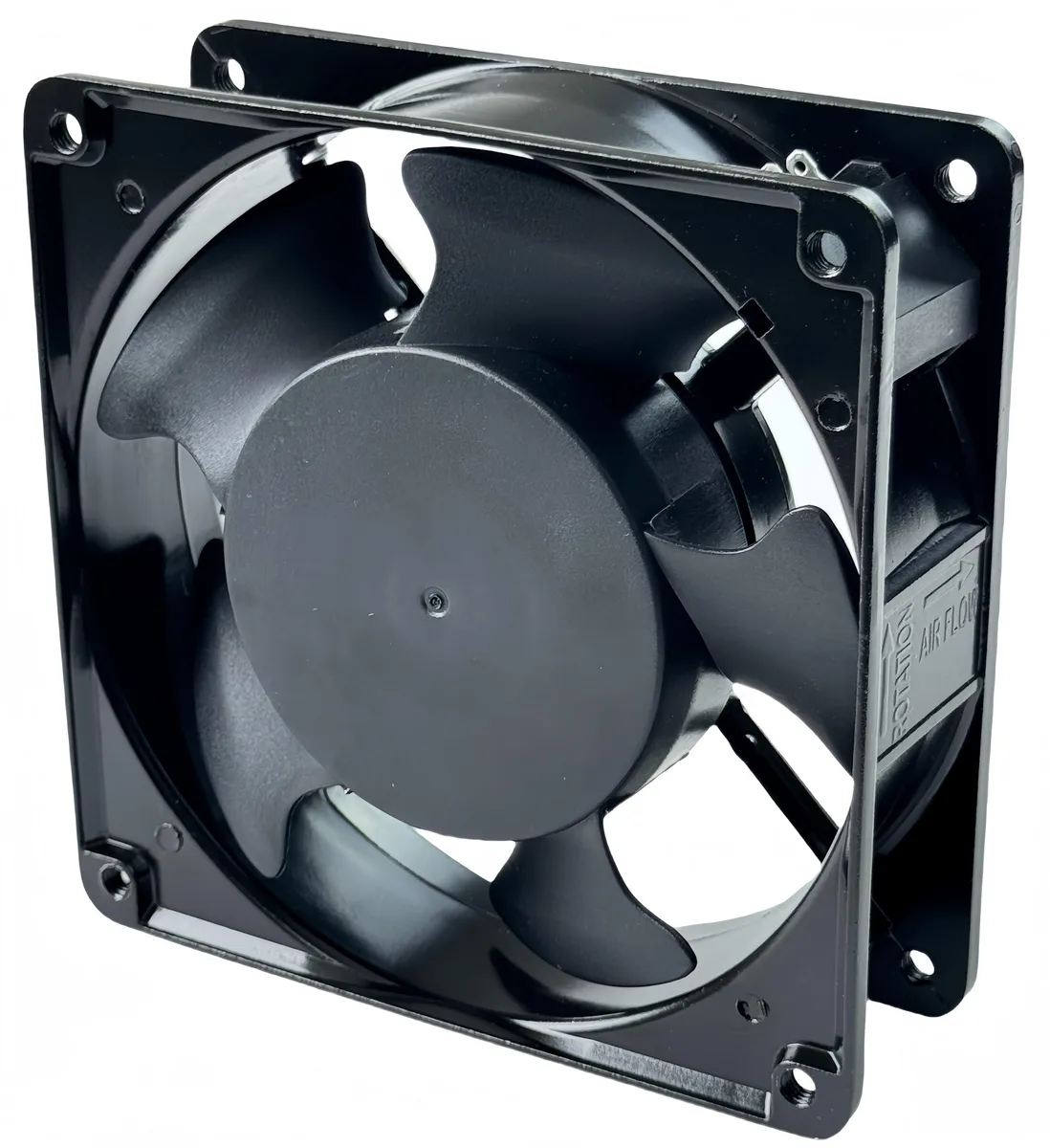

Square black frame fan 120 by 120 by 38 mm BTH connector

Vszerda

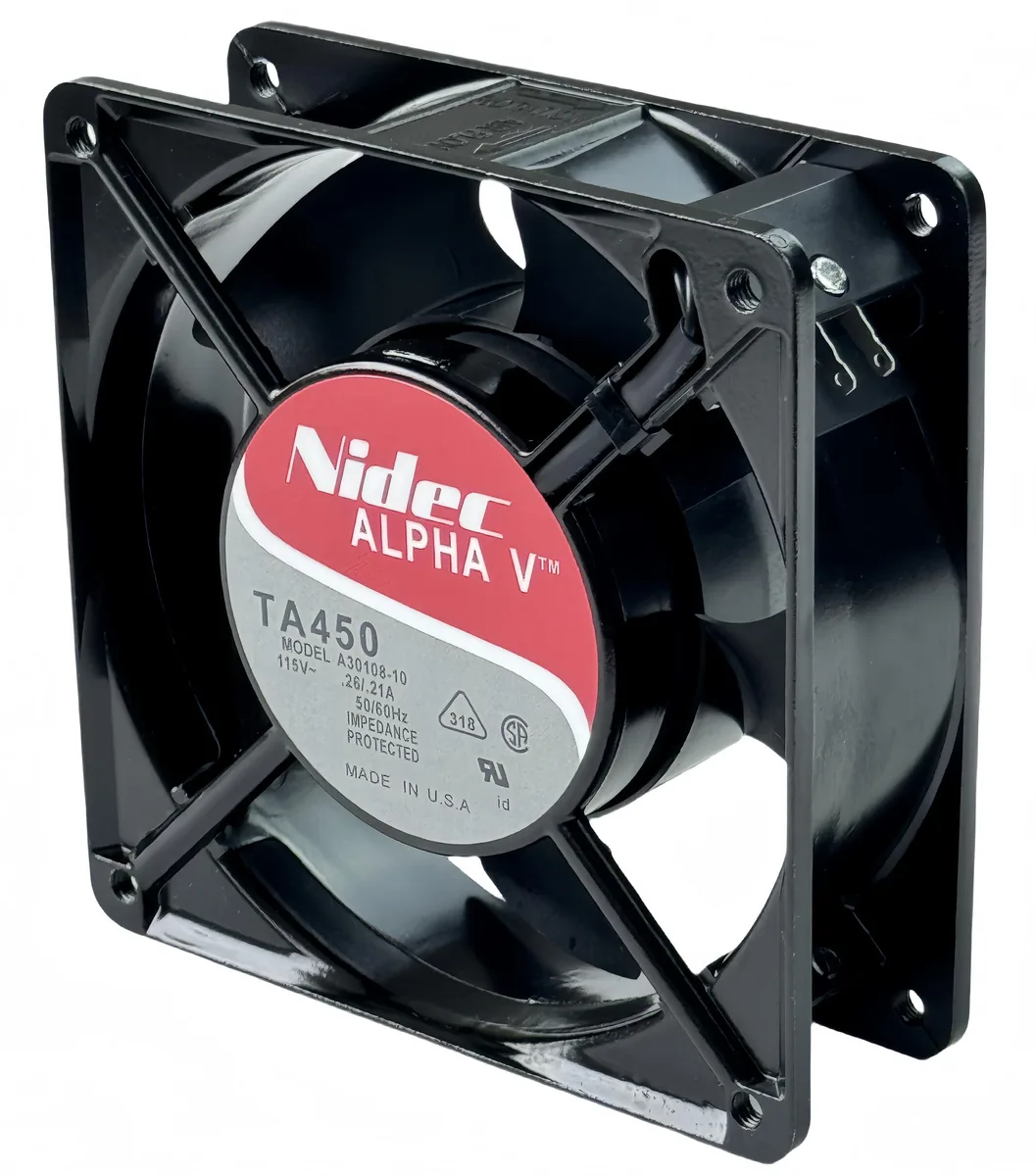

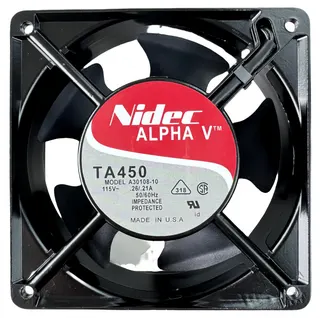

Vszerda TA450 115V 120x120x38mm case fan

SKU CH-HJQ6-91ZFH MPN TA450

115 V AC axial fan measuring 120 × 120 × 38 mm, drawing 0.26 / 0.21 A at 50 / 60 Hz with 44 dBA noise

  • 120×120×38 mm footprint fits standard server and cabinet bays
  • 115 V AC input connects directly to mains power without extra adapters
  • 26 A at 50 Hz and 0.21 A at 60 Hz keeps running costs low
  • 44 dBA noise level suits noise-sensitive rack environments
  • BTH connector enables quick drop-in replacement for Nidec A30108-10 units

Industrial 115 V AC case fan

The Vszerda TA450 is a 120 mm square axial fan designed for 115 V AC mains power at 50 or 60 Hz. It fits standard 120 mm mounting holes and is intended as a direct replacement for Nidec A30108-10 units in cabinets, servers or industrial enclosures.

Continuous duty airflow

Rated at 0.26 A on 50 Hz and 0.21 A on 60 Hz, the fan delivers steady airflow without the speed drop-off seen in short-burst cooling. The shaded-pole motor maintains constant RPM for as long as power is applied, making it suitable for equipment that runs around the clock.

Thermals and acoustics

Operating noise is specified at 44 dBA, a level typical for 38 mm thick AC fans moving high static pressure. Power draw stays below 30 W, so heat contribution to the enclosure is minimal and no external DC supply or PWM controller is required.

Highlights

  • 120×120×38 mm footprint fits standard server and cabinet bays
  • 115 V AC input connects directly to mains power without extra adapters
  • 26 A at 50 Hz and 0.21 A at 60 Hz keeps running costs low
  • 44 dBA noise level suits noise-sensitive rack environments
  • BTH connector enables quick drop-in replacement for Nidec A30108-10 units

Specifications

No published specifications for this item yet.

Questions about this item

How loud is the 115 V TA450 fan when it runs continuously at 44 dBA?

The fan produces 44 dBA, which is a moderate hum comparable to a quiet office; it stays at that level as long as the 115 V AC supply is present.

Does the TA450 come with a power cord or do I need a separate 115 V AC source and BTH connector?

You must provide a 115 V AC supply at 50 or 60 Hz and a matching BTH connector; the fan itself has only the BTH leads.

Will the 120×120×38 mm TA450 line up with the mounting holes on my older 12038 cabinet fan?

Yes, the 120 mm square frame and 38 mm depth match the standard 12038 footprint, so existing screw holes line up directly.
