Flat blue ribbon cable with straight 74-pin SlimSAS connectors at both ends

Vszerda

Vszerda SlimSAS SFF-8654 to SFF-8654 8i SAS 4.0 Cable 0.75m 24Gbps

SKU CH-QV2T-PHKNZ

Internal SlimSAS cable connects SFF-8654 8i ports at 24 Gbps over 0.75 m with 100 Ohm impedance

  • TypeInternal SlimSAS Cable
  • Length0.75
  • Connector DetailSff-8654 to Sff-8654 8i
  • Terminal GenderMale-to-Male
  • Speed24 gigabits_per_second
  • SpecificationsInternal SlimSAS Cable
  • 24Gbps data rate for fast SAS 4.0 storage links
  • 75m length fits tight server chassis
  • 74-pin high-density connector ensures signal integrity
  • 100-ohm impedance with 32AWG ribbon cable reduces crosstalk
  • Straight 8i plug design simplifies internal cable routing

Internal 24Gbps SlimSAS Cable

The Vszerda SlimSAS SFF-8654 to SFF-8654 8i cable carries SAS 4.0 signals at up to 24Gbps through a 100-ohm, 32AWG ribbon assembly. Its 74-pin straight plugs connect controllers or backplanes inside servers, workstations and storage arrays. The 0.75m length suits dense chassis where excess cable would block airflow.

High-density SAS and NVMe links

Builders wiring 8i wide ports for SAS drives or NVMe U.2/U.3 bays will use this cable; it matches the SAS-4 electrical specification and the SFF-8654 form factor. Installations that need right-angle plugs, external bulkheads or a different pin count should choose another assembly.

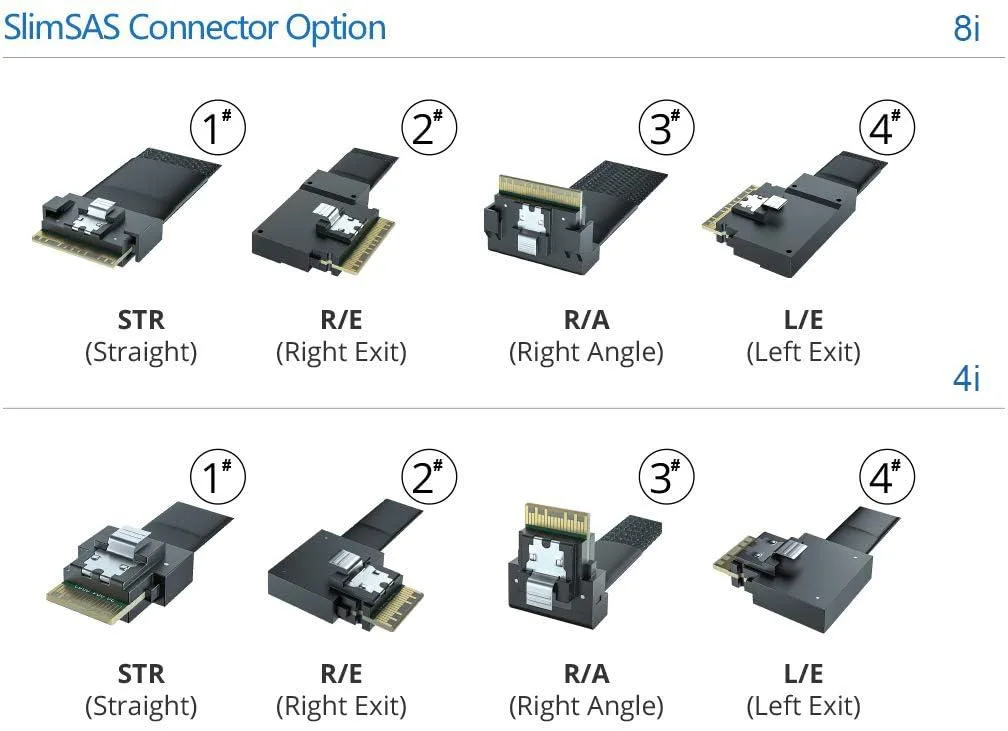

SFF-8654 8i straight connector

The cable terminates in straight, male-to-male SFF-8654 8i plugs on both ends. This single physical interface decides fitment — verify the target port accepts a straight 74-pin plug before ordering.

Highlights

  • 24Gbps data rate for fast SAS 4.0 storage links
  • 75m length fits tight server chassis
  • 74-pin high-density connector ensures signal integrity
  • 100-ohm impedance with 32AWG ribbon cable reduces crosstalk
  • Straight 8i plug design simplifies internal cable routing

Specifications

Brandipolex
TypeInternal SlimSAS Cable
Length0.75
Connector DetailSff-8654 to Sff-8654 8i
Terminal GenderMale-to-Male
Speed24 gigabits_per_second
SpecificationsInternal SlimSAS Cable

Questions about this item

What clearance does the 0.75 m SlimSAS SFF-8654 8i cable need inside a server chassis?

The ribbon-style cable uses a straight 11# plug and 32 AWG conductors, so it fits low-profile internal I/O routing without blocking adjacent slots.

Which orientation do the 74-pin SFF-8654 male connectors require during installation?

Both ends are identical male-to-male straight plugs; align the keyed notch on each connector with the receptacle before pressing firmly until the latch clicks.

When should the cable be inspected or replaced in a 24 Gbps SAS 4.0 storage array?

Check for bent pins, kinked ribbon sections or latch damage during any drive-tray service; replace if signal errors appear or after repeated mate cycles.
