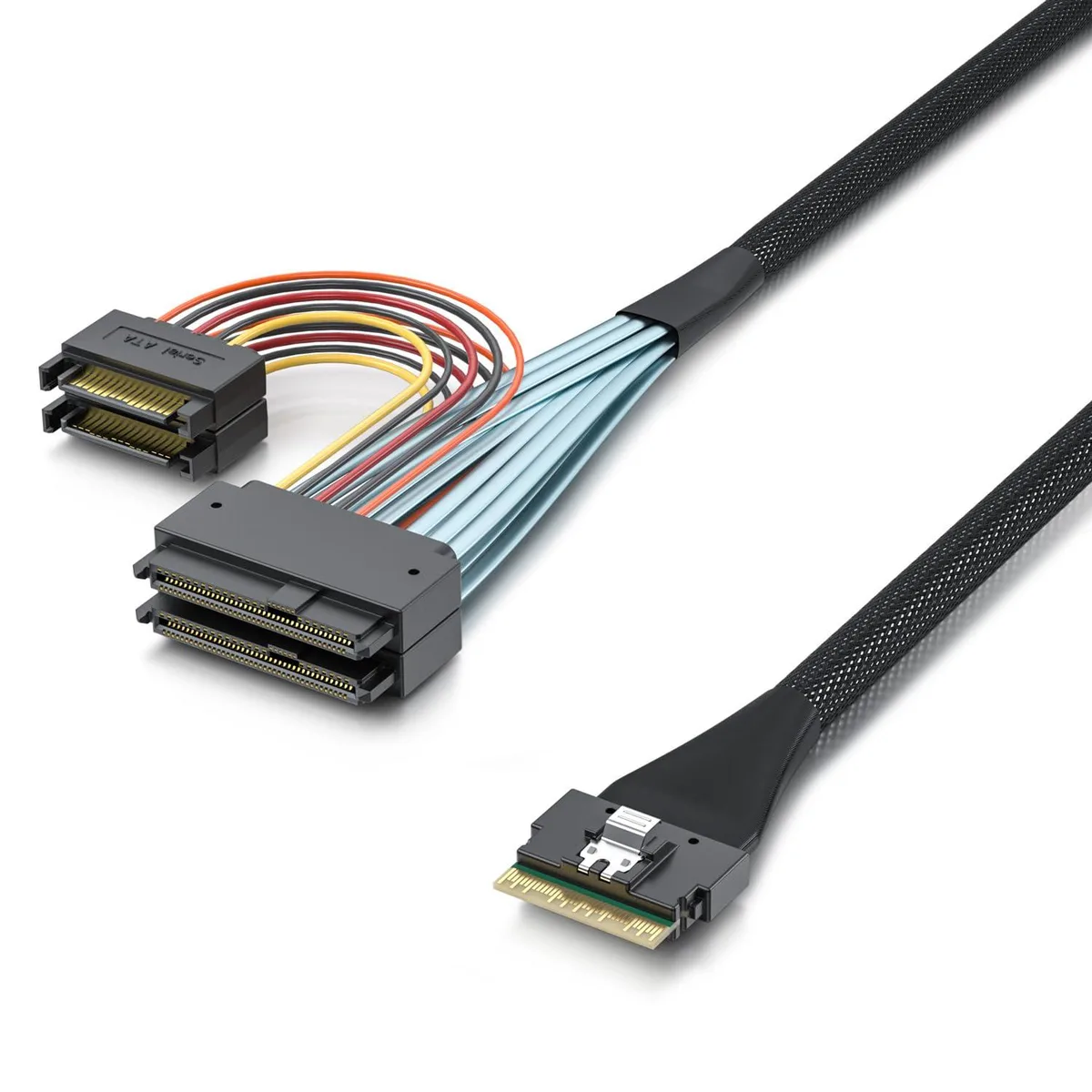

Black SlimSAS 8i cable splitting to two U.2 connectors with 15-pin SATA power, 1m

Vszerda

Vszerda SlimSAS SFF-8654 8i to Dual U.2 SFF-8639 Adapter Cable with 15Pin SATA Power, 1m

SKU CH-D8NP-B9W5P

Connects one SFF-8654 8i SlimSAS host to two U.2 SFF-8639 NVMe SSDs at PCIe 4.0 x8 with 15-pin SATA power

  • TypeSilver-plated AWG30 Twinax Cable
  • ColorBlack
  • Length1
  • Connector DetailSlimsas 4i to U.2 Sff-8639 With 15pin Sata Power
  • FeaturesHigh Speed
  • Connect SFF-8654 8i host to two U.2 SFF-8639 NVMe SSDs with PCIe 4.0 x8 bandwidth up to 64Gbps total
  • 15-pin SATA power connector delivers stable SSD operation without external PCIe power cables
  • 85-ohm impedance-matched AWG30 silver-plated Twinax minimizes signal loss for PCIe 4.0 reliability
  • Supports U.2 NVMe SSDs such as Intel Optane, Samsung PM1735 and Micron 9300 series in dense storage arrays
  • Works with PCIe 4.0 and 3.0 motherboards and backplanes without bifurcation requirement

SlimSAS SFF-8654 8i Adapter Cable

This 1 metre cable connects an SFF-8654 8i SlimSAS host port to two U.2 SFF-8639 NVMe SSDs. It delivers PCIe 4.0 x8 bandwidth up to 64Gbps total across both drives. A 15-pin SATA power connector supplies stable power to the SSDs without requiring an external PCIe power source. Silver-plated AWG30 Twinax conductors with 85 ohm impedance maintain signal integrity for PCIe 4.0 reliability.

Server And NAS Storage Expansion

Suited for rack servers, NAS units and HPC clusters adding dense U.2 NVMe storage such as Intel Optane, Samsung PM1735 or Micron 9300 series drives. Works with PCIe 4.0 and 3.0 motherboards or backplanes that do not require bifurcation. Builders needing to attach M.2 form-factor drives or SATA SSDs should select a different adapter cable.

PCIe 4.0 X8 Bandwidth Support

The cable carries PCIe 4.0 x8 electrical signals split across two U.2 ports for up to 64Gbps aggregate throughput. This single specification determines whether the host controller and SSDs can operate at their rated PCIe 4.0 speeds through this interconnect.

Highlights

  • Connect SFF-8654 8i host to two U.2 SFF-8639 NVMe SSDs with PCIe 4.0 x8 bandwidth up to 64Gbps total
  • 15-pin SATA power connector delivers stable SSD operation without external PCIe power cables
  • 85-ohm impedance-matched AWG30 silver-plated Twinax minimizes signal loss for PCIe 4.0 reliability
  • Supports U.2 NVMe SSDs such as Intel Optane, Samsung PM1735 and Micron 9300 series in dense storage arrays
  • Works with PCIe 4.0 and 3.0 motherboards and backplanes without bifurcation requirement

Specifications

Brand10Gtek
TypeSilver-plated AWG30 Twinax Cable
ColorBlack
Length1
Connector DetailSlimsas 4i to U.2 Sff-8639 With 15pin Sata Power
FeaturesHigh Speed

Questions about this item

Will the SFF-8654 8i cable run two U.2 NVMe SSDs on a PCIe 3.0 backplane?

Yes, the cable is compatible with PCIe 3.0 and 4.0 motherboards and backplanes and does not require bifurcation.

How can I verify both U.2 drives are operating at PCIe 4.0 x8 after connecting the SlimSAS cable?

Check the OS device manager or BIOS to confirm each SSD negotiates a PCIe 4.0 x4 link, giving 64Gbps total bandwidth across the two drives.

Does the 15-pin SATA power connector on the cable power the U.2 SSDs, or do I need a separate power source?

The included 15-pin SATA power connector supplies power to both U.2 NVMe SSDs so no external PCIe power is required.
