SlimSAS SFF-8654 38-pin to four SATA 7-pin cable, 1m

Vszerda

Vszerda SlimSAS 4i to 4x SATA Cable SFF-8654 1m

SKU CH-NK6X-WMS1M

Connects a SFF-8654 SlimSAS 4i host or RAID port to four SATA drives using silver-plated AWG32 twinax for 100-ohm SAS 3.0 signal integrity

  • TypeInternal Mini SAS HD Cable
  • Color1PC
  • Length1
  • Terminal GenderMale-to-Female
  • Conductorsilver
  • FeaturesData Transfer
  • SFF-8654 SlimSAS 4i 38Pin connects to four SATA 7Pin drives
  • Silver plated AWG32 Twinax conductors maintain 100-ohm impedance for SAS 3.0 signal integrity
  • 1 metre length suits server and storage chassis cable routing
  • Plug-and-play with hot-swap support works with large and small hard disks
  • Designed for cloud, server, disk array and high-capacity storage links

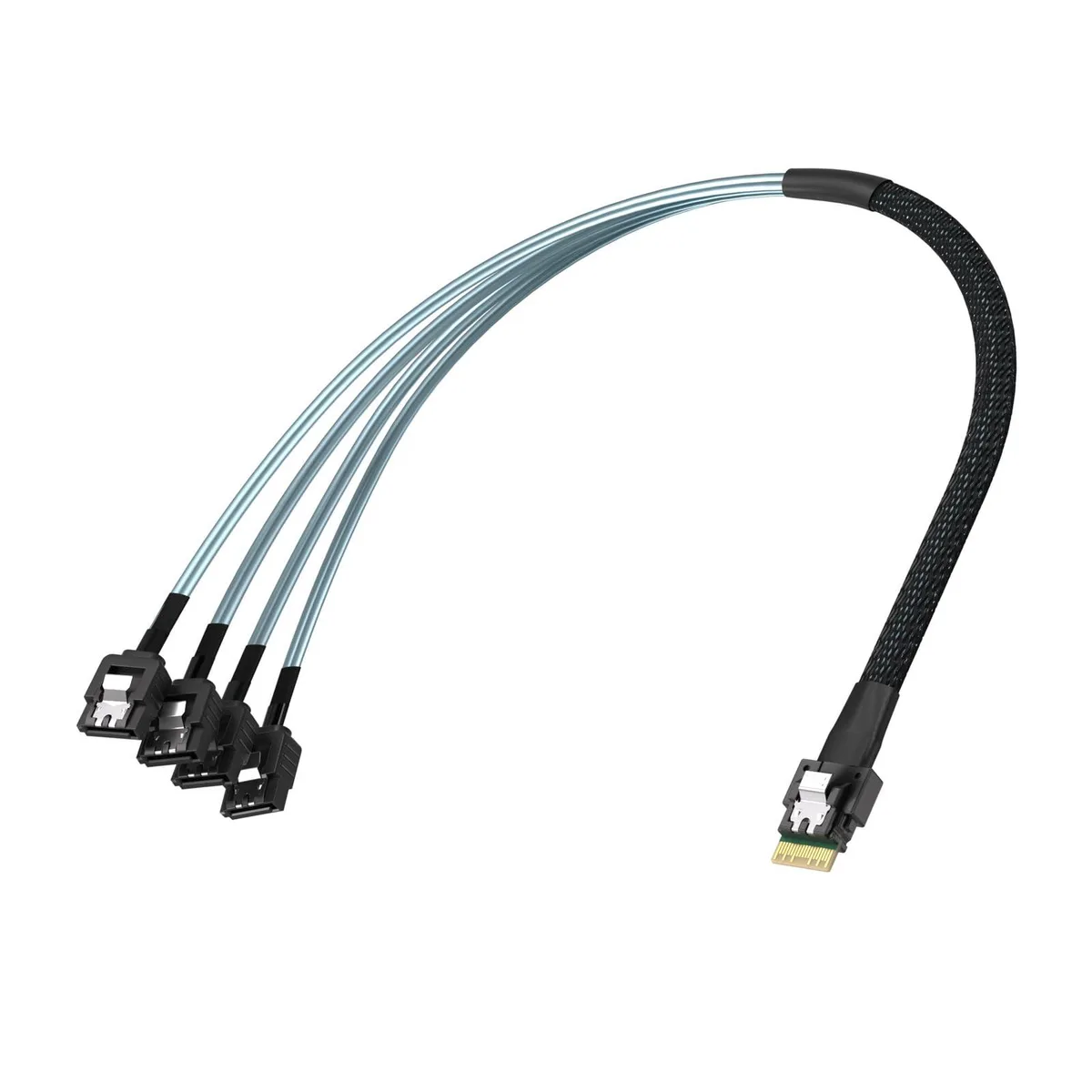

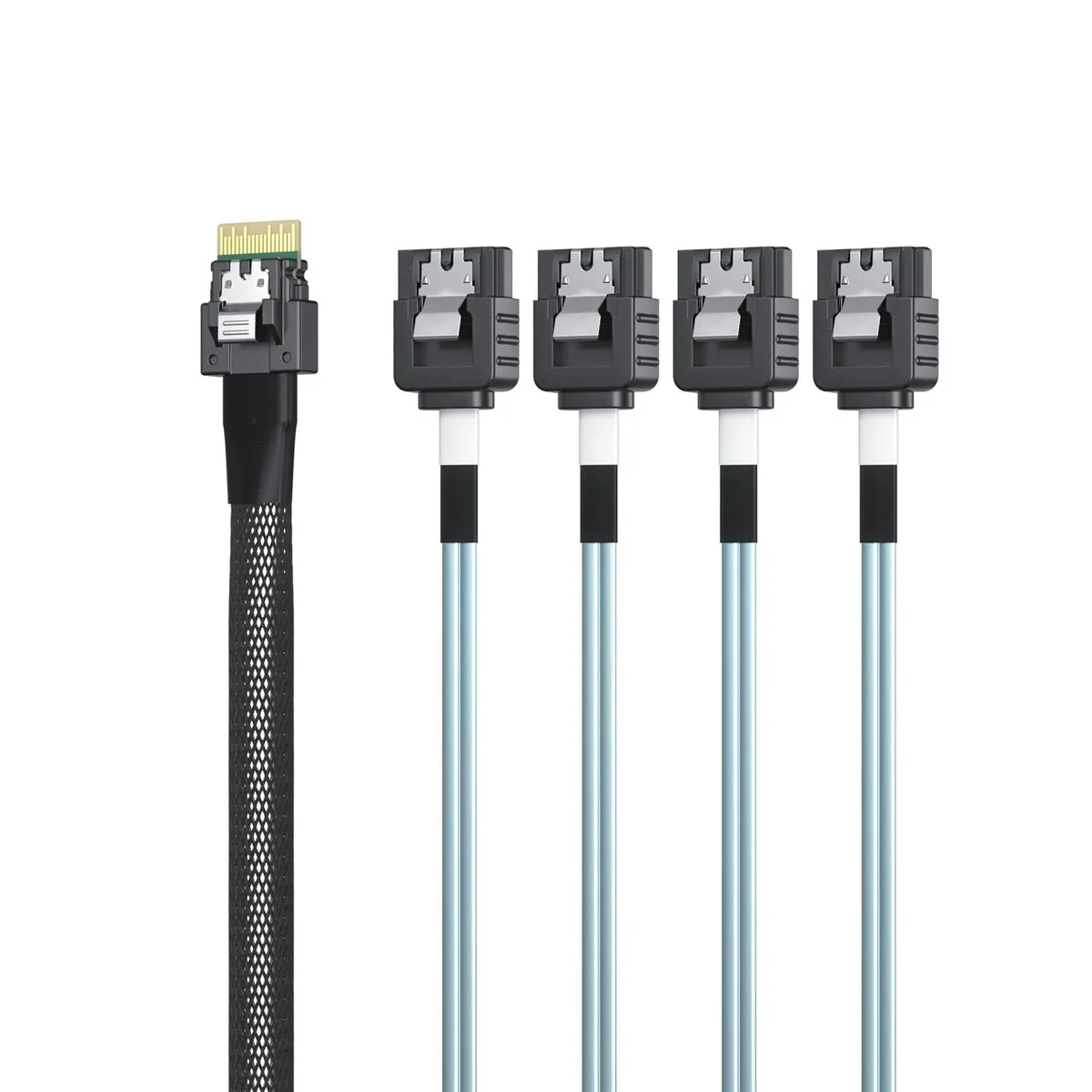

SFF-8654 SlimSAS 4i to 4×SATA cable

This one-metre internal cable connects an SFF-8654 SlimSAS 4i 38-pin host or RAID port to four SATA 7-pin targets. Silver-plated AWG32 twinax conductors and a 100-ohm SAS 3.0 design preserve signal integrity for server and storage expansion.

Suits RAID cards and HBAs with an SFF-8654 4i port

Builders attaching up to four SATA hard drives or SSDs to a compatible controller will find this plug-and-play, hot-swap-ready link convenient. It is not suited for connections that require a different host connector, an external eSATA interface, or a wide-port multi-lane SAS target.

SFF-8654 4i host connector

The single specification that decides fit is the 38-pin SFF-8654 SlimSAS 4i interface on the host side; the cable only works with controllers or backplanes that expose this exact port.

Highlights

  • SFF-8654 SlimSAS 4i 38Pin connects to four SATA 7Pin drives
  • Silver plated AWG32 Twinax conductors maintain 100-ohm impedance for SAS 3.0 signal integrity
  • 1 metre length suits server and storage chassis cable routing
  • Plug-and-play with hot-swap support works with large and small hard disks
  • Designed for cloud, server, disk array and high-capacity storage links

Specifications

Brand10Gtek
ModelCAB-8654/4xSATA-4i-P1M-11
TypeInternal Mini SAS HD Cable
Color1PC
Length1
Terminal GenderMale-to-Female
Conductorsilver
FeaturesData Transfer

Questions about this item

Which SlimSAS 4i to 4x SATA cable length should I choose?

The cable is supplied at 1 metre (3.3 ft). That length fits typical server chassis and workstation builds where the RAID controller or motherboard port sits close to the drive backplane.

What does the SAS 3.0 100-ohm rating mean for my drives?

The cable meets SAS 3.0 specifications with 100-ohm impedance, so each of the four SATA lanes can operate at its full 6 Gb/s without signal degradation from the interconnect.

How does the SFF-8654 38-pin connector limit real-world speed?

The SFF-8654 38-pin SlimSAS 4i interface carries four lanes; each lane is rated for the SAS 3.0 standard, so the practical ceiling per attached SATA device remains 6 Gb/s.
