Small green circuit board with 68-pin mSATA connector and 22-pin SATA interface

Vszerda

Vszerda Slim 68pin mSATA to 2.5" SATA 3.0 22pin Adapter

SKU CH-YM9D-D6STP

Lets you install an mSATA SSD into any standard 2.5" SATA 3.0 host while keeping full 6Gbps speed

  • Connector DetailMini PCI
  • Conductorcopper
  • Use any mSATA SSD in a standard 2.5" SATA bay
  • Maintains full 6Gbps SATA 3.0 transfer speed
  • Ultra-slim 5.0mm profile fits tight spaces
  • Copper conductors ensure reliable data integrity
  • Compatible with Windows, Mac OS and Linux systems

Adapter for mSATA SSDs

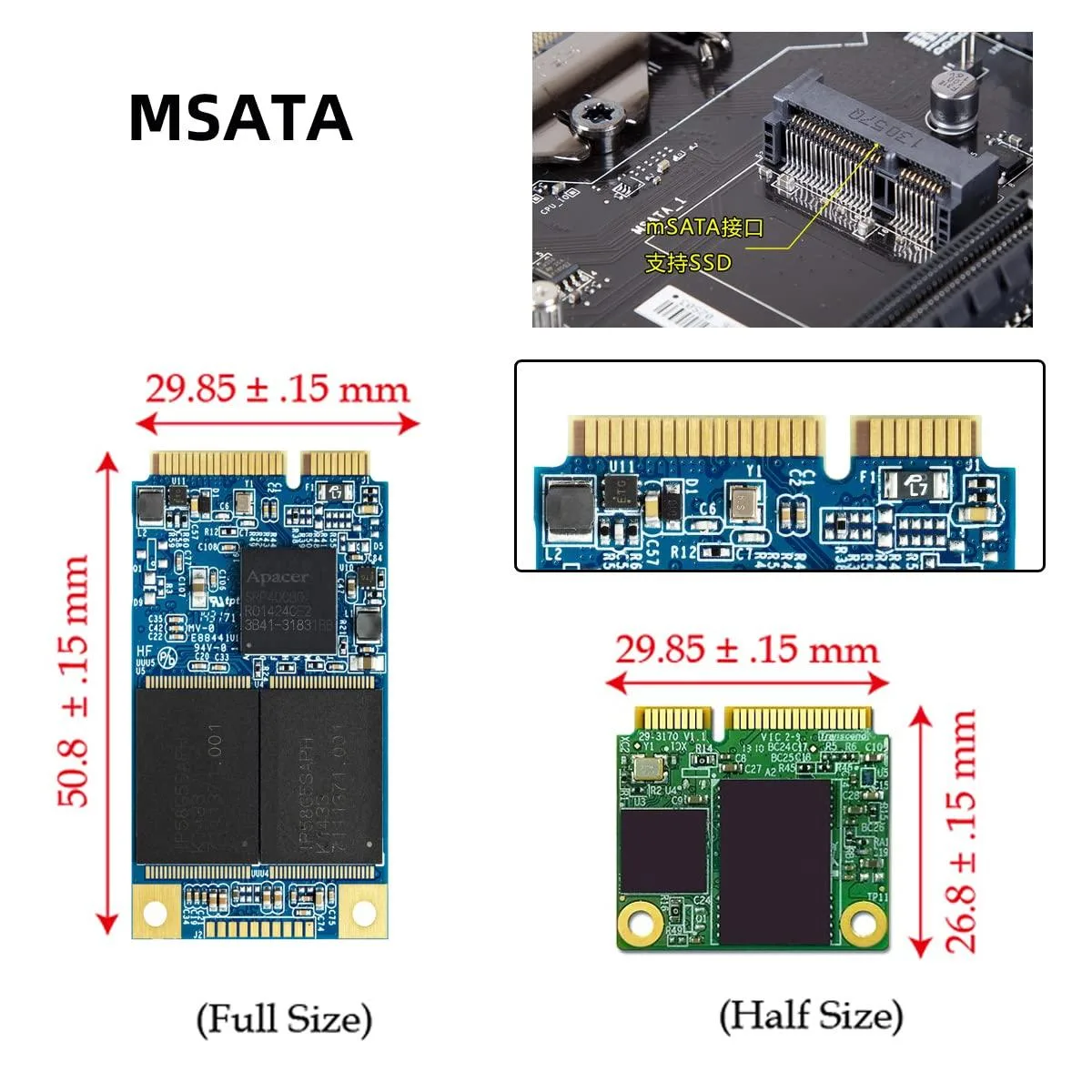

This adapter converts an mSATA mini PCI-e solid-state drive into a standard 2.5 inch SATA form factor. It allows the SSD to operate on any SATA host controller inside a desktop or laptop. The board measures 71 by 53 by 5.0 millimetres and weighs approximately 0.35 ounces.

Check your SSD and host before ordering

The adapter only works with drives that use the mSATA connector; it is not compatible with 50 millimetre Mini PCI-e SATA or Mini PCI-e PATA modules. Verify that your system provides a standard SATA data and power connection for the 22 pin interface. No driver installation is required for the listed operating systems.

Slim PCBA with direct SATA pins

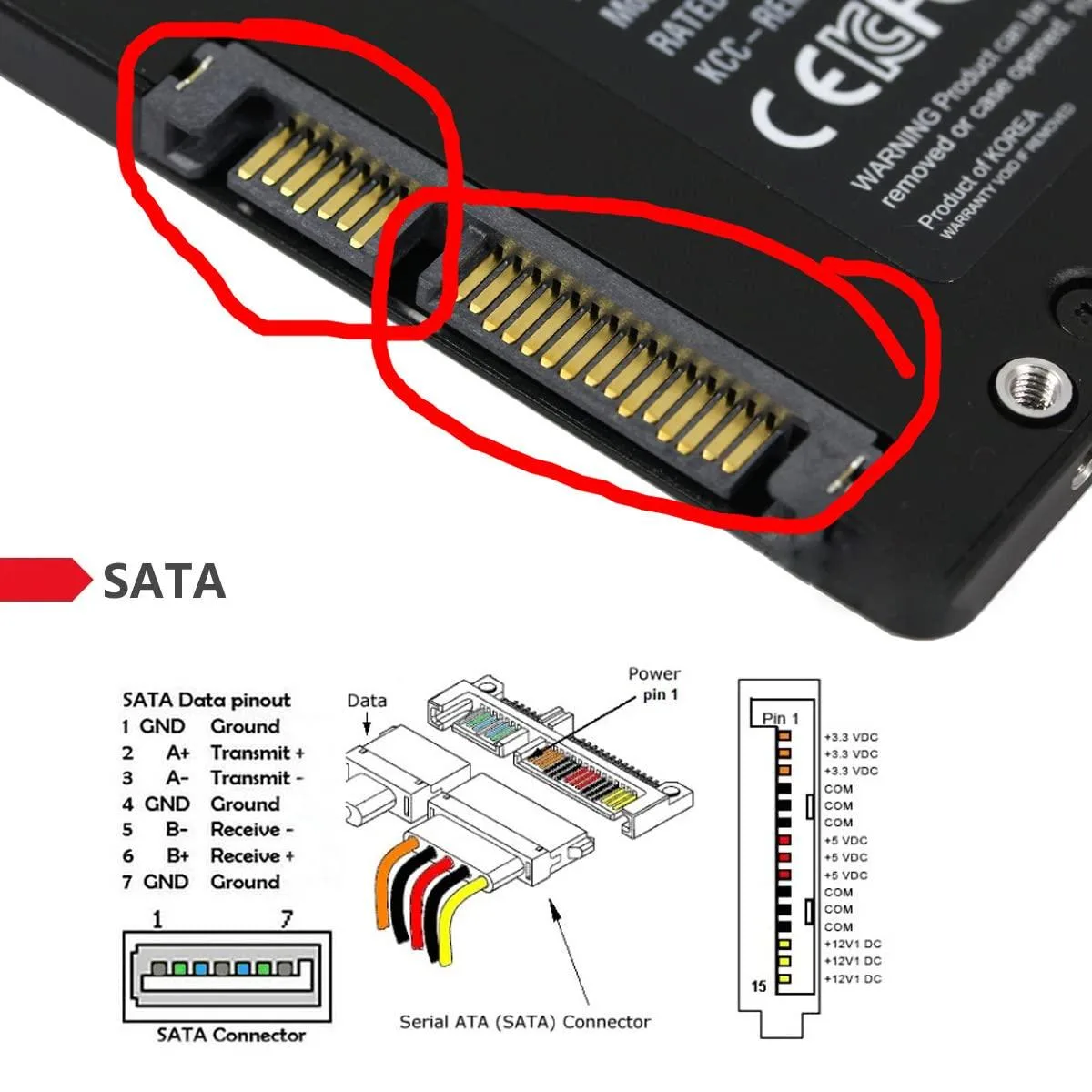

The bare printed circuit board has no enclosure, so it fits into tight drive bays or caddies where a full-height adapter would not. Copper conductors maintain the 6 gigabits per second SATA 3.0 link speed without degradation. The 68 pin mSATA edge connector mates directly to the SSD while the 22 pin SATA side plugs into the host.

Highlights

  • Use any mSATA SSD in a standard 2.5" SATA bay
  • Maintains full 6Gbps SATA 3.0 transfer speed
  • Ultra-slim 5.0mm profile fits tight spaces
  • Copper conductors ensure reliable data integrity
  • Compatible with Windows, Mac OS and Linux systems

Specifications

Brandchenyang
ModelSA-166-XY
Connector DetailMini PCI
Conductorcopper

Questions about this item

Does the Vszerda Slim adapter ship with mounting screws or a drive caddy, or must I buy them separately?

The adapter is a bare 71*53*5.0 mm PCBA; no screws, brackets or 2.5" caddy are included, so you will need to source those separately for a secure fit in a drive bay.

The listing shows a 68-pin mSATA connector — is this the only version available or are there other pin-count options?

Only the 68-pin mSATA variant is offered; the board does not support 50 mm Mini PCI-e SATA or Mini PCI-e PATA connectors.

The headline says 6 Gbps SATA 3.0 — will my mSATA SSD actually run at that speed once installed?

The adapter does not alter the link rate, so the SSD will operate at its native speed up to the SATA 3.0 6 Gbps limit of the host controller.
