SFF-8643 cable with U.2 connector and NGFF adapter board

Vszerda

Vszerda SFF-8643 to U.2 SFF-8639 cable with NGFF adapter

SKU CH-ZDCV-K3TG6

Connects an SFF-8643 port to a U.2 NVME SSD with an included NGFF adapter, supporting 12 Gbps data transfer over a 50 cm cable

  • Connector DetailSff-8643
  • ConductorCopper
  • Connect Intel SSD 750, P3600 and P3700 drives via SFF-8643 Mini SAS HD
  • U.2 NVMe PCIe 3.0 x4 adapter enables 4 GBps throughput on free PCIe slot
  • 12 Gbps cable links SFF-8639 U.2 SSD to SFF-8643 host connector
  • NGFF M-key adapter adds native NVMe driver support for Windows 7 and Server 2008 R2
  • 50 cm copper cable with 36-pin SFF-8643 female and NGFF PCIe x4 V3.0 connectors

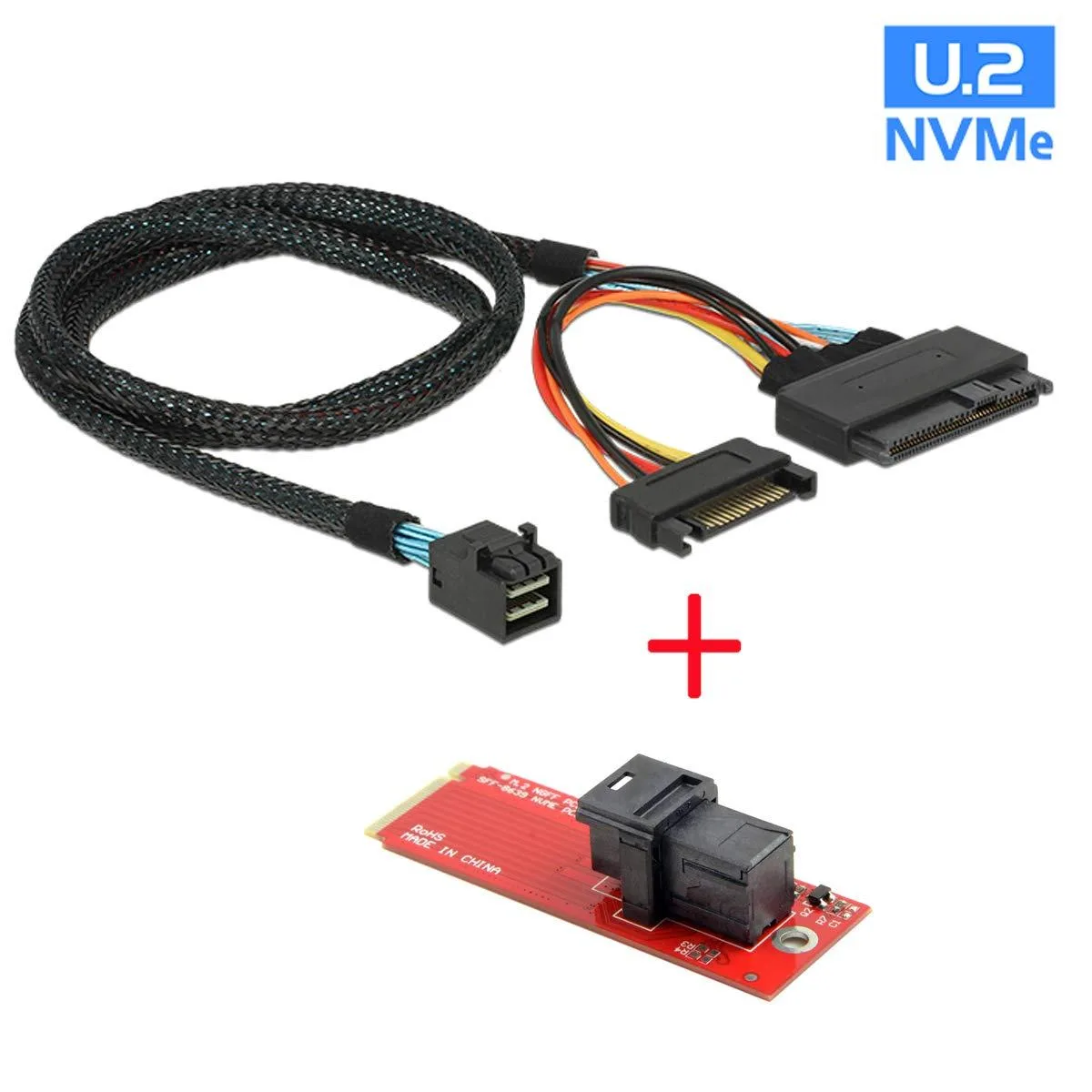

SFF-8643 to U.2 cable with NGFF adapter

This kit connects a U.2 NVMe SSD to a motherboard Mini SAS HD port using the supplied 50 cm cable and NGFF adapter. It targets builders adding Intel SSD 750, P3600 or P3700 drives to a desktop system. The copper conductors support data rates up to 12 Gbps over a PCIe 3.0 x4 link.

Check motherboard slot and OS before ordering

Verify the board has a free PCI Express x4, x8, x16 or x32 slot and a 36-pin SFF-8643 header. The drive must be an M-key NVMe model; Windows 7 or Server 2008 R2 require a native NVM Express driver update. Linux kernels from 3.16 onward include support.

Fits a desktop build with a single expansion slot

The adapter occupies one PCIe slot and routes the U.2 drive through the 50 cm cable, leaving the M.2 socket free for other devices. No extra power connectors are needed beyond the slot. The kit includes the PCBA adapter and cable only; drive and mounting hardware are separate.

Highlights

  • Connect Intel SSD 750, P3600 and P3700 drives via SFF-8643 Mini SAS HD
  • U.2 NVMe PCIe 3.0 x4 adapter enables 4 GBps throughput on free PCIe slot
  • 12 Gbps cable links SFF-8639 U.2 SSD to SFF-8643 host connector
  • NGFF M-key adapter adds native NVMe driver support for Windows 7 and Server 2008 R2
  • 50 cm copper cable with 36-pin SFF-8643 female and NGFF PCIe x4 V3.0 connectors

Specifications

Brandchenyang
ModelSF-093/SF-094
Connector DetailSff-8643
ConductorCopper

Questions about this item

What does the package contain and is a U.2 SSD included?

The box has a U.2 to SFF-8639 PCBA adapter and a 50 cm U.2 to SFF-8639 cable. No U.2 SSD is supplied.

Which adapter should I pick for a 36-pin SFF-8643 motherboard header?

The kit includes a 36-pin SFF-8643 female connector that mates with the motherboard header and an NGFF PCIe x4 V3.0 adapter for the SSD.

What does the 12 Gbps transfer rate mean when the cable is installed?

It is the interface ceiling for a PCIe 3.0 x4 NVMe drive; actual throughput depends on the SSD and system configuration.
