Vszerda

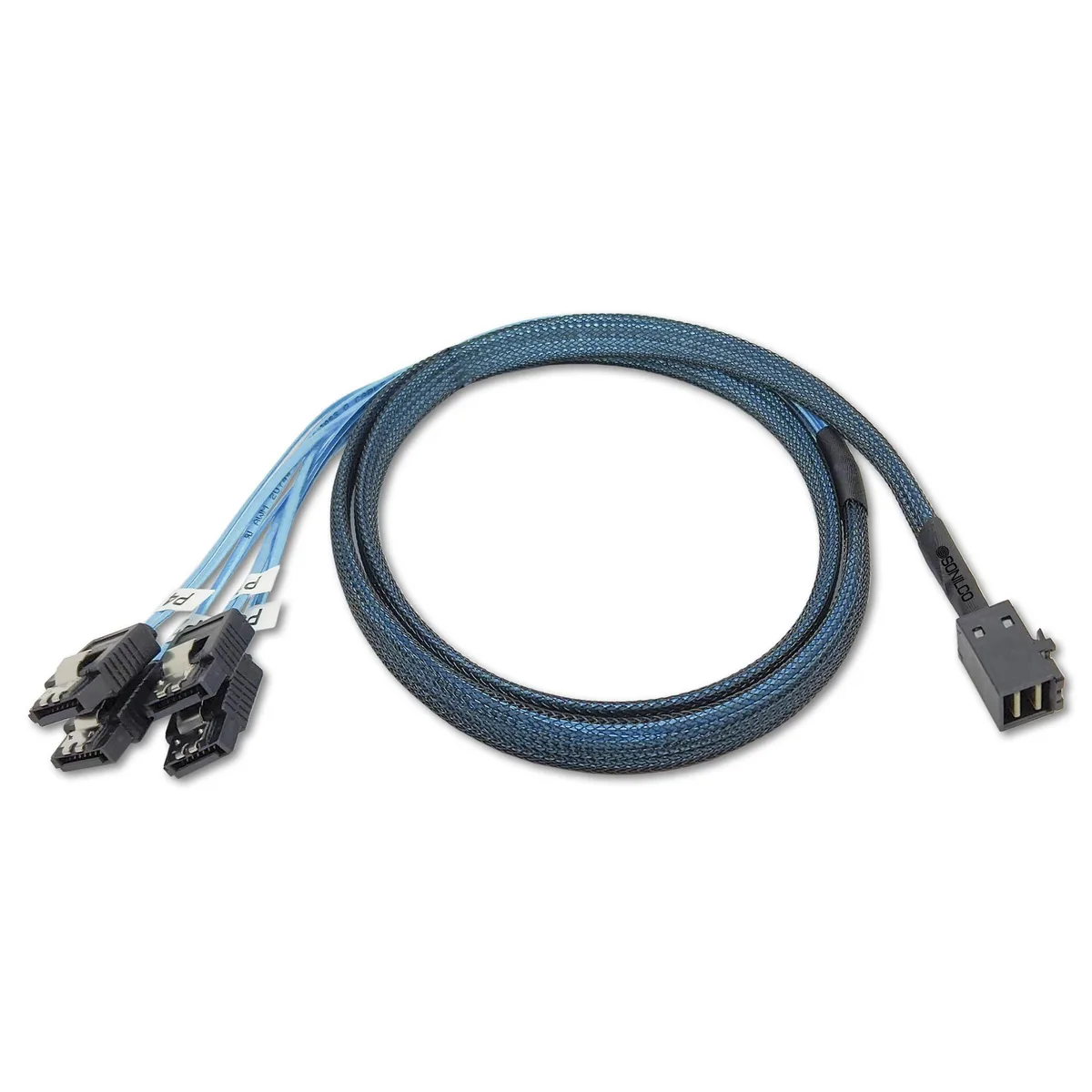

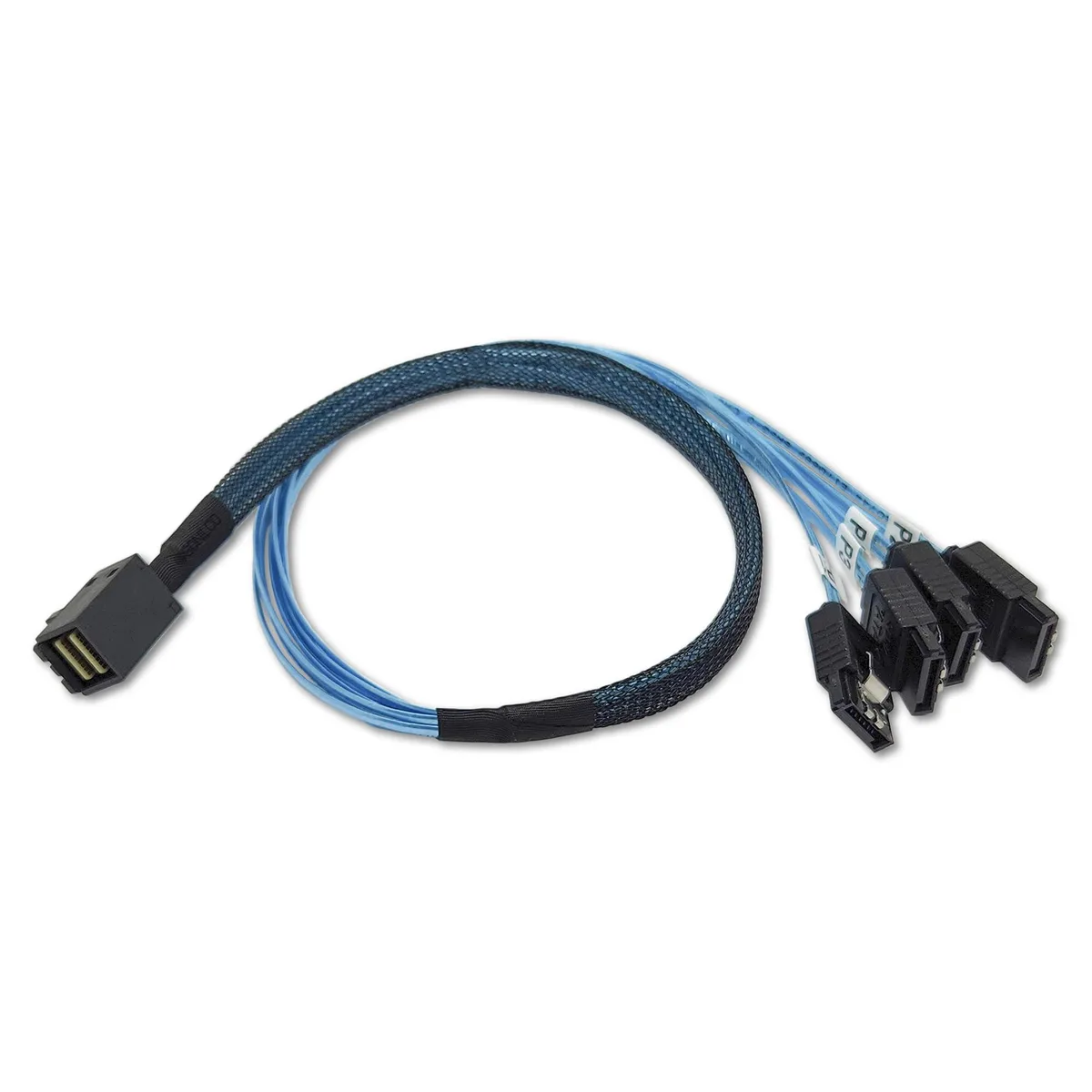

Vszerda SFF-8643 to 4 SATA cable 1.0M
Connects a Mini SAS SFF-8643 port to four SATA drives at 6 Gbps over 1.0 metre
- TypeSATA
- ColorBlack
- Length0.5 - 1
- Connector DetailMini Sas
- Terminal GenderMale-to-Female
- Speed6 gigabits_per_second
- Connect host bus adapter or RAID controller to four SATA drives via SFF-8643
- Stainless steel latches secure each connection for reliable internal storage links
- 36-pin SFF-8643 and four 7-pin SATA connectors support 3 Gbps and 6 Gbps speeds
- Compatible with Adaptec RAID 71605 and 7895 storage controllers
- 0 metre length fits typical chassis layouts for clean cable routing
Host-to-drive connectivity
This Vszerda cable links a host bus adapter, RAID controller or motherboard with an SFF-8643 port to as many as four SATA hard drives or solid-state drives. The 36-pin Mini SAS connector plugs into the host side while four 7-pin SATA connectors fan out to the target drives. It supports both 3 Gbps and 6 Gbps signalling, suiting upgrades toward a 12 Gbps storage area network. Stainless steel latches secure each connection for reliable operation.
Suited for internal RAID and workstation storage
Builders assembling RAID arrays or expanding workstation drive counts will find the breakout layout practical. The one-metre length fits typical chassis routing without excess slack. It is not intended for external enclosures or direct PCIe device attachment. Systems lacking an SFF-8643 host port cannot use this cable.
Deciding specification: SFF-8643 host port required
The single factor that determines fit is whether the host device presents an SFF-8643 connector; the cable’s 36-pin male end mates only with that interface. Compatibility is confirmed for Adaptec RAID 71605 and 7895 controllers, but any controller or motherboard with the same port will work. Without an SFF-8643 host port the cable cannot be connected.
Highlights
- Connect host bus adapter or RAID controller to four SATA drives via SFF-8643
- Stainless steel latches secure each connection for reliable internal storage links
- 36-pin SFF-8643 and four 7-pin SATA connectors support 3 Gbps and 6 Gbps speeds
- Compatible with Adaptec RAID 71605 and 7895 storage controllers
- 0 metre length fits typical chassis layouts for clean cable routing
Specifications
| Brand | Sonilco |
|---|---|
| Model | SFF-8643-4XSATA-1.0M |
| Type | SATA |
| Color | Black |
| Length | 0.5 - 1 |
| Connector Detail | Mini Sas |
| Terminal Gender | Male-to-Female |
| Speed | 6 gigabits_per_second |
| Conductor | Stainless Steel |
| Features | High Speed |
Questions about this item
How can I verify the SFF-8643 to 4 SATA cable is working correctly after connecting it to my RAID controller?
After installation, check your RAID controller BIOS or operating system disk management to confirm all four connected SATA drives are detected at 6 Gbps link speed without errors.
What comes with the Vszerda SFF-8643 to 4 SATA cable and what must I source separately?
The package includes one 1.0 metre black cable with a 36-pin SFF-8643 male connector and four 7-pin SATA female connectors; you must provide the host adapter, RAID controller or motherboard with an SFF-8643 port and the SATA drives.
Which cable length should I choose for a standard server chassis?
The 1.0 metre version suits most internal server layouts; the 0.5 metre option is available for tighter spaces where a shorter run reduces cable clutter.
