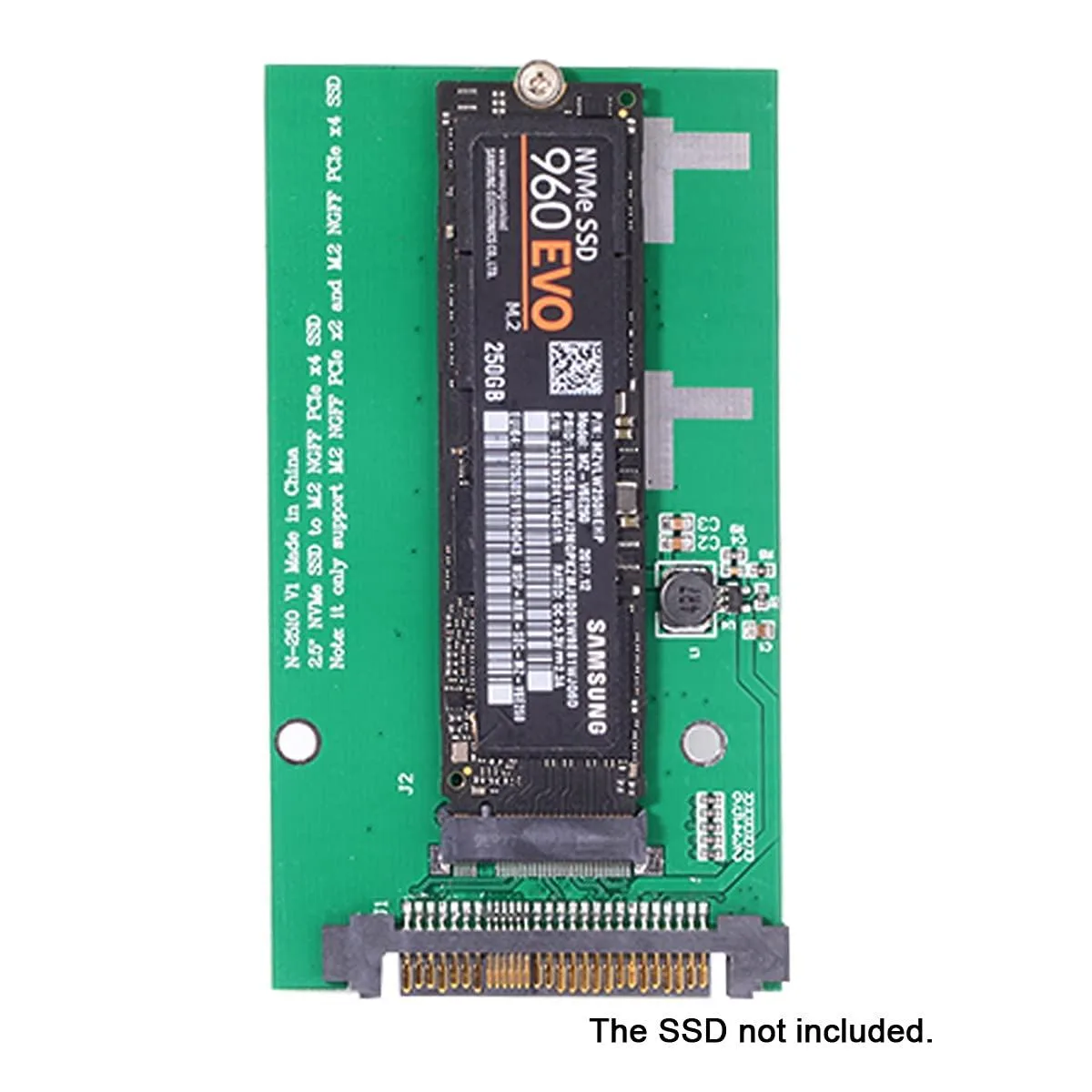

Green circuit board with U.2 male connector and M.2 M-key slot

Vszerda

Vszerda SFF-8639 NVME U.2 to NGFF M.2 M-Key PCIe SSD Adapter

SKU CH-SR0G-XK1P4

Connects M.2 M-key NVMe SSDs in 2280, 2260, 2242 or 2230 sizes to a U.2 SFF-8639 interface using PCIe 3.0 x4 lanes

  • Connect M.2 NVMe SSDs via U.2 SFF-8639 interface
  • Supports 2230 2242 2260 2280 M-key modules
  • PCIe 3.0 x4 lane delivers full NVMe speed
  • SATA 22-pin supplies power only no data transfer
  • Compatible with Intel 750 p3600 p3700 SSDs

Adapter purpose

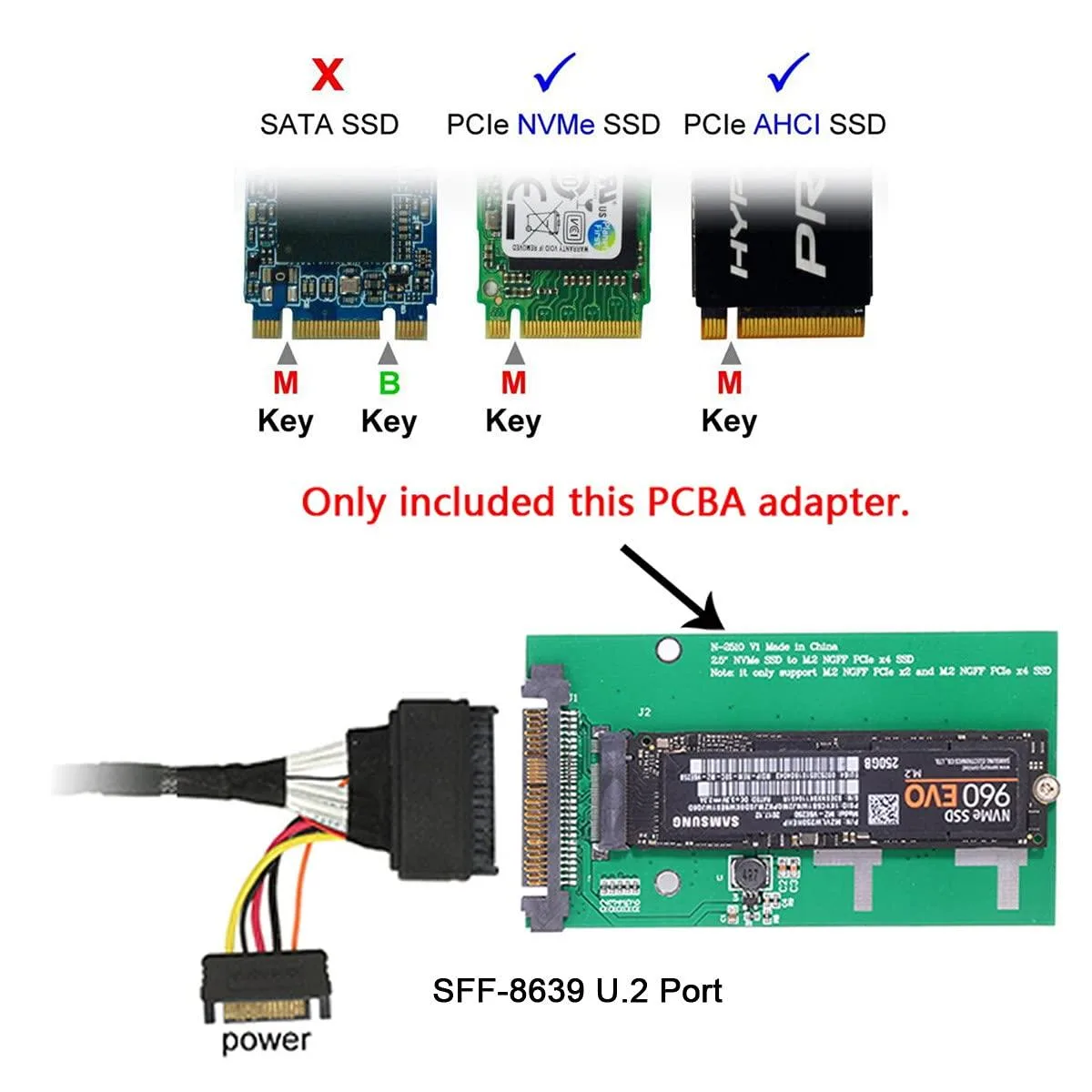

This Vszerda adapter connects an M.2 M-key NVME SSD to a U.2 SFF-8639 interface on a motherboard. It accepts 2230, 2242, 2260 and 2280 form factors with a maximum component height of 1.5 mm. The board also replaces Intel SSD 750, p3600 and p3700 drives in compatible systems. A SATA 22-pin connector supplies power only.

Who it suits

Builders with a free U.2 SFF-8639 or SFF-8643 port who want to use an M-key NVME module. It works under Windows 7 through 10 and Linux kernel 3.16 with native NVM Express drivers. Buyers needing B-key or B/M-key SATA M.2 drives cannot use this adapter. Systems without a U.2 interface must look elsewhere.

Deciding specification

The adapter provides a 67-pin M.2 M-key slot wired for PCIe 3.0 x4 lanes through the U.2 SFF-8639 male connector. Only M-key NVME SSDs are supported; B-key or dual-key modules will not function. The SATA 22-pin header delivers power but carries no data.

Highlights

  • Connect M.2 NVMe SSDs via U.2 SFF-8639 interface
  • Supports 2230 2242 2260 2280 M-key modules
  • PCIe 3.0 x4 lane delivers full NVMe speed
  • SATA 22-pin supplies power only no data transfer
  • Compatible with Intel 750 p3600 p3700 SSDs

Specifications

No published specifications for this item yet.

Questions about this item

Will the SATA 22-pin power connector on this adapter need to be replaced or upgraded over time?

The SATA 22-pin connector supplies power only and carries no data; it is a standard cable connection that does not require scheduled replacement.

What is the maximum component height allowed on the M.2 module before it hits the thermal limit of this adapter?

Components on the M.2 module must not exceed 1.5 mm in height to fit within the adapter's physical clearance.

Does the U.2 SFF-8639 interface on this adapter generate noticeable heat or noise when running continuously?

The adapter is a passive board with no fan or active cooling; heat and noise depend entirely on the installed SSD and system airflow.
