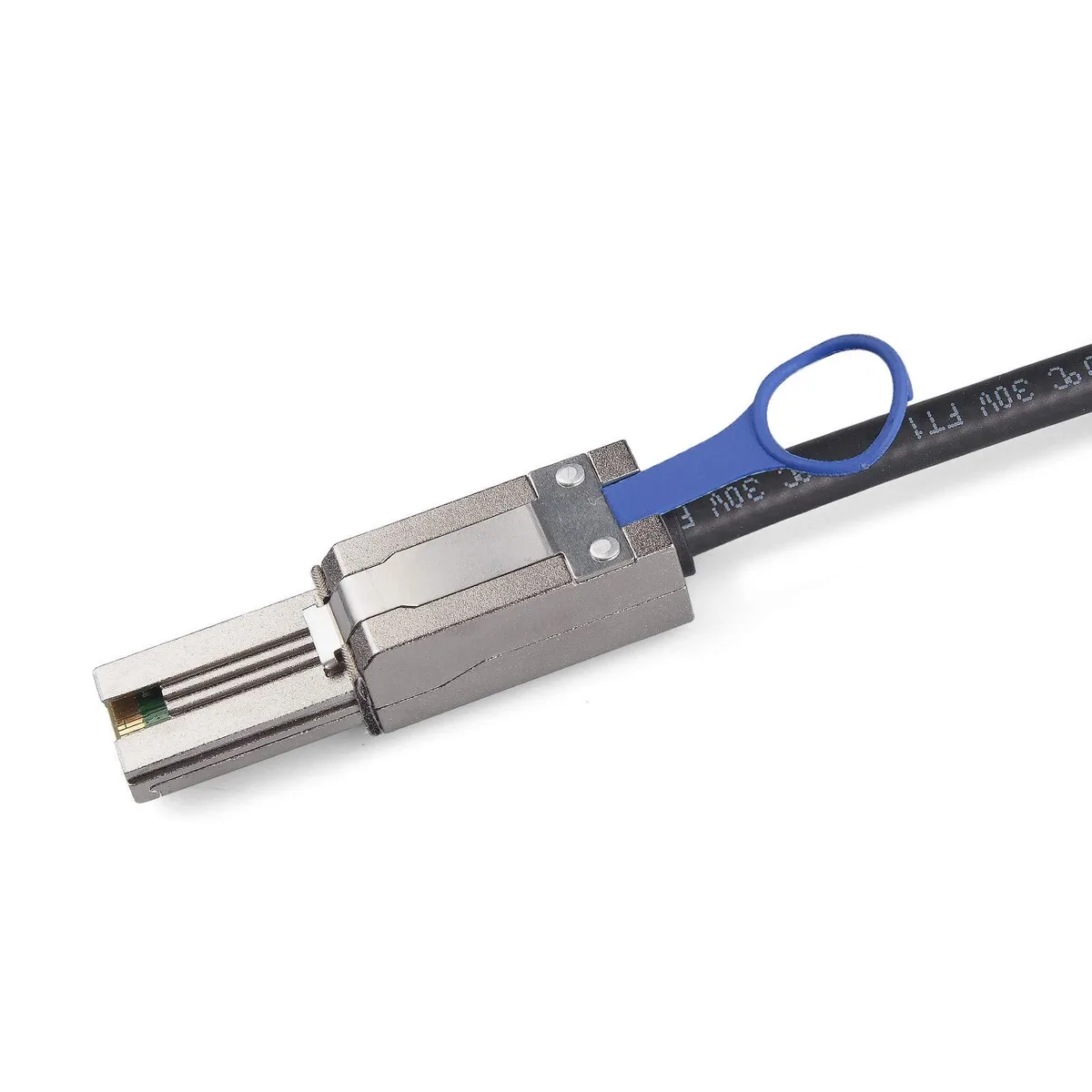

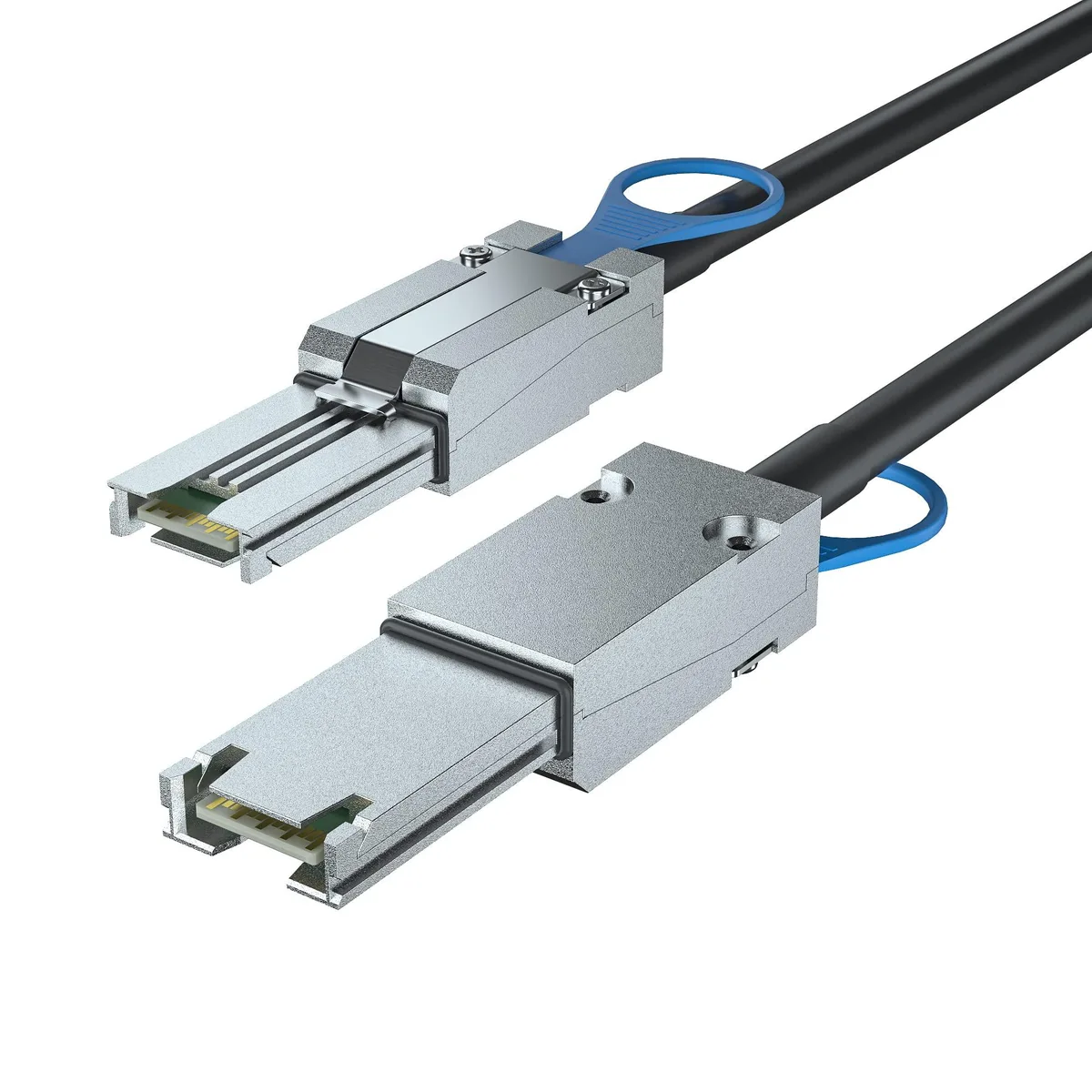

External Mini SAS HD cable with metal SFF-8088 connectors on both ends, pull tabs, and protective caps

Vszerda

Vszerda SFF-8088 to SFF-8088 External Mini SAS HD Hybrid Cable 1m

SKU CH-MEGE-RSJH3

A 1 m external Mini SAS HD cable with SFF-8088 male connectors on both ends, rated for 6 Gbps SAS 2.1 links between RAID cards, JBOD enclosures or legacy server backplanes

  • TypeExternal Copper SAS Cable
  • ColorSFF-8088 to SFF-8088
  • Length1
  • Connector DetailSff-8088 to Sff-8088
  • Terminal GenderMale-to-Male
  • Speed6 gigabits_per_second
  • 6 Gbps data rate via SAS 2.1 compliant link
  • 1 m length with pull tabs for easy rack access
  • 26-pin SFF-8088 male connectors on both ends
  • AWG30 twinaxial 8-pair copper for low-skew signal
  • Die-cast zinc housings with protective caps shield connectors

26-Pin SFF-8088 External SAS Cable

This 1 m SFF-8088 to SFF-8088 hybrid cable links external RAID controllers or HBA cards to JBOD enclosures and legacy server backplanes. It uses AWG30 twinaxial copper conductors in an 8-pair layout to deliver 6 Gbps signalling compliant with SAS 2.1. Die-cast zinc connector housings with protective caps and pull tabs simplify handling in dense rack environments.

Suits administrators wiring 6 Gbps external SAS

Installers who need internal Mini SAS HD ports, higher signalling rates, or fibre-channel interfaces must choose a different product. The male-to-male gender and fixed 1 m length also limit use in setups requiring female bulkheads or longer runs between racks.

SAS 2.1 compliance at 6 Gbps

This single specification defines the maximum data rate and protocol level the cable supports, determining whether it matches the controller and backplane firmware in your deployment.

Highlights

  • 6 Gbps data rate via SAS 2.1 compliant link
  • 1 m length with pull tabs for easy rack access
  • 26-pin SFF-8088 male connectors on both ends
  • AWG30 twinaxial 8-pair copper for low-skew signal
  • Die-cast zinc housings with protective caps shield connectors

Specifications

Brandipolex
ModelCAB-8088/8088-P1M-1pc
TypeExternal Copper SAS Cable
ColorSFF-8088 to SFF-8088
Length1
Connector DetailSff-8088 to Sff-8088
Terminal GenderMale-to-Male
Speed6 gigabits_per_second
ConductorCopper

Questions about this item

Should I choose the 1 m or 3.28 ft length for my rack?

Both figures describe the same cable; select the unit that matches your rack plan.

What does the 6 Gbps rating mean when the cable is installed?

It delivers up to 6 Gbps per lane across the 8-pair twinaxial conductors between a SAS HBA and an external drive subsystem.

How does the SAS 2.1 interface limit real-world throughput?

The SAS 2.1 standard caps each lane at 6 Gbps, so aggregate bandwidth depends on the number of active lanes in your controller and backplane.
