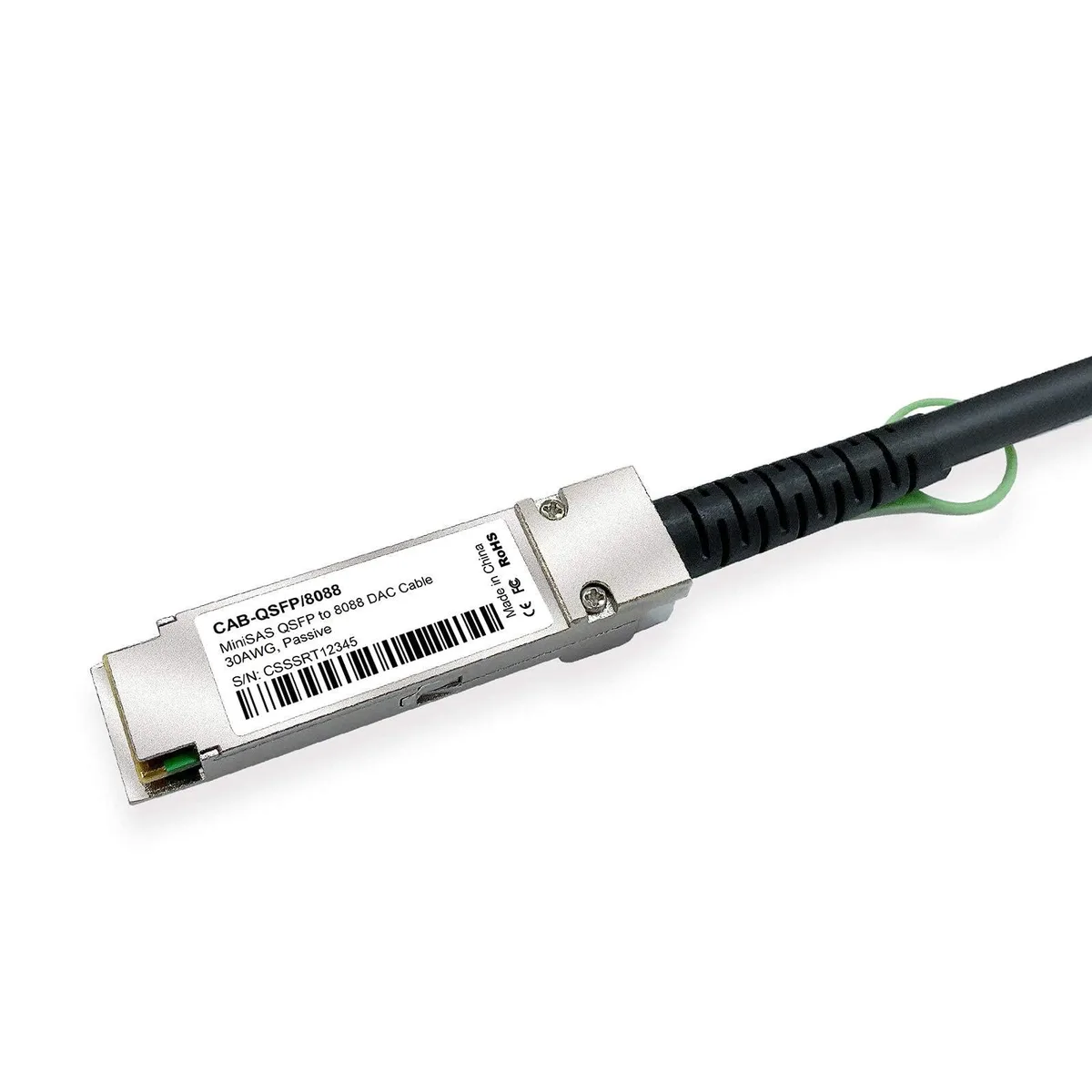

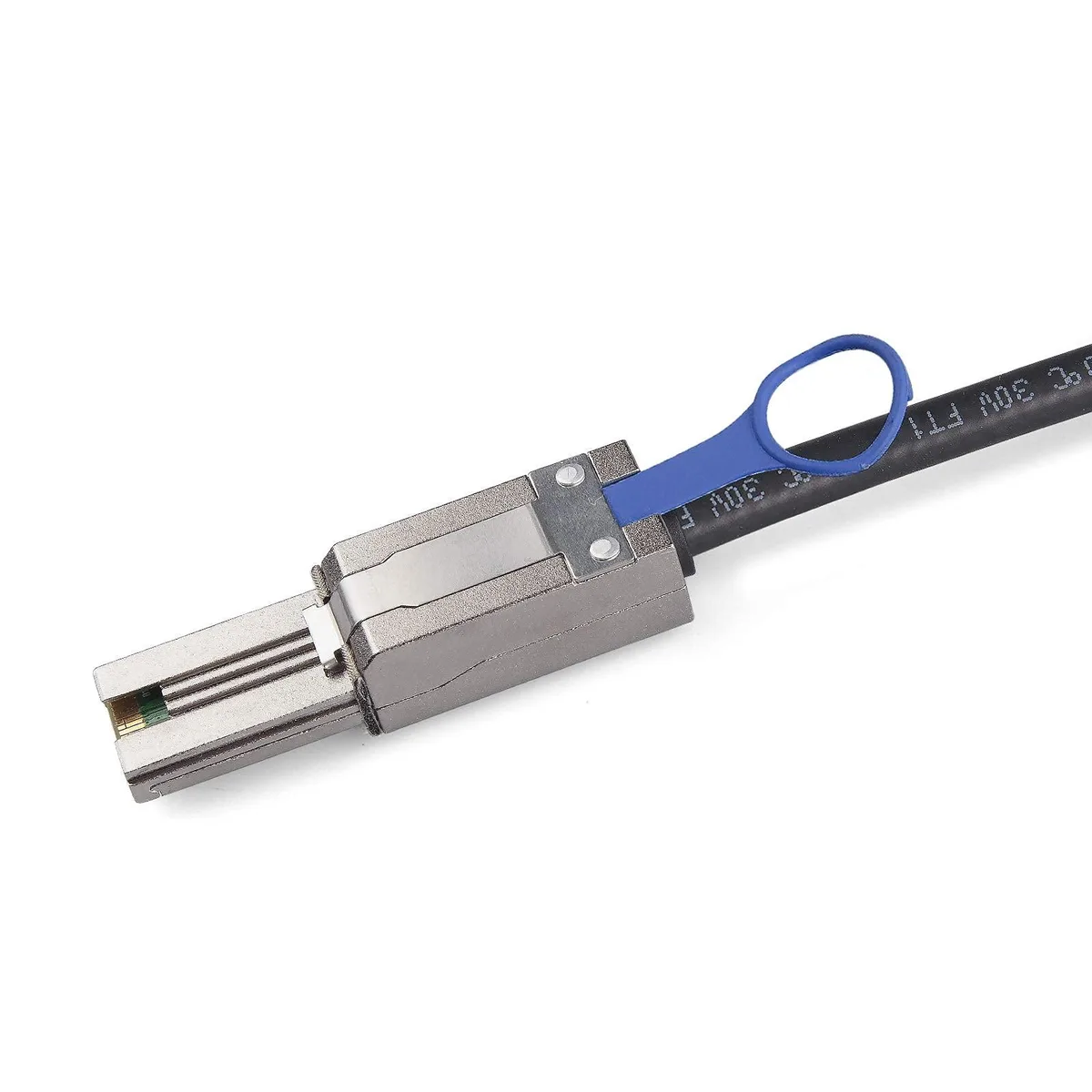

Copper cable with SFF-8088 and SFF-8436 connectors, 6.5 m long

Vszerda

Vszerda SFF-8088 to QSFP SFF-8436 SAS Cable 6.5 m

SKU CH-ZVVD-0QQN0

Connects a Mini SAS SFF-8088 host to a QSFP SFF-8436 target at up to 10 Gbps over 6.5 m of passive copper

  • TypeMiniSAS
  • ColorSFF-8088 to QSFP(SFF8436)
  • Length6.5
  • Connector DetailSff-8436-sff-8088
  • Terminal GenderMale-to-Male
  • Speed10 gigabits_per_second
  • Up to 10 Gbps throughput with passive copper construction
  • SFF-8088 and SFF-8436 connectors link HBA to storage
  • Zinc die-cast shells and pull tabs simplify rack cable management
  • AWG28/AWG30 twinaxial wire meets 100-Ohm impedance spec
  • Operating range 0 °C to 70 °C standard, -40 °C to 85 °C industrial

Hybrid SAS connectivity

This cable links a QSFP+ SFF-8436 port to an external Mini SAS SFF-8088 connector. It suits administrators attaching external storage enclosures to host bus adapters or RAID controllers. The hybrid design bridges differing rack-mount interfaces in a single passive assembly.

Metal shell with pull tabs

Die-cast zinc housings and a metal outer shell provide shielding for 100-ohm twinaxial pairs built from AWG28 and AWG30 wire. Protective caps guard the ends against dust when disconnected. Pull tabs simplify release in dense rack environments without damaging adjacent cables.

Replaces separate adapter cables

The assembly removes the need for a QSFP-to-MiniSAS adapter plus a standard MiniSAS cable. Compliance with SAS 2.1 on the SFF-8088 side and SAS 3.0 on the QSFP side supports 10 Gbps links. It is not for internal backplane routing or single-connector environments.

Highlights

  • Up to 10 Gbps throughput with passive copper construction
  • SFF-8088 and SFF-8436 connectors link HBA to storage
  • Zinc die-cast shells and pull tabs simplify rack cable management
  • AWG28/AWG30 twinaxial wire meets 100-Ohm impedance spec
  • Operating range 0 °C to 70 °C standard, -40 °C to 85 °C industrial

Specifications

Brandipolex
TypeMiniSAS
ColorSFF-8088 to QSFP(SFF8436)
Length6.5
Connector DetailSff-8436-sff-8088
Terminal GenderMale-to-Male
Speed10 gigabits_per_second
SpecificationsMiniSAS
ShieldingHigh Speed
FeaturesHigh Speed

Questions about this item

What data rate does the SFF-8088 to QSFP cable support?

The cable is rated for up to 10 Gbps and complies with SAS 2.1 on the SFF-8088 side and SAS 3.0 on the QSFP side.

What connectors and length does this hybrid cable use?

It has a male SFF-8088 Mini SAS HD connector on one end and a male QSFP SFF-8436 connector on the other, with a 6.5 m length.

How do you install the cable without damaging the ports?

Align the keyed SFF-8088 and QSFP connectors, push straight in until the latches click, and use the pull tabs to release — never pull the cable body.
