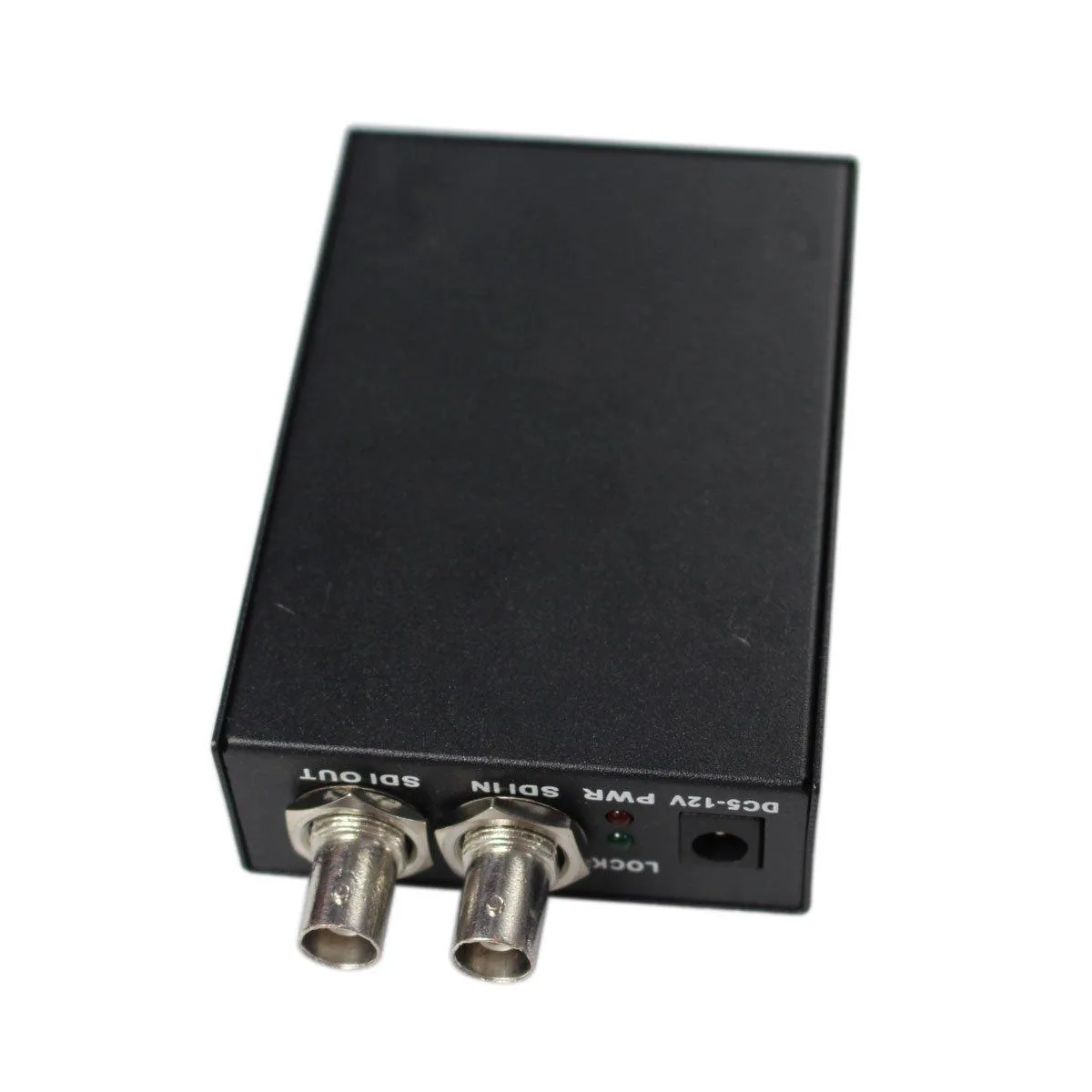

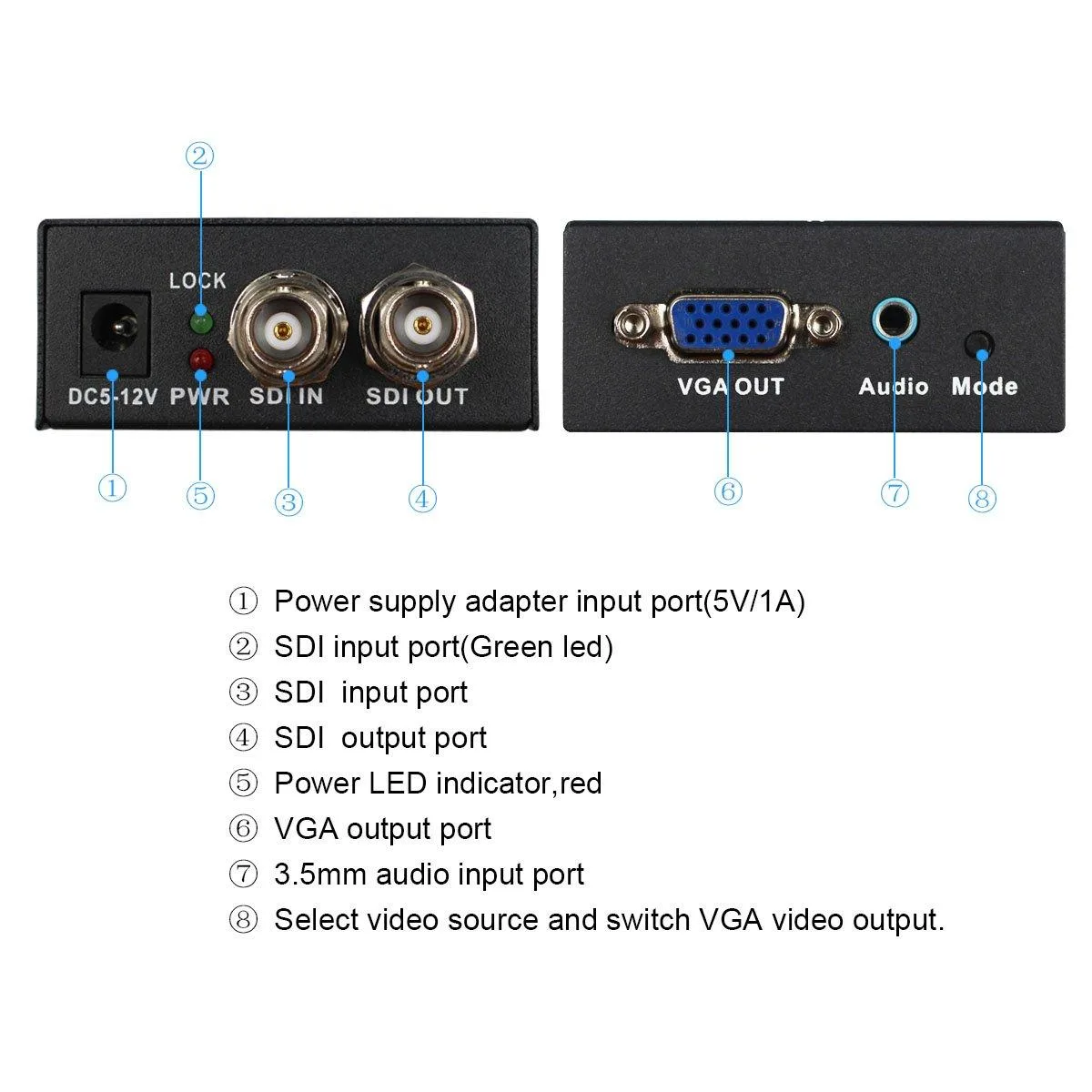

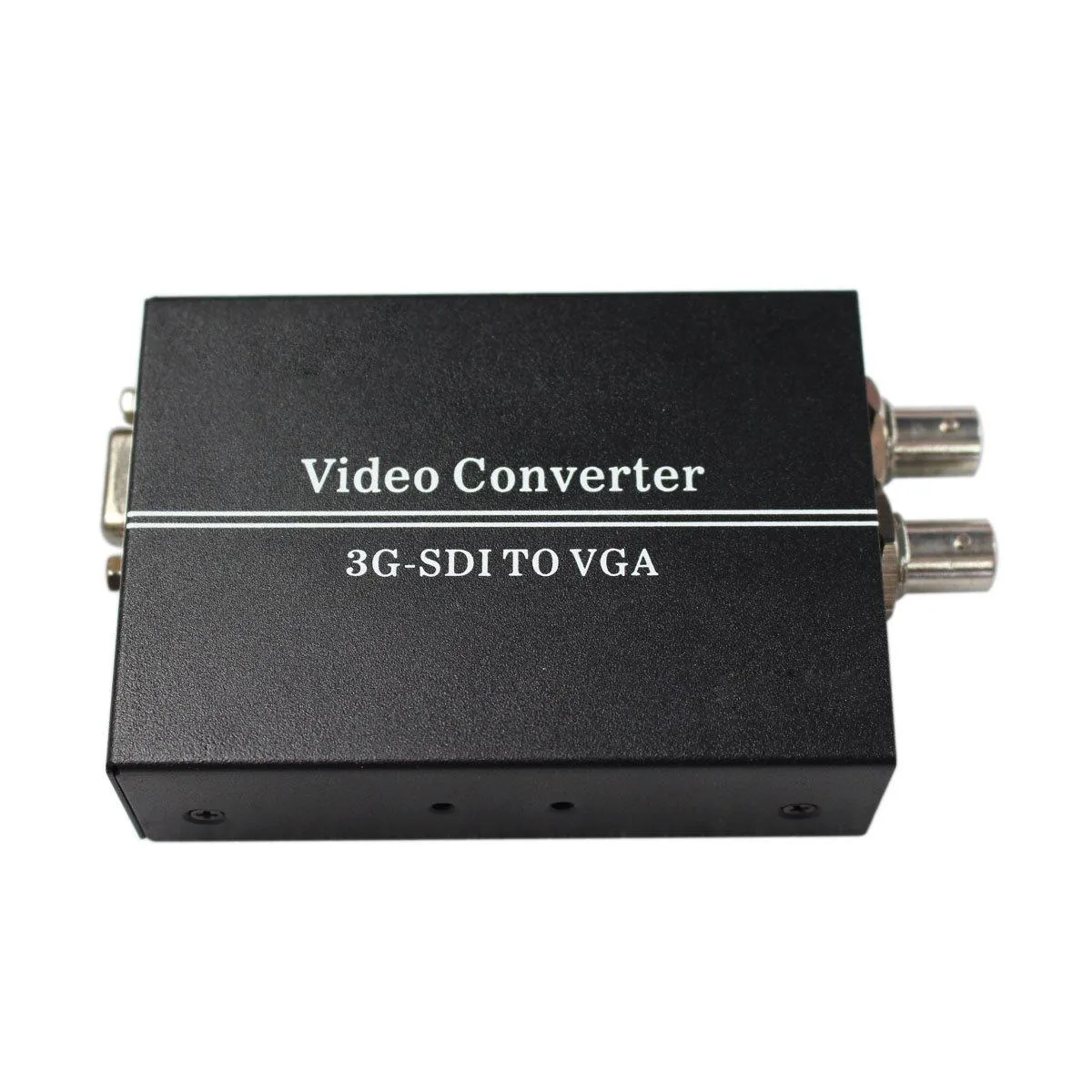

Compact black metal box with BNC SDI input, BNC SDI loop output, VGA port, 3.5 mm audio jack and US power adapter

Vszerda

Vszerda SDI to VGA BNC Video Converter with US Power Adapter

SKU CH-1TQH-KEP8M

Converts SDI, HD-SDI and 3G-SDI signals to VGA with simultaneous SDI loop output and 3.5 mm audio, supporting 1080p at 50, 59.94 and 60 Hz

  • Weight0.658 kilograms
  • Converts SDI to VGA with simultaneous SDI loop output
  • Supports 2.970 Gbit/s 3G-SDI and 1.485 Gbit/s HD-SDI rates
  • Handles SMPTE 425M Level B to Level A 1080p 50/59.94/60 conversion
  • Powers from DC 5 V to 12 V with included US adapter
  • Includes 3.5 mm headphone port for audio monitoring

SDI to VGA Converter with Loop Output

The Vszerda unit converts SD-SDI, HD-SDI and 3G-SDI signals to VGA while providing a re-clocked SDI loop output for signal extension. It accepts 270 Mbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s, 2.970 Gbit/s and 2.970/1.001 Gbit/s inputs and includes a 3.5 mm audio output. A US power adapter covering DC 5 V to 12 V is supplied.

Broadcast and Security Installers

This converter suits engineers who need to monitor SDI feeds on VGA displays in broadcast rooms, non-linear editing suites, CCTV systems or training showrooms. It is not for users who require HDMI, DisplayPort or composite outputs, nor for installations that demand built-in scaling, frame-rate conversion or multi-channel audio embedding.

1080p 4:2:2 10-bit at 50, 59.94 and 60 Hz

The device handles Level B to Level A conversion for 1080p 4:2:2 10-bit signals at 50, 59.94 and 60 Hz per SMPTE 425M. It passes 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M) and SD-SDI (SMPTE 259M) formats through the loop output. It does not process 4K, 12G-SDI or higher bandwidth signals, so pipelines beyond 3G-SDI will need a different converter.

Highlights

  • Converts SDI to VGA with simultaneous SDI loop output
  • Supports 2.970 Gbit/s 3G-SDI and 1.485 Gbit/s HD-SDI rates
  • Handles SMPTE 425M Level B to Level A 1080p 50/59.94/60 conversion
  • Powers from DC 5 V to 12 V with included US adapter
  • Includes 3.5 mm headphone port for audio monitoring

Specifications

BrandHDSUNWSTD
Weight0.658 kilograms

Questions about this item

Which input signal standards must my source already provide for this converter to accept it?

The converter accepts SD-SDI per SMPTE 259M, HD-SDI per SMPTE 292M, and 3G-SDI per SMPTE 424M.

If I keep an HD-SDI monitor on the loop output, will it still receive a valid signal?

The equalized and re-clocked SDI loop output carries HD-SDI per SMPTE 292M and 3G-SDI per SMPTE 424M, so an HD-SDI monitor will stay in sync.

How can I confirm the VGA output is showing the converted 1080p picture after I connect everything?

The converter simultaneously displays the SDI and VGA signals, so a connected VGA monitor will show the 1080p 50/59.94/60 4:2:2 10-bit image once the input is locked.
