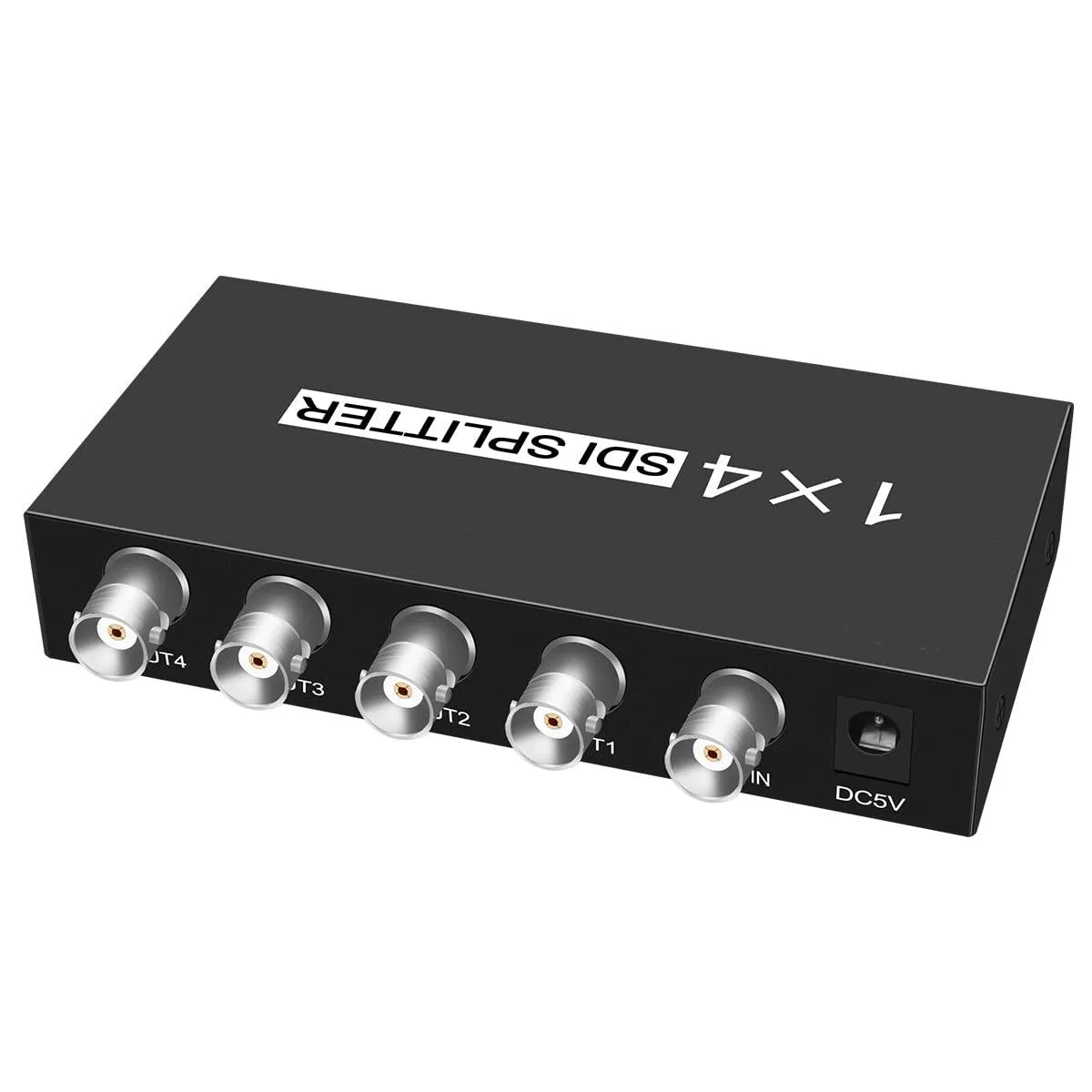

Compact metal box with one BNC input and four BNC outputs, blue and red status LEDs, DC 5V power jack

Vszerda

Vszerda SDI Splitter 1x4 HD-SDI 3G-SDI 4 BNC Out

SKU CH-VAMT-6FAKC

Distributes one SD-SDI, HD-SDI or 3G-SDI signal to four identical BNC outputs with automatic detection and LED status

  • Weight0.363 kilograms
  • Distributes one SDI signal to four identical outputs simultaneously
  • Supports SD-SDI 270 Mbps, HD-SDI 1.485 Gbps and 3G-SDI 2.97 Gbps formats
  • Reclocks and equalises signals for up to 400 m SD-SDI, 200 m HD-SDI and 100 m 3G-SDI cable runs
  • Plug-and-play auto-detection with blue LED for valid signal and red LED for missing or incorrect signal
  • Operates from DC 5 V 1 A input in temperatures from 0 to 60 °C

1×4 SDI Splitter for Broadcast and Security

The Vszerda SDI Splitter takes one SDI input and delivers four identical SDI outputs for simultaneous display on multiple monitors, projectors or cameras. It handles SD-SDI at 270 Mbps, HD-SDI at 1.485 Gbps and 3G-SDI at 2.97 Gbps, making it suitable for broadcast rooms, non-linear editing suites, CCTV installations and training showrooms.

Thermals Noise and Power Draw

The unit operates from 0 °C to 60 °C with a DC 5 V 1 A supply and a maximum power draw of 5 V. No active cooling is mentioned, so the aluminium enclosure runs silently in typical rack or desktop positions. At 0.363 kg it adds negligible load to a mounting surface or cable run.

Signal Integrity and LED Status

Built-in equalisation and re-clocking extend cable runs to 400 m for SD-SDI, 200 m for HD-SDI and 100 m for 3G-SDI when using Belden 1694A cable. A front-panel LED glows blue when a valid SDI signal is detected and red when the signal is missing or incorrect, giving installers immediate visual feedback without extra test gear.

Highlights

  • Distributes one SDI signal to four identical outputs simultaneously
  • Supports SD-SDI 270 Mbps, HD-SDI 1.485 Gbps and 3G-SDI 2.97 Gbps formats
  • Reclocks and equalises signals for up to 400 m SD-SDI, 200 m HD-SDI and 100 m 3G-SDI cable runs
  • Plug-and-play auto-detection with blue LED for valid signal and red LED for missing or incorrect signal
  • Operates from DC 5 V 1 A input in temperatures from 0 to 60 °C

Specifications

BrandHDSUNWSTD
Weight0.363 kilograms

Questions about this item

How do I install the Vszerda SDI Splitter 1x4 and which step is often missed?

Connect the DC 5V power supply, attach the single BNC input, then run up to four BNC outputs; the step often missed is confirming the blue LED before assuming the signal path is live.

What maintenance or replacement will the Vszerda SDI Splitter 1x4 need later?

No user-serviceable parts are inside; plan only to replace the external 5 V 1 A power adapter if it fails and to re-terminate BNC cables when the Belden 1694A runs degrade.

What is the first limit that appears when the Vszerda SDI Splitter 1x4 runs continuously at 3G-SDI rates?

The 100-metre cable reach for 3G-SDI at 2.97 Gbps is the first hard limit; beyond that distance the re-clocked output drops out even if the unit stays within its 0–60 °C operating range.
