Small white plastic box with four yellow fibre tails and SC connectors

Vszerda

Vszerda SC UPC 1X4 PLC Singlemode Fibre Optic Splitter 0.9mm G657A1 1M/3.3FT

SKU CH-BASQ-XTRMQ

SC UPC 1x4 PLC singlemode splitter with 7.5 dB insertion loss, 50 dB return loss and G.657A1 fibre across 1260 to 1650 nm

  • TypeFiber Optic
  • Connector NumberSC
  • 1×4 PLC splitter divides one signal into four paths
  • SC UPC ceramic ferrules keep insertion loss at 7.5 dB and return loss at 50 dB
  • G657A1 0.9 mm singlemode fibre bends without loss

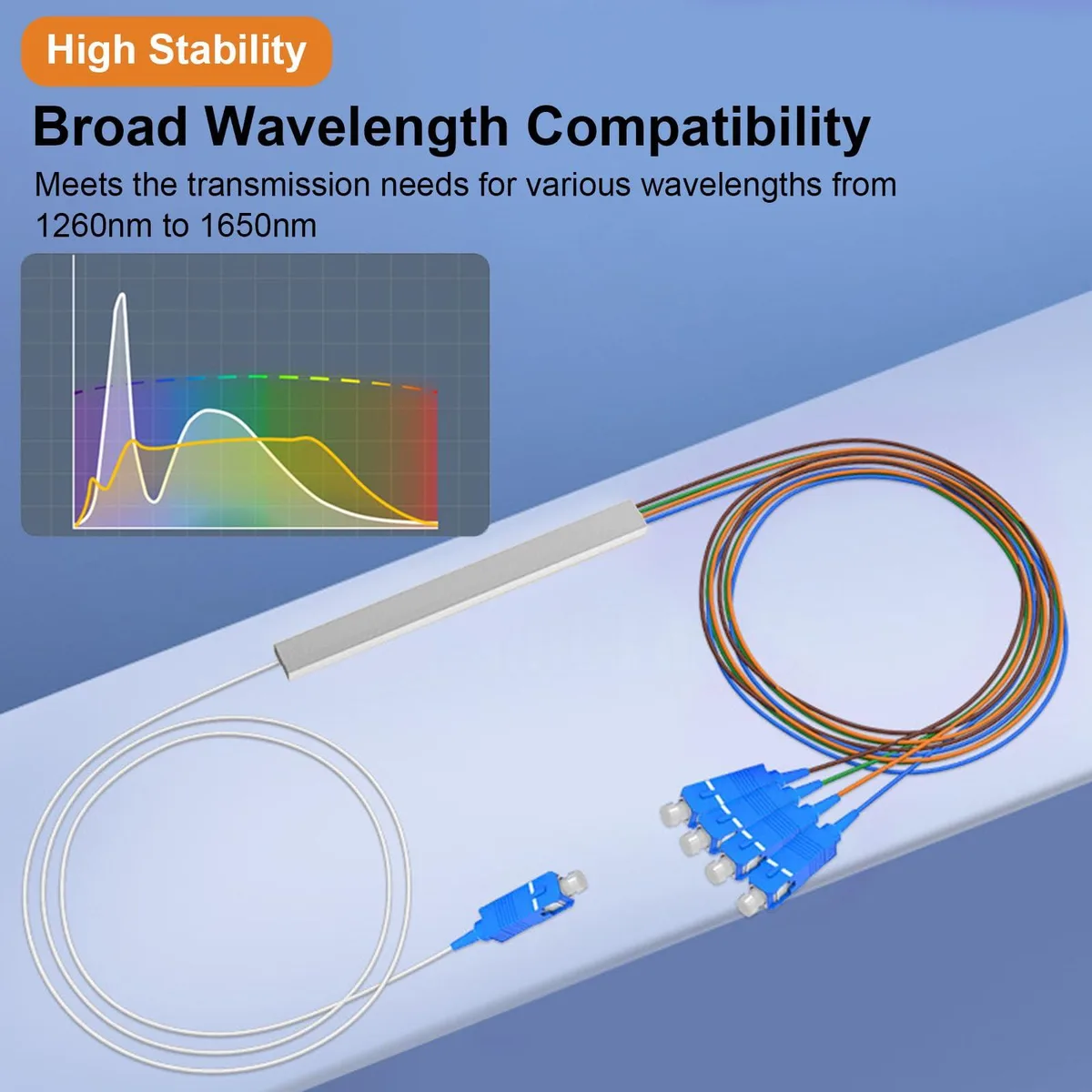

  • Operates from -40 °C to 85 °C across 1260 nm to 1650 nm

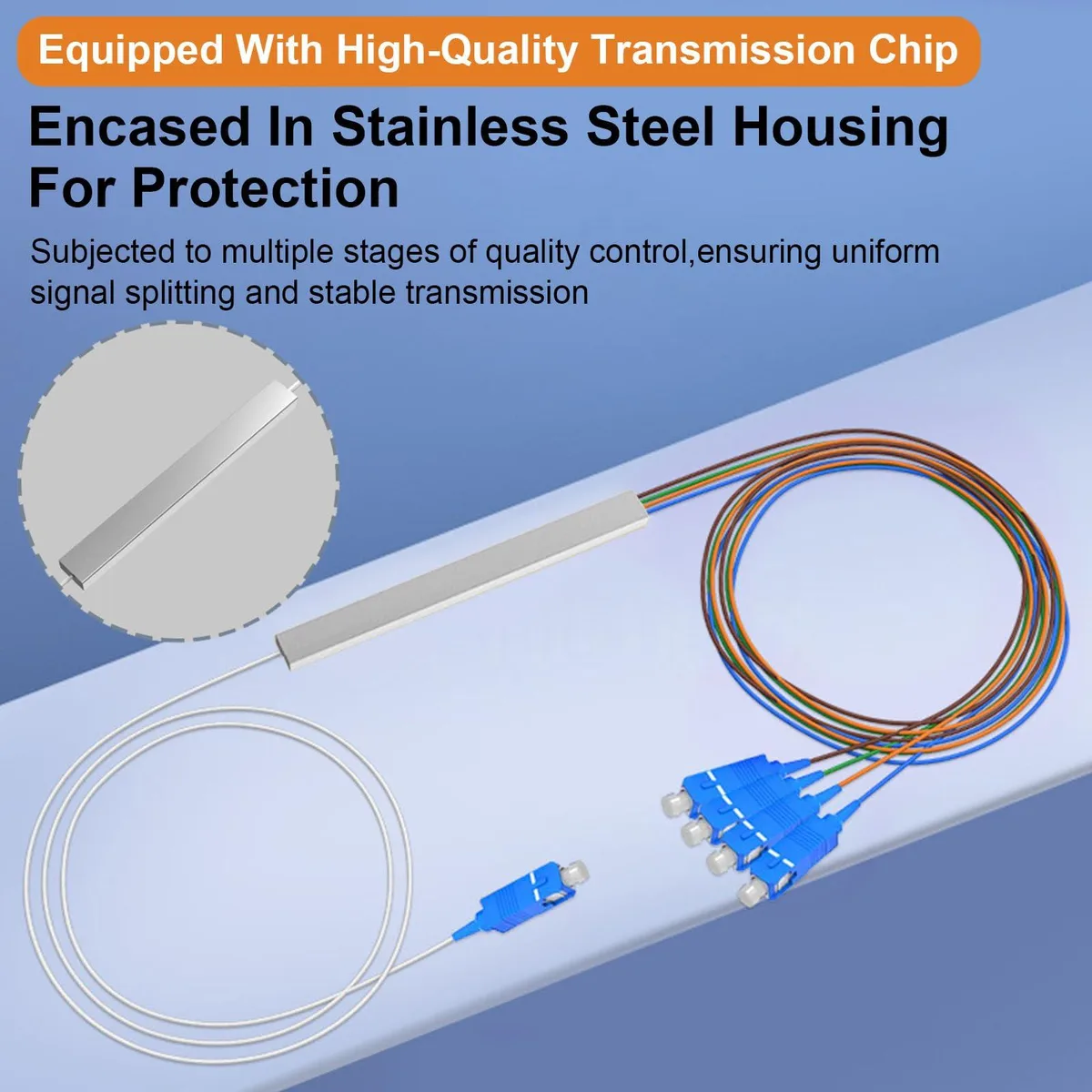

  • Stainless-steel cassette protects the chip for stable long-term use

1×4 PLC Singlemode Splitter

The Vszerda SC UPC 1×4 PLC splitter divides a single singlemode fibre into four equal outputs for FTTH, LAN or telecom distribution. It uses G657A1 bend-insensitive fibre in a stainless-steel module. Installers running point-to-multipoint passive optical networks will find the 1 m pigtail length convenient for splice trays. Buyers needing a 1×8 or 2×4 split ratio cannot use this module.

Insertion loss 7.5 dB return loss 50 dB

The key specification is the guaranteed maximum insertion loss of 7.5 dB combined with a minimum return loss of 50 dB across the 1260 nm to 1650 nm window. These figures determine whether the link budget supports the planned split distance and ONT sensitivity. Designers who require lower loss for longer reaches must select a different splitter grade.

0.9 mm pigtails SC UPC connectors

Each of the five fibres terminates in a 0.9 mm buffered pigtail with an SC UPC ceramic ferrule, so the unit plugs directly into patch panels or closure trays without extra fan-out kits. The stainless-steel housing protects the PLC chip from -40 °C to 85 °C. Users who need ruggedised 2 mm or 3 mm cable jackets must add separate protection.

Highlights

  • 1×4 PLC splitter divides one signal into four paths
  • SC UPC ceramic ferrules keep insertion loss at 7.5 dB and return loss at 50 dB
  • G657A1 0.9 mm singlemode fibre bends without loss
  • Operates from -40 °C to 85 °C across 1260 nm to 1650 nm
  • Stainless-steel cassette protects the chip for stable long-term use

Specifications

BrandPoyiccot
TypeFiber Optic
Connector NumberSC

Questions about this item

What does the 7.5 dB insertion loss mean for signal strength in a live link?

Each of the four output ports adds roughly 7.5 dB of attenuation, so the downstream power budget must accommodate that loss per split path.

How does the SC-UPC connector interface limit return loss in practice?

The UPC polish provides a 50 dB return loss figure, keeping reflected light low enough for stable singlemode transmission.

What physical space does the 0.9 mm G.657A1 pigtail need for routing and bending?

The 0.9 mm bare fibre with G.657A1 rating supports tight bends down to a few millimetres radius, easing installation in splice trays or wall boxes.
