Vszerda SC UPC 1x16 PLC singlemode splitter with 0.9mm G657A1 pigtail, 1m length

Vszerda

Vszerda SC UPC 1X16 PLC Singlemode Splitter 0.9mm G657A1 1260/1650nm 1M

SKU CH-P6VD-72AN3

Splits a single fibre into sixteen paths with 13.5 dB insertion loss and 50 dB return loss across 1260-1650 nm

  • TypeFiber Optic
  • Connector NumberSC
  • 1x16 PLC splitter divides one signal into sixteen paths
  • SC/UPC ceramic ferrules deliver 13.5 dB insertion loss and 50 dB return loss
  • G.657A1 bend-insensitive fiber operates from −40 °C to 85 °C

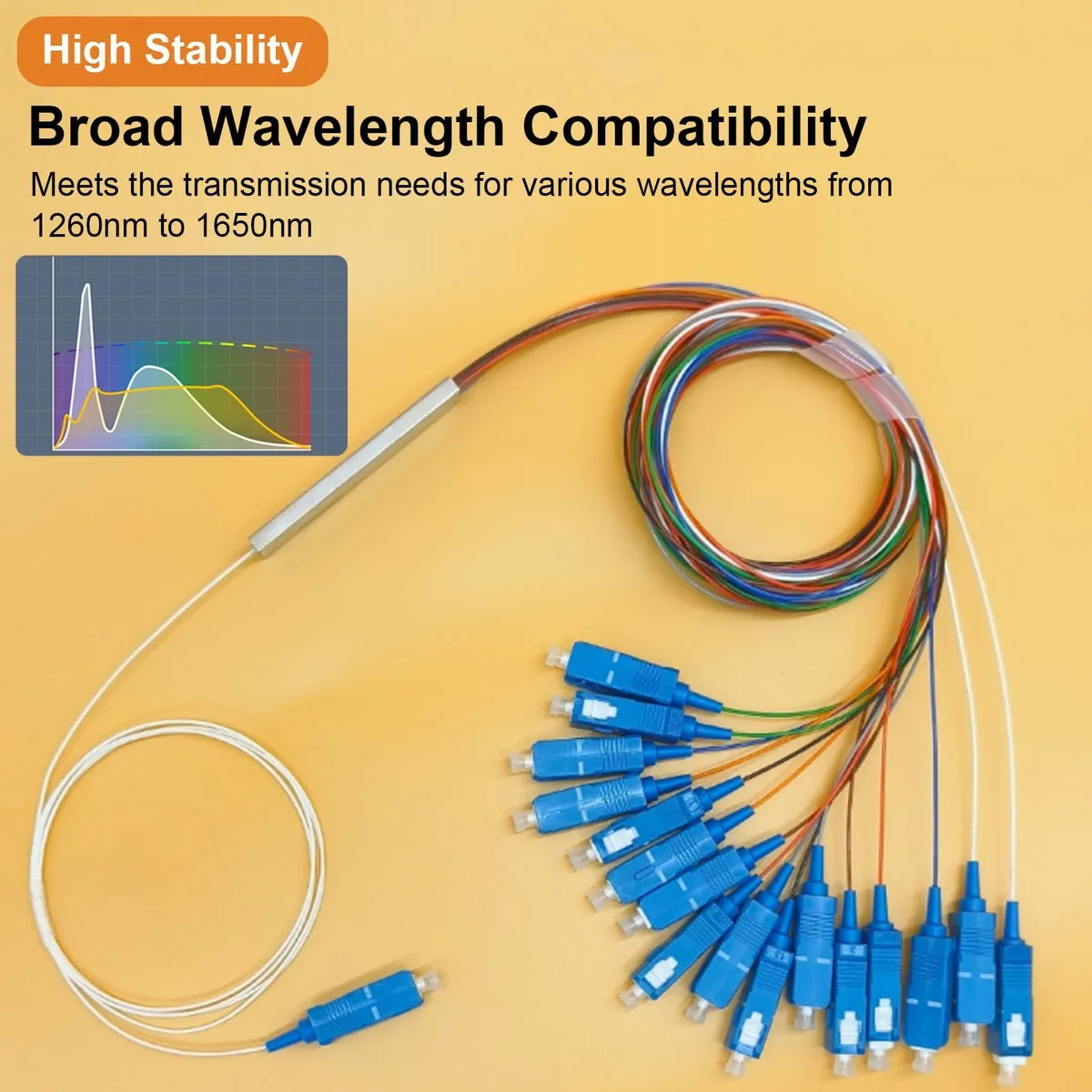

  • 1260–1650 nm wavelength range covers all standard single-mode bands
  • 9 mm pigtail with 1 m / 3.3 ft length suits indoor and cabinet installs

Vszerda 1×16 SC PLC Singlemode Splitter

This fiber optic splitter divides a single input into 16 outputs using PLC technology on G657A1 singlemode fiber. It is built for telecom-grade distribution in home wiring, engineering projects and corporate LANs where uniform signal splitting is required. The SC-UPC connectors and 0.9 mm pigtails suit standard singlemode patching.

Check SC-UPC ports and 0.9 mm pigtail routing

Verify that your patch panels or enclosures accept SC-UPC connectors and that the 0.9 mm bare-fiber pigtails can be routed or spliced within your existing tray space. Confirm the link budget can accommodate the stated 13.5 dB insertion loss and 50 dB return loss across the 1260/1650 nm window. Ensure the operating range of -40 to 85 °C matches the installation environment.

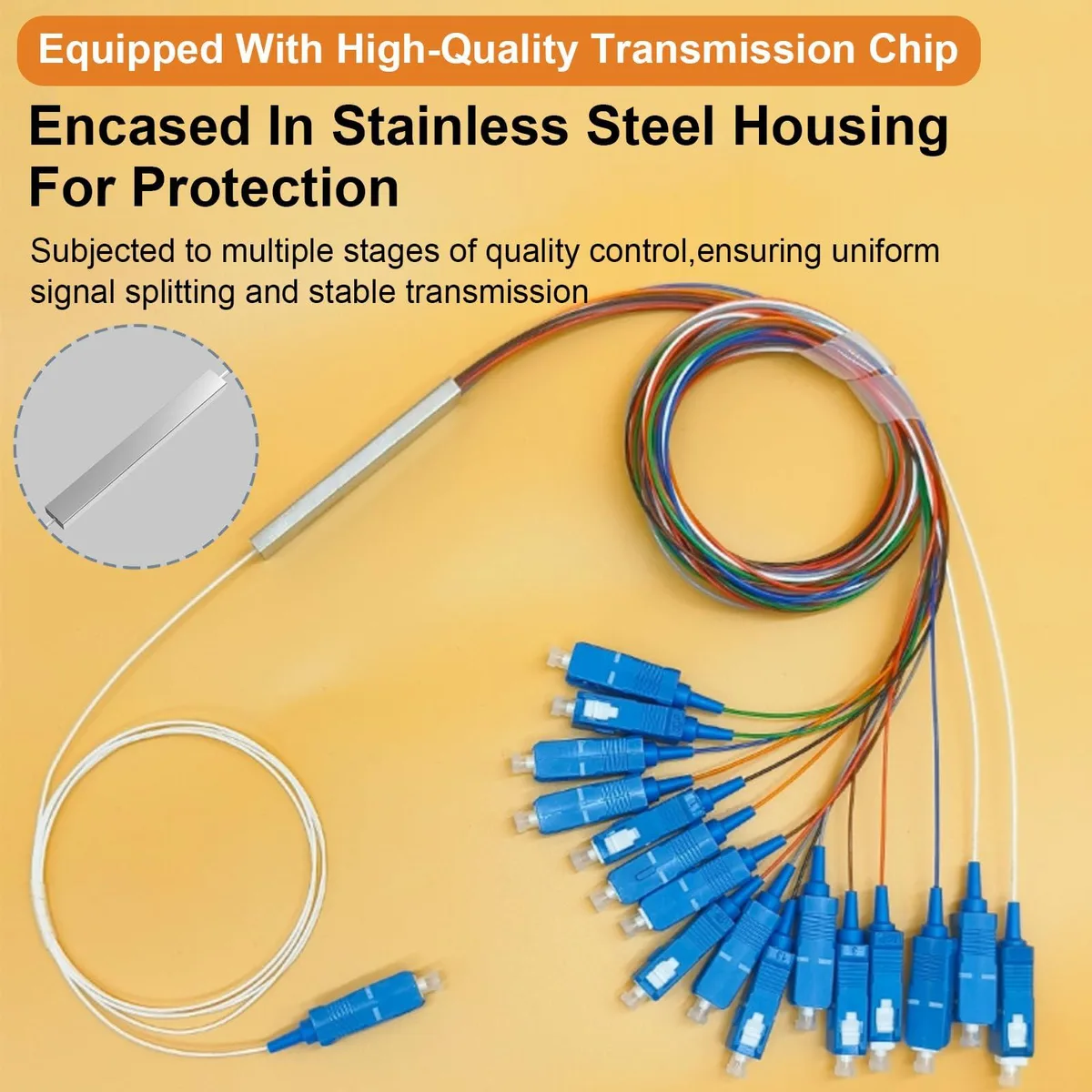

Stainless-steel cassette protects the PLC chip

The splitter module is housed in a stainless-steel box that shields the internal chip and fiber array, delivering consistent spectral uniformity over the full wavelength band. The 1 m / 3.3 ft pigtail length provides slack for fusion splicing or connector termination without excess coil storage. No software or active components are included; the accessory change is purely mechanical protection for passive optical distribution.

Highlights

  • 1x16 PLC splitter divides one signal into sixteen paths
  • SC/UPC ceramic ferrules deliver 13.5 dB insertion loss and 50 dB return loss
  • G.657A1 bend-insensitive fiber operates from −40 °C to 85 °C
  • 1260–1650 nm wavelength range covers all standard single-mode bands
  • 9 mm pigtail with 1 m / 3.3 ft length suits indoor and cabinet installs

Specifications

BrandPoyiccot
TypeFiber Optic
Connector NumberSC

Questions about this item

Does the splitter come with any extra adapters or cables, or is it just the SC-UPC 1X16 unit with 0.9mm G657A1 pigtails?

The product is the SC-UPC 1X16 PLC splitter with 0.9mm G657A1 singlemode pigtails, 1 metre long. No additional adapters or cables are mentioned.

Should I choose a different split ratio or wavelength range for a typical FTTH deployment?

This model is a fixed 1X16 PLC splitter covering 1260/1650nm. Other split ratios or wavelength ranges would be separate products.

What does the 13.5dB insertion loss mean for the signal reaching each ONT in a live network?

Each of the 16 outputs carries the input signal attenuated by approximately 13.5dB, so the link budget must allow for that loss plus any connector and fibre loss.
