Three beige SC-to-LC fiber adapters, multimode 50/125 µm, UPC polish

Vszerda

Vszerda SC Male to LC Female Adapter 50/125um Multimode 3-Pack

SKU CH-5V5D-G4GV4

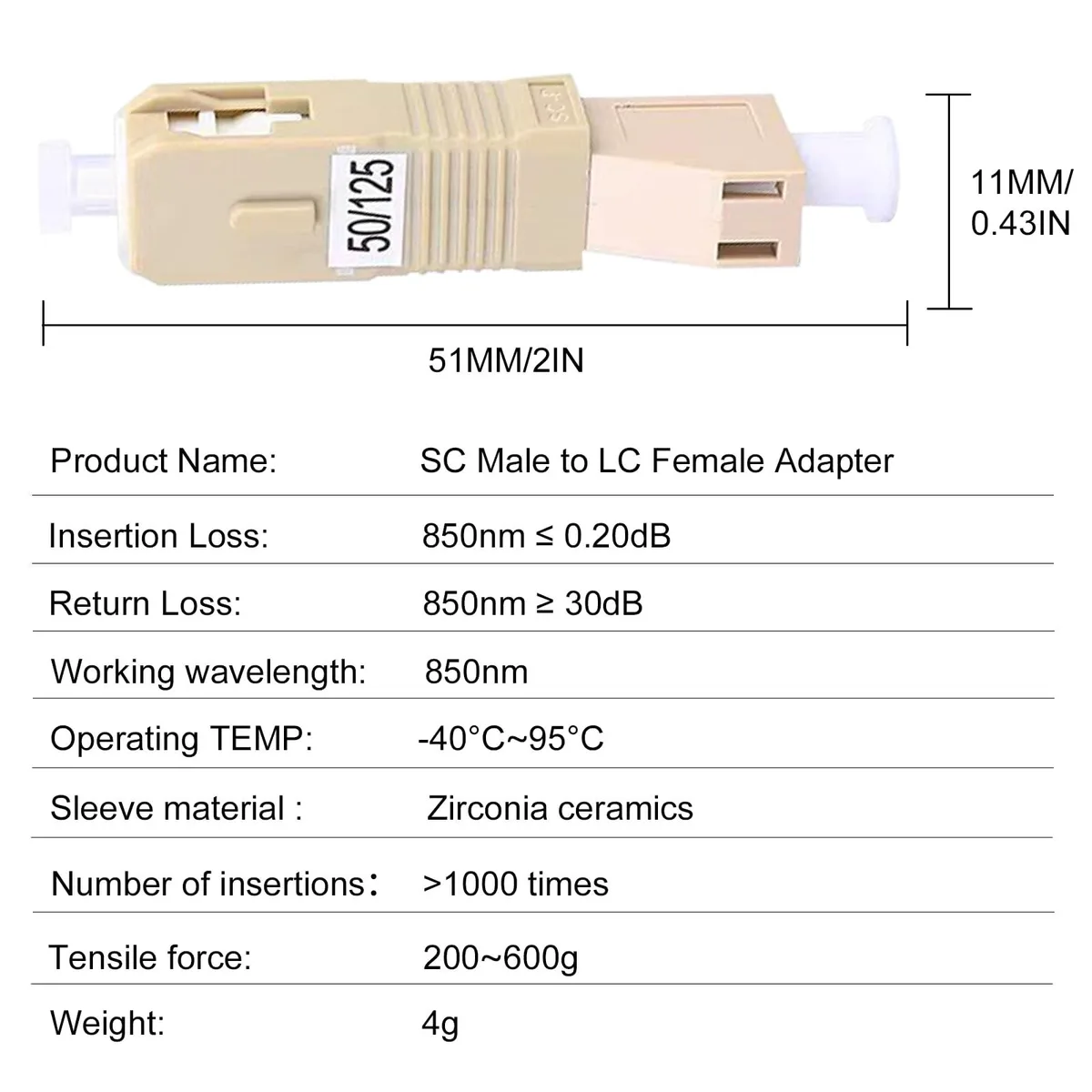

Three multimode adapters convert SC male to LC female with .2 dB insertion loss at 850 nm and 30 dB return loss

  • TypeFiber Optic
  • Connector NumberNo Plug

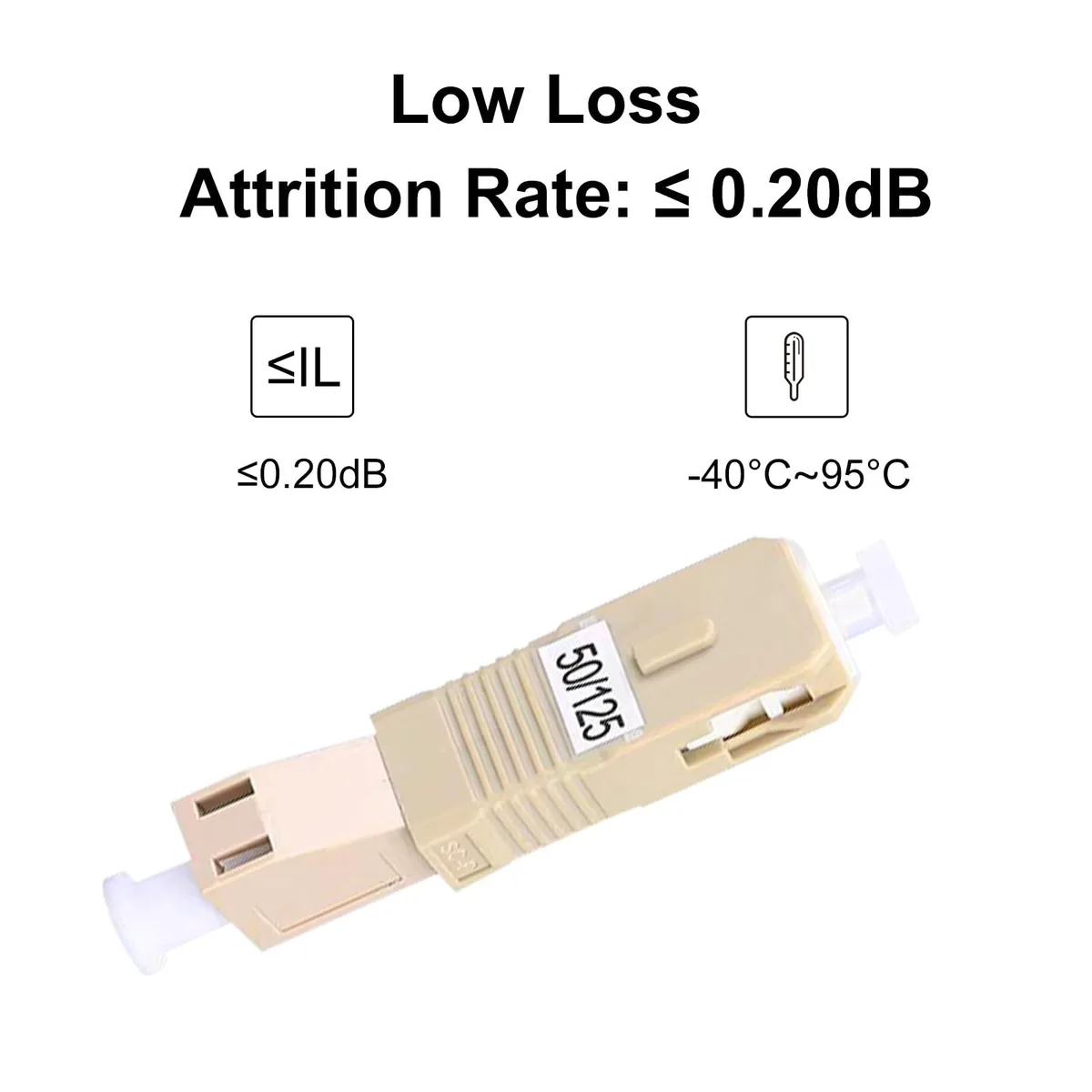

  • Low insertion loss of .2 dB at 850 nm
  • High return loss of 30 dB for clean signals
  • Zirconia ceramic sleeve rated from -40 °C to 95 °C
  • Rated for over 1000 mating cycles
  • 3-pack SC/UPC male to LC/UPC female multimode adapters

SC to LC Hybrid Adapter

This three-pack of multimode fibre adapters converts an SC/UPC male connector to an LC/UPC female port. They suit technicians testing links with optical power meters or visual fault locators. Each unit uses a zirconia ceramic sleeve for stable alignment.

Replaces Mismatched Patch Leads

Use these adapters when existing SC-terminated cables must connect to LC equipment ports. The upgrade is worthwhile when re-termination is impractical and a low-loss hybrid joint keeps insertion loss at .2 dB at 850 nm. Return loss reaches 30 dB at the same wavelength.

Multimode 50/125 µm Limits

The 50/125 µm core-cladding geometry restricts use to short-reach multimode systems operating at 850 nm. Performance is rated from -40 °C to +95 °C and the connector withstands over 1000 mating cycles. Single-mode links or longer wavelengths are not supported.

Highlights

  • Low insertion loss of .2 dB at 850 nm
  • High return loss of 30 dB for clean signals
  • Zirconia ceramic sleeve rated from -40 °C to 95 °C
  • Rated for over 1000 mating cycles
  • 3-pack SC/UPC male to LC/UPC female multimode adapters

Specifications

BrandPoyiccot
TypeFiber Optic
Connector NumberNo Plug

Questions about this item

What sleeve material does the 50/125um SC/UPC male to LC/UPC female adapter use for alignment?

The adapter uses a zirconia ceramic sleeve for alignment between the SC male and LC female ferrules.

How should I clean the end-faces before plugging the SC male into the LC female port?

Inspect both end-faces with a fibre scope, then clean each with a lint-free wipe and isopropyl alcohol before mating the connectors.

When should I replace the adapter if insertion loss rises above the rated 0.2dB at 850nm?

Replace the adapter when measured insertion loss exceeds 0.2dB at 850nm or return loss drops below 30dB, indicating end-face wear or contamination.
