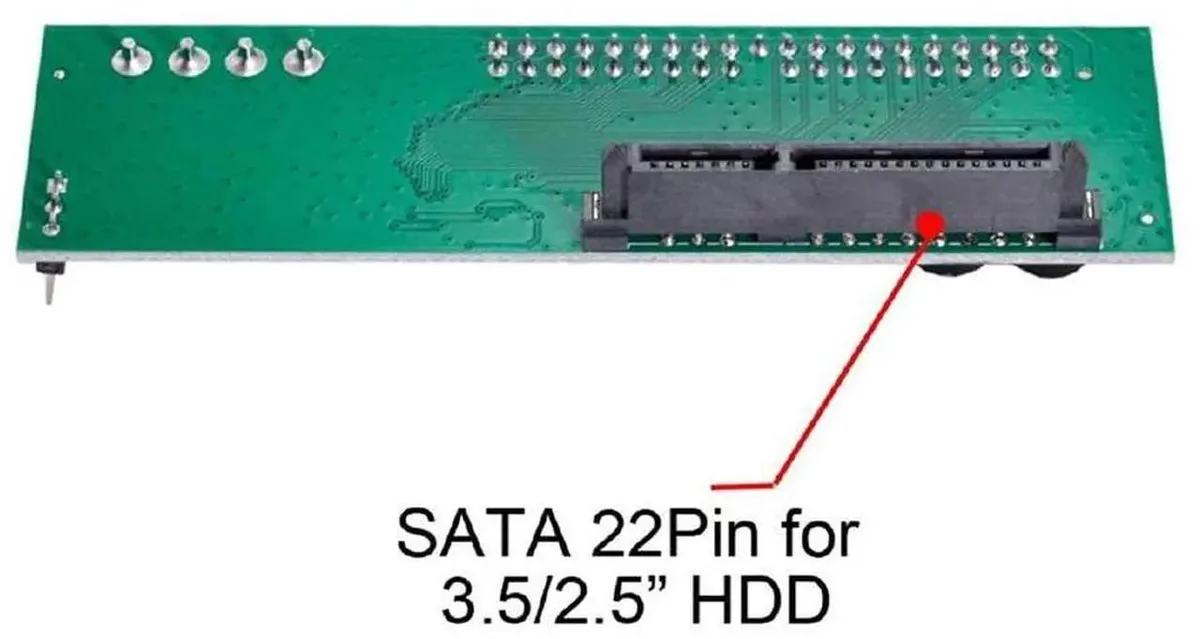

Green rectangular PCB with 40-pin IDE connector and SATA ports

Vszerda

Vszerda SATA to IDE 40Pin Adapter for 2.5 3.5" Drives

SKU CH-GD27-TAAH1

Converts a 2.5 or 3.5 inch SATA drive to a 40-pin IDE interface with master/slave jumper, supporting 66/100/133 MB/s speeds, driver-free installation.

  • Connect modern SATA drives to legacy 40Pin IDE motherboards
  • Supports 2.5 and 3.5 inch SATA hard drives and SSDs
  • Achieves IDE transfer rates of 66, 100 and 133MB/s
  • Master and slave jumpers simplify multi-drive configuration
  • Driver-free plug-and-play works from DOS through Windows 10 and Linux

SATA-to-IDE 40-pin converter for 2.5

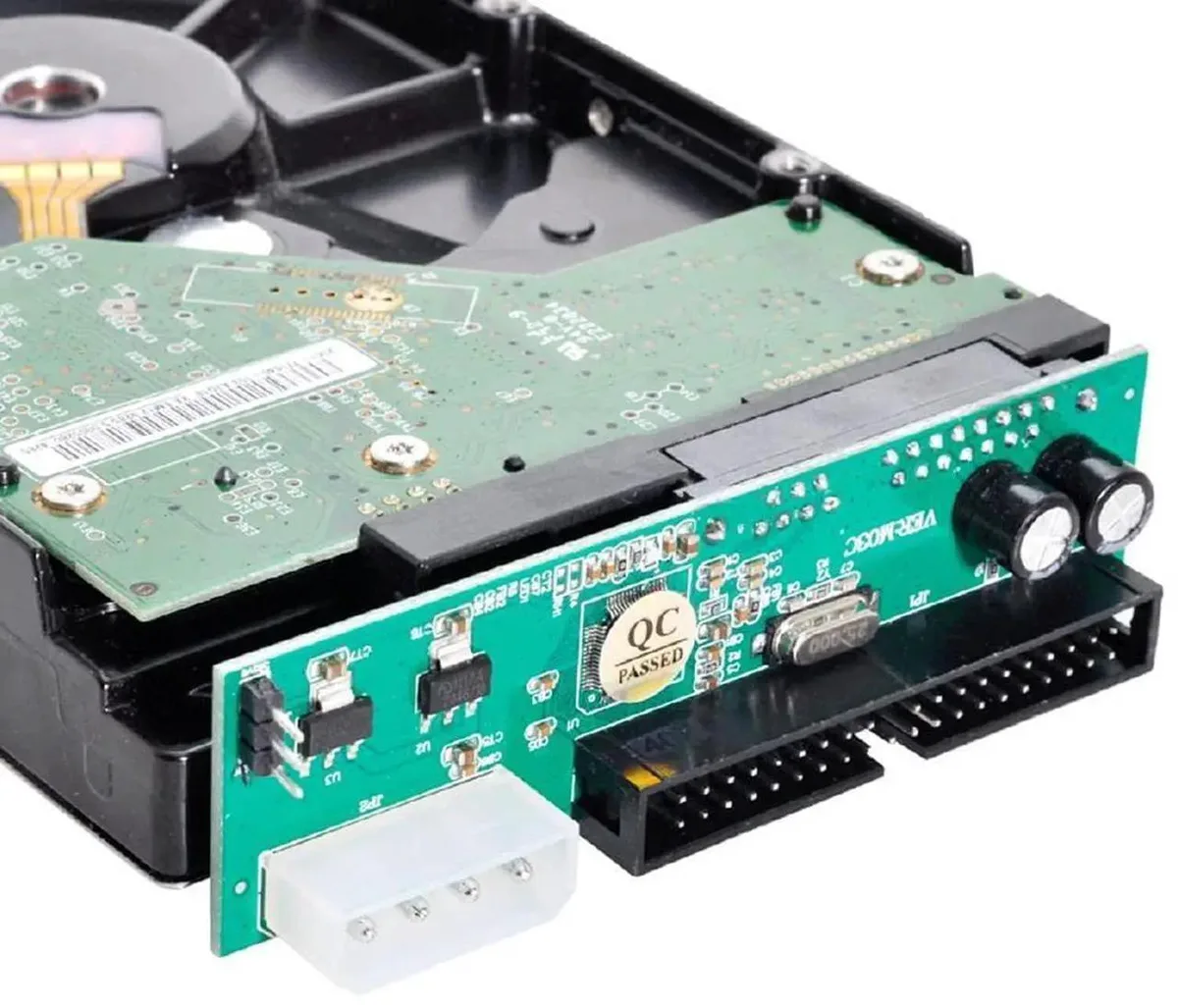

This adapter connects a SATA hard drive or SSD to a motherboard with a 40-pin IDE interface. It suits owners of older desktops who want to replace a failed IDE drive with a modern SATA unit. The board accepts both 2.5 and 3.5-inch form factors. A master/slave jumper sets the drive position on the legacy bus.

Throughput ceiling at IDE 133 MB/s

The adapter passes data at up to 133 MB/s, matching the fastest parallel ATA standard. SATA drives capable of higher speeds will be limited by this interface bottleneck. Everyday file transfers and operating system loads run within this ceiling. Sustained workloads that exceed 133 MB/s cannot reach full drive performance.

No hot-plug support and legacy OS range

The device requires a cold swap; power must be off before connecting or removing a drive. Driverless operation works across DOS, Windows 98 through Windows 10, and Linux. Systems needing hot-swap capability or UEFI-only boot environments fall outside the supported scope.

Highlights

  • Connect modern SATA drives to legacy 40Pin IDE motherboards
  • Supports 2.5 and 3.5 inch SATA hard drives and SSDs
  • Achieves IDE transfer rates of 66, 100 and 133MB/s
  • Master and slave jumpers simplify multi-drive configuration
  • Driver-free plug-and-play works from DOS through Windows 10 and Linux

Specifications

No published specifications for this item yet.

Questions about this item

Will the 40-pin IDE connector work with my motherboard that only supports UDMA 66 speeds?

Yes, the adapter supports IDE 66, 100 and 133 MB/s modes, so it will negotiate down to the 66 MB/s limit of your board.

How can I verify the SATA drive is recognised correctly after connecting it through the 40-pin IDE header?

Enter the BIOS on boot; the drive should appear on the IDE channel with its correct capacity and model name, and the OS will then detect it without any driver installation.

Does the package include a power cable for the 3.5-inch SATA drive, or do I need to buy one separately?

The adapter board only converts the 40-pin data interface; you must supply a standard SATA power lead from your PSU or a Molex-to-SATA power adapter for the drive.
