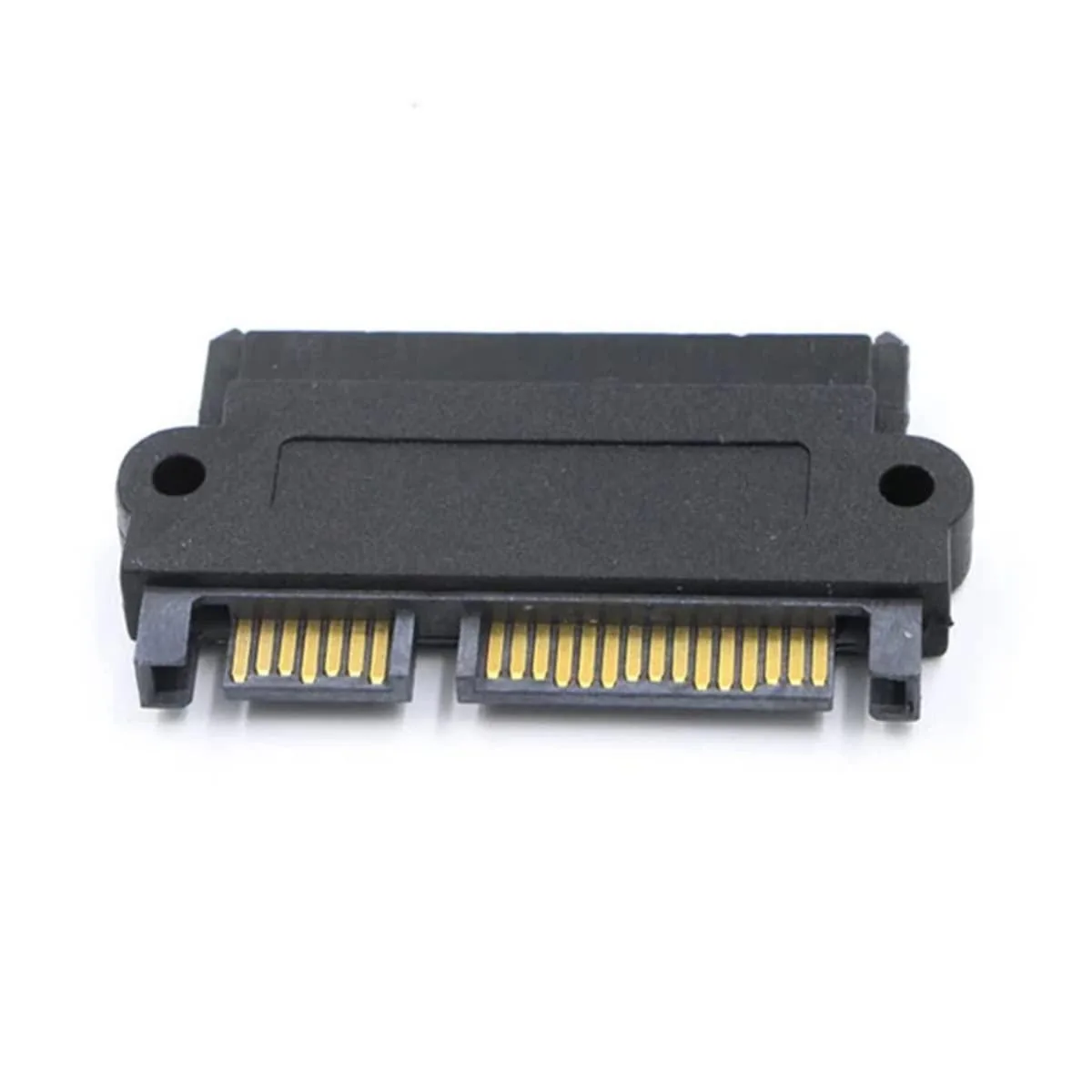

Black SFF-8482 29 pin to SATA 22 pin adapter

Vszerda

Vszerda SAS Adapter SFF-8482 29 Pin to SATA 22Pin

SKU CH-FWZ3-VH31W

Adapts a 29-pin SAS drive to a 22-pin SATA interface for SAS-capable controllers

  • Typesas 8482 adapter
  • ColorBlack Adapter SAS29P-SATA22P
  • Connector DetailSas Sata
  • Terminal GenderMale
  • Speed6 gigabytes_per_second
  • ConductorCopper
  • Connects SAS drive to SAS controller via SFF-8482 29-pin interface
  • Links SATA drive to SATA motherboard using standard 22-pin connection
  • Copper conductor supports 6 gigabytes_per_second data throughput
  • Male terminal gender ensures direct plug-in without extra cables
  • Black adapter body identifies SAS-to-SATA hybrid compatibility at a glance

What this adapter does

The Vszerda SAS Adapter converts a SFF-8482 29-pin connector to a SATA 22-pin interface using copper conductors rated for 6 gigabytes per second. It is a passive adapter designed for drive-to-controller cabling inside a chassis.

Who should use it

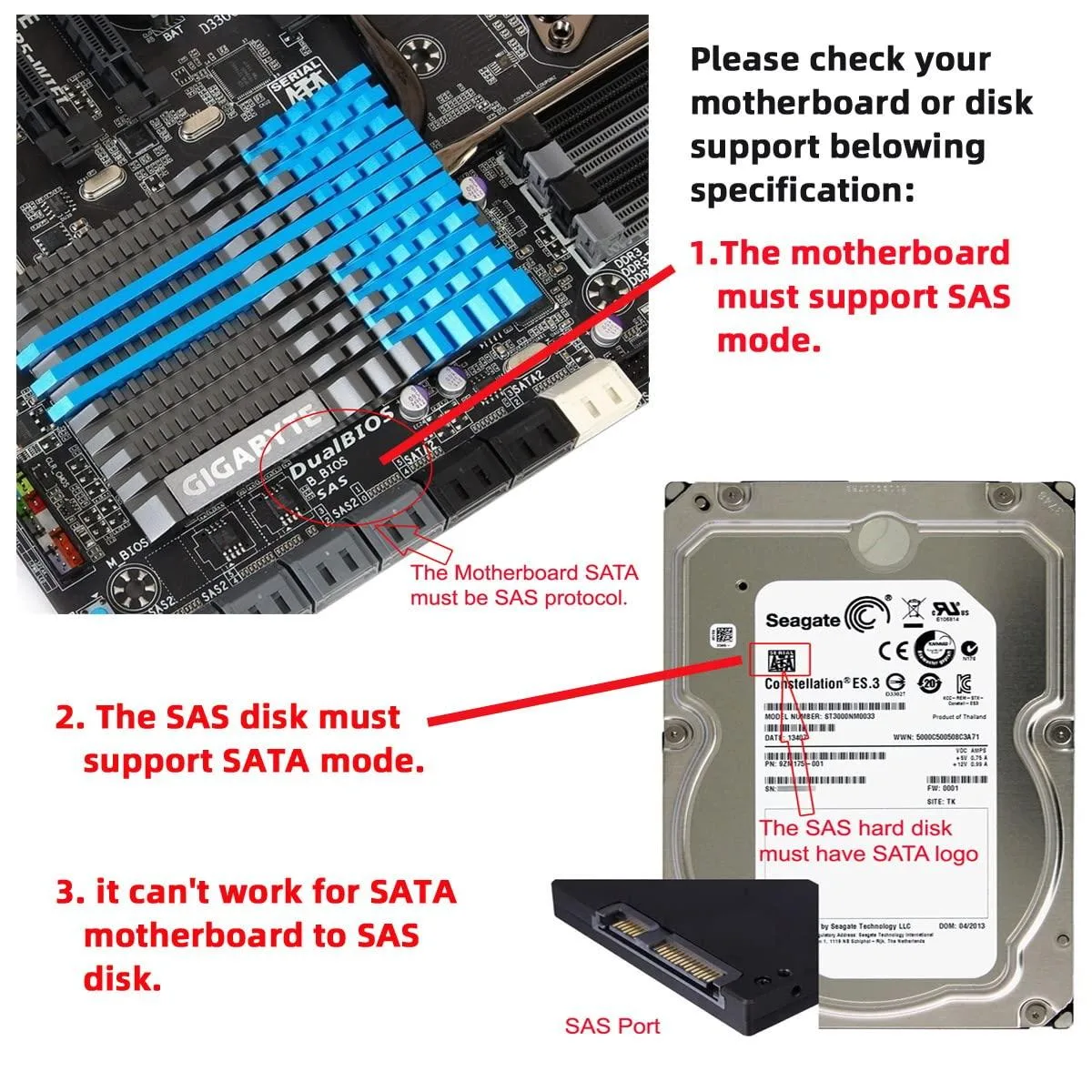

This adapter suits builders connecting a SAS drive to a SAS-capable controller or a SATA drive to a SATA controller. It will not work for attaching a SAS drive to a standard SATA-only motherboard unless the board includes a SAS chipset. It also cannot connect a SATA drive to a pure SAS controller unless the drive itself has a SAS chipset.

Installation notes

Plug the 29-pin male end into the drive or backplane and the 22-pin end into the controller. The most common issue is assuming cross-protocol compatibility; the adapter only passes signals through, so both ends must speak the same protocol. No drivers or power connections are required.

Highlights

  • Connects SAS drive to SAS controller via SFF-8482 29-pin interface
  • Links SATA drive to SATA motherboard using standard 22-pin connection
  • Copper conductor supports 6 gigabytes_per_second data throughput
  • Male terminal gender ensures direct plug-in without extra cables
  • Black adapter body identifies SAS-to-SATA hybrid compatibility at a glance

Specifications

BrandCY
ModelHX-SF-092
Typesas 8482 adapter
ColorBlack Adapter SAS29P-SATA22P
Connector DetailSas Sata
Terminal GenderMale
Speed6 gigabytes_per_second
ConductorCopper
FeaturesSAS SATA

Questions about this item

What controller must my system already have for this SFF-8482 29-pin adapter to work with a SAS drive?

A SAS-compatible SATA hybrid controller or a motherboard with an onboard SAS chipset is required; a standard SATA-only controller will not recognise the drive.

Will this adapter let me keep using my existing SATA drives on the same SAS controller?

Yes, the adapter supports SATA drives connected to a SATA motherboard or a SAS controller that accepts SATA devices.

How can I confirm the link is running at the rated 6 gigabytes_per_second after installation?

Check the controller BIOS or operating-system drive information; it should report a 6 Gb/s SAS or SATA link speed for the attached drive.
