Green circuit board with gold connectors, 2.5 inch SATA form factor

Vszerda

Vszerda SA-130 mSATA NGFF to 2.5" SATA 3.0 adapter

SKU CH-3RGE-JZBZD

Converts mSATA or B-key NGFF SSDs to a 2.5" SATA 3.0 drive form factor

  • Conductorcopper
  • Converts mSATA or NGFF SSD to 2.5″ SATA 3.0 drive
  • Fits standard 2.5″ bay at 98 × 65.5 mm
  • Includes 52-pin Mini PCIe and B-key NGFF connectors
  • 3 A maximum output current for stable power
  • Weighs .05 kg for lightweight installation

Versatile mSATA and NGFF adapter

This converter lets you install an mSATA or B-key NGFF SATA SSD into a standard 2.5 inch drive bay. It suits builders upgrading older laptops or small-form-factor desktops that lack native M.2 slots. The board accepts only one drive at a time, so it is not for users who want to run both form factors simultaneously.

Capacity limited by the drive you fit

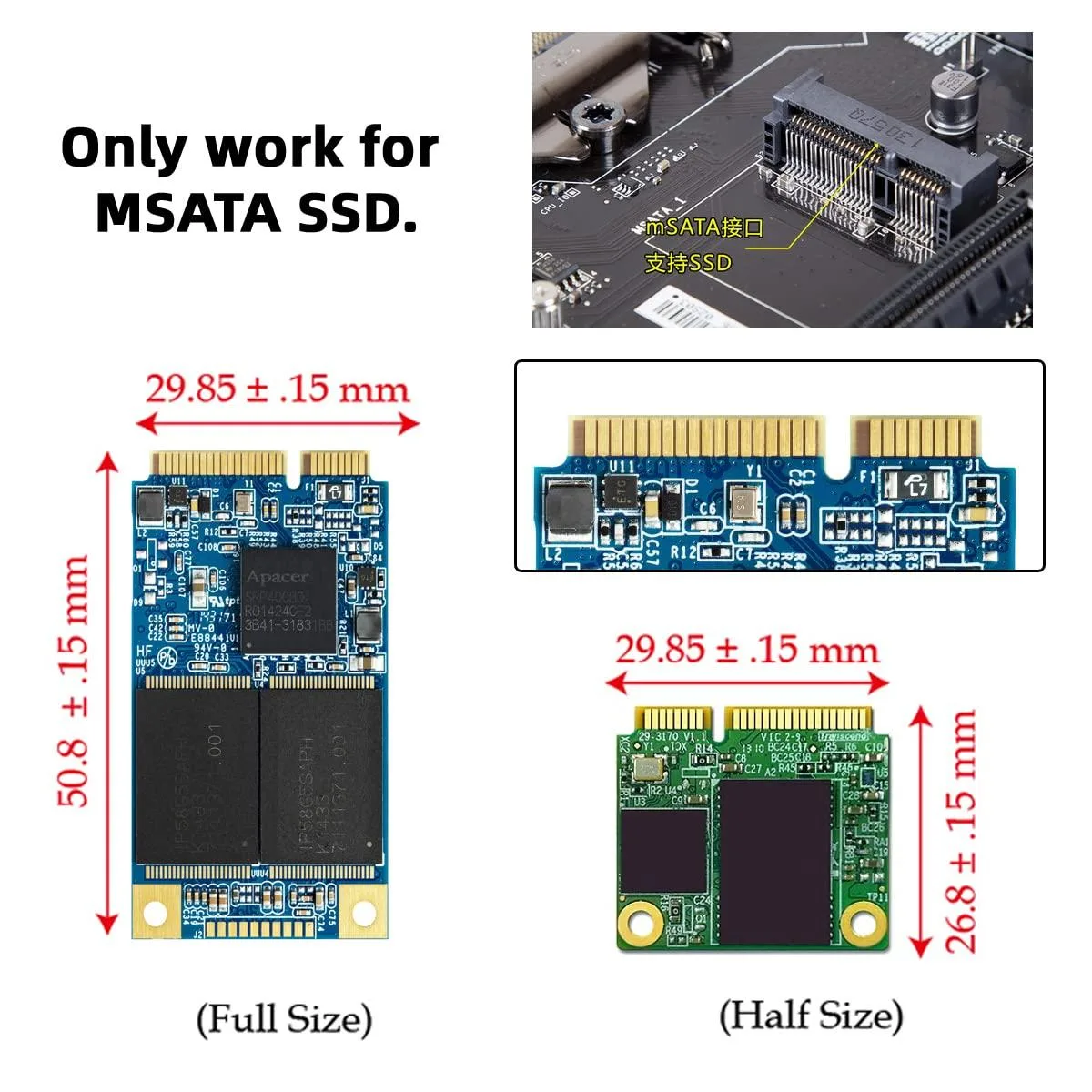

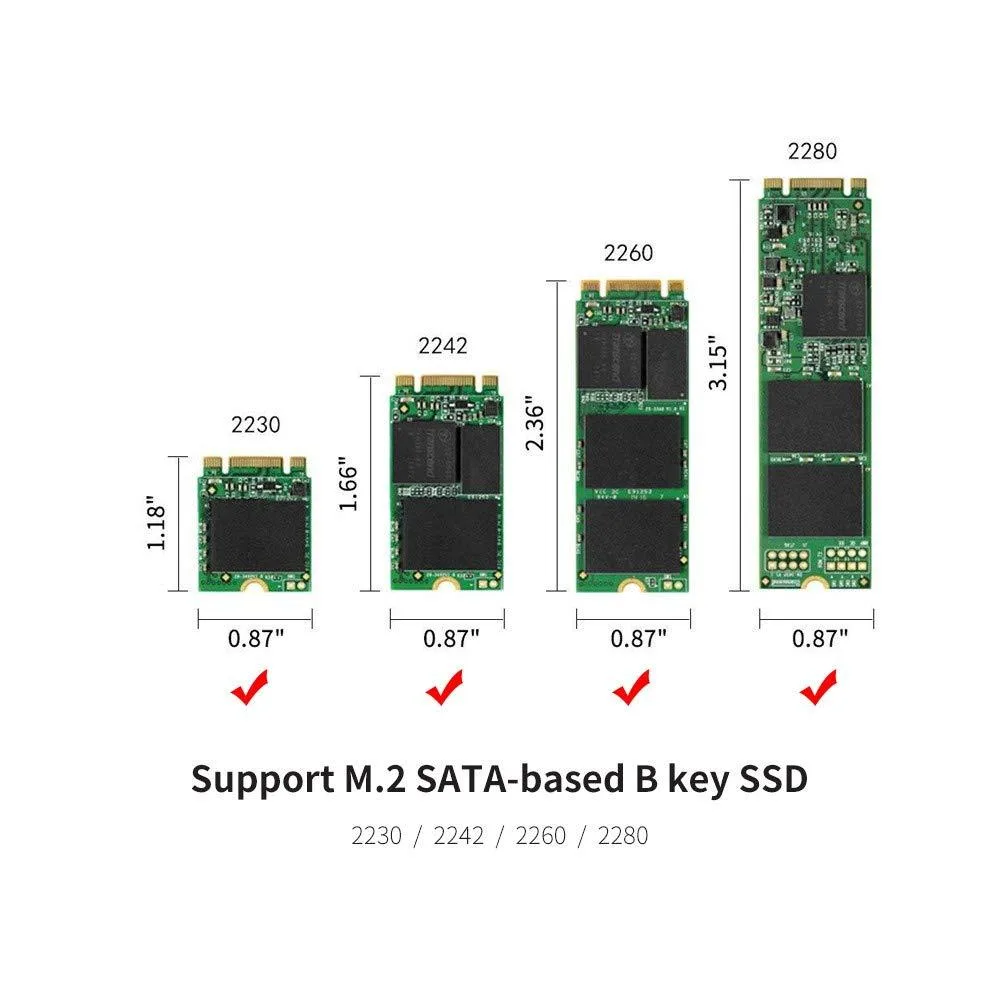

The adapter itself adds no storage; it simply passes SATA 3.0 signals from the installed SSD to the host. It comfortably handles any SATA-spec mSATA or B-key NGFF module up to the host controller's own limits. NVMe M-key drives are electrically incompatible and will not function in this board.

Compact 98 x 65.5 mm PCB with copper conductors

A 52-pin Mini PCIe socket and a B-key M.2 socket sit on a thin metallic-finish board that matches 2.5 inch drive dimensions. The 3 A current rating supports typical SATA SSDs without extra power cables. Installers must choose which socket to populate because the M.2 SATA slot takes priority when both are occupied.

Highlights

  • Converts mSATA or NGFF SSD to 2.5″ SATA 3.0 drive
  • Fits standard 2.5″ bay at 98 × 65.5 mm
  • Includes 52-pin Mini PCIe and B-key NGFF connectors
  • 3 A maximum output current for stable power
  • Weighs .05 kg for lightweight installation

Specifications

Brandchenyang
ModelSA-130
Conductorcopper

Questions about this item

Will this adapter let me keep using my existing 2.5" SATA drive bay while adding an mSATA or NGFF SSD?

Yes, the board converts an mSATA or B-key NGFF SSD to the 2.5" SATA form factor measuring 98 by 65.5 mm so it fits a standard drive bay.

How can I verify the adapter is functioning correctly once installed?

The system should recognise the inserted SSD as a SATA device in BIOS or the operating system; only one SSD type works at a time, with NGFF taking priority over mSATA.

What connectors are on the board and do I need any extra cables?

The PCB includes a Mini PCI-e 52-pin female connector and an M.2 B-key female connector; no extra cables are required beyond the standard SATA data and power leads.
