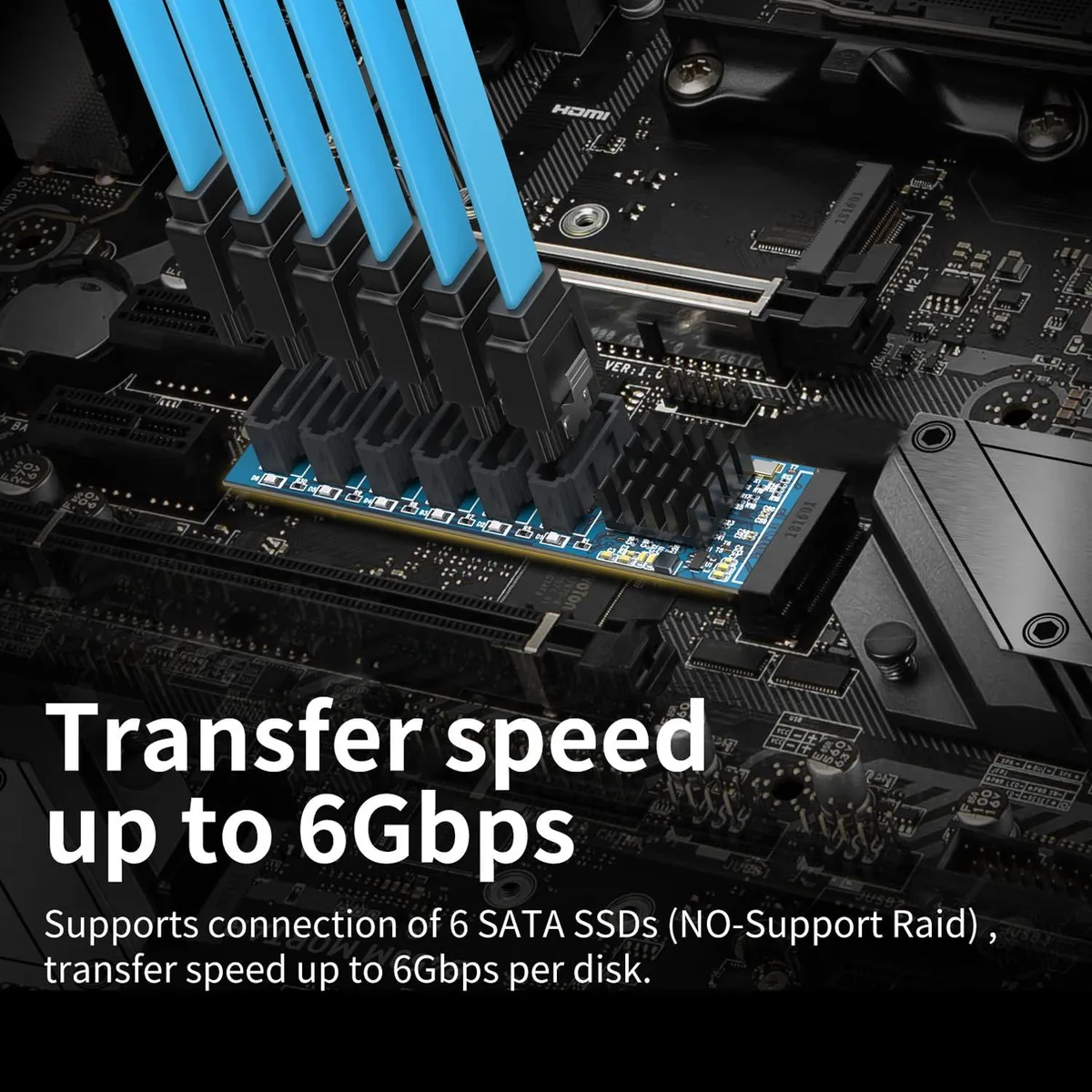

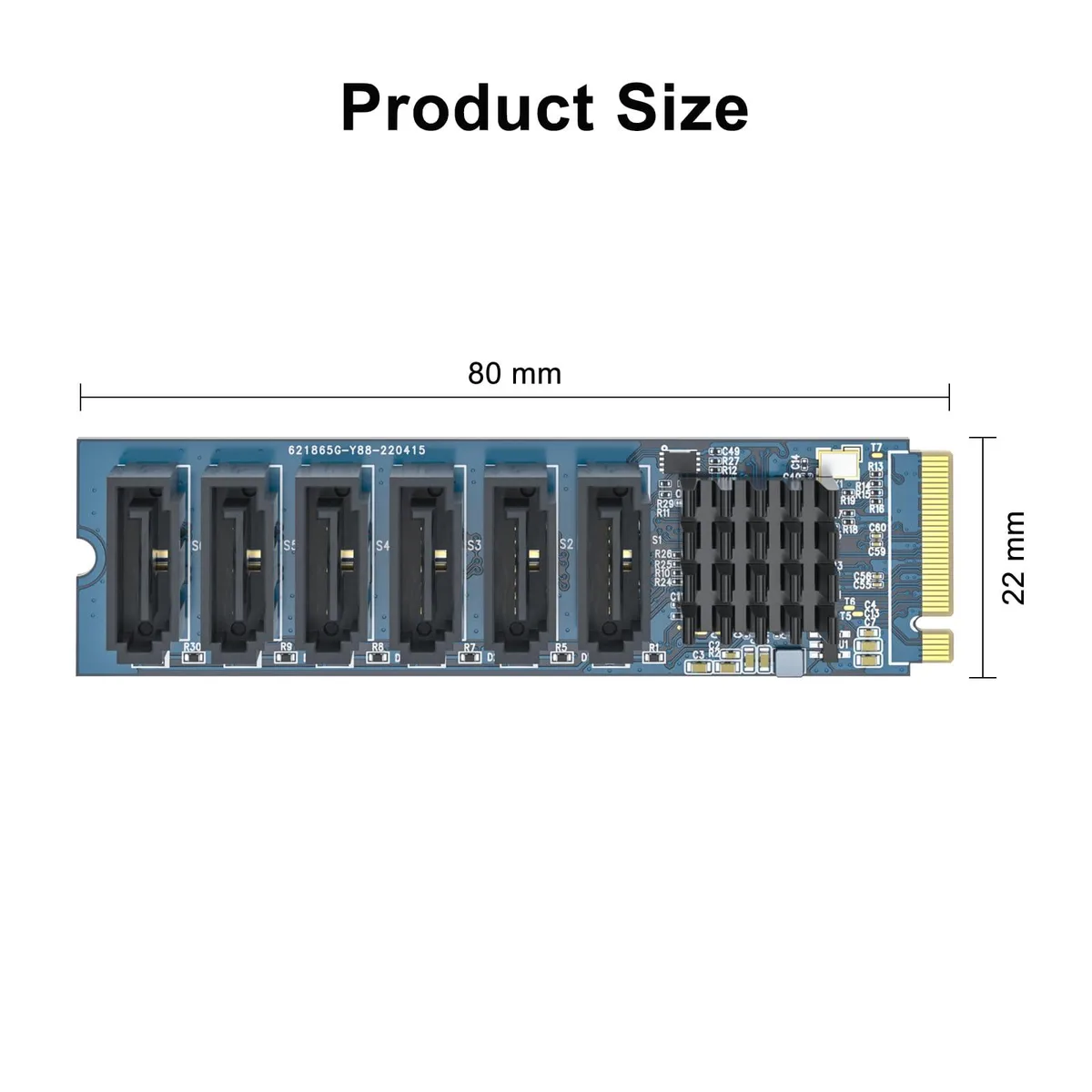

M.2 M Key to six SATA adapter board with six cables attached

Vszerda

Vszerda S933-6M M.2 M Key to 6 SATA adapter with 6 cables

SKU CH-J0RM-6YN74

Adds six SATA 3.0 drives to a desktop via an M.2 M Key slot using the ASMedia ASM1166 chip

  • Color6 Port, M.2(M Key), with 6 SATA cable
  • Conductorcopper
  • Connect up to six SATA drives via a single M.2 M Key slot
  • ASMedia ASM1166 chip delivers stable, wide compatibility with SATA SSDs and HDDs
  • Port Multiplier support expands storage without RAID configuration
  • Plug-and-play operation requires no extra software or drivers
  • Broad OS support covers Windows, Linux, BSD and VMware ESXi environments

Vszerda M.2 to six SATA adapter

This adapter connects up to six SATA drives to a single M.2 M Key slot on a desktop motherboard. It uses the ASMedia ASM1166 chip to provide six SATA 3.0 ports and includes six cables. The board operates without RAID and requires no driver installation on supported systems.

Builders expanding internal storage with SATA drives

Suitable for users adding multiple SATA SSDs or HDDs where an M.2 M Key slot is free. Not suited for systems lacking that specific slot, for configurations requiring hardware RAID, or for environments that depend on hot-swap drive replacement.

ASMedia ASM1166 chip with six SATA 3.0 ports

The controller delivers six SATA 3.0 connections through one M.2 M Key interface. Compatibility spans Windows 7 through 10 and Server 2008 R2 through 2019, RHEL or CentOS 6 through 8, Debian 9 through 11, Ubuntu 16 through 21, SUSE 11 through 15, FreeBSD 11 through 13, and VMware ESXi 5 through 7.

Highlights

  • Connect up to six SATA drives via a single M.2 M Key slot
  • ASMedia ASM1166 chip delivers stable, wide compatibility with SATA SSDs and HDDs
  • Port Multiplier support expands storage without RAID configuration
  • Plug-and-play operation requires no extra software or drivers
  • Broad OS support covers Windows, Linux, BSD and VMware ESXi environments

Specifications

Brandipolex
ModelS933-6M
Color6 Port, M.2(M Key), with 6 SATA cable
Conductorcopper

Questions about this item

Does the S933-6M package include the six SATA cables or must they be purchased separately?

The S933-6M adapter is supplied with six SATA cables included in the box.

Which version of the S933-6M should I choose if I need to connect six SATA 3.0 drives to an M.2 M Key slot?

The single listed version provides six SATA 3.0 ports via an M.2 M Key interface using the ASMedia ASM1166 chip.

What does the SATA 3.0 headline figure mean for real-world throughput when six drives are connected through the ASM1166 chip?

Each port operates at SATA 3.0 speed, but total bandwidth is shared across the M.2 link so simultaneous transfers on multiple drives will divide the available throughput.
