Small green circuit board with M.2 A+E connector and two SATA ports

Vszerda

Vszerda PH59 M.2 A+E Key to 2 SATA adapter card

SKU CH-R1P8-GEX1M MPN PH59

Adds two SATA 6 Gbps ports through an M.2 2230 A+E key slot using a JMB582 controller

  • Adds two SATA drives via an M.2 A+E key slot
  • JMB582 controller delivers 6 Gbps SATA throughput
  • PCIe 3.0 bandwidth keeps both ports at full speed
  • Compact 30 × 22 mm card fits tight server chassis
  • Works with Windows and Linux without extra drivers

What this card does

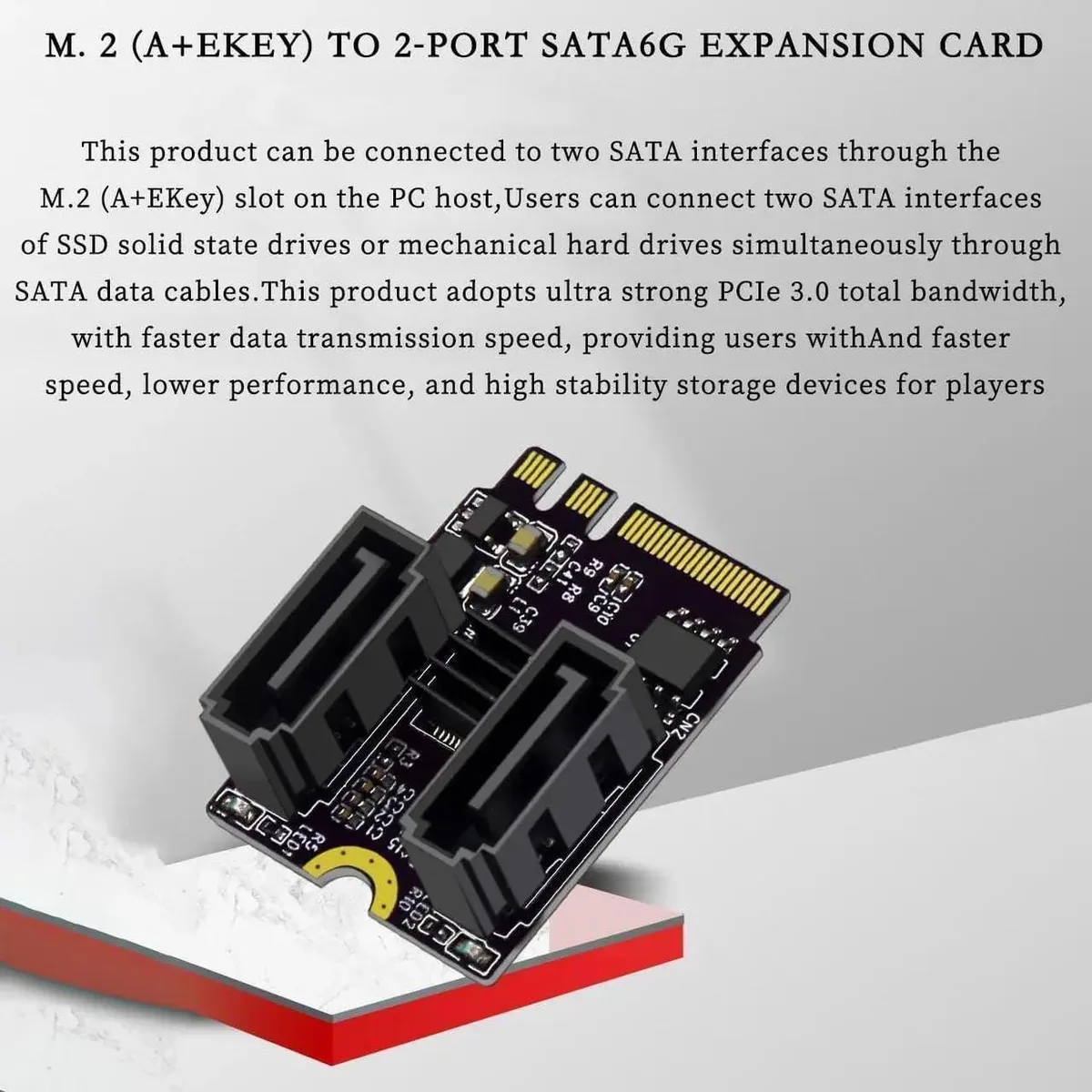

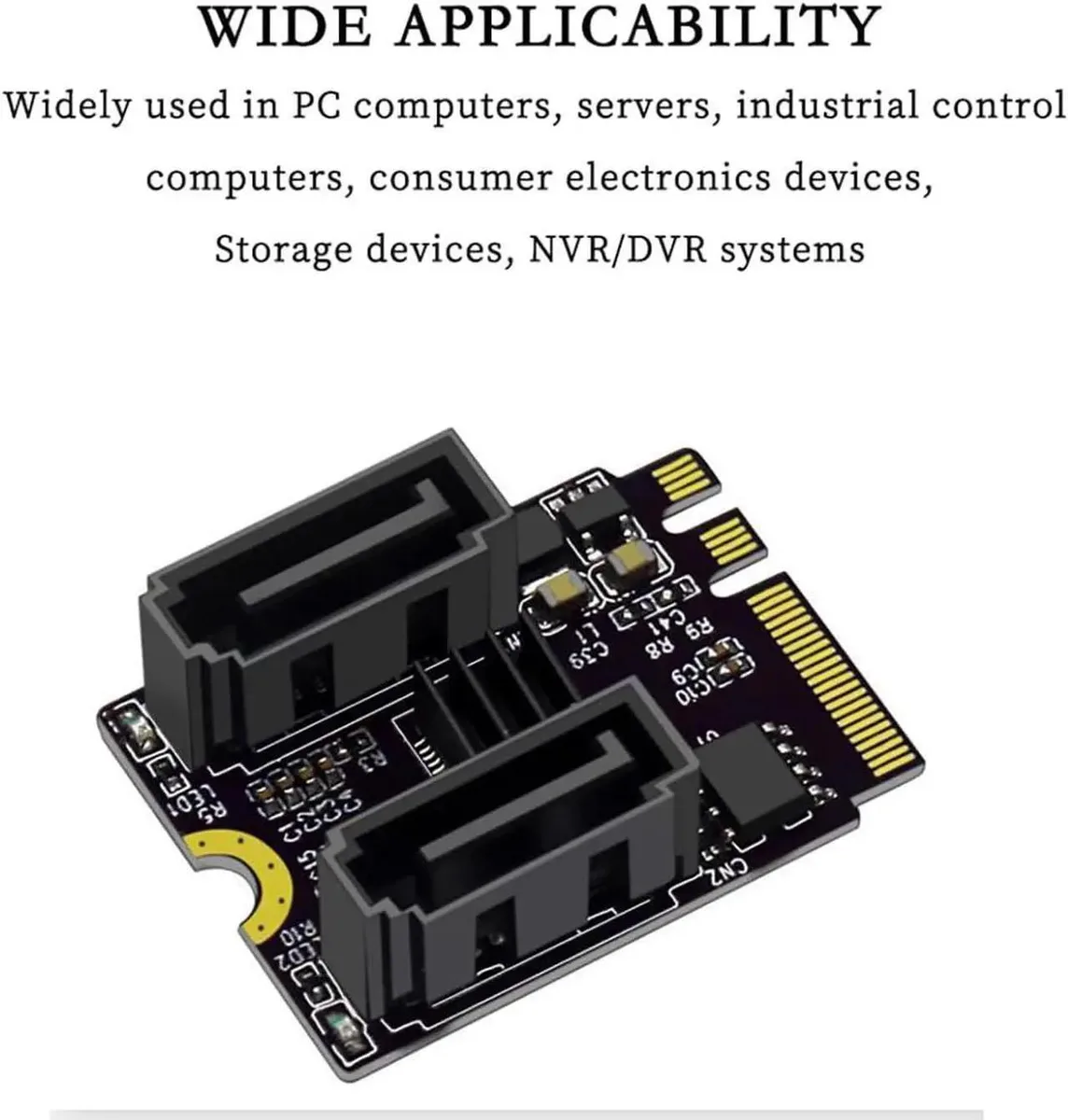

The Vszerda PH59 converts an M.2 A+E key slot into two SATA 6 Gbps ports using a JMB582 controller. It accepts a 2230 form-factor module and lets you attach two SATA SSDs or mechanical drives simultaneously.

Check your motherboard slot

Verify that your board has an M.2 A+E key socket wired for PCIe 3.0 before ordering. The card measures 30 by 22 mm and weighs 3.2 g, so confirm physical clearance around the slot. The adapter supports Windows and Linux operating systems.

Cables and software

No SATA data or power cables are included, so you must supply them separately. The JMB582 chip provides native driver support in current Windows and Linux kernels, meaning no extra software installation is required for basic operation.

Highlights

  • Adds two SATA drives via an M.2 A+E key slot
  • JMB582 controller delivers 6 Gbps SATA throughput
  • PCIe 3.0 bandwidth keeps both ports at full speed
  • Compact 30 × 22 mm card fits tight server chassis
  • Works with Windows and Linux without extra drivers

Specifications

No published specifications for this item yet.

Questions about this item

Does the Vszerda PH59 include SATA cables or must they be purchased separately?

The adapter card provides two SATA ports; SATA data and power cables are not included and must be bought separately.

Which M.2 slot keying is required for the PH59 to work?

The card fits an M.2 2230 A+E key slot; it will not fit M-key or B-key slots.

What throughput can I expect from each SATA port on this PCIe 3.0 card?

Each port runs at SATA 6 Gbps, limited by the JMB582 controller and the PCIe 3.0 link.
