Green PCIe x4 expansion card with six SATA ports and dual mounting brackets

Vszerda

Vszerda PCIe 4x to SATA 6 Port Card ASM1166

SKU CH-EFWX-JJ69V

Adds six SATA 6 Gbps ports via a PCIe 4x slot using the ASM1166 chipset, includes both brackets, supports software RAID and AHCI, works with Windows, Linux and Synology

  • Add six SATA drives through one PCIe 4x slot
  • ASM1166 chipset delivers 6 Gbps SATA 3.0 speeds
  • Blue LED shows power and activity per drive

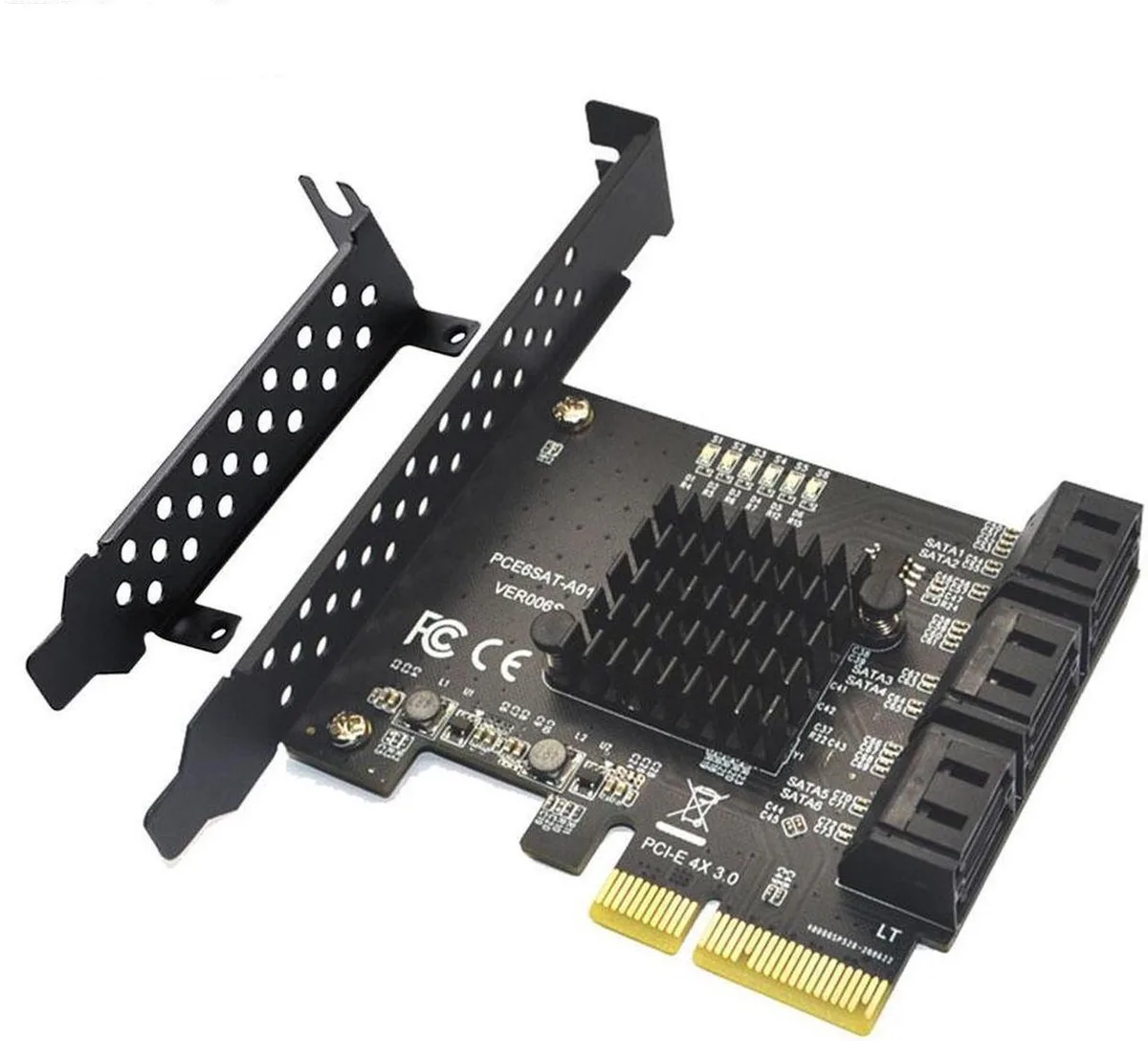

  • Includes full-profile and low-profile brackets
  • Works with Windows, Linux and Synology without drivers

Vszerda PCIe 4x SATA Expansion

This Vszerda controller card adds six SATA 3.0 ports to a desktop computer through a PCIe 4x slot. It uses the ASMedia ASM1166 chipset to deliver 6 Gbps data transfer speeds for connected drives. The card conforms to PCI-Express v 2.0 and Serial ATA 3.0 specifications with backward compatibility. Full-profile and low-profile brackets are included for flexible case mounting.

Suits builders adding multiple drives.

The card suits users who need more SATA connections for hard disks, SSDs or optical drives on Windows, Linux, Synology or Ubuntu systems. It supports AHCI, IDE, RAID0, RAID1 and SPAN modes through software RAID only. Buyers who require hardware RAID acceleration should look elsewhere. The plug-and-play design requires no driver installation for automatic drive recognition.

ASM1166 chipset with six 6 Gbps ports

The ASMedia ASM1166 chipset provides six ports operating at up to 6.0 Gbit/s with support for 3.0 and 1.5 Gbit/s speeds. Blue LED indicators show drive presence and data activity for easy monitoring. The controller supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i signaling. Native command queuing is supported for improved drive performance.

Highlights

  • Add six SATA drives through one PCIe 4x slot
  • ASM1166 chipset delivers 6 Gbps SATA 3.0 speeds
  • Blue LED shows power and activity per drive
  • Includes full-profile and low-profile brackets
  • Works with Windows, Linux and Synology without drivers

Specifications

No published specifications for this item yet.

Questions about this item

Does the Vszerda ASM1166 card include SATA data cables or only the brackets?

The card ships with a full-profile bracket and a low-profile bracket for case mounting; SATA data cables are not included and must be purchased separately.

The listing mentions software RAID and AHCI modes — which should I choose for six drives?

The controller supports RAID 0, RAID 1, SPAN and AHCI through the operating system; AHCI is the simplest for independent drives, while RAID 0 or 1 require OS-level configuration.

The headline says 6 Gbps per port — what speed will I actually see with a SATA 3.0 SSD?

Each port runs at up to 6.0 Gbps and is backward compatible with 3.0 and 1.5 Gbps drives, so a SATA 3.0 SSD will operate at its rated 6.0 Gbps link speed.
