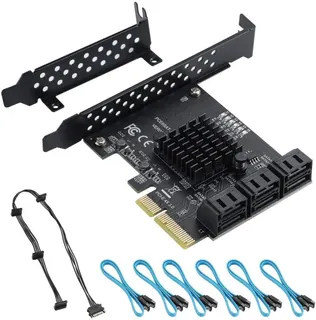

PCIe x4 card with six SATA ports, six cables and 15-pin power lead

Vszerda

Vszerda PCIe 4X to 6 SATA Expansion Card sata cable

SKU CH-J706-R60DV

Adds six SATA 6 Gbps ports through a PCIe 3.0 x4 slot using an ASMedia ASM1166 controller with software RAID support

  • Adds six 6 Gbps SATA ports through a PCIe x4 slot
  • ASMedia ASM1166 controller supports PCIe 3.0 and port multiplication
  • Works in x4, x8 or x16 slots with Windows 7, 8, 10, XP, 2003, 2008 and Linux

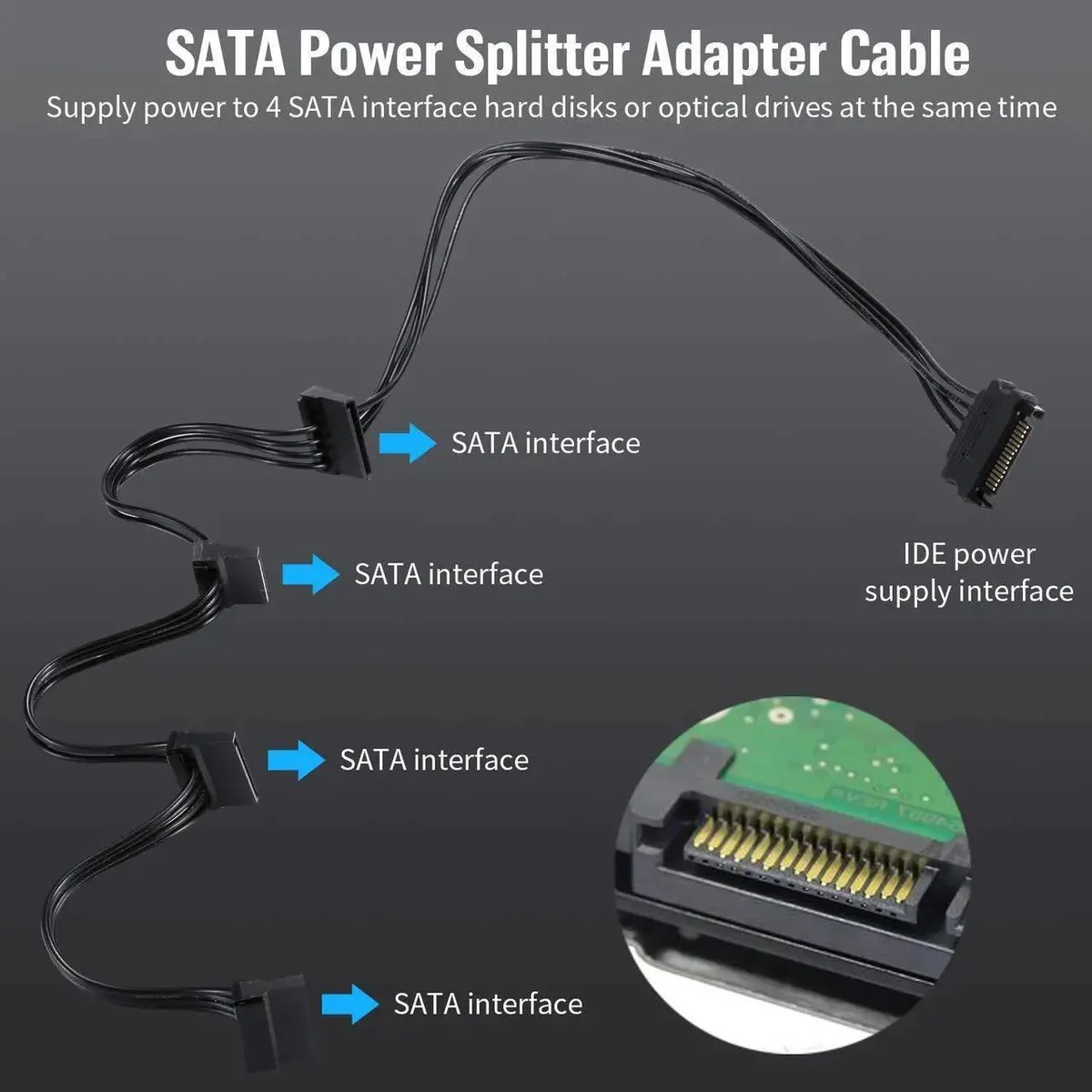

  • Includes six SATA cables, 15-pin 1-to-4 power cable and half-height bracket
  • Software RAID only — hardware RAID is not supported

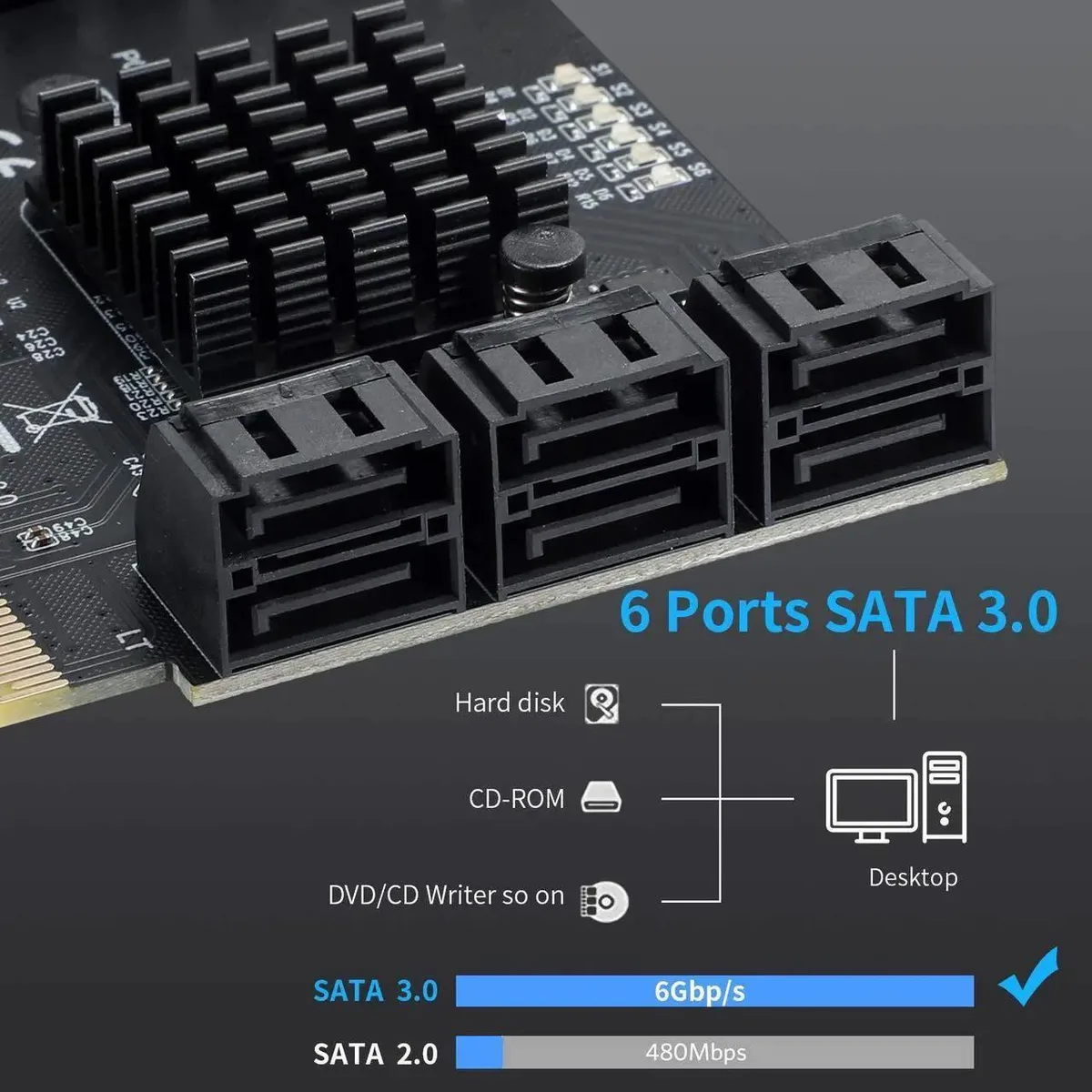

6-Port SATA 3.0 Expansion Card

This PCIe 4X card adds six SATA 3.0 6Gbps ports to a desktop system. It is built on the ASMedia ASM1166 controller and fits PCIe x4, x8 or x16 slots. The board is designed for users who need more internal drive connections than the motherboard provides.

For storage arrays and software RAID

The card suits builders creating a storage pool or configuring software RAID under Windows or Linux. It does not support hardware RAID, so users who require a dedicated RAID engine should choose a different controller.

PCIe 3.0 x4 host interface

The card connects through a PCI Express 3.0 x4 slot and is backward compatible with PCIe 2.0 and 1.0 slots. Maximum throughput depends on the slot generation: PCIe 3.0 delivers 500–550 MB/s, PCIe 2.0 provides 380–450 MB/s, and PCIe 1.0 is limited to 200–300 MB/s.

Highlights

  • Adds six 6 Gbps SATA ports through a PCIe x4 slot
  • ASMedia ASM1166 controller supports PCIe 3.0 and port multiplication
  • Works in x4, x8 or x16 slots with Windows 7, 8, 10, XP, 2003, 2008 and Linux
  • Includes six SATA cables, 15-pin 1-to-4 power cable and half-height bracket
  • Software RAID only — hardware RAID is not supported

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick the 6-port version or a smaller card?

The card provides six SATA 3.0 6.0 Gbps ports through a single PCI-Express 4X slot, so you gain six drives without using extra motherboard connectors.

What real-world throughput will I see from the 6.0 Gbps SATA ports?

In a PCI-Express 3.0 x4 slot the controller can reach 500-550 M/S; in a 2.0 slot it drops to 380-450 M/S, and in a 1.0 slot only 200-300 M/S.

Does the PCI-Express 4X interface limit the six SATA ports?

The ASMedia ASM1166 chip uses a 2X PCI-Express 3.0 link, giving up to 8 GB/S bidirectional bandwidth, so the 4X slot does not bottleneck the six 6.0 Gbps SATA ports.
