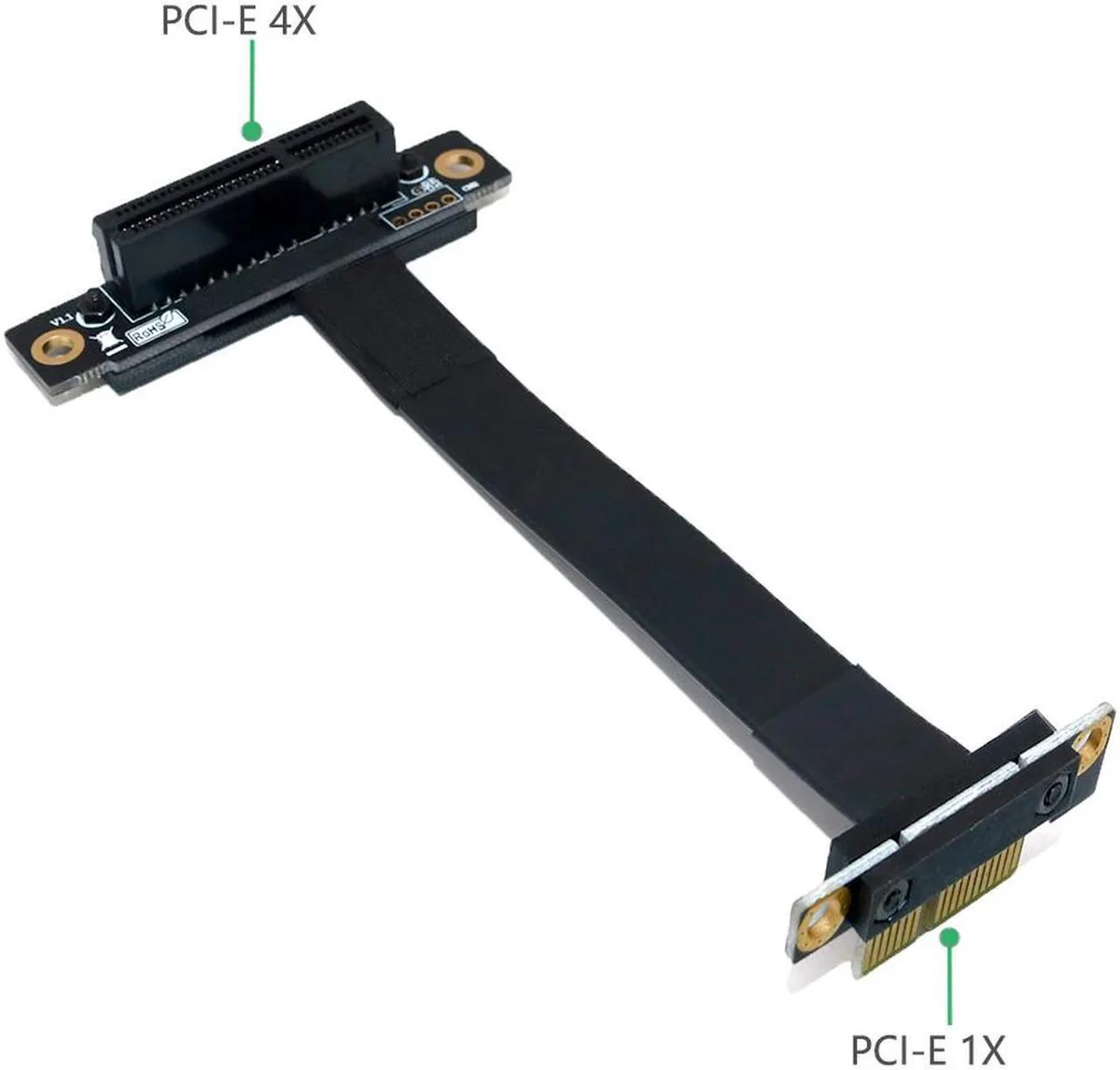

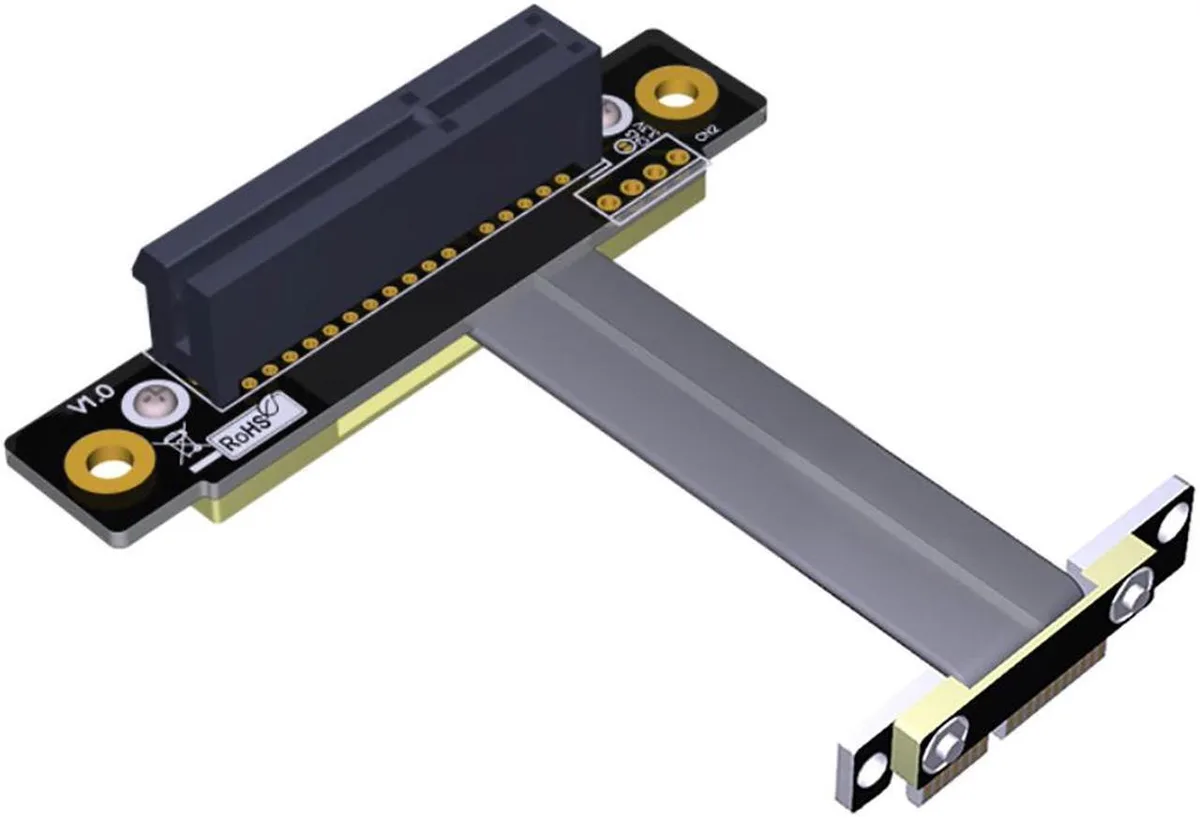

Vszerda PCIe 1x to 4x riser cable 17cm flexible flat ribbon with gold connectors

Vszerda

Vszerda PCIe 1x to 4x Riser Cable 17cm

SKU CH-907Y-1VBTS

Extends a PCIe x1 slot to accept x4 cards at x1 speed using a 17 cm flexible riser with 90-degree vertical connectors

  • Extends a single PCIe lane to a four-lane slot using a 17cm flexible riser
  • Dual vertical 90-degree orientation fits 1U, 2U and ATX/BTX chassis
  • Gold-finger cover and dust-proof design protects contacts during handling
  • Bolted PCB reinforcement prevents solder-point stress and short circuits
  • High-quality axial cable maintains stable PCIe Gen3 8Gbps signal integrity

Versatile PCIe x1 to x4 adapter

The Vszerda riser converts a single PCI Express x1 slot into an x4 connector for graphics cards or other expansion cards. It fits 1U, 2U and standard ATX or BTX chassis where space is tight. Installation requires no extra drivers and the gold-finger cover keeps contacts clean.

Bandwidth limited to x1 speeds

Although the connector accepts x4, x8 and x16 cards, every device runs at x1 throughput because the host link is only one lane. This provides enough headroom for low-bandwidth add-in cards such as capture or network adapters. High-throughput GPUs will saturate the link quickly and cannot reach their full potential.

Gen 3 signalling over 15 cm flexible cable

The 15 cm shielded cable is rated for PCIe Gen 3 at 8 Gbps per lane with low attenuation. Dual 90-degree vertical brackets and bolted PCB reinforcement prevent stress on the solder joints. Signal integrity holds across the short run, but the single-lane bottleneck remains the hard limit for any attached device.

Highlights

  • Extends a single PCIe lane to a four-lane slot using a 17cm flexible riser
  • Dual vertical 90-degree orientation fits 1U, 2U and ATX/BTX chassis
  • Gold-finger cover and dust-proof design protects contacts during handling
  • Bolted PCB reinforcement prevents solder-point stress and short circuits
  • High-quality axial cable maintains stable PCIe Gen3 8Gbps signal integrity

Specifications

No published specifications for this item yet.

Questions about this item

Will this riser cable let me plug a PCIe x4 card into my motherboard's x1 slot and still work?

Yes, it supports x1, x4, x8 and x16 cards but they will operate at x1 speed only.

How can I verify the cable is seated correctly after installation?

The gold-finger protection cover and bolted PCB design keep the connectors secure; a firm click and no visible gap indicate proper seating.

What exactly is included and do I need any extra parts?

The box contains one 17 cm PCIe x1 to x4 extension cable with 15 cm flexible cable length; no additional components are required.
