Green circuit board with PCI-E slot, two SATA ports and three M.2 sockets

Vszerda

Vszerda PCI-E 3.0 & Dual SATA to NVME M.2 Adapter 3in1

SKU CH-YRM9-RDXQQ

Adapts three M.2 or mSATA SSDs to one PCI-E 3.0 slot and two SATA ports, supporting 2230, 2242, 2260 and 2280 sizes

  • Connector Number3
  • Supports three SSDs simultaneously
  • Driver-free operation with Windows 10 or later
  • PCI-E 3.0 interface for NVMe M-key SSDs
  • Dual SATA ports for M.2 SATA and mSATA drives
  • Fits 2230, 2242, 2260 and 2280 form factors

Versatile three-drive adapter

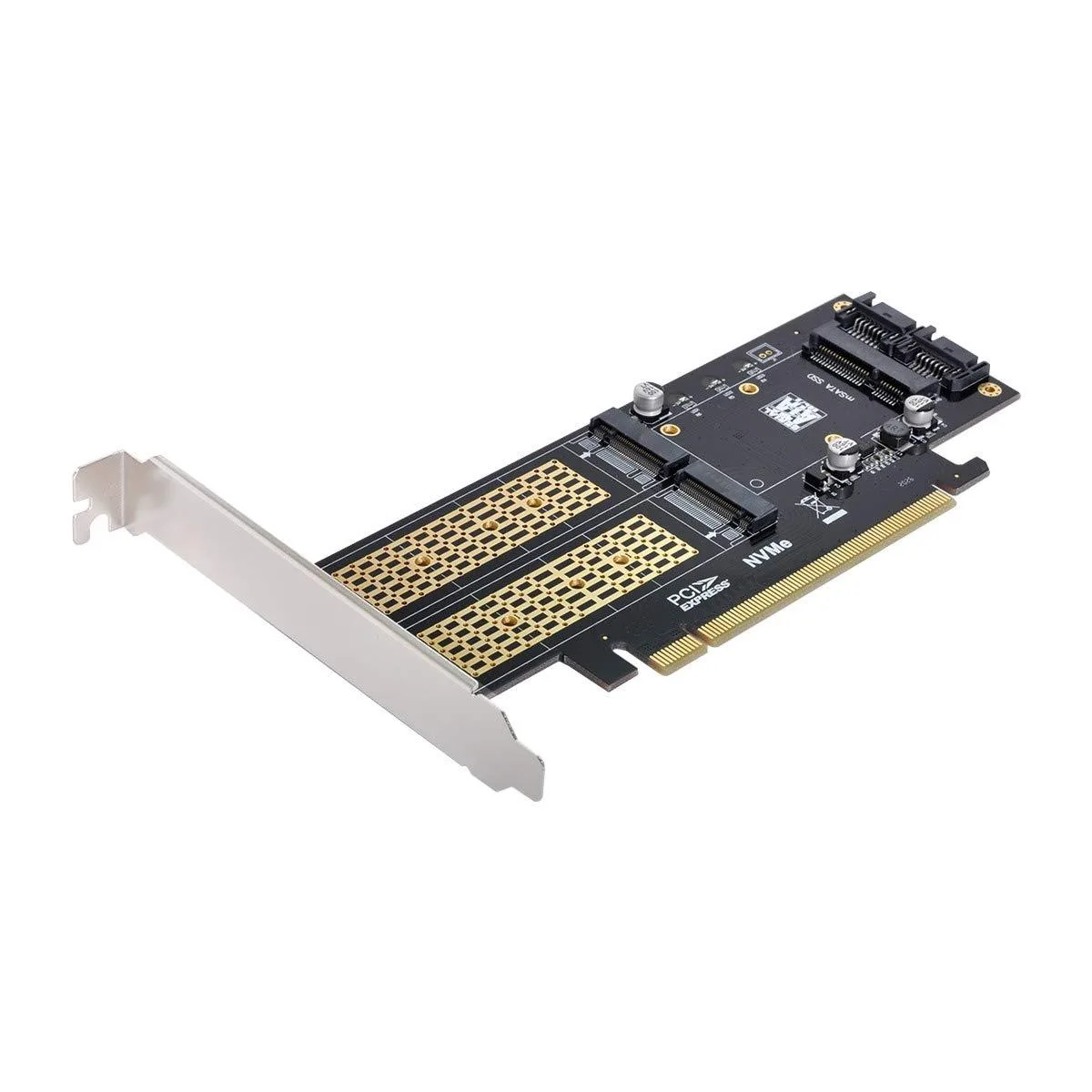

The Vszerda adapter lets one PCI Express 3.0 slot and two SATA ports host up to three solid-state drives simultaneously. It accepts M-key NVMe modules as well as B-key, B/M-key and mSATA drives in 2230, 2242, 2260 and 2280 lengths. The card draws all power from the PCI Express slot so no extra cables are needed.

Straightforward installation with cabling nuances

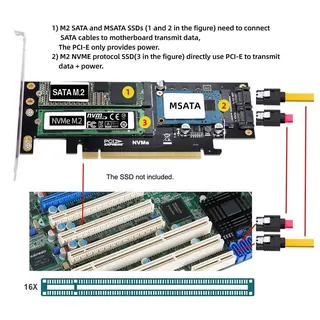

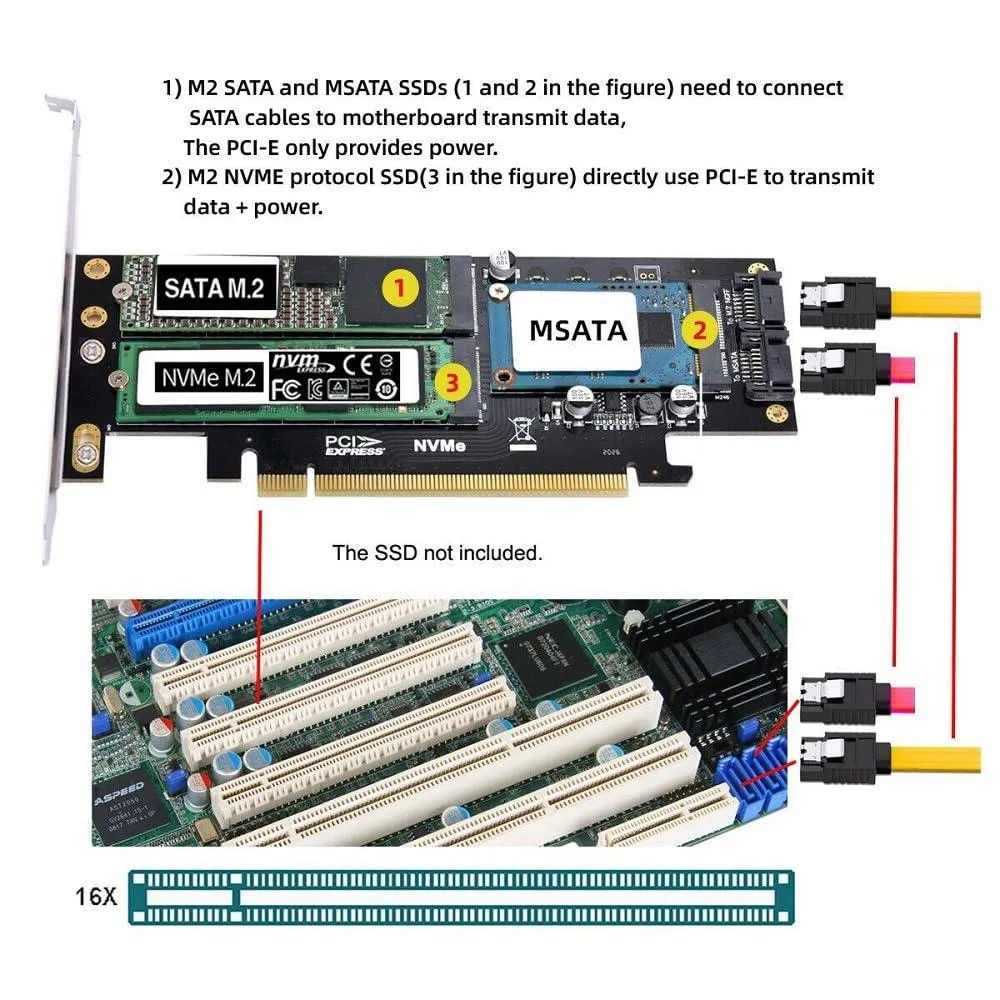

No driver installation is required; the operating system recognises the drives immediately. Each drive type demands a specific connection: mSATA and B-key or B/M-key modules must use the SATA cables to the motherboard, while M-key NVMe modules must use the PCI Express link. Mixing these cables is the most common setup error.

Check motherboard and OS before ordering

The board requires a Z97 or newer chipset and Windows 10 or later. Verify that your motherboard has a free PCI Express 3.0 slot plus two spare SATA ports. Builders needing more than three drives or lacking the required slot combination should consider a different solution.

Highlights

  • Supports three SSDs simultaneously
  • Driver-free operation with Windows 10 or later
  • PCI-E 3.0 interface for NVMe M-key SSDs
  • Dual SATA ports for M.2 SATA and mSATA drives
  • Fits 2230, 2242, 2260 and 2280 form factors

Specifications

Brandxiwai
ModelSA-028-XY
Connector Number3

Questions about this item

How can I confirm the adapter is working after installing three SSDs on a Z97 motherboard with Windows 10?

All three SSDs should appear in BIOS and Windows Disk Management without installing any drivers, showing that the PCI-E 3.0 and dual SATA connections are active.

What cables and accessories come in the box versus what I must buy separately?

The adapter board includes three connectors for 2230, 2242, 2260 and 2280 M.2 SSDs plus MSATA; you must supply your own SATA data cables for the SATA-based drives and a motherboard with a PCI-E slot and SATA ports.

Which M.2 form factors and key types does this 3-in-1 adapter support for NVME versus SATA drives?

It accepts M-key NVME SSDs via the PCI-E 3.0 link and B-key, B/M-key or M-key SATA SSDs via the two SATA links, covering 2230, 2242, 2260 and 2280 lengths.
