Vszerda PCI-E 17x 6Pin 12V Breakout Board 120W internal power cable

PCI-E breakout board for mining rigs

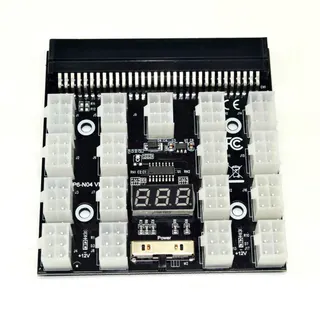

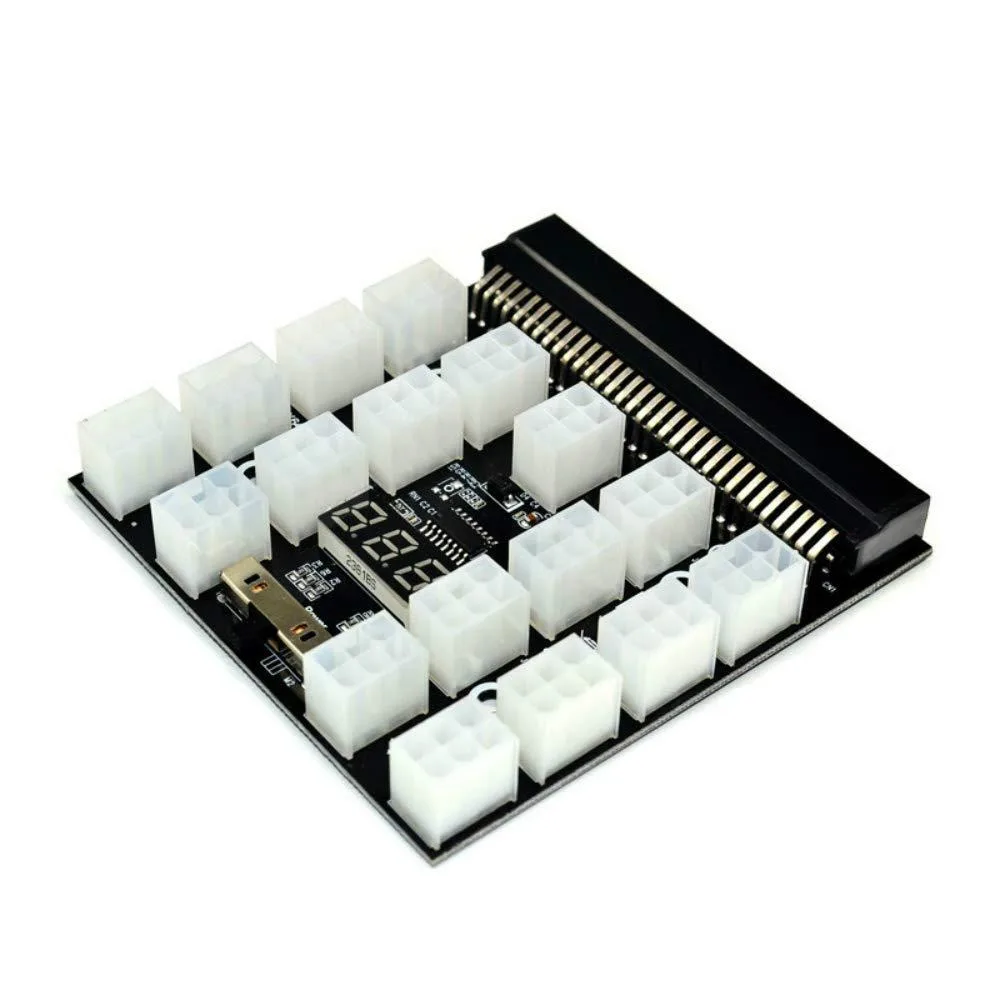

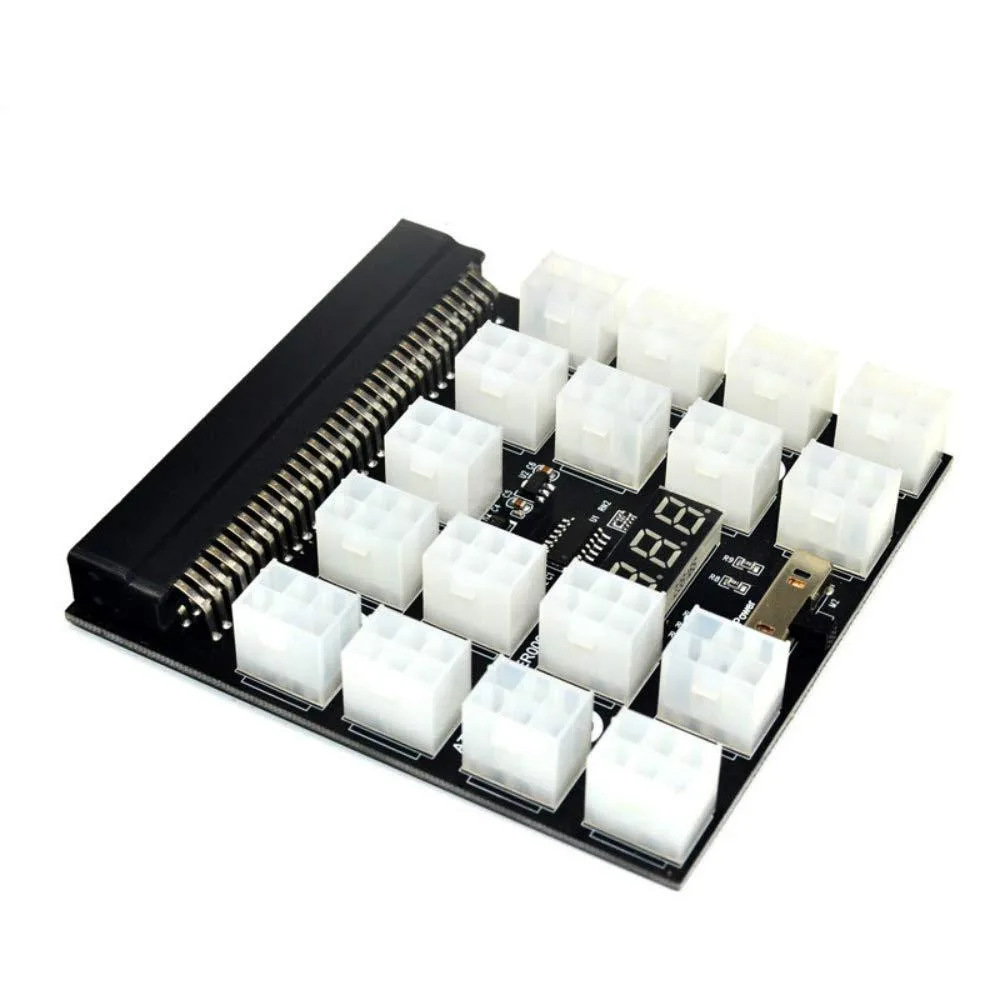

This Vszerda breakout board adapts a compatible server power supply to drive up to seventeen graphics cards through 6-pin PCI-E connectors. A 2-ounce copper PCB with solid-capacitor filtering distributes 12 V power while an onboard LED display reports the main supply voltage in real time. The unit is rated for a maximum of 120 W total output and includes a power switch that activates the board when the supply is live.

Suited for multi-GPU mining builds using listed

Builders assembling Ethereum or Bitcoin mining rigs that rely on supported server units such as the DPS-800GB A, DPS-1200FB A, DPS-1200QB A, PS-2751-5Q, PS-2751-LF-1F, HSTSN-PL12, DPS-700LB D, PS-2112-5L or DPS-750RB A can use this board to split a single high-capacity supply across many cards. It is not intended for standard ATX power supplies, for systems that need more than seventeen 6-pin outputs, or for any build where the total graphics-card draw would exceed the 120 W board limit.

Steady 12 V delivery under continuous mining load

During sustained operation the copper PCB and capacitor filter maintain stable voltage across all seventeen outputs while the LED panel lets the operator monitor supply health at a glance. The power switch only functions when the floppy-drive control cable is disconnected from the main supply; otherwise the board follows the supply’s own on-off state. Using only the specified custom cables and observing the keyed insertion direction prevents connection errors that could interrupt long-running workloads.
