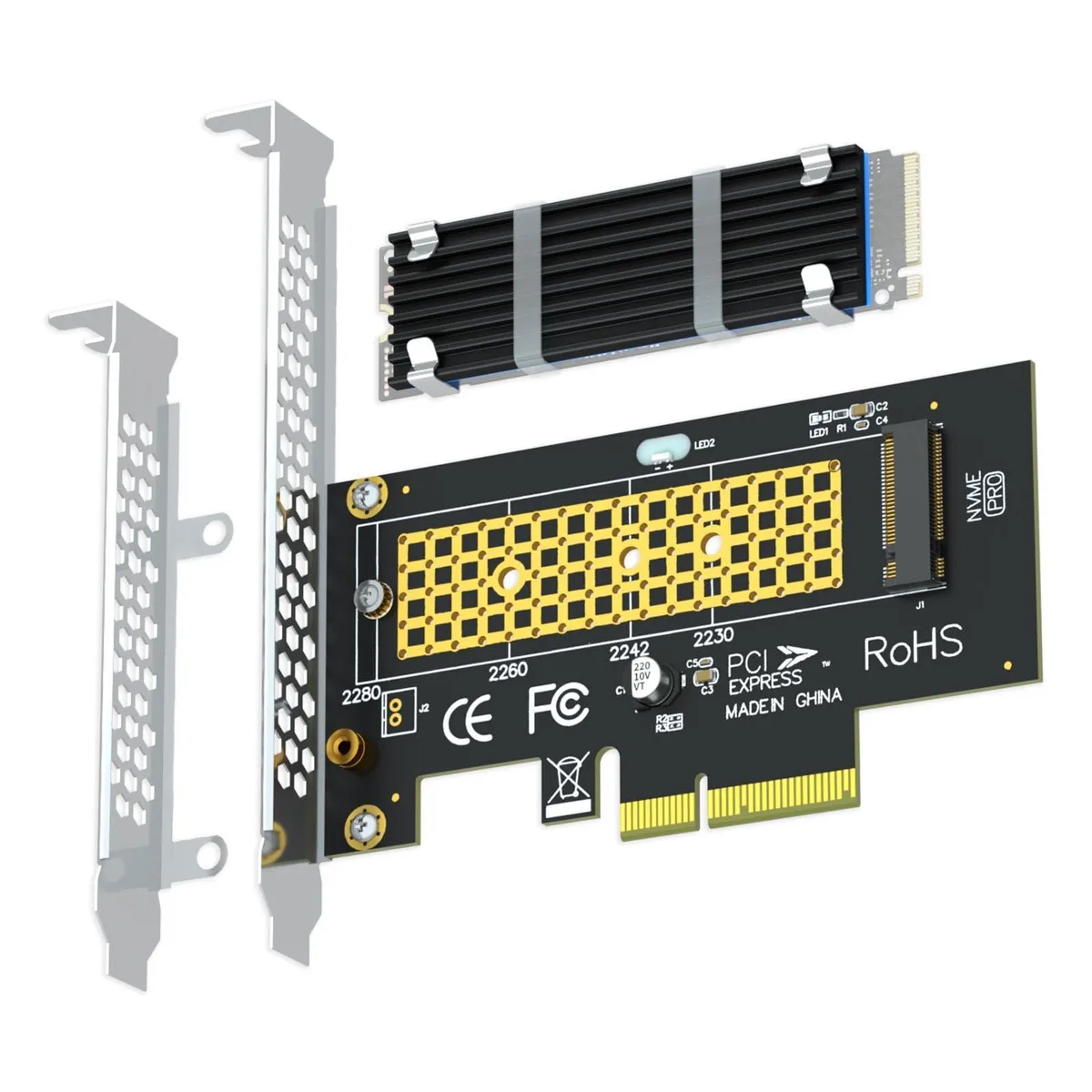

Black PCIe x4 adapter board with a 22x70x3mm heatsink for M.2 NVMe SSDs

Vszerda

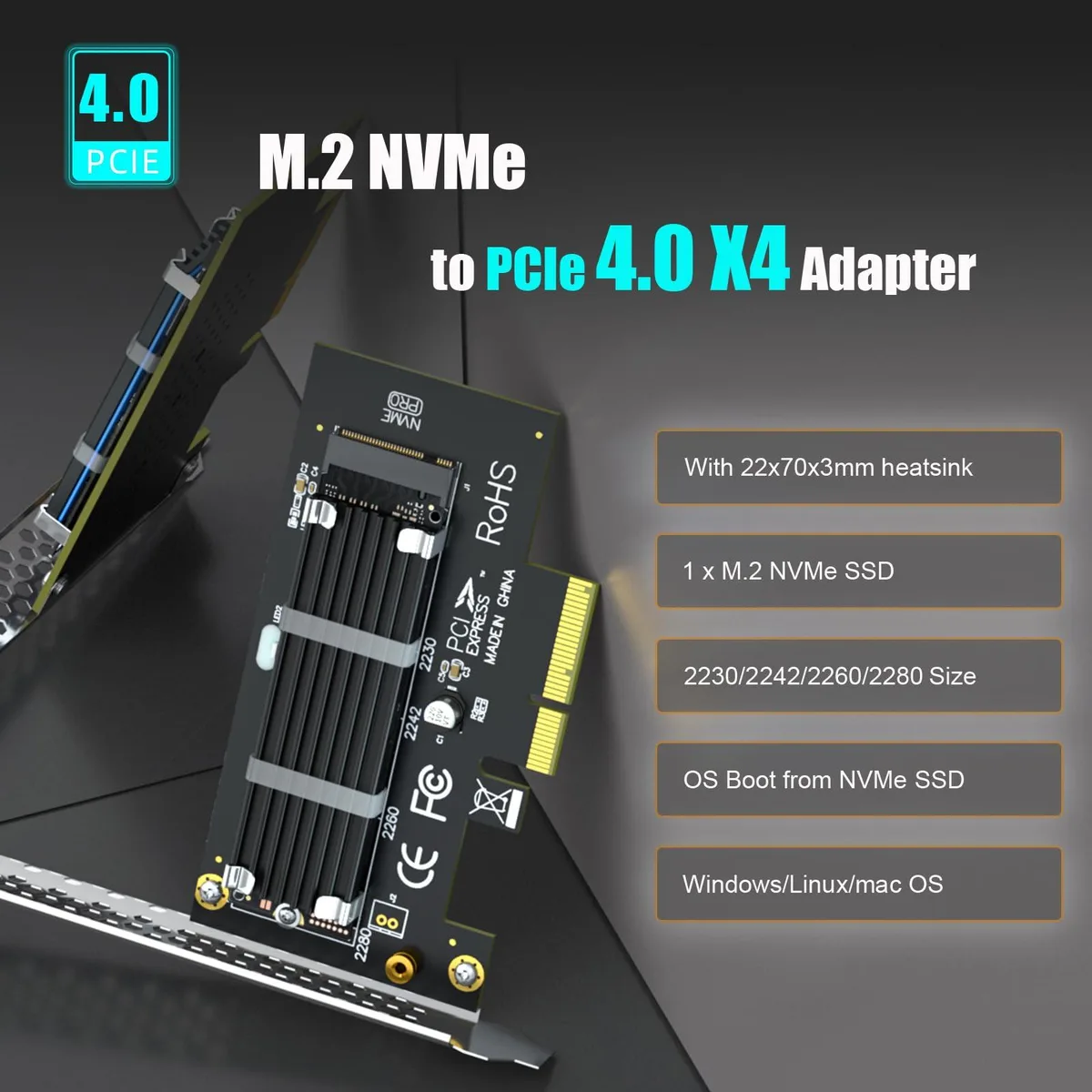

Vszerda PA09-HS M.2 NVMe PCIe 4.0 X4 Adapter with Heatsink

SKU CH-YB2X-BXXBB

Adds an M.2 Key M slot via PCIe 4.0 x4 with a 22×70×3 mm heatsink for NVMe SSDs

  • Changer Typewith 22x70x3mm heatsink, pci_express_x4
  • ColorBlack
  • Specificationswith 22x70x3mm heatsink, pci_express_x4, PA09-HS, PA09_HS, 1
  • Connector Apci_express_x4
  • Connector Bpci_express_x4
  • Featureswith 22x70x3mm heatsink, pci_express_x4, ['Desktop PC']
  • Turns a PCIe X4/X8/X16 slot into an M.2 Key M slot
  • Cools M.2 NVMe SSDs by 5 - 20 °C with included heatsink
  • Supports PCIe 4.0 X4 speed when CPU, slot and SSD all support it
  • Fits 2230, 2242, 2260 and 2280 M.2 NVMe SSDs with no capacity limit
  • Includes 12 cm and 8 cm brackets for standard and low-profile cases

Vszerda PA09-HS M.2 NVMe PCIe 4.0 Adapter

This adapter converts a motherboard PCIe X4, X8 or X16 slot into an M.2 Key M connector for NVMe solid-state drives. A 22x70x3mm heatsink is included to lower drive temperatures by 5 to 20°C. The card supports PCIe 4.0 x4 speeds when the CPU, slot and SSD all provide that capability. It fits desktop systems and includes both 12cm and 8cm brackets.

Suits builders adding NVMe storage to a spare PCIe

This card is not for systems that only have PCIe X1 or legacy PCI slots available. It does not support M.2 SATA drives at any speed. Buyers needing to install a SATA-based M.2 module should look elsewhere. Windows 7 users must supply their own NVMe driver as the operating system lacks native support. Some older motherboards cannot boot from an NVMe drive installed on this adapter.

PCIe 4.0 x4 host slot required for full speed

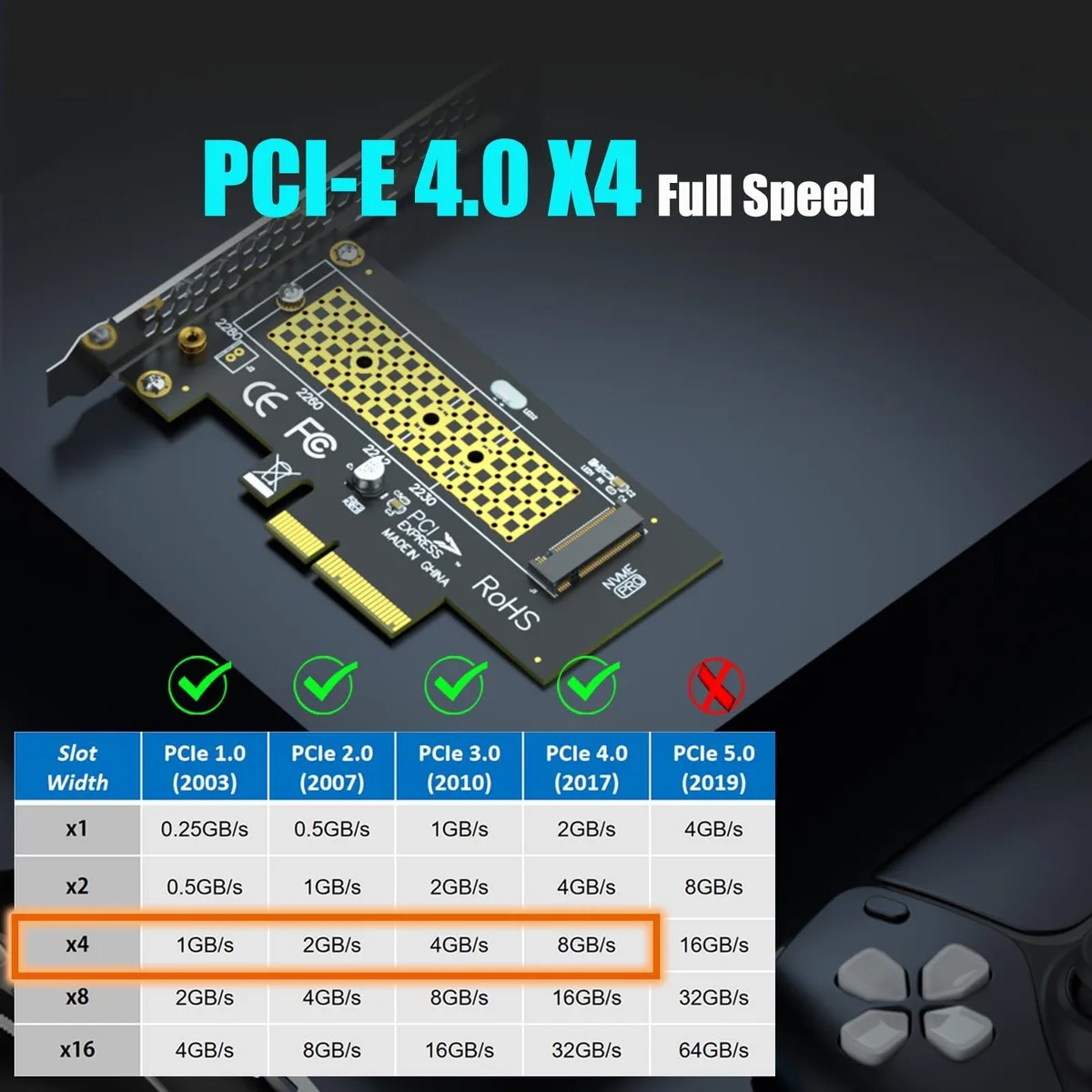

The adapter delivers maximum throughput only when the host platform provides a PCIe 4.0 x4 electrical connection. With a PCIe 3.0 slot the drive will operate at 3.0 speeds. Intel processors prior to 11th generation do not offer PCIe 4.0 support. The board accepts M.2 2230, 2242, 2260 and 2280 form factors with no stated capacity limit.

Highlights

  • Turns a PCIe X4/X8/X16 slot into an M.2 Key M slot
  • Cools M.2 NVMe SSDs by 5 - 20 °C with included heatsink
  • Supports PCIe 4.0 X4 speed when CPU, slot and SSD all support it
  • Fits 2230, 2242, 2260 and 2280 M.2 NVMe SSDs with no capacity limit
  • Includes 12 cm and 8 cm brackets for standard and low-profile cases

Specifications

BrandGLOTRENDS
SeriesPA09-HS
ModelPA09-HS
Part NumberPA09_HS
Changer Typewith 22x70x3mm heatsink, pci_express_x4
ColorBlack
Specificationswith 22x70x3mm heatsink, pci_express_x4, PA09-HS, PA09_HS, 15 L x 13.5 W x 2.5 H centimeters, 0.1 kilograms, ['Desktop PC'], Black, GLOTRENDS, glotrends
Connector Apci_express_x4
Connector Bpci_express_x4
Featureswith 22x70x3mm heatsink, pci_express_x4, ['Desktop PC']
Dimensions15 cm x 13.5 cm x 2.5 cm
Weight0.1 kilograms
Package Quantity1

Questions about this item

How much cooler does the included 22x70x3mm heatsink keep an M.2 NVMe SSD under sustained load?

The heatsink is rated to reduce SSD temperatures by 5 - 20°C during operation.

Which motherboard slot is required for this PCIe 4.0 x4 adapter to function?

It requires a PCIe x4, x8, or x16 slot; PCIe x1 or legacy PCI slots are not supported.

Can I boot from an NVMe SSD on an older motherboard using this adapter?

Boot is supported on most systems, but some older motherboards may only allow the drive as secondary storage.
