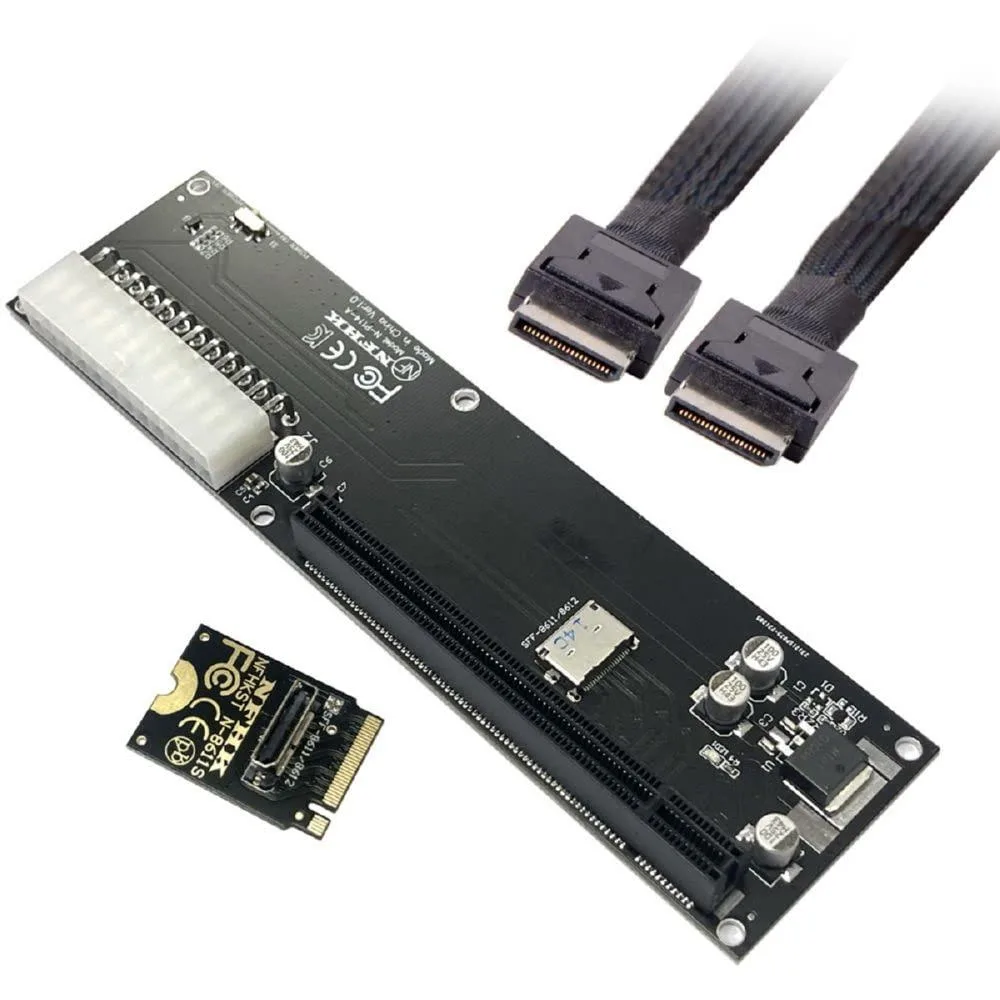

Black Oculink SFF-8611 cable with SFF-8612 adapter and PCI-E card

Vszerda

Vszerda Oculink SFF-8611 cable SFF-8612 adapter set for GPD Win Max2

SKU CH-3QKW-GRN73

An OCuLink SFF-8611 cable and SFF-8612 adapter set adds an external graphics or NVMe SSD port to a GPD Win Max2 laptop at up to 32 Gbps

  • Typexiwai
  • ColorBlack
  • Speedpci
  • Specificationscopper, Graphics Cards, xiwai, Straight Cable with Card
  • Conductorcopper
  • Constructioncopper
  • Adds an SFF-8612 port for external GPUs or SSDs
  • Transfers data at up to 32 Gbps over PCIe 3.0
  • Includes OCuLink SFF-8611 cable plus two SFF-8612 adapters
  • Carries PCIe 4x signals using the NVMe protocol
  • Works with Windows 8.1/10 and Linux kernel 4.3+

GPD Win Max2 OCuLink Adapter Kit

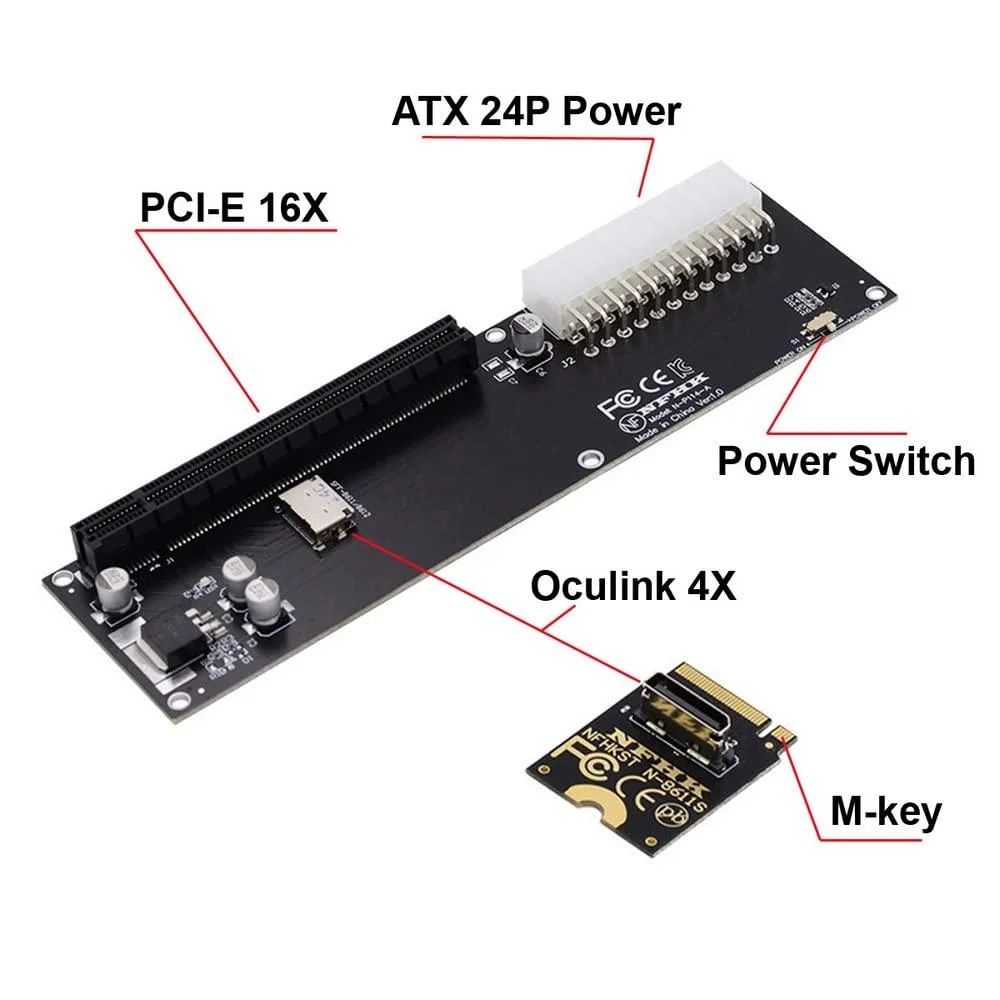

This adapter set connects a GPD Win Max2 laptop to external graphics cards or NVMe storage using the OCuLink SFF-8611 interface. It includes an M.2 M-key adapter, an OCuLink cable and a PCIe x16 adapter. The kit is designed specifically for this laptop model and may not function with other devices. It enables system expansion through a single SFF-8612 connection.

Copper Construction and Direct Connections

The adapters and cable use copper conductors for signal transmission. The straight cable layout keeps the connection direct between the laptop's M.2 slot and the external PCIe x16 adapter. The SFF-8612 female ports on both adapters lock securely to the OCuLink SFF-8611 cable. This physical link carries PCIe 3.0 x4 signals without intermediate converters.

Compatibility Checks Before Purchase

Verify that the laptop is a GPD Win Max2, as the supplier states the kit may not work with other laptops. The host system must run Windows 8.1, Windows 10 or Linux kernel 4.3 or above. The external device must use the NVMe protocol over PCIe x4. No driver installation is mentioned for the adapters themselves.

Highlights

  • Adds an SFF-8612 port for external GPUs or SSDs
  • Transfers data at up to 32 Gbps over PCIe 3.0
  • Includes OCuLink SFF-8611 cable plus two SFF-8612 adapters
  • Carries PCIe 4x signals using the NVMe protocol
  • Works with Windows 8.1/10 and Linux kernel 4.3+

Specifications

Brandxiwai
ModelSF-014+SF-061-XY
Typexiwai
ColorBlack
Speedpci
Specificationscopper, Graphics Cards, xiwai, Straight Cable with Card
Conductorcopper
Constructioncopper
Featurescopper, Straight Cable with Card, Graphics Cards

Questions about this item

What bandwidth does the Oculink SFF-8611 cable support for an external GPU?

The cable carries PCIe 3.0 x4 signals up to 32 Gbps, matching the NVMe 1.2 spec for full GPU throughput.

What slot and clearance does the SFF-8612 to PCIe 16x adapter need inside the GPD Win Max2?

It plugs into the M.2 M-key slot; the board and cable need room for a straight SFF-8612 connector and the 16x bracket.

Which driver or BIOS step do users miss when adding an NVMe SSD through this adapter?

Linux kernels before 4.3 and Windows below 8.1 lack native NVMe support, so the drive stays invisible until the OS is updated.
