Black metal rack-mount chassis with front LCD and buttons, rear HDMI ports

Vszerda

Vszerda MT-HD88L 8X8 HDMI Matrix Switch 4K@30Hz

SKU CH-CR3N-KC6ER

Routes eight 4K@30Hz HDMI sources to eight displays with independent routing, IR, RS232, LAN and web control plus 3.5mm audio extraction

  • TypeHDMI
  • Changer TypeHDMI
  • Cable Length1
  • Input Connector8
  • Output ConnectorFemale
  • Maximum Resolutions8X8 4K30Hz

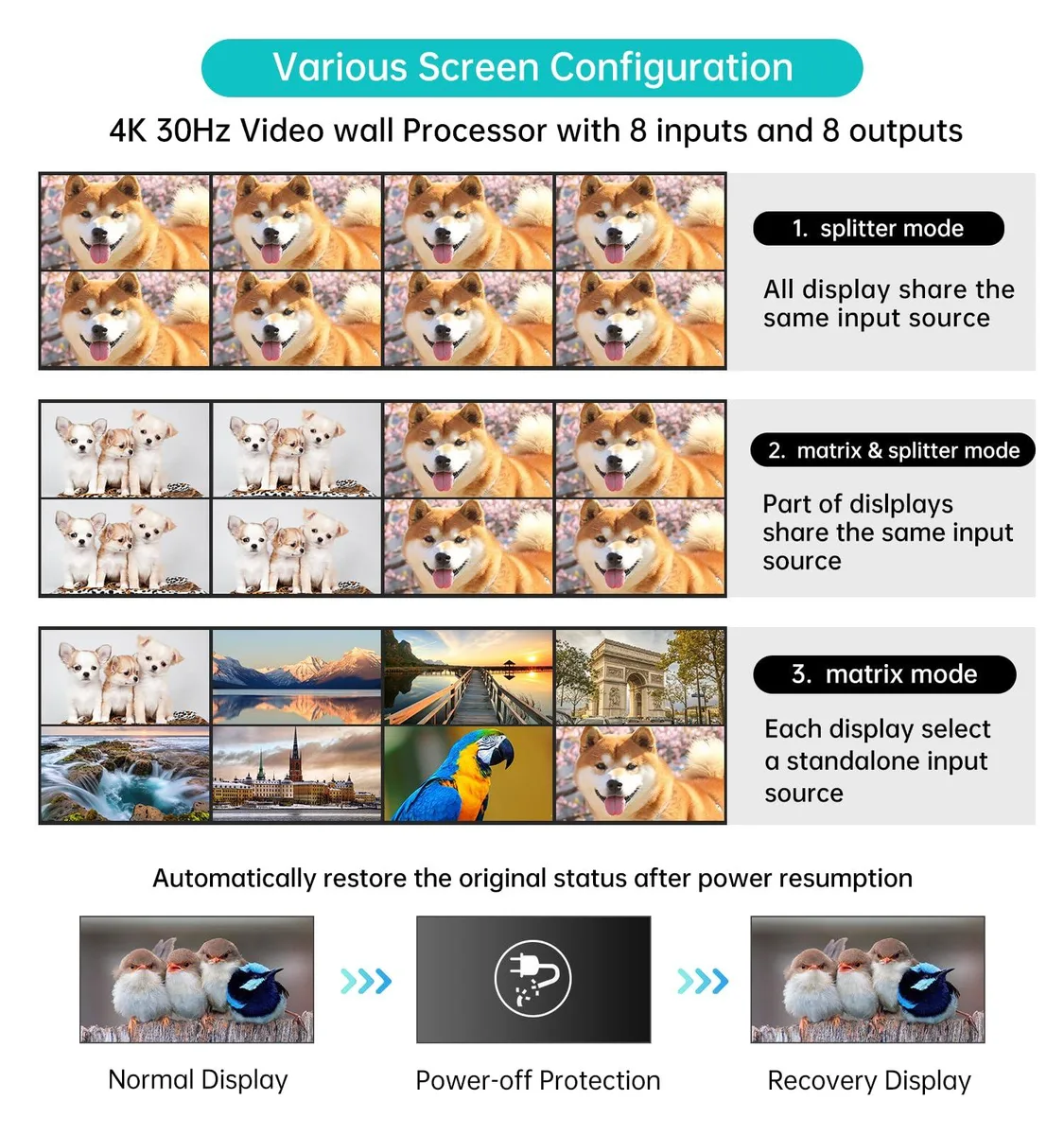

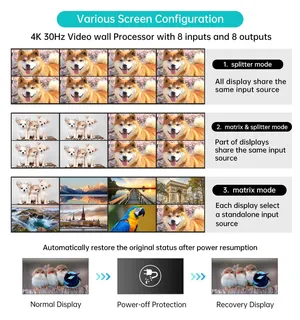

  • Routes 8 HDMI sources to 8 displays independently
  • 4K 3840×2160 at 30 Hz with 8 kV ESD protection

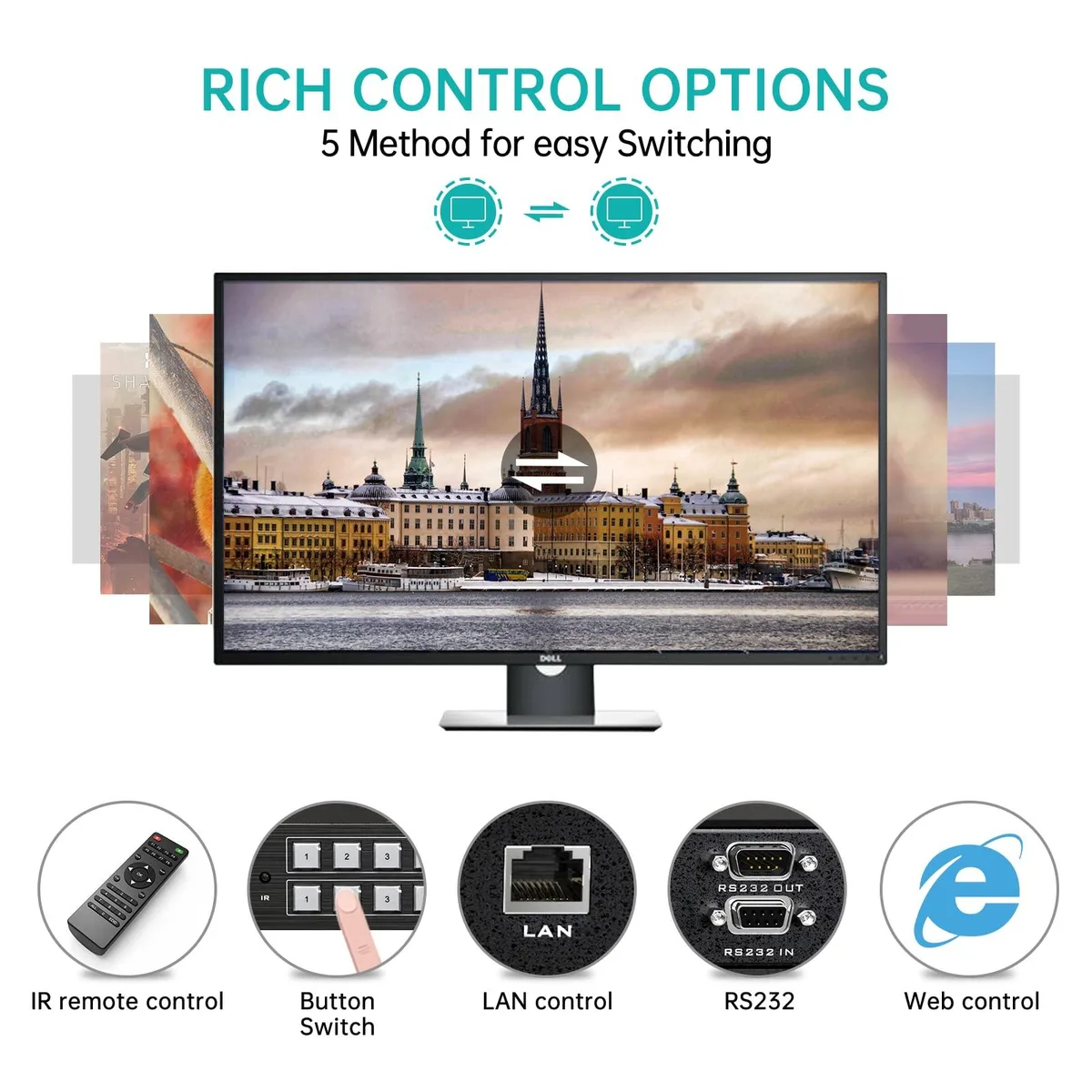

  • Five control methods: buttons, IR, RS232, LAN, Web GUI
  • Extracts stereo audio from output 8 via 3.5 mm jack
  • Supports 1080p 3D at 60 Hz and HDCP decoding

8×8 HDMI matrix with web GUI

The Vszerda MT-HD88L routes eight HDMI sources to eight displays at up to 4K 3840×2160@30Hz. It supports HDCP decoding, 3D and 1080P@60Hz alongside 4K signals. Control is available via front-panel buttons, IR remote, RS232, LAN or web interface. A 3.5 mm stereo output on output eight provides audio extraction.

Installers needing multi-room 4K distribution

Suits AV integrators, conference rooms and command centres that require independent routing of eight sources to eight screens. Not for users who need 4K@60Hz throughput, HDMI 2.0 bandwidth or more than eight inputs or outputs. Buyers wanting HDBaseT extension or fibre links should look elsewhere.

4K@30Hz maximum resolution

The switching chip operates at 3.4 Gbps, limiting video to 4K 3840×2160@30Hz or 1080P@60Hz. Cable runs up to 10 metres are supported with HDMI 1.4 cables. EDID management is rewriteable and adaptive per output. Unit weighs 2.585 kg and fits a standard rack mount.

Highlights

  • Routes 8 HDMI sources to 8 displays independently
  • 4K 3840×2160 at 30 Hz with 8 kV ESD protection
  • Five control methods: buttons, IR, RS232, LAN, Web GUI
  • Extracts stereo audio from output 8 via 3.5 mm jack
  • Supports 1080p 3D at 60 Hz and HDCP decoding

Specifications

BrandVszerda
Part NumberMT-HD88L
TypeHDMI
Changer TypeHDMI
Cable Length1
Input Connector8
Output ConnectorFemale
Maximum Resolutions8X8 4K30Hz
Weight2.585 kilograms

Questions about this item

What source devices and cables are required to use the 8 HDMI inputs?

Connect up to eight HDMI sources such as computers, laptops, decoders, set-top boxes or Blu-ray players using HDMI 1.4 cables no longer than 10 metres per run.

Can the 3.5 mm stereo output work with the same 4K@30 Hz signals sent to the HDMI displays?

Yes, but audio extraction is only available on output 8; select OUT8 to send PCM, Dolby AC3, DTS 5.1, DTS 7.1 or DSD to the 3.5 mm jack while the HDMI outputs carry 4K 3840×2160@30 Hz video.

How do I verify the matrix is routing each 4K source correctly after installation?

Press the front-panel buttons to see the illuminated input–output mapping, or open the Web GUI / MatrixController on the LAN port to confirm every display shows the intended 4K@30 Hz source.
