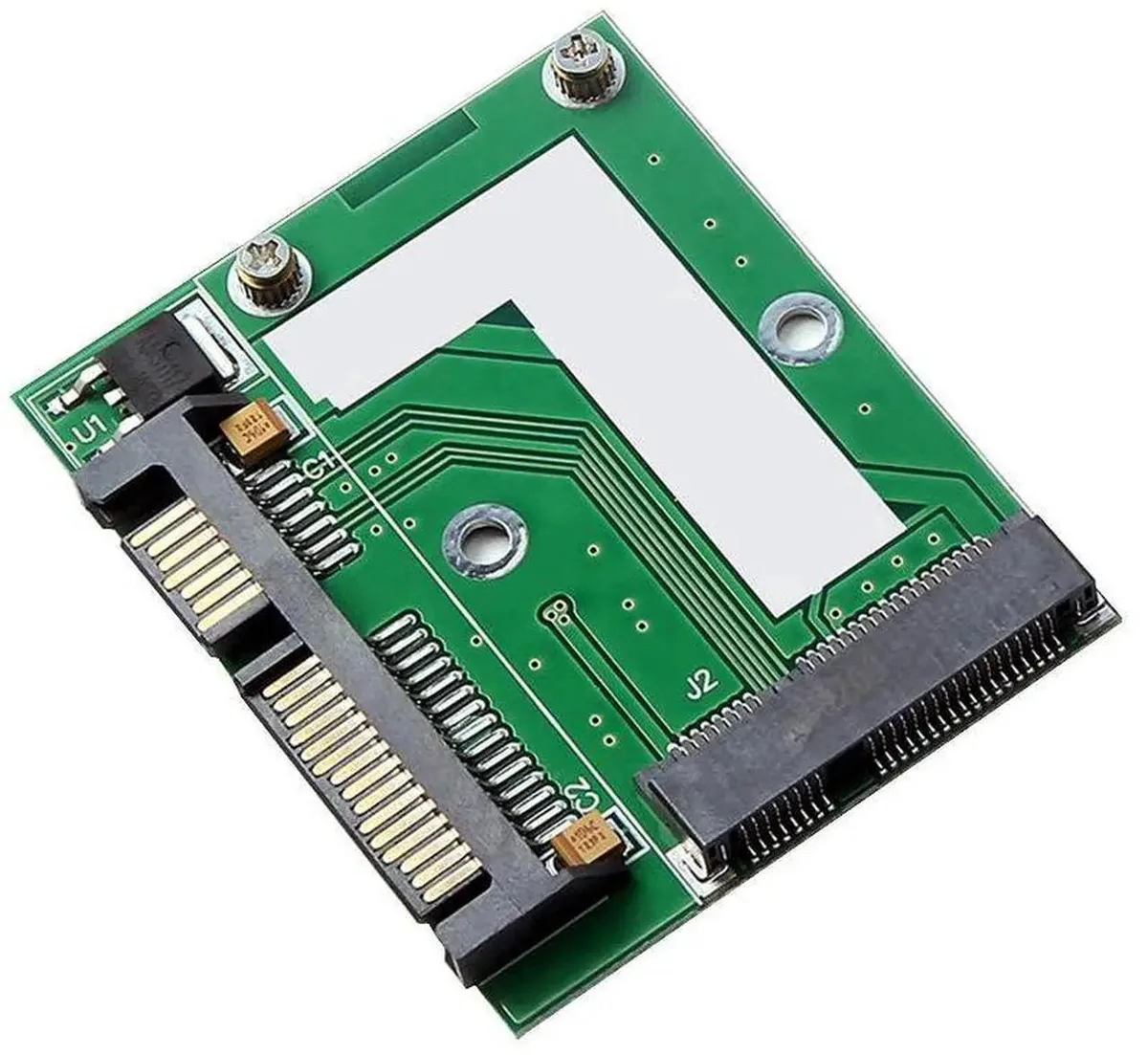

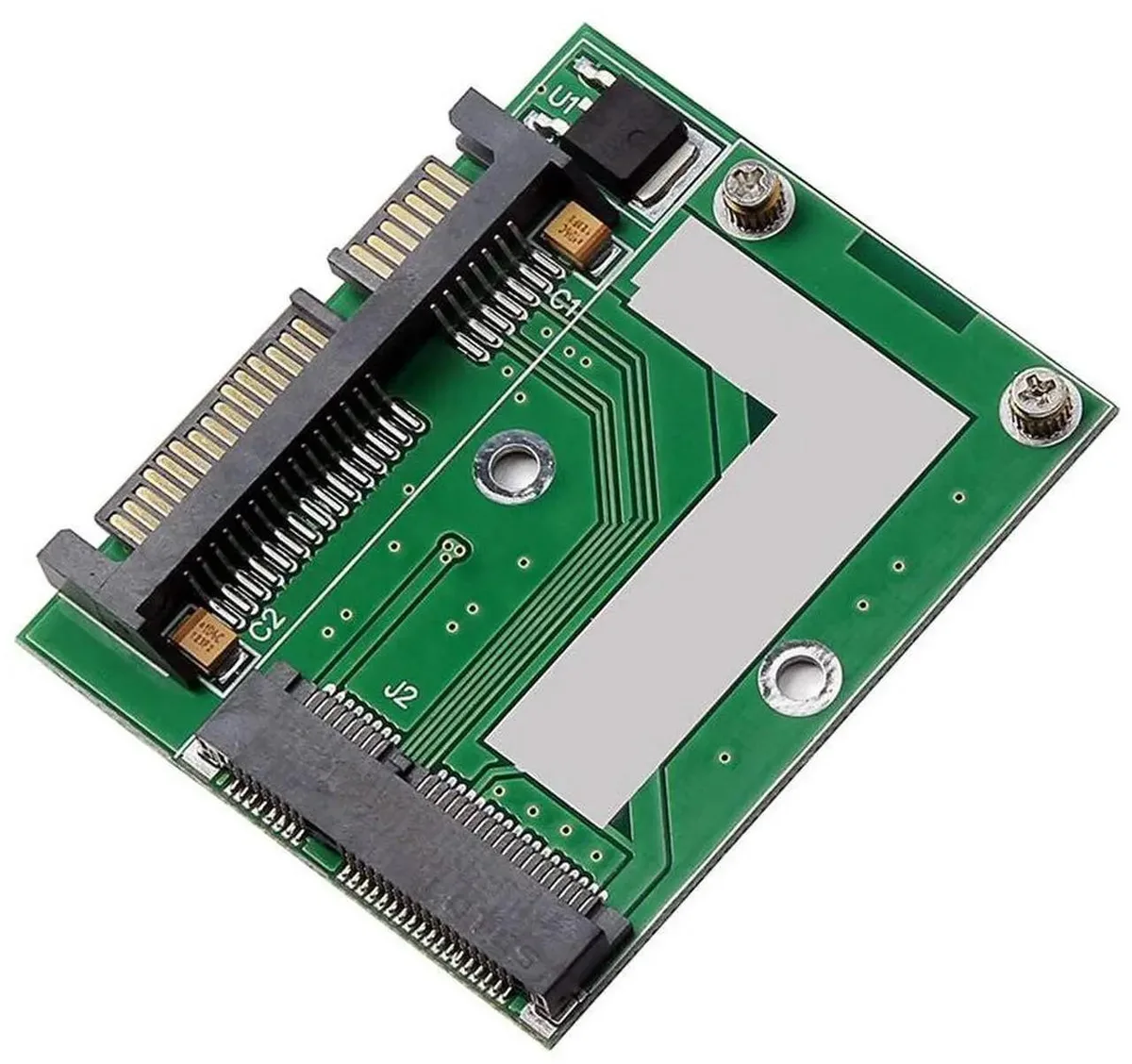

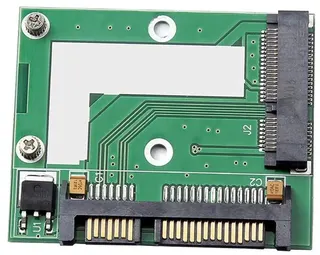

Green circuit board with gold edge connector and mounting holes

Vszerda

Vszerda mSATA to 2.5" SATA 6.0Gbps Adapter 30x50mm

SKU CH-JKBX-3D32H

Converts a 30 by 50 mm mSATA SSD into a standard 2.5 inch SATA 6.0Gbps drive with backward compatibility to 3.0 and 1.5Gbps, driver-free

  • Converts 30 mm × 50 mm mSATA SSDs to 2.5" SATA 6.0 Gbps
  • Works with SATA 3.0 Gbps and 1.5 Gbps hosts
  • Passive design keeps original SSD speed and properties
  • Driver-free installation on laptop or desktop
  • Supports only mSATA Mini PCIe SSDs, not SATA or PATA variants

What the adapter does

This Vszerda adapter converts a 30 mm by 50 mm mSATA solid-state drive into a standard 2.5 inch SATA 6.0 Gbps device. The conversion is passive, so the drive's original speed and properties are preserved without an integrated circuit chip. It works with both laptops and desktops and requires no driver installation. The board is shipped in a 5 cm length by default, with a 2.7 cm option available on request.

Who this suits and who it does not

The adapter is for owners of a 30 mm by 50 mm mSATA Mini PCIe SSD who need to install it in a 2.5 inch SATA bay or caddy. It will not work with SATA Mini PCIe SSDs, PATA Mini PCIe SSDs or 1.8 inch micro SATA drives. Builders who need to connect a different form factor or interface should look for a dedicated adapter for that specific drive type.

Installation notes and common pitfalls

Fitting the mSATA drive onto the board and securing it in a 2.5 inch slot is straightforward and needs no software. The most frequent issue is attempting to use an unsupported drive such as a SATA or PATA Mini PCIe module, which will not function. The PCB colour or shell style may vary between production batches without affecting compatibility. Ensure the correct board length is selected before ordering.

Highlights

  • Converts 30 mm × 50 mm mSATA SSDs to 2.5" SATA 6.0 Gbps
  • Works with SATA 3.0 Gbps and 1.5 Gbps hosts
  • Passive design keeps original SSD speed and properties
  • Driver-free installation on laptop or desktop
  • Supports only mSATA Mini PCIe SSDs, not SATA or PATA variants

Specifications

No published specifications for this item yet.

Questions about this item

Which mSATA SSD dimensions does this 2.5" SATA adapter accept?

It accepts 30 mm by 50 mm mSATA SSDs and converts them to a standard 2.5" SATA 6.0Gbps interface.

Will the adapter work with my older desktop that only supports SATA 3.0Gbps?

Yes, the adapter is backward compatible with SATA 3.0Gbps and SATA 1.5Gbps host controllers.

How can I confirm the adapter is passing full SATA 6.0Gbps speed after installation?

Check the negotiated link speed in your BIOS or OS storage utility; it should report 6.0Gbps when paired with a compatible mSATA SSD and host port.
