Black Mini-SAS HD SFF-8643 male plug splitting to four blue SFF-8482 connectors each with SATA 7-pin data and 15-pin power

Vszerda

Vszerda Mini-SAS SFF-8643 to 4× SFF-8482 SATA cable 0.5 m

SKU CH-5125-QDSPA

Connects an SFF-8643 host port to four SFF-8482 drives with integrated SATA power adapters

  • TypeMini-SAS Cables
  • ColorBlack/Blue
  • Length1.6
  • Speed6 gigabytes_per_second
  • ConductorCopper
  • Featuressff-8643 to sff-8482 sas breakout cable with sata power adap

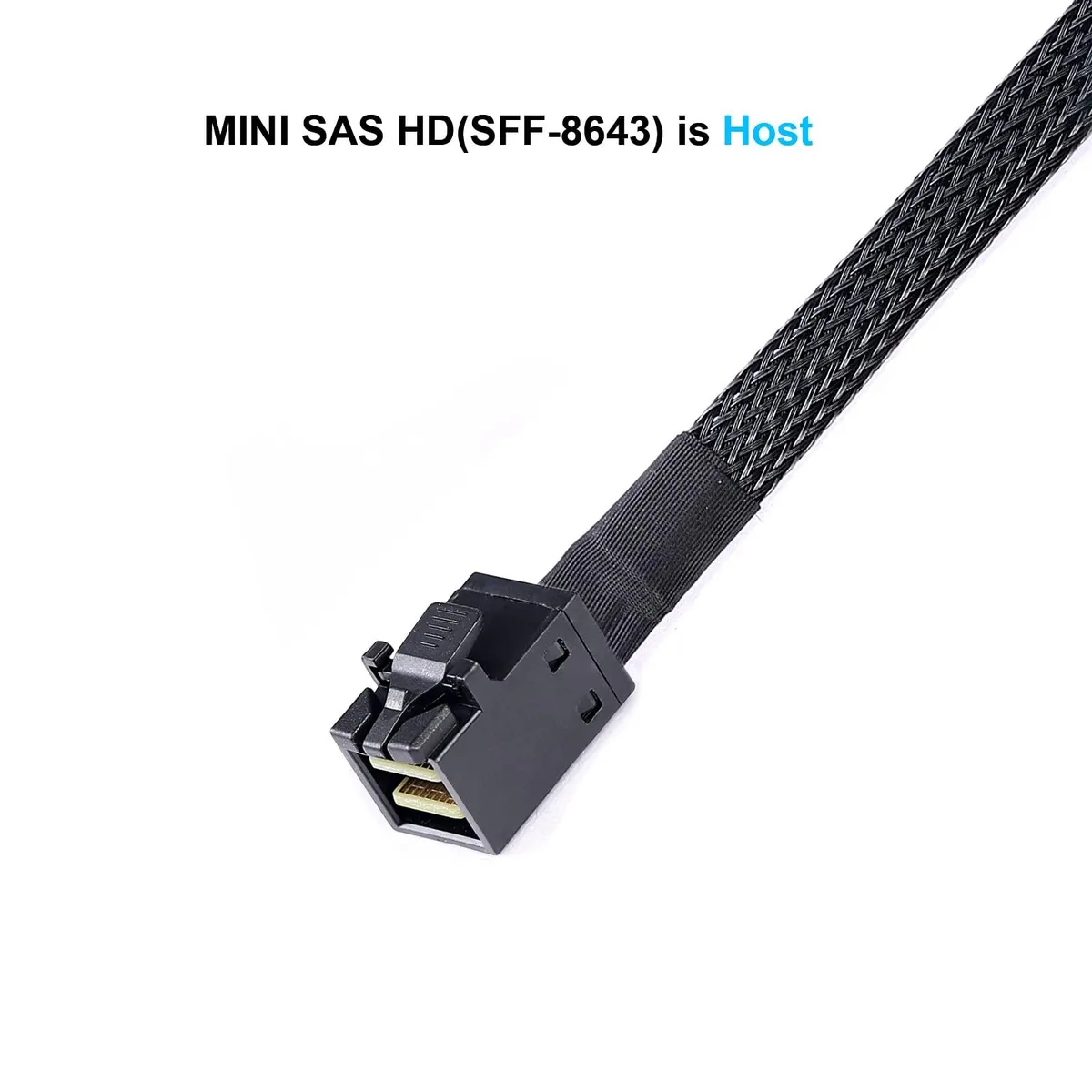

  • Connects one Mini-SAS HD SFF-8643 host to four SFF-8482 drives

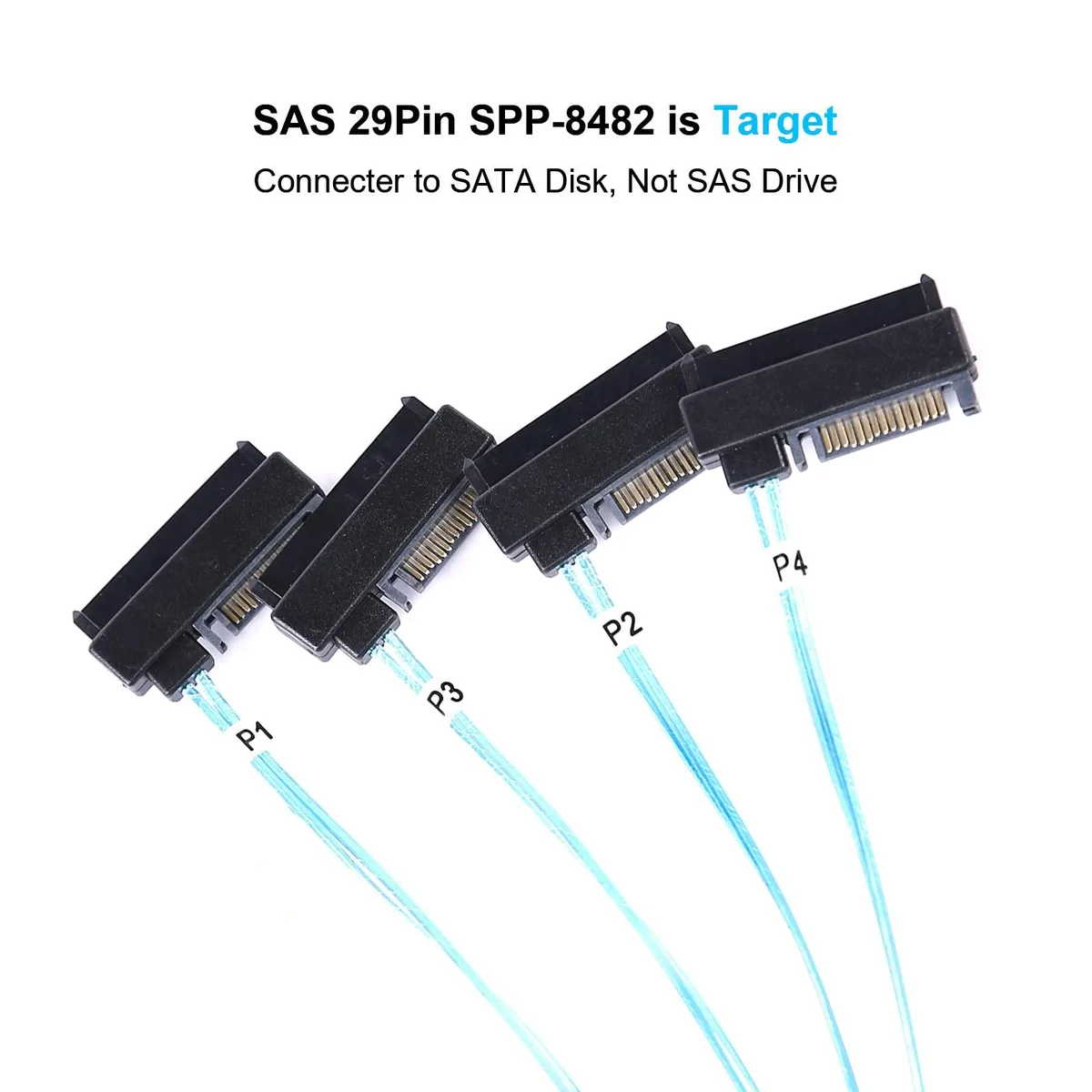

  • Each SFF-8482 connector includes SATA 7-pin data and 15-pin power
  • Supports 6 Gb/s per drive for SAS/SATA storage
  • 30 AWG braided cable at 0.5 m for tidy routing
  • Labeled breakout design simplifies cable management in DIY builds

Breakout cable for four SATA drives

This 0.5 m cable splits a single Mini-SAS HD SFF-8643 host port into four SFF-8482 connectors. Each target connector carries both SATA 7-pin data and 15-pin power so you can attach up to four SATA hard drives or SSDs directly to a RAID controller or HBA.

Replaces separate data and power looms

The integrated SATA power adapters remove the need for individual power cables running from the PSU to each drive bay. The jump is worth it when you want a cleaner backplane install and your controller exposes an SFF-8643 interface rather than legacy SFF-8087.

Fits inside tight chassis with thin 30 AWG wires

The braided, tape-wrapped assembly bends easily around drive cages and routes cleanly to the controller. It frees up space by combining four data paths and four power feeds into one managed run, but it will not work if you plug the SFF-8643 end into a backplane or try to use it with SAS drives.

Highlights

  • Connects one Mini-SAS HD SFF-8643 host to four SFF-8482 drives
  • Each SFF-8482 connector includes SATA 7-pin data and 15-pin power
  • Supports 6 Gb/s per drive for SAS/SATA storage
  • 30 AWG braided cable at 0.5 m for tidy routing
  • Labeled breakout design simplifies cable management in DIY builds

Specifications

BrandADCAUDX
ModelMini SAS-012
TypeMini-SAS Cables
ColorBlack/Blue
Length1.6
Speed6 gigabytes_per_second
ConductorCopper
Featuressff-8643 to sff-8482 sas breakout cable with sata power adapter cable

Questions about this item

How much clearance does the 30 AWG SFF-8643 male connector need behind the controller card?

The 30 AWG cable is thin and flexible with a braided weave, so it routes easily in tight chassis spaces behind an HBA or RAID card.

Which end plugs into the controller and which ends attach to the drives?

The SFF-8643 male end is the host side for the controller; each of the four SFF-8482 ends carries SATA 7-pin data plus 15-pin power for the drives.

Will I need to replace the SATA power adapters on the four SFF-8482 tails?

Each tail has a fixed SATA 15-pin power connector; if a drive later requires a different power interface, a new breakout cable would be needed.
