Two Mini SAS SFF-8088 male plugs each branching to four SATA female connectors, blue cable, 3.3 ft

Vszerda

Vszerda Mini SAS SFF-8088 to 4 SATA 3.3ft cable

SKU CH-WABP-CCBXB

Connects a Mini SAS SFF-8088 controller to four SATA drives at 3.0 Gbps over 3.3 feet

  • TypeMini SAS
  • Length3.3 feet
  • Connector DetailScsi
  • Terminal GenderMale-to-Female
  • Speed3 gigabits_per_second
  • ConductorCopper
  • Connects one controller to four drives
  • 0 Gb/s transfer rate for fast access
  • 26-pin SFF-8088 male to four SATA female

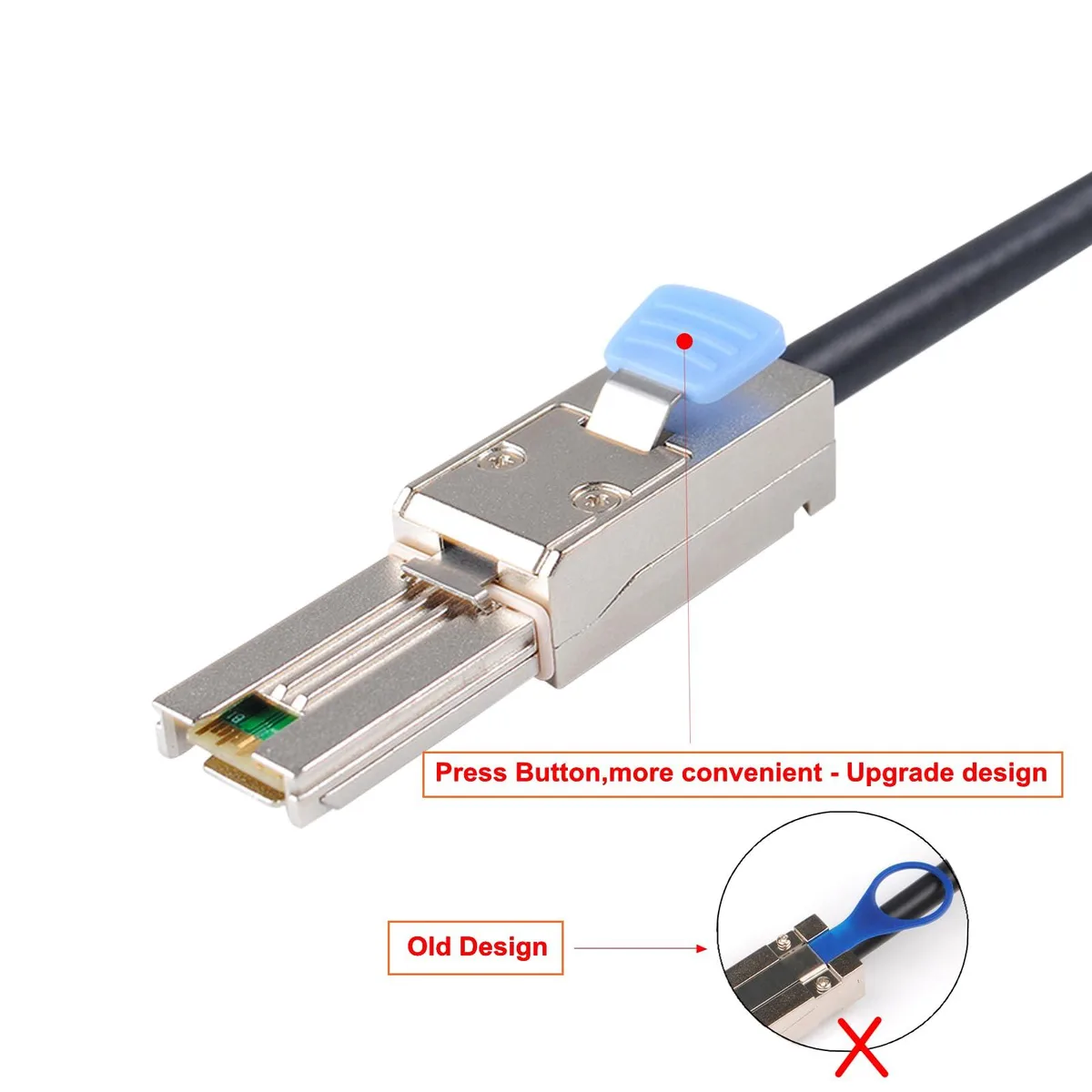

  • Press-button latch for secure insertion
  • 3-foot copper cable for flexible routing

What this cable does

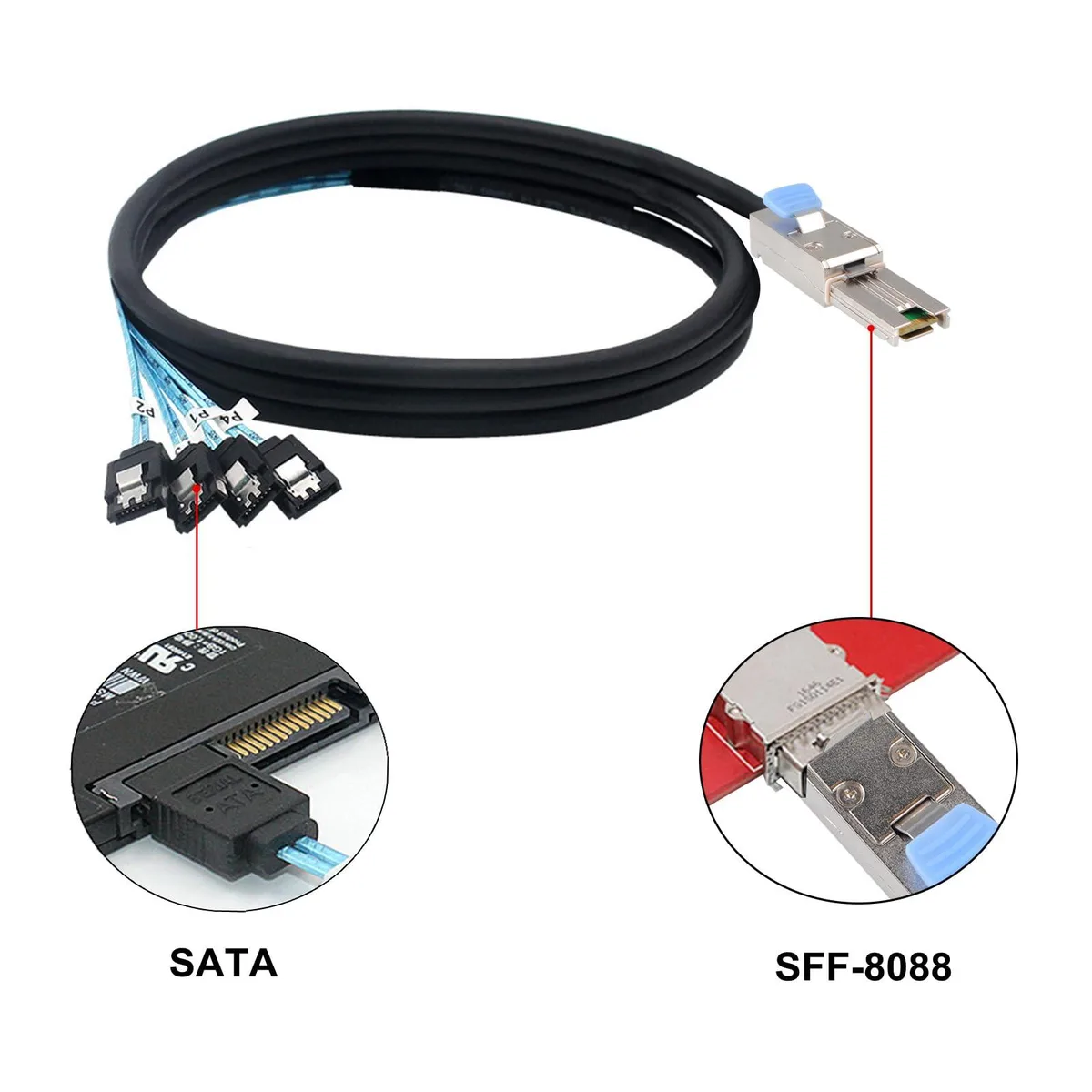

This Vszerda cable carries an external Mini SAS SFF-8088 male plug on one end and four 7-pin SATA female connectors on the other. It links a controller or host adapter with an SFF-8088 port directly to up to four SATA drives or a backplane. The 3.3-foot length suits typical rack or workstation cable runs. Rated for 3.0 Gb/s, it uses copper conductors and a press-button latch for secure mating.

Who should use it and who should not

Builders wiring external SAS controllers to SATA targets in servers, JBOD enclosures or workstations will find the pin-out and latch convenient. Buyers whose controller presents a different external port or whose backplane requires a different connector style cannot use this cable. Anyone needing longer reach than 3.3 feet or a higher signalling rate than 3.0 Gb/s should look elsewhere.

The spec that decides fit

The single deciding specification is the external 26-pin SFF-8088 Mini SAS connector on the host side. If the controller or HBA does not expose that exact port, the cable will not connect regardless of any other feature.

Highlights

  • Connects one controller to four drives
  • 0 Gb/s transfer rate for fast access
  • 26-pin SFF-8088 male to four SATA female
  • Press-button latch for secure insertion
  • 3-foot copper cable for flexible routing

Specifications

BrandHeretom
Model0699931363973
TypeMini SAS
Length3.3 feet
Connector DetailScsi
Terminal GenderMale-to-Female
Speed3 gigabits_per_second
ConductorCopper
FeaturesHigh Speed

Questions about this item

How much heat or noise does the cable generate during continuous operation?

The cable is a passive copper assembly with no active components, so it produces no audible noise and negligible heat while running all day.

What must the system already have for this cable to function?

The host side requires a controller or HBA with an external SFF-8088 Mini SAS port, and the drive side needs four SATA drives or a backplane with standard 7-pin SATA connectors.

Will the 3.0 Gbps Mini SAS link work with older 3 Gbps SATA drives I already own?

Yes, the SAS interface is backwards compatible with SATA, so the cable will operate at 3.0 Gbps with existing 3 Gbps SATA drives.
