Mini SAS SFF-8088 26-pin female to four SATA connectors, 50 cm cable

Vszerda

Vszerda Mini SAS SFF-8088 26-Pin Female to 4 SATA Cable 50CM

SKU CH-EHJ4-QZ50D

Connects a Mini SAS SFF-8088 port to four SATA drives using a 50 cm cable with a 26-pin female connector and labeled ports

  • TypeSAS
  • Length18
  • Connector DetailMini Sas
  • Terminal GenderMale-to-Female
  • SpecificationsSAS
  • ShieldingHigh-speed transfer, secure lock
  • High-speed data transfer via SAS SFF-8088 interface
  • 26-pin female connector links to four SATA ports
  • 50 cm length suits compact server chassis
  • Shielded construction reduces signal interference and data loss
  • Labelled P1–P4 connectors simplify installation and maintenance

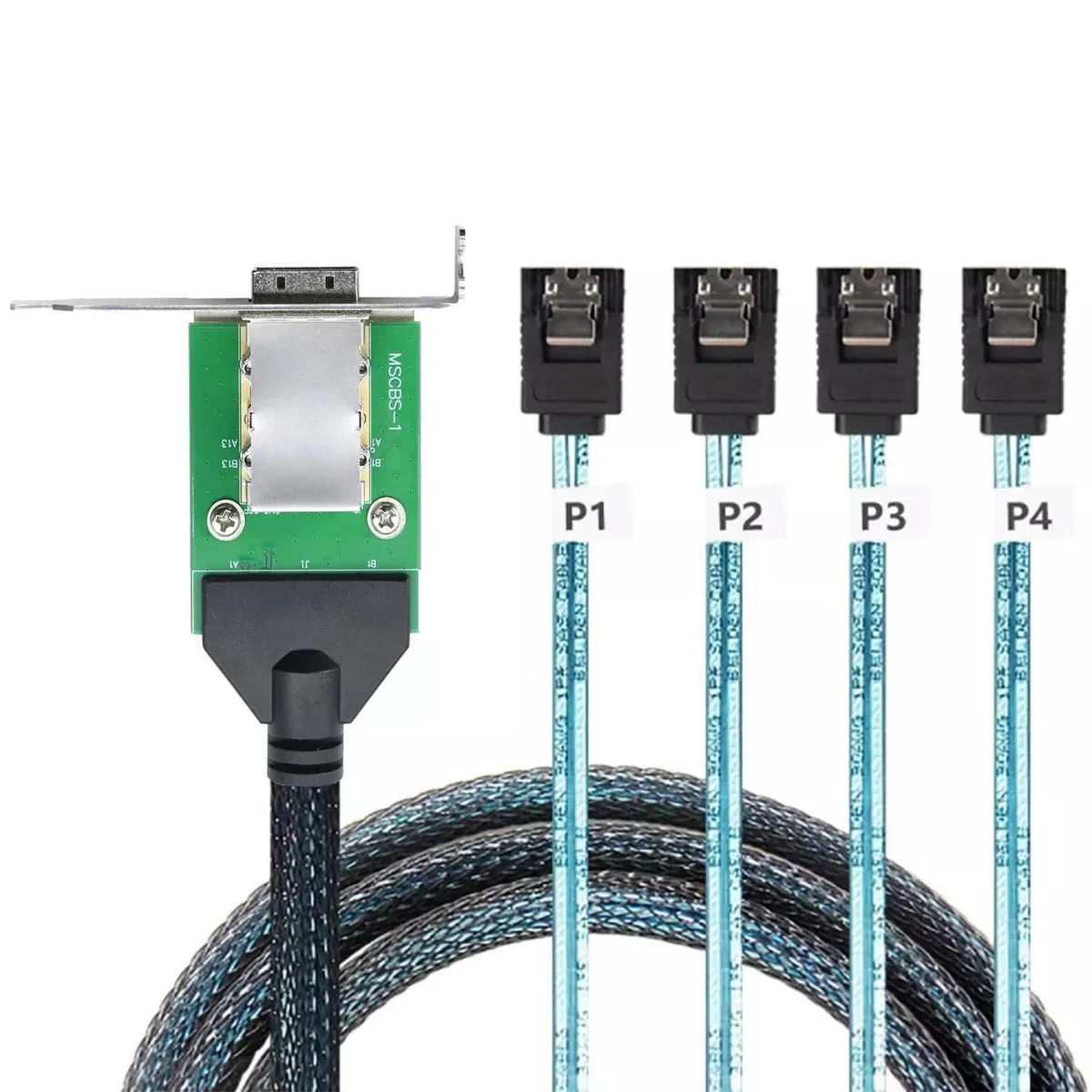

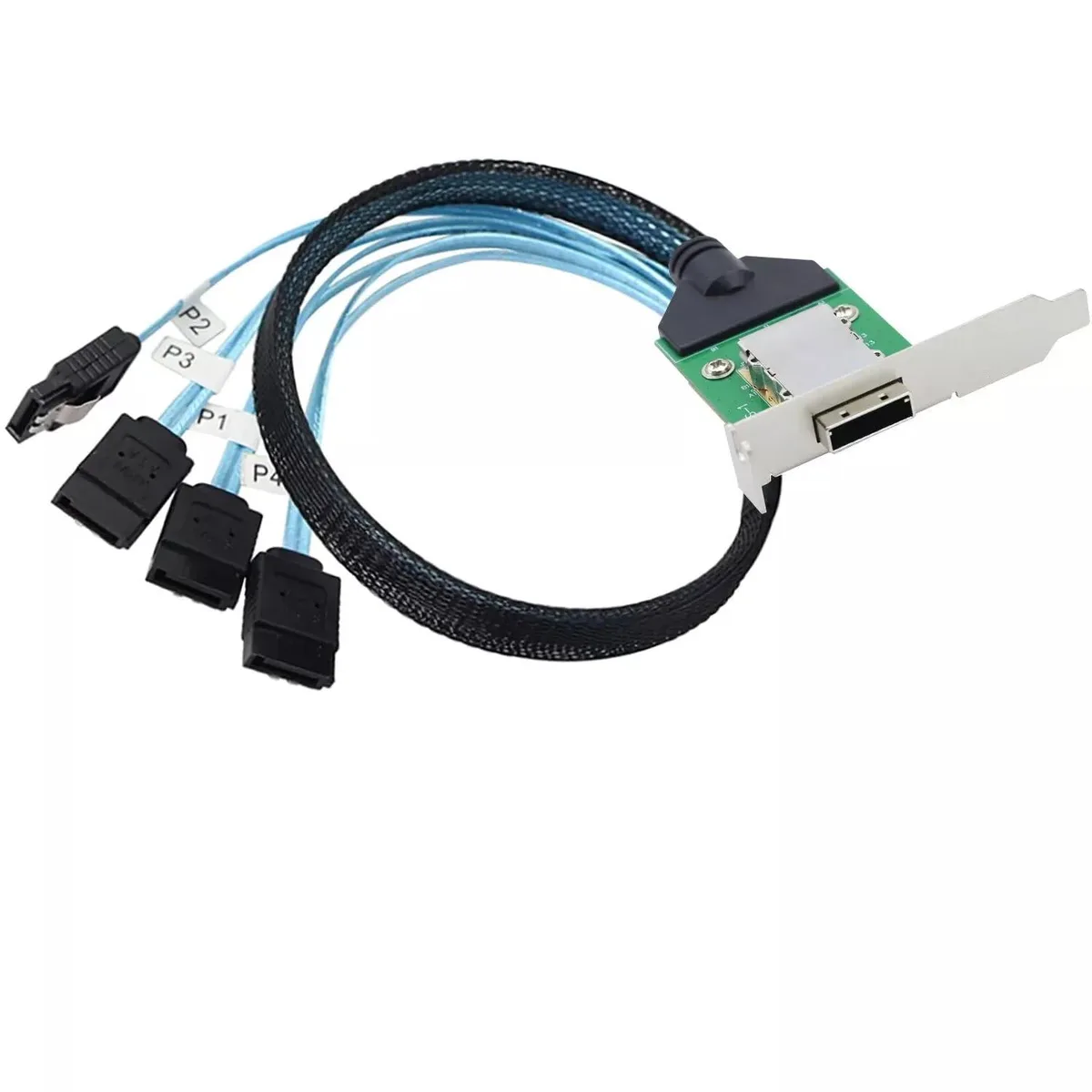

Mini SAS SFF-8088 to four SATA cable

This 50 cm cable links a 26-pin Mini SAS SFF-8088 female port to four SATA drives. It is built for server and storage chassis that break out a single SAS wide port into individual SATA connections. The assembly suits administrators who need dense drive attachment without a backplane.

Verify controller and drive compatibility

Confirm that your RAID or HBA card presents an SFF-8088 external port and that the target drives use standard SATA interfaces. The cable carries SAS signalling, so the controller must support SATA tunnelling or the drives must be SAS models. No power conductors are included; drives require separate power from the chassis or supply.

Shielded construction with locking latch

The 18-inch shielded assembly reduces signal interference in dense enclosures. A secure latch on the SFF-8088 connector prevents accidental disconnection during vibration or maintenance. Each SATA tail is marked P1 through P4 for quick port identification during installation or troubleshooting.

Highlights

  • High-speed data transfer via SAS SFF-8088 interface
  • 26-pin female connector links to four SATA ports
  • 50 cm length suits compact server chassis
  • Shielded construction reduces signal interference and data loss
  • Labelled P1–P4 connectors simplify installation and maintenance

Specifications

BrandST-JY
ModelSFF8088F26P-4PST
TypeSAS
Length18
Connector DetailMini Sas
Terminal GenderMale-to-Female
SpecificationsSAS
ShieldingHigh-speed transfer, secure lock
FeaturesHigh-speed transfer, secure lock

Questions about this item

Does the 50CM cable include the four SATA drives or just the SFF-8088 to 4 SATA breakout?

Only the cable assembly is supplied — one 26-pin SFF-8088 female connector splitting to four labelled SATA ports (P1–P4). Drives, backplanes and controller cards must be purchased separately.

The specs list length as 18 but the title says 50CM — which figure is correct for rack planning?

The product title specifies 50CM overall length; the 18 in the specification table appears to be an internal code, not a centimetre measurement.

What real-world throughput can I expect from the 8088 link when four SATA drives are connected?

The Mini SAS SFF-8088 26-pin interface carries four SAS lanes; each SATA port is limited to the drive's native SATA speed, so aggregate throughput depends on the attached drives and controller, not the cable itself.
