Vszerda Mini SAS SFF-8087 male to four SATA female fan-out cable 3.3ft

Vszerda

Vszerda Mini SAS SFF-8087 to 4 SATA Cable 3.3ft

SKU CH-GCTK-030PE

Connects a RAID or PCIe controller with an SFF-8087 port to four SATA drives at up to 6Gbps per channel

  • Connects RAID or PCIe controller to four SATA drives via SFF-8087
  • Supports up to 6Gbps data transfer rate per drive channel
  • Flexible ribbon cables with acetate cloth tape for strain relief
  • Woven mesh sheath covers half the cable for easy routing
  • Low-profile SATA connectors with stainless steel latches prevent accidental disconnection

Connectivity for RAID and HBA Controllers

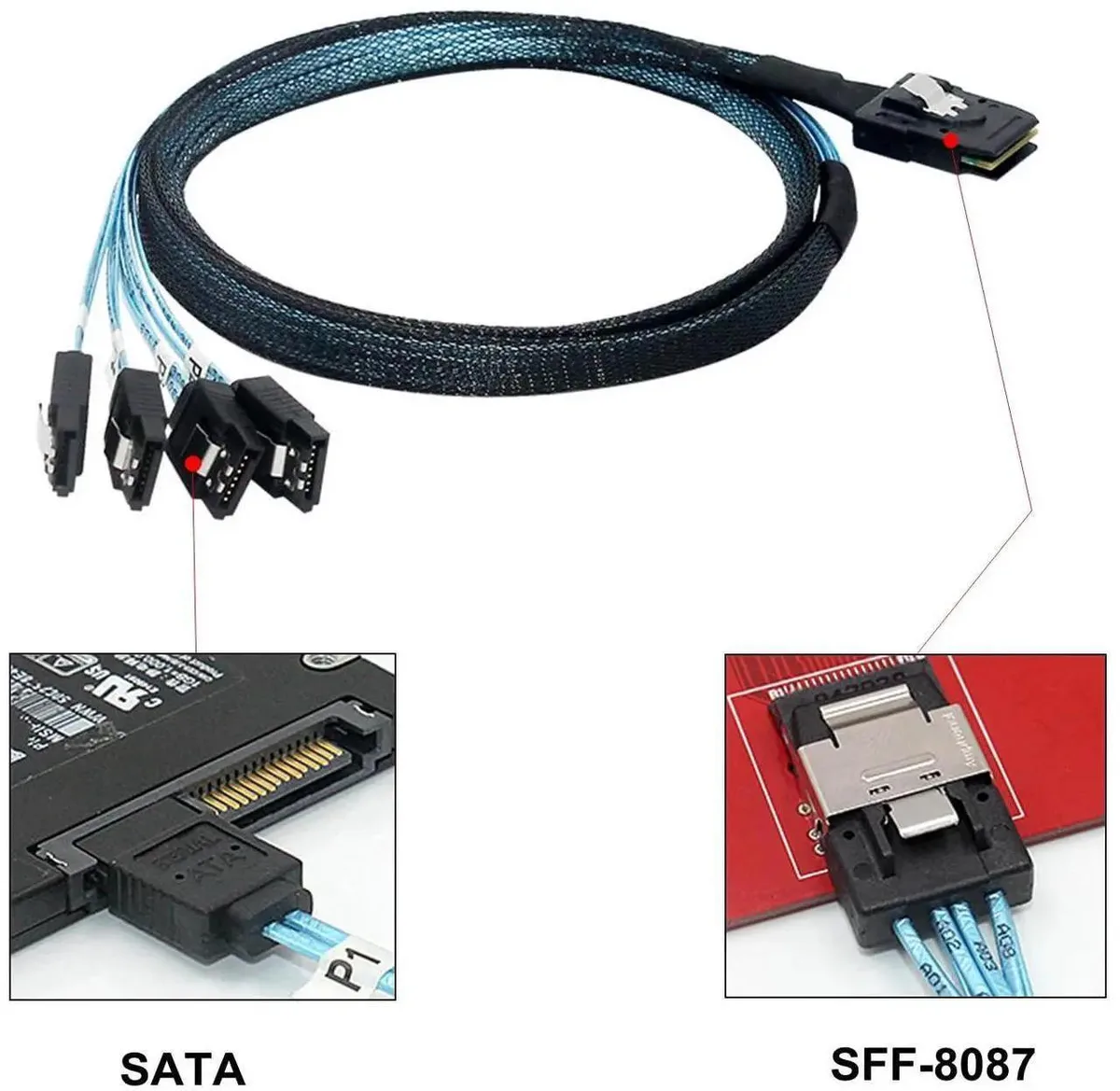

This Mini SAS SFF-8087 to four SATA fan-out cable links a RAID or PCIe controller to discrete SATA drives. The 36-pin male connector mates with the host adapter while the four 7-pin female ends attach to backplanes or drive bays. It suits builders adding internal storage arrays to servers or workstations.

Signal Integrity and Routing

The assembly supports up to 6Gbps per channel for high-speed data transfer. A woven mesh sheath covers half the length to aid routing, and acetate cloth tape over the slim ribbon section provides strain relief without adding rigidity. Low-profile SATA connectors with stainless steel latches resist accidental disconnection from vibration.

Installation Aids and Support

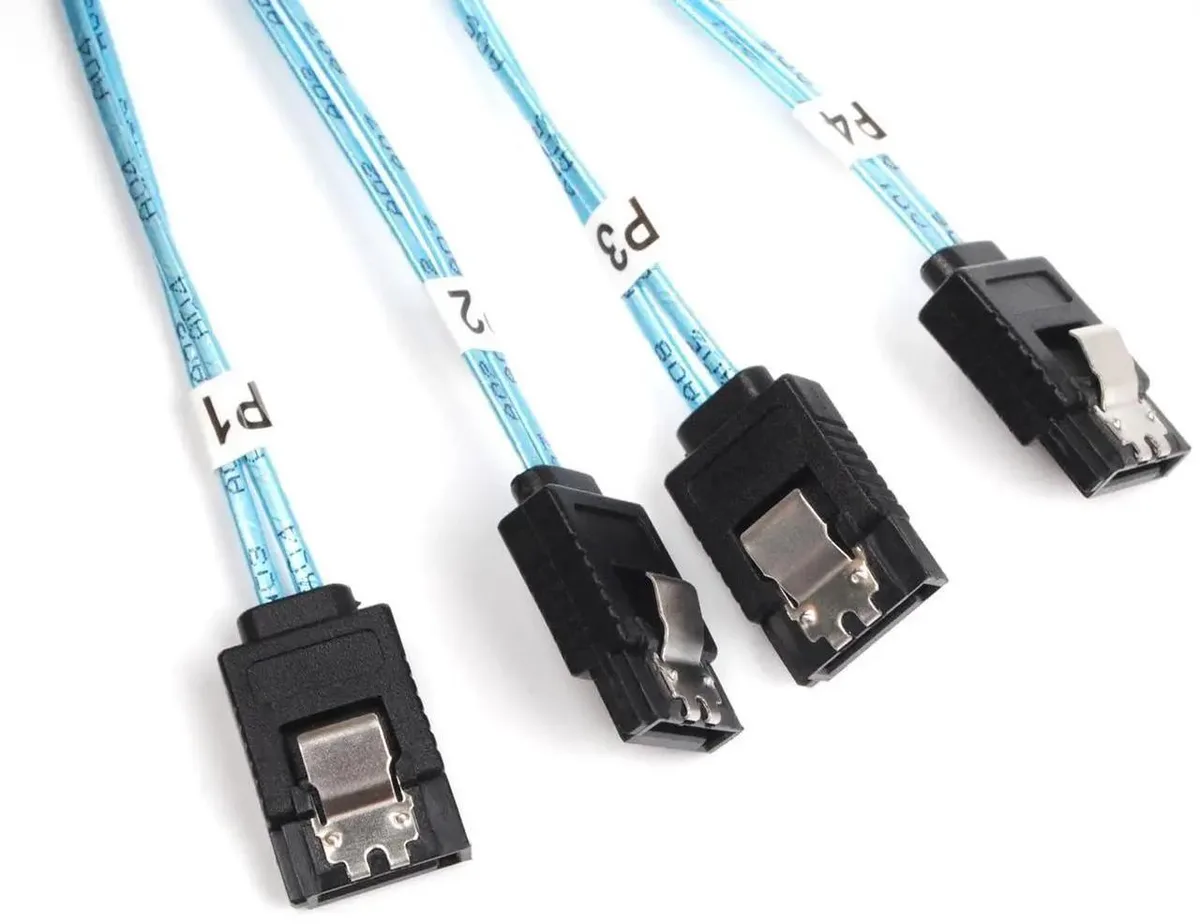

Each SATA leg carries P1 to P4 markers for quick identification after installation. Easy-grip treads on the connectors simplify mating and unmating in tight spaces. The package includes the 3.3ft cable plus a 12-month warranty and lifetime technical support from the manufacturer.

Highlights

  • Connects RAID or PCIe controller to four SATA drives via SFF-8087
  • Supports up to 6Gbps data transfer rate per drive channel
  • Flexible ribbon cables with acetate cloth tape for strain relief
  • Woven mesh sheath covers half the cable for easy routing
  • Low-profile SATA connectors with stainless steel latches prevent accidental disconnection

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the SFF-8087 male connector and the four SATA female connectors, and what is the common mistake?

Plug the 36-pin SFF-8087 male end into the RAID or controller port, then attach the four 7-pin SATA female ends to the drives; the step often missed is clicking the stainless steel latches on each low-profile SATA connector to lock them against vibration.

What maintenance or replacement will the cable need over time?

The acetate cloth tape and woven mesh sheath protect the ribbon cables from strain; inspect these coverings periodically and replace the cable if the sheathing frays or the latches no longer snap securely.

What limit appears first when the cable runs at sustained 6Gbps per channel?

The 6Gbps per channel data rate is the ceiling; sustained loads that demand more bandwidth will hit this interface limit before the cable itself degrades.
