Two Mini SAS SFF-8087 to four SATA breakout cables, woven mesh sheath, low-profile connectors

Vszerda

Vszerda Mini SAS SFF-8087 to 4 SATA 0.5 m 2 pack

SKU CH-10XN-MADEQ

Connects a controller with an SFF-8087 port to four SATA drives at 6 Gb/s per drive using 1.6 ft cables with strain relief and labelled connectors

  • TypeMini SAS
  • Connector DetailSff-8087 to 4xsata
  • Terminal GenderMale-to-Female
  • Speed6 gigabits_per_second
  • ConductorStainless Steel
  • FeaturesData Transfer
  • Connects RAID or PCIe controller to four SATA drives via SFF-8087 male
  • Supports 6 Gb/s data transfer rate per connected drive
  • Flexible ribbon cables with acetate cloth tape and woven mesh sheath for strain relief
  • Low-profile SATA connectors with stainless steel latches prevent accidental disconnection
  • Includes P1–P4 markers for easy port identification after installation

Mini SAS SFF-8087 to Four SATA

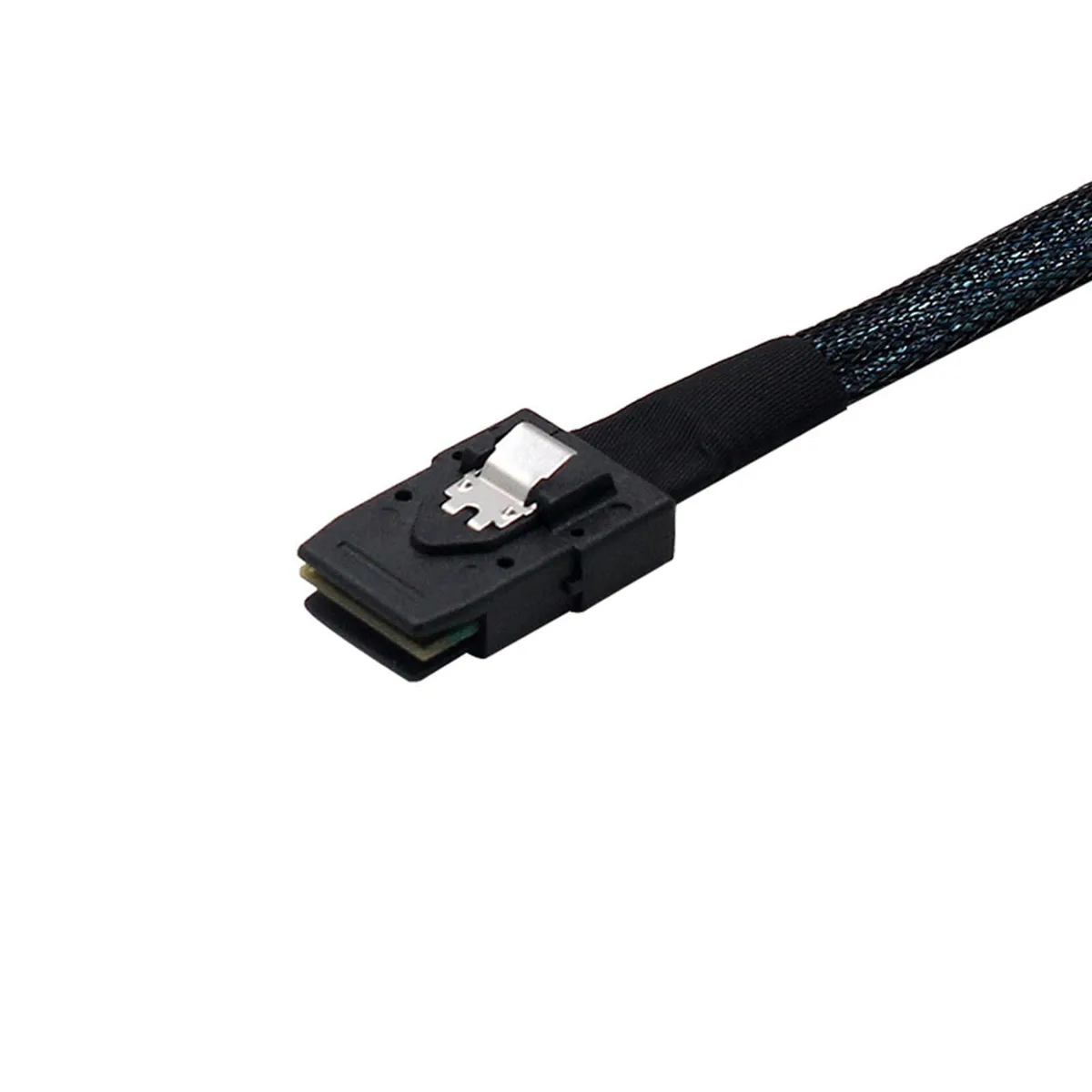

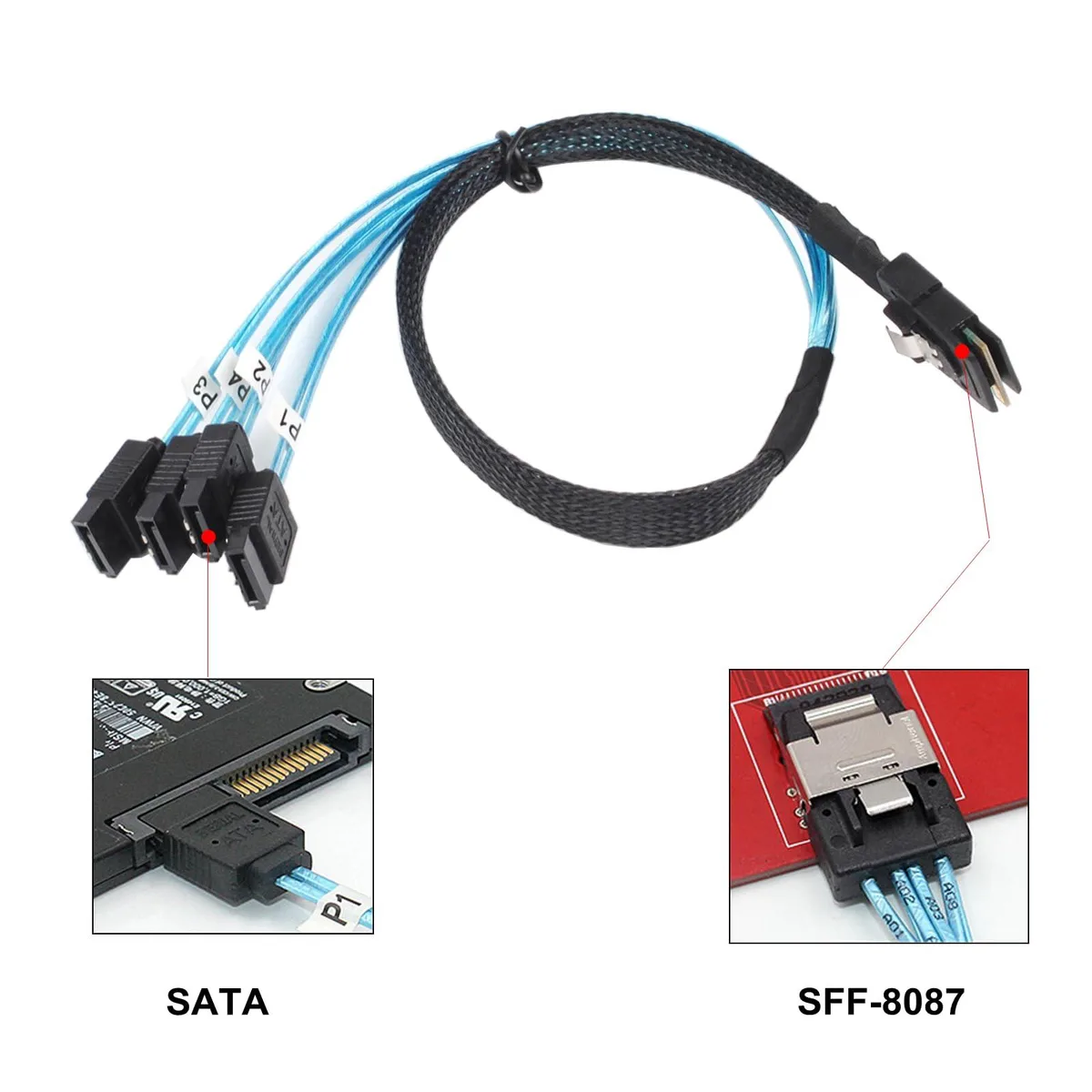

This Vszerda cable kit connects a RAID or PCIe controller equipped with an SFF-8087 port to four individual SATA drives or a backplane. Each 36-pin male Mini SAS connector breaks out to four 7-pin female SATA connectors rated for 6 Gb/s per drive. The pack contains two cables for multi-drive deployments.

Builders using SFF-8087 controllers

Suits system builders wiring internal storage arrays where the controller presents a single Mini SAS port and the chassis uses discrete SATA backplanes. The 0.5 m length fits compact enclosures. Not for external enclosures requiring eSATA, nor for direct drive attachment without a compatible controller.

6 Gb/s per SATA lane

Each of the four SATA lanes supports up to 6 gigabits per second, matching the SATA 3.0 specification. This bandwidth ceiling determines whether the cable meets the throughput needs of the attached drives.

Highlights

  • Connects RAID or PCIe controller to four SATA drives via SFF-8087 male
  • Supports 6 Gb/s data transfer rate per connected drive
  • Flexible ribbon cables with acetate cloth tape and woven mesh sheath for strain relief
  • Low-profile SATA connectors with stainless steel latches prevent accidental disconnection
  • Includes P1–P4 markers for easy port identification after installation

Specifications

BrandHeretom
Model8087-4xSATA-50-X2
TypeMini SAS
Connector DetailSff-8087 to 4xsata
Terminal GenderMale-to-Female
Speed6 gigabits_per_second
ConductorStainless Steel
FeaturesData Transfer

Questions about this item

Will the 36-pin SFF-8087 connector fit my existing RAID controller?

Yes, the 36-pin SFF-8087 male connector is designed for standard RAID or PCIe controllers with an SFF-8087 port.

How can I verify the 6 Gbps link is active on each drive?

Check the negotiated speed in your RAID BIOS or OS disk utility; each of the four SATA links should report 6 Gbps.

Does the pack include two cables with P1–P4 markers and latching SATA ends?

The 2-pack supplies two 1.6 ft breakout cables, each with P1–P4 labels and low-profile SATA connectors featuring stainless-steel latches.
