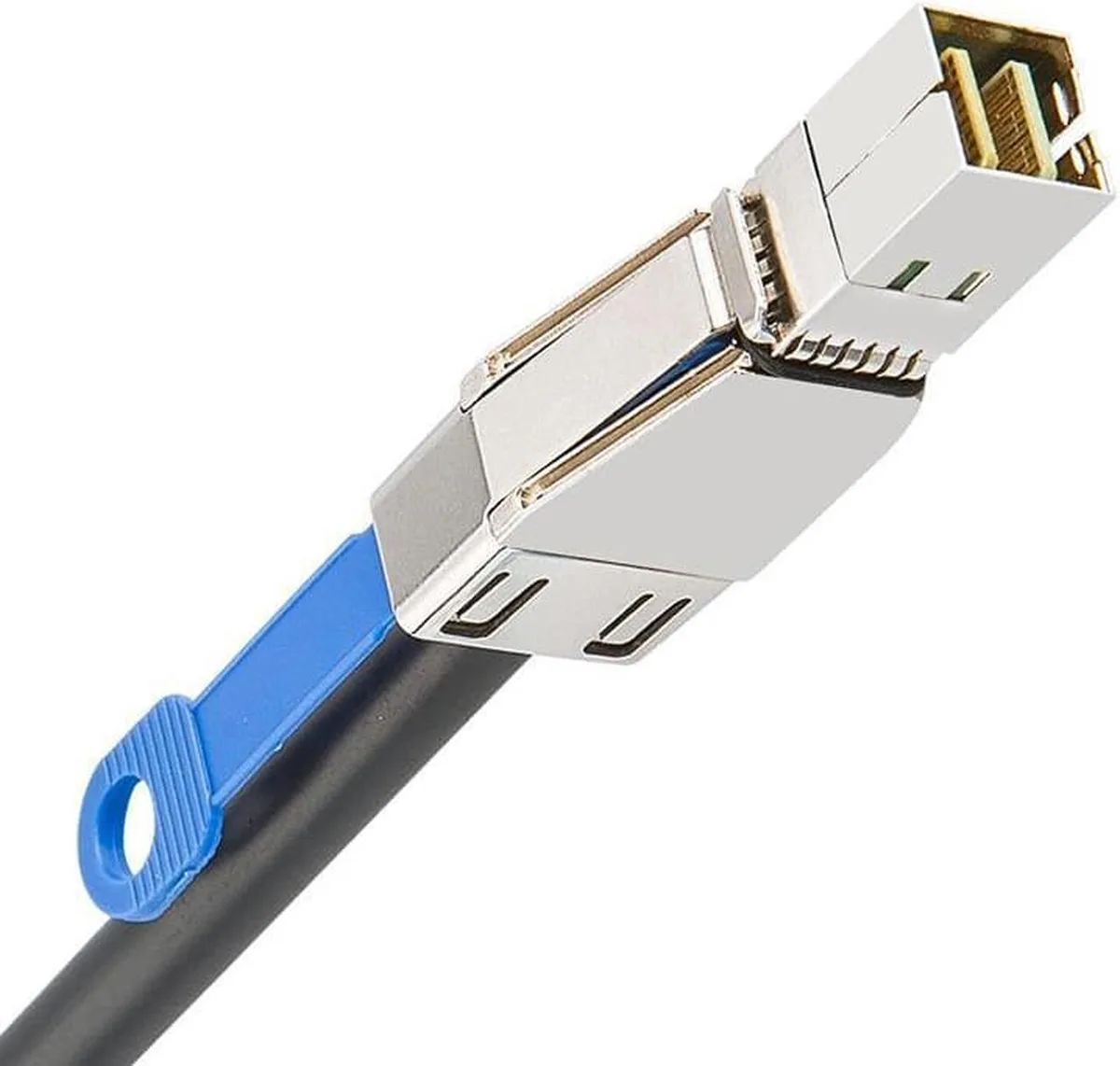

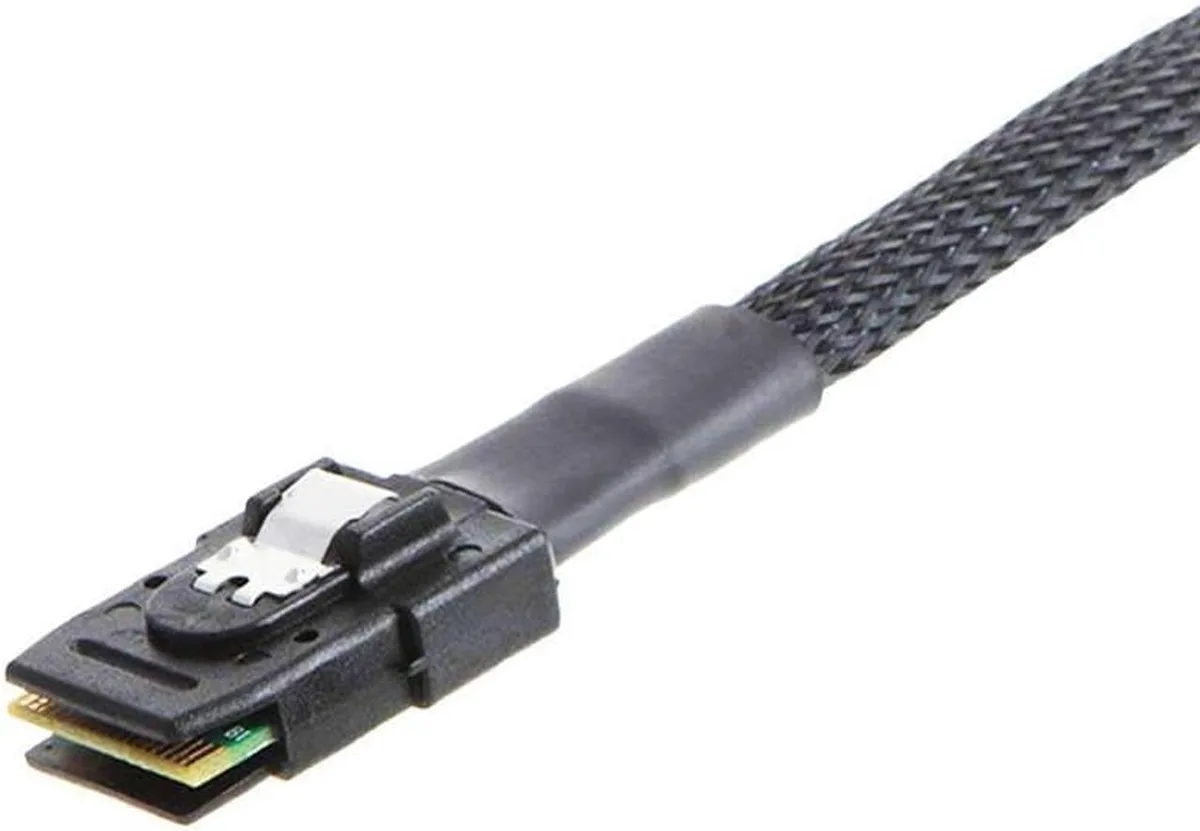

Black one-metre cable with SFF-8644 and SFF-8087 connectors

Vszerda

Vszerda MINI SAS HD to MINI SAS 36PIN Adapter Cable SFF-8644 to SFF-8087 12Gbps 1M

SKU CH-NBZ6-Y0VZB

Connects 12 Gbps SFF-8644 host ports to SFF-8087 drives over a one metre copper cable

Cable Length 3.3 Feet

  • 12Gbps throughput with SFF-8644 to SFF-8087 connectors
  • 1 metre copper cable links SAS HD and 36-pin SAS ports
  • Rated for 0.5A contact current at 30V AC
  • Withstands 300V DC for 0.1 second insulation test
  • Operates from -20 to 85 Celsius in server storage bays

Server storage link

This Vszerda cable connects a Mini SAS HD SFF-8644 port to a Mini SAS 36-pin SFF-8087 port at 12Gbps. It is built for hard-disk and server connections in storage arrays, RAID controllers or backplanes. The one-metre copper assembly is rated for 0.5A contact current and 30V AC working voltage. Operating range spans -20 to 85°C.

Replaces legacy fan-out leads

Use this adapter when a controller or backplane presents an SFF-8644 interface but the drive cage or expander still uses SFF-8087. The 12Gbps rating supports current SAS-3 speeds without the bulk of older multi-lane cables. The jump is worth it when you need a single tidy 1M link instead of multiple discrete cables or an active converter.

Verify port types and clearance

Confirm that one end of your connection is SFF-8644 and the other is SFF-8087 before ordering. Check that the 55.5N maximum insertion force is acceptable for your chassis latch design. Ensure the 1M length reaches between devices without tension and that the black copper jacket fits your cable routing path.

Highlights

  • 12Gbps throughput with SFF-8644 to SFF-8087 connectors
  • 1 metre copper cable links SAS HD and 36-pin SAS ports
  • Rated for 0.5A contact current at 30V AC
  • Withstands 300V DC for 0.1 second insulation test
  • Operates from -20 to 85 Celsius in server storage bays

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What connector spacing does the SFF-8644 end need on the backplane?

The SFF-8644 plug follows the standard 36-pin Mini SAS HD pitch, so it fits any backplane or HBA port wired to the SFF-8644 specification.

Which side should be seated first when connecting the 1 m cable?

Insert the SFF-8087 end into the controller or expander first, then plug the SFF-8644 end into the drive backplane; reversing the order can bend the finer HD pins.

How often should the cable be inspected given its 0.5 A contact rating?

Check the connectors and copper conductors once a year for dust, bent pins or insulation cracks, especially if the cable runs near the 85 °C upper temperature limit.
