Black Mini-SAS 36-pin SFF-8087 male to four SFF-8482 connectors with SATA power, 3.3 ft

Vszerda

Vszerda Mini-SAS 36-pin SFF-8087 to 4× SFF-8482 breakout cable with SATA power, 3.3 ft

SKU CH-FZ2K-2M9R8

Connects a Mini-SAS 36-pin SFF-8087 host to four SFF-8482 drives with integrated SATA 15-pin power at 6 Gbps over 3.3 ft

  • TypeMini-SAS Cables
  • ColorBlack/Blue
  • Length3.3
  • Terminal GenderMale-to-Female
  • Speed6 gigabits_per_second
  • ConductorCopper
  • Connects a 36-pin SFF-8087 host to four SFF-8482 drives
  • Each SFF-8482 connector includes a SATA 15-pin power adapter
  • Supports 6 Gb/s data transfer over copper conductors
  • Thin 30 AWG braided cable simplifies routing in tight chassis
  • 3 ft length suits internal server or workstation builds

Connection Layout

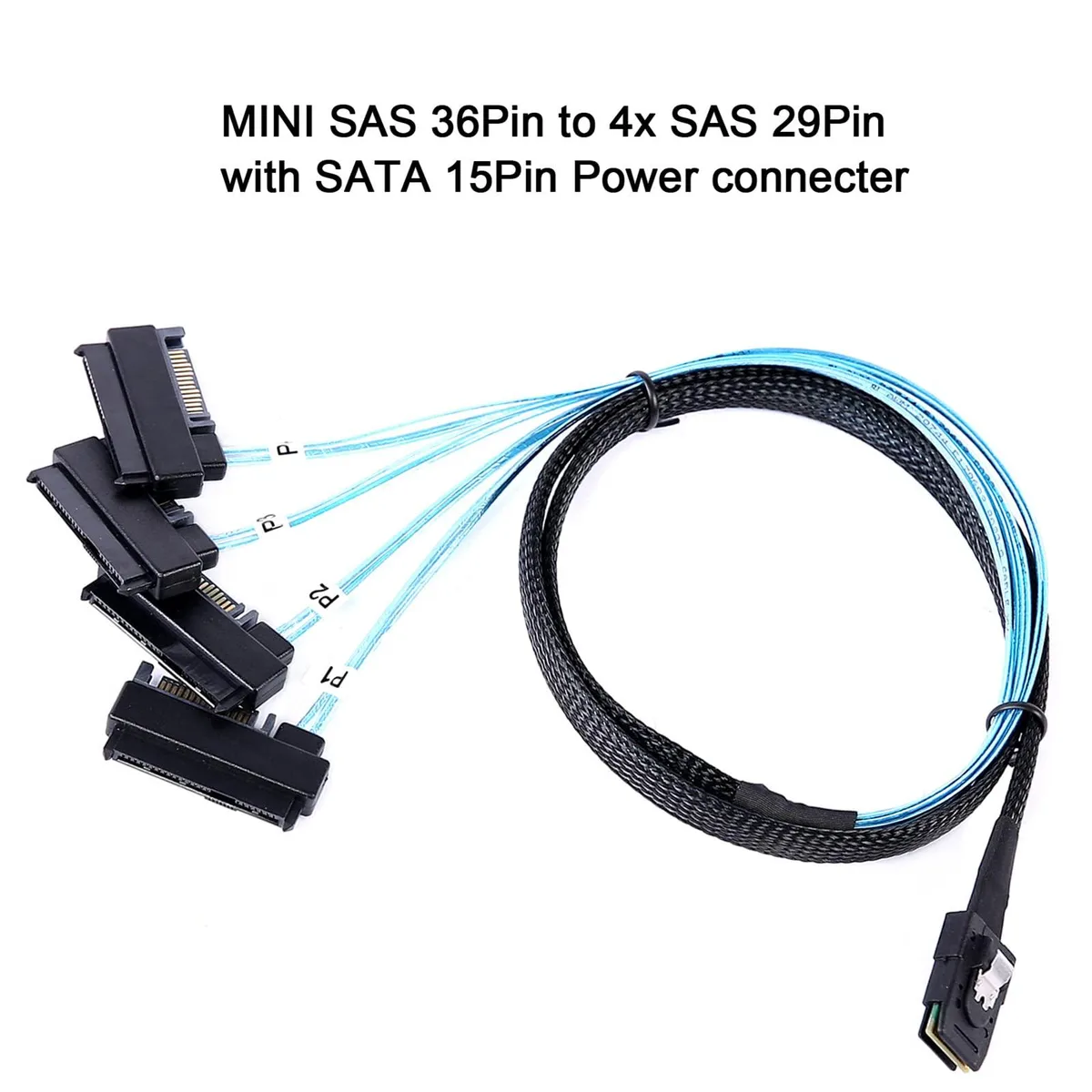

This breakout cable carries a single Mini-SAS 36-pin SFF-8087 male connector on the host side and splits to four SFF-8482 female connectors on the target side. Each target connector includes a SATA 7-pin data and 15-pin power adapter so drives receive both signals from one cable. The assembly is built with 30 AWG copper conductors rated for 6 gigabits_per_second transfer.

Installation Notes

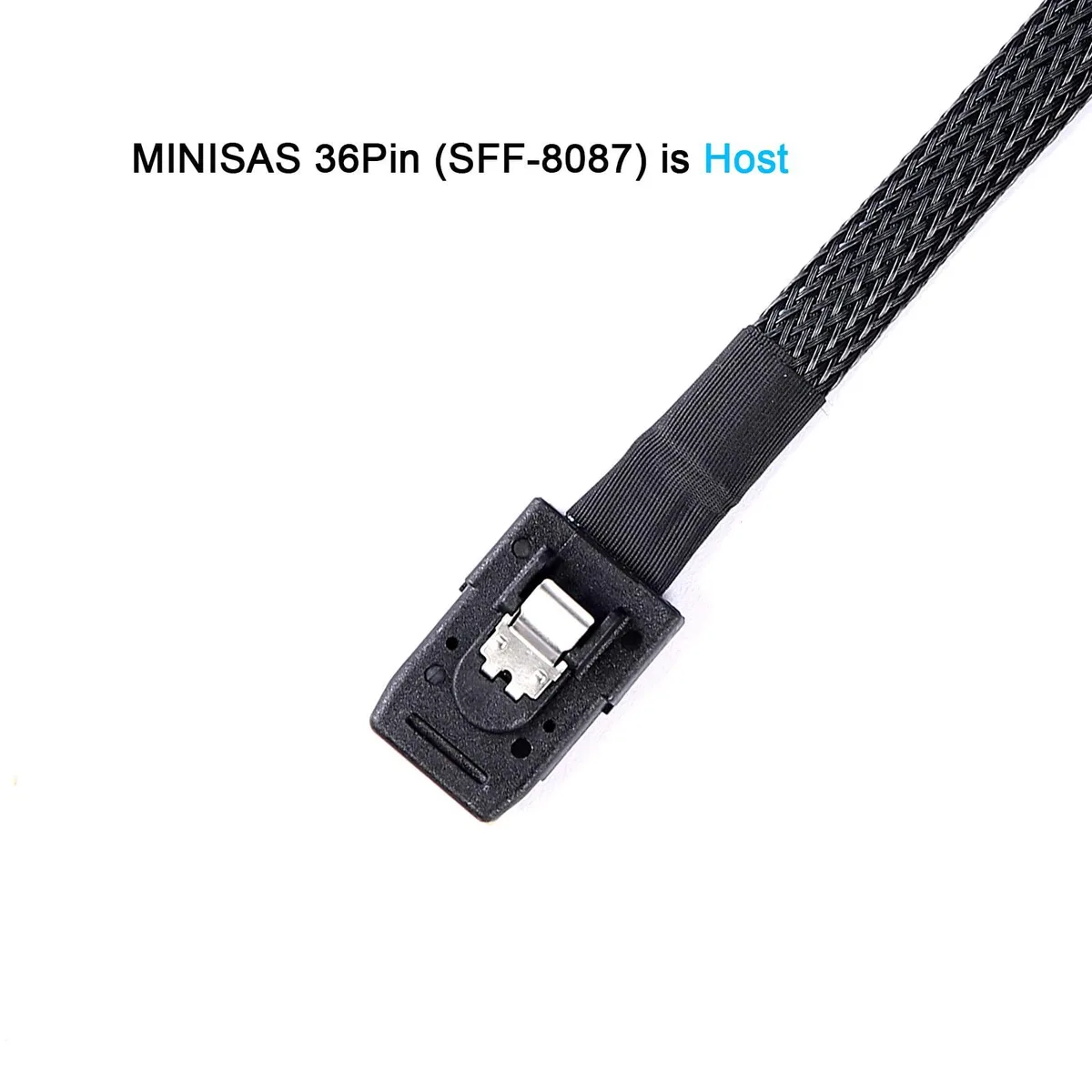

The thin, braided jacket makes routing straightforward in tight chassis, and the labelled ends help match each port during assembly. Connect the SFF-8087 end to a SAS HBA, RAID controller or motherboard Mini-SAS port; attach the four SFF-8482 ends directly to SAS or SATA hard drives. Do not plug the SFF-8087 side into a backplane or SAS drive — the cable is wired host-to-target only and will not function in reverse.

Deciding Specification

The critical figure is the 6 gigabits_per_second link speed on each of the four breakout lanes. If your controller or drives require 12 gigabits_per_second lanes this cable will not saturate them. Buyers needing 12 gigabits_per_second per lane should select a different assembly.

Highlights

  • Connects a 36-pin SFF-8087 host to four SFF-8482 drives
  • Each SFF-8482 connector includes a SATA 15-pin power adapter
  • Supports 6 Gb/s data transfer over copper conductors
  • Thin 30 AWG braided cable simplifies routing in tight chassis
  • 3 ft length suits internal server or workstation builds

Specifications

BrandADCAUDX
ModelMini SAS-009
TypeMini-SAS Cables
ColorBlack/Blue
Length3.3
Terminal GenderMale-to-Female
Speed6 gigabits_per_second
ConductorCopper
Featuressff-8087 to sff-8482 8087 breakout cable with power

Questions about this item

How can I confirm the SFF-8087 to 4× SFF-8482 breakout cable is working after connecting it to my RAID controller?

The controller BIOS or OS disk utility should detect each attached drive on the four SFF-8482 ports at the rated 6 Gb/s link speed.

What does the package contain and what extra items are required?

One 3.3 ft SFF-8087 male to four SFF-8482 connectors with integrated SATA 15-pin power adapters; you must supply the RAID controller or HBA with an SFF-8087 port and the target SAS/SATA drives.

Which cable version should I choose for a 6 Gb/s SAS HBA connecting four drives?

This 3.3 ft, 30 AWG braided assembly rated at 6 Gb/s per lane is the correct match for a 6 Gb/s HBA and four SFF-8482 drives.
