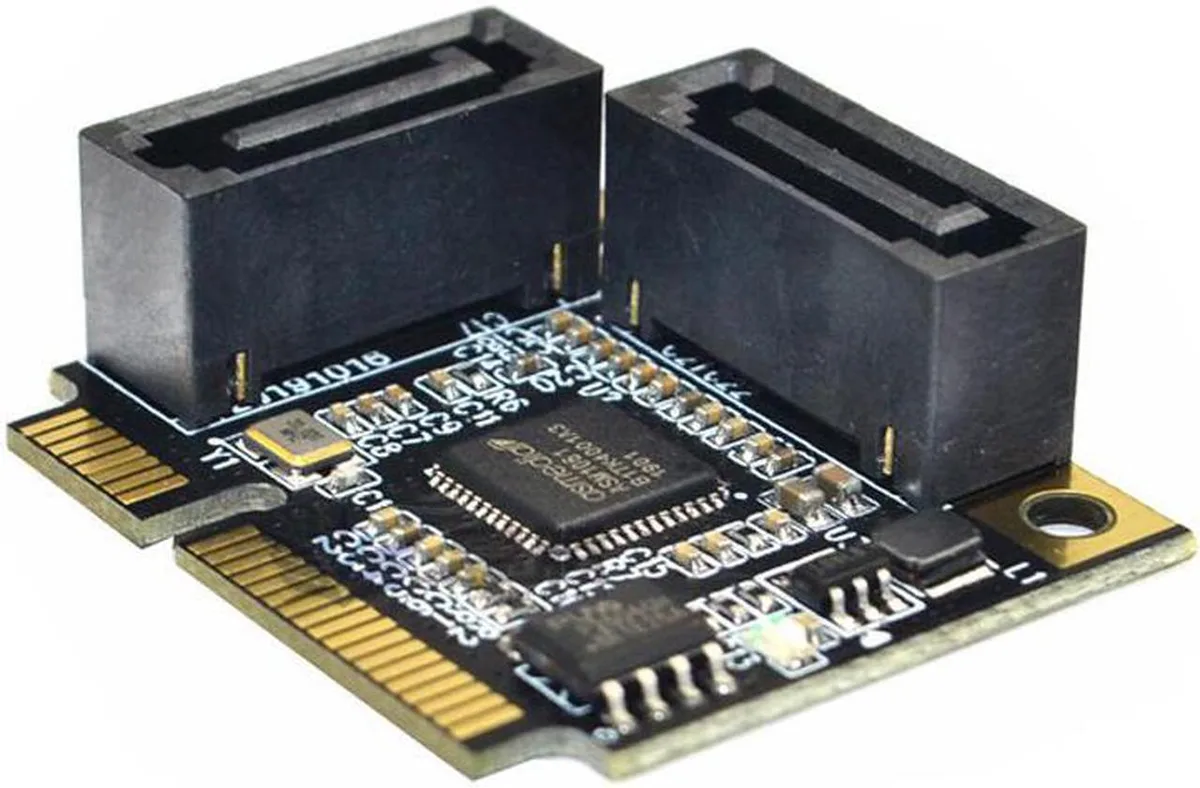

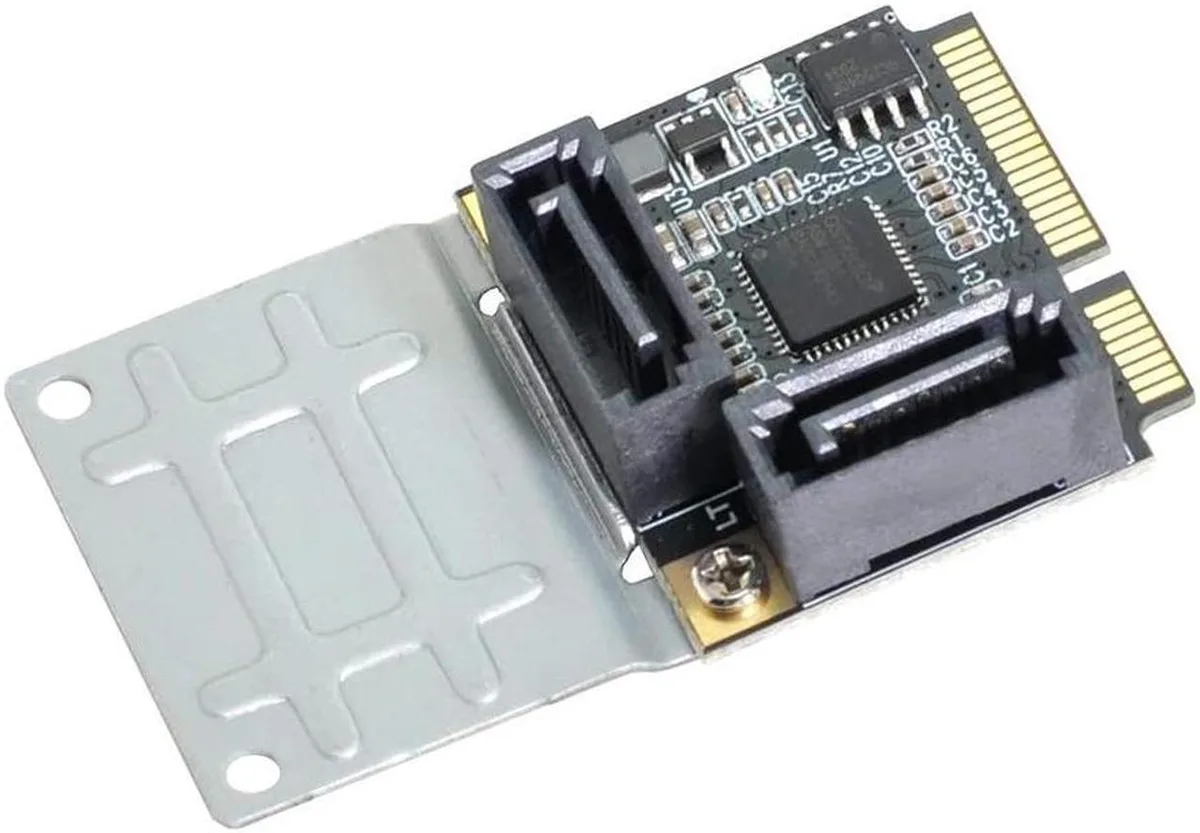

Green half-size circuit board with two SATA ports and a full-size bracket attached

Vszerda

Vszerda Mini PCIe to 2 Ports SATA III Adapter with Full Size Bracket

SKU CH-14G0-C537P

Adds two SATA 6.0 Gbps ports via a Mini PCIe 1.2 slot using the ASMedia 1061 controller

  • Adds two SATA III ports via a Mini PCIe slot
  • Supports 1.5, 3.0 and 6.0 Gbps transfer rates
  • Uses ASMedia 1061 chipset for reliable SATA control
  • Includes full-size bracket for standard chassis fit
  • NCQ and hot-plug support keep drives stable under load

Compact SATA III expansion

This Vszerda adapter converts a single Mini PCIe slot into two SATA III ports using the ASMedia ASM1061 chipset. It targets builders who need additional drive connections in small-form-factor systems or embedded boards where full-size PCIe slots are unavailable. The card supports SATA revision 3.0 transfer rates of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps. A full-size bracket is included for standard chassis mounting.

Dual-port capacity limits

The board provides two native SATA III connections, each capable of 6.0 Gbps throughput, so a pair of SSDs or hard drives can run at full interface speed. It does not implement RAID, so data redundancy or striping must be handled in software. The mSATA interface is not supported, and the Mini PCIe slot must comply with revision 1.2; newer or proprietary slot variants will not work. Under sustained heavy I/O the single-lane PCIe 2.0 link becomes the bottleneck before the SATA ports saturate.

Build integration needs

Installation requires a free Mini PCIe slot wired to PCIe signalling — not a USB-only or mSATA-keyed slot — and the low-profile half-size PCB fits tight enclosures with the supplied full-height bracket. The ASM1061 controller operates with AHCI or IDE drivers built into modern operating systems, and NCQ support helps maintain responsiveness under load. Hot-plug and hot-swap are supported when the platform firmware and cabling allow it. Power for attached drives must come from the system’s own supply; the adapter draws only controller power from the slot.

Highlights

  • Adds two SATA III ports via a Mini PCIe slot
  • Supports 1.5, 3.0 and 6.0 Gbps transfer rates
  • Uses ASMedia 1061 chipset for reliable SATA control
  • Includes full-size bracket for standard chassis fit
  • NCQ and hot-plug support keep drives stable under load

Specifications

No published specifications for this item yet.

Questions about this item

Will this adapter work in a motherboard that only has a Mini PCIe slot built to revision 1.2?

Yes, the card is compatible with the Mini PCIe specification revision 1.2, so it will function in that slot.

How can I verify the ASMedia ASM1061 chipset is operating at the full 6.0 Gbps rate after installation?

Check the negotiated link speed in your OS storage utility or BIOS; it should report 6.0 Gbps for any SATA III drive attached.

Does the package include the SATA data cables I need to connect two drives, or must I buy them separately?

The adapter board and a full-size bracket are included; SATA data cables are not supplied and must be purchased separately.
